Professional Rotary Laser Accuracy Straight Out of the Box

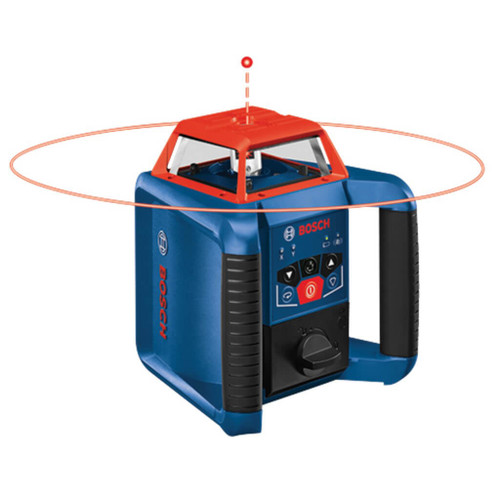

The Bosch GRL2000-40HVK Revolve2000 Complete Laser Kit is engineered for contractors who demand reliable, repeatable accuracy across demanding jobsite conditions. Whether you're establishing grade for a drainage system, laying out a foundation, or setting form elevations, this self-leveling rotary laser delivers ±1/8 inch at 100 feet accuracy and a working range of up to 2,000 feet in diameter with the included LR20 receiver. Every component needed for immediate, productive deployment is included — no separate accessory orders required.
Overview & Jobsite Applications
The Revolve2000 operates in full 360° horizontal rotation and vertical modes, making it equally capable on grade work, interior layout, and structural plumb checks. The laser self-levels within a ±5° range, reducing setup time on uneven terrain. An out-of-level alert with automatic shutdown protects measurement integrity — if the unit is disturbed, it stops and notifies the operator before a bad grade gets shot. The IP54-rated housing resists dust ingress and water spray, keeping the unit functional through typical outdoor construction conditions. Remote RC4 control lets a single operator adjust rotation speed, direction, and on/off status from up to 100 feet away without returning to the instrument.
Key Specifications
- Model: GRL2000-40HVK
- Accuracy: ±1/8 in. at 100 ft (±3 mm at 30 m)
- Self-Leveling Range: ±5°
- Working Range (with receiver): 2,000 ft diameter (610 m)
- Rotation Speed: 0–600 RPM (variable)
- Laser Class: Class 2, 635 nm red beam
- Battery Life: Up to 70 hours (4x D-cell alkaline)
- IP Rating: IP54 dust and splash resistant
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- RC4 Remote Range: Up to 100 ft
What's in the Kit
- GRL2000-40H Rotary Laser Head — the core instrument with horizontal and vertical modes
- LR20 Remote Laser Receiver — extends working range up to 2,000 ft diameter outdoors
- RC4 Remote Control — single-operator jobsite control up to 100 ft away
- BT150 Elevator Tripod — adjustable height for fast, stable setup
- GR500 Inches Grade Rod — 13 ft telescoping rod for elevation transfer and grade checking
- Carrying/Storage Case — molded protection for transport and storage of all components
- 4x D-Cell Alkaline Batteries — installed and ready to run on delivery
Job Applications
Site Grading & Drainage: Set consistent slope and elevation benchmarks across large earthwork sites. The 2,000 ft working diameter keeps the instrument stationary through multiple grade checks without repositioning.
Foundation Layout: Use vertical mode to project reference planes for squaring walls, aligning anchor bolts, and checking structural plumb during concrete pours and block work.
Concrete Flatwork & Form Setting: Establish screed elevation references and confirm form heights quickly across slab pours. Variable rotation speed allows beam brightness adjustment for different lighting conditions.
Interior Ceiling & Partition Layout: Horizontal mode projects a level reference plane around an entire room, accelerating suspended ceiling grid installation, dropped soffit layout, and partition top-track alignment.
Compatible Accessories
- Bosch LR20 Laser Receiver (replacement/additional)
- Bosch RC4 Remote Control (replacement)
- Bosch BT150 Elevator Tripod
- Bosch GR500 13 ft Telescoping Grade Rod
- Bosch WM4 Wall Mount / Ceiling Mount Bracket
- Bosch Rotary Laser Replacement Batteries (D-Cell)
Related Guides
- How to Set Grade with a Rotary Laser — Contractor Guide
- Rotary Laser vs. Line Laser: Choosing the Right Tool for Your Project
- How to Use a Laser Receiver Outdoors in Bright Conditions
- Foundation Layout Step-by-Step with a Rotary Laser Level
Frequently Asked Questions
- Does the GRL2000-40HVK work outdoors in direct sunlight?
- Yes. The included LR20 laser receiver is required for outdoor use in bright conditions. The receiver detects the laser beam electronically and provides audible and visual grade indicators, giving you reliable readings at distances up to 2,000 feet in diameter regardless of ambient light.
- What is the self-leveling range and what happens if the unit is knocked out of level?
- The Revolve2000 self-levels within a ±5° range automatically on startup. If the instrument is disturbed and pushed beyond that range during operation, the out-of-level alarm activates and the laser shuts down to prevent inaccurate readings from being shot by the crew.
- Can one person operate the GRL2000-40HVK without a helper at the instrument?
- Yes. The included RC4 remote control lets a single operator power the unit on and off, change rotation speed, and switch rotation direction from up to 100 feet away. This is particularly efficient on grading and flatwork operations where the rod person and instrument operator are the same individual.
- What batteries does the GRL2000-40HVK use and how long do they last?
- The laser head runs on four standard D-cell alkaline batteries, which are included in the kit. Battery life is rated up to 70 hours of continuous operation, making it practical to run through multiple full work days before a battery change is needed.
