Leica LMR360R Laser Machine Display Receiver - 6009892 - Receiver Only

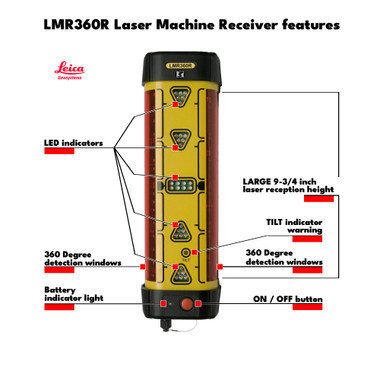

LEICA LMR360R Wireless Machine Display Receiver - 6008982 INCLUDES:  NiMH Rechargeable Batteries       360 degree MACHINE MOUNTED RECEIVER Offers highly accurate grade information for all visual machine control applications LEICA LMR360R Machine Receiver OVERVIEW Large 360 ° Detection windows pick up any rotating laser, from any angle. Built-in vertical indicator monitors angle of the stick, signaling if it's plumb or under or overextended.  Vertical position ensures consistent and accurate grade readings, saving money by reducing over and under cutting. Large magnets allow quick mount and easy movement from machine to machine. Mounting clamp kit also included with this package. LEICA LMR360R Machine Receiver FEATURES Accurate Grade Control Large 9-3/4 inch capture height Built-In Vertical Indicator OPTIONAL / Remote In-Cab Wireless Display panel mounts to the windshield with a heavy-duty suction cup. Won’t block operator’s view. (Sold Separately) Compatible with any Rotary Laser Waterproof Rechargeable Battery Included LED indicators show position of cutting edge in relation to the laser reference beam. Seven display channels (indicators) in coarse mode; nine channels in fine mode. Memory stores the last signal received. Arrows indicate which way to move the cutting edge to reach the reference plane. Receiver has plumb LED indicator; remote display has direction arrows for plumbing up the dipper stick. If used on a dozer or grader, these LEDs can be turned off for a simpler display and longer battery life. Rugged, waterproof construction. Built-in shock mounts minimize machine vibrations. CALL Contractors-Tools.com with questions and we can help you select the laser-referenced system to fit your needs and budget. Call 1-877-866-5721            LEICA LMR360R Machine Receiver (6009892) INCLUDES LMR360R Machine Receiver NiMH Rechargeable Batteries Charger 120 Volt AC Charger 2-Year Warranty             LEICA LMR360R Machine Receiver SPECIFICATIONS         Operating radius* 650 feet Reception 360 ° Capture window 9-3/4 inches Accuracy* Fine 1/4 inch Coarse 1/2 inch Vertical indicator ±5 ° Waterproof IP67 Power Rechargeable NiMh Battery Life 30 hours Charging Time 12 hours Frequency Range 100 feet betweek LMR360R and LMD360R Size (inches) 14.75 x 3 x 4.25 Weight 4 lbs without magnet or clamps                                LMR360R KIT OPTIONS Clamps Magnets In-Cab Display     6003354 ✅       6003355   ✅     6009892         6009893 ✅ ✅ ✅              MACHINE LASER RECEIVER COMPARISON CHART   Specifications LMR360 MC200 LMR240   Range Radius 1,350 Feet 650 Feet  820 Feet  Reception   360   200   240  Capture
