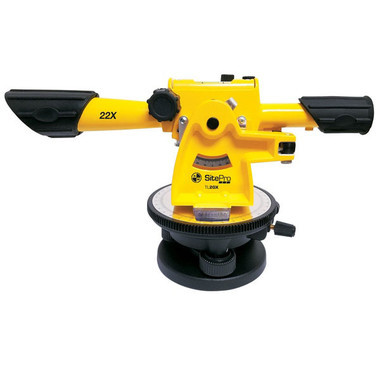

The SitePro 25-TL20X Meridian Transit-Level delivers optical-grade accuracy in a field-ready package built for small-to-medium construction projects. With 22X magnification, a ±1/4-inch leveling accuracy at 100 feet, and a practical 200-foot working range, this instrument gives crews the confidence to set foundation elevations, verify grades, and check building corners without stepping up to a full robotic total station. Whether you're framing a residential foundation, grading a pad, or shooting angles on a light commercial build, the 25-TL20X handles the job at a price point that makes sense for owner-operators and small crews.
Overview & Jobsite Applications
The Meridian transit-level fills the gap between a basic optical level and a full surveying instrument. Its transit function lets you plunge the scope and turn horizontal angles, making it useful for establishing right-angle corners, setting batter boards, and verifying building lines — tasks that a plain auto-level can't accomplish. The 200-foot effective range is well-matched to residential lot work and smaller commercial pads. A hard-coated, waterproof exterior and sealed optics stand up to jobsite dust, light rain, and the handling that comes with daily contractor use.
Key Specifications
- Model: SitePro 25-TL20X (Meridian Series)
- Magnification: 22X
- Leveling Accuracy: ±1/4 inch at 100 feet
- Effective Range: Up to 200 feet
- Objective Lens Diameter: 36mm coated optics
- Field of View: Approx. 1°30' / 8.7 ft at 300 ft
- Minimum Focus Distance: 4 feet
- Level Sensitivity (Vial): 30"/2mm main vial
- Horizontal Circle: 360° graduated, direct-reading vernier
- Plumb Bob: Optical plumb via leveling base
- Tripod Mount: 5/8" x 11 TPI standard thread
- Carrying Case: Included hard-sided case
Key Features
- Transit Function: Plunge-able scope for establishing and verifying 180° sight lines and setting right-angle building corners
- 22X Magnification: Sharp, high-contrast image at extended distances for precise rod readings
- Horizontal & Vertical Angles: Graduated circles allow angle layout without a separate instrument
- Sealed, Coated Optics: Multi-coated lenses resist fogging and dust ingress in field conditions
- Four-Screw Leveling Base: Stable and repeatable setup; compatible with standard 5/8" x 11 tripods
- Hard-Sided Carrying Case: Protects the instrument during transport and storage on active job sites
- Meets Building Code Accuracy Requirements: ±1/4" at 100 ft satisfies typical residential and light commercial foundation elevation tolerances
Job Applications
Foundation Layout & Elevation: Set and verify foundation corner elevations to meet local building code tolerances. The ±1/4" accuracy at 100 feet keeps footing elevations consistent across the full perimeter of residential and small commercial slabs.
Batter Board & Building Line Setup: Use the transit function to turn precise 90° corners for batter board layout, ensuring square building footprints before excavation begins.
Grade & Drainage Verification: Shoot grade stakes across a pad or lot to confirm positive drainage slopes, swale elevations, and finish grade compliance with civil drawings.
Structural Plumb & Alignment Checks: Plunge the scope to verify wall plumb, column alignment, and structural member positions during framing and tilt-up work.
Compatible Accessories
- SitePro Heavy-Duty Aluminum Tripod — 5/8" x 11 Mount
- SitePro Fiberglass Grade Rod — 13 ft Telescoping
- SitePro Rod Level & Tripod Bag Combo
- Replacement Optical Plumb Bob
- Hard-Sided Instrument Carrying Case (Replacement)
Related Guides
- How to Set Up a Transit-Level for Foundation Layout
- Transit-Level vs. Auto-Level: Which Do You Need?
- Reading a Grade Rod: A Field Guide for Contractors
- Building Code Accuracy Requirements for Foundation Elevations
Frequently Asked Questions
- What is the difference between the 25-TL20X and a standard auto-level?
- A standard auto-level only measures elevation differences — it cannot turn horizontal or vertical angles. The 25-TL20X is a transit-level, meaning the telescope plunges and rotates on a horizontal axis, allowing you to lay out right-angle corners, establish building lines, and turn angles in addition to shooting elevations. For foundation layout and batter board work, this makes it significantly more versatile than a plain auto-level.
- Is the 25-TL20X accurate enough for residential foundation work?
- Yes. The ±1/4-inch accuracy at 100 feet meets or exceeds the leveling tolerances required by most residential and light commercial building codes for foundation elevation verification. For high-precision surveying or large commercial projects with tighter specs, a digital level or total station may be more appropriate.
- What tripod does the SitePro 25-TL20X use?
- The instrument mounts on any standard 5/8" x 11 TPI threaded tripod — the most common thread pattern in the industry. SitePro aluminum and fiberglass tripods are fully compatible, as are most third-party contractor tripods with the same thread standard.
- Does the 25-TL20X come with a carrying case?
- Yes. Every SitePro 25-TL20X ships with a hard-sided carrying case designed to protect the instrument during transport and storage. The case includes foam-padded interior cutouts that secure the instrument and any included accessories against impact and vibration on the job site.
