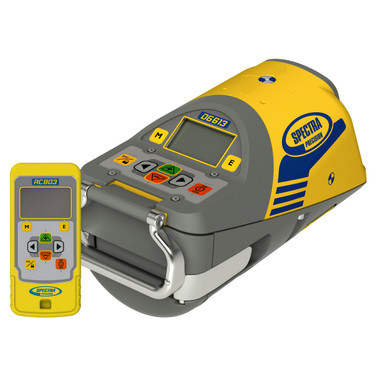

Spectra DG613-5 Dialgrade Pipe Laser with Large Pipe Centering Plate, Vertical Pole, Remote Control, Target and Rechargeable Batteries

Overview

The Spectra Precision DG613-5 Dialgrade Pipe Laser represents professional-grade precision engineering for large-diameter pipe installation projects. This waterproof, compact system delivers accurate grade establishment for pipes ranging from 10 to 15 inches in diameter, making it the ideal solution for municipal sewer work, storm drain systems, and commercial underground utility installations. The complete kit arrives job-ready with a heavy-duty large pipe centering plate, wireless remote control for convenient grade adjustments, high-visibility laser target, and rechargeable battery system that eliminates costly downtime. Built to withstand harsh jobsite conditions, the DG613-5 combines rugged construction with intuitive dial-grade operation, allowing contractors to establish consistent grades quickly while reducing measurement errors and costly re-work on critical underground infrastructure projects.

Key Specifications

• Pipe Diameter Range: 10" to 15" (large pipe applications)
• Grade Range: ±10% in 1% increments via dial adjustment
• Accuracy: ±1/16" at 100 feet
• Laser Type: Visible red beam, Class 2 laser product
• Working Range: Up to 600 feet with standard target; 1,000+ feet with laser receiver
• Power Source: Rechargeable NiMH battery pack (included); optional alkaline battery operation
• Battery Life: 30+ hours continuous operation per charge
• Environmental Rating: IP68 waterproof and dustproof protection
• Operating Temperature: 0°F to 122°F (-18°C to 50°C)
• Remote Control Range: Up to 300 feet line-of-sight wireless operation
• Self-Leveling: Automatic pendulum leveling system with out-of-level alert
• Housing: Impact-resistant ABS construction with protective rubber over-molding

What's in the Kit

• Spectra Precision DG613 Dialgrade Pipe Laser (main unit)
• Large Pipe Centering Plate for 10" to 15" diameter pipes
• RC602 Wireless Remote Control with belt clip
• High-Visibility Laser Target with grade markings
• Rechargeable NiMH Battery Pack
• AC Battery Charger with power cord
• Vertical Alignment Pole for setup verification
• Heavy-Duty Carrying Case with custom foam insert
• Operator's Manual and Quick Reference Guide
• Factory Calibration Certificate

Job Applications

• Municipal Sewer Line Installation: The 10-15" pipe capacity perfectly matches standard municipal sewer specifications, while the precision grade control ensures proper flow rates and prevents settling or backflow issues that lead to costly maintenance calls.
• Storm Drain Systems: Waterproof IP68 construction means the laser continues operating even in wet trench conditions, and the extended 600-foot range handles long storm drain runs without repositioning, saving significant setup time on linear projects.
• Commercial Site Development: The wireless remote allows grade adjustments from the excavator or spoils pile rather than climbing in and out of deep trenches, improving both productivity and jobsite safety on commercial developments with extensive underground utilities.
• Culvert and Drainage Pipe Projects: The dial-grade system with 1% increments provides the flexibility needed for varying terrain conditions, while the rechargeable battery system delivers 30+ hours of runtime for multi-day culvert installations in remote locations.
• Industrial Process Piping: The vertical alignment pole and precision ±1/16" accuracy at 100 feet meets strict industrial specifications for gravity-flow process lines where grade tolerance directly impacts system performance and operational efficiency.
• Large-Diameter Water Main Installations: The robust centering plate maintains stable positioning in oversized pipes, while the visible red laser beam remains easily detectable even in longer pipe sections where ambient light penetration can wash out lower-quality laser systems.

Compatible Accessories

• Spectra LR30W Wireless Laser Receiver - Extends working range beyond 1,000 feet for extra-long pipe runs
• Small Pipe Centering Plate (6"-10") - Adapts the DG613 for smaller diameter applications
• Replacement NiMH Battery Pack - Keep a spare charged for continuous multi-day operations
• Magnetic Mounting Bracket - Alternative mounting solution for steel pipe installations
• Laser Target Extension Pole - Provides stable target positioning in larger pipe diameters
• Dual-Bay Battery Charger - Charges two battery packs simultaneously for high-volume contractors
• Heavy-Duty Tripod Adapter - Enables above-ground grade verification and setup

Related Guides

• Complete Guide to Pipe Laser Setup and Best Practices
• Understanding Pipe Grades and Slope Calculations for Drainage Systems
• How to Verify and Maintain Pipe Laser Accuracy on the Jobsite
• Choosing the Right Pipe Laser for Your Diameter Requirements

FAQ

What size pipes can I use the DG613-5 system with?

The DG613-5 kit includes a large pipe centering plate specifically designed for pipes ranging from 10 inches to 15 inches in diameter. This makes it ideal for municipal sewer lines, large storm drains, and commercial underground utility installations. If you work with smaller pipes (6-10 inches), you can purchase a separate small pipe centering plate accessory to expand the system's versatility.

How far can I set grade with this pipe laser system?

Using the included laser target, the DG613-5 delivers visible beam detection up to 600 feet, which covers most standard pipe runs without repositioning. For longer installations, you can add the optional LR30W laser receiver to extend the working range beyond 1,000 feet. The wireless remote control operates up to 300 feet from the laser, allowing you to make grade adjustments from anywhere along the trench without climbing down to the laser unit.

Is the DG613-5 truly waterproof for wet trench conditions?

Yes, the DG613-5 features an IP68 environmental rating, which means it's completely waterproof and dustproof for submersion and harsh jobsite conditions. The sealed housing protects the internal components even when the laser is accidentally dropped in standing water or mud. This durability eliminates weather-related work stoppages and provides reliable performance in real-world underground construction environments where moisture is unavoidable.

How long does the battery last, and can I use regular batteries as backup?

The included rechargeable NiMH battery pack provides 30+ hours of continuous operation on a single charge, which typically covers multiple workdays for most contractors. The system also accepts standard alkaline batteries as an emergency backup power option, giving you flexibility when working in remote locations or during extended projects. Many contractors keep a spare rechargeable pack on hand to ensure uninterrupted operation on critical deadline-driven installations.
