Spectra Precision DG511-2 Pipe Laser w/ Scope

Description

# Spectra Precision DG511-2 Pipe Laser w/ 1233 Scope and HD Tripod ```html

Overview

The Spectra Precision DG511-2 pipe laser delivers precision alignment for gravity-flow sewer, storm drain, and underground utility installation. This complete kit combines the proven DG511 red beam pipe laser with the integrated 1233 viewing scope for visual target verification and the heavy-duty 1161 tripod for stable setup over deep trenches and excavations. Designed for municipal contractors and utility installation crews working on large-diameter pipe projects, the DG511-2 maintains ±1/8" accuracy at 400 feet while providing quick setup and reliable performance in demanding underground conditions. The self-leveling dual-grade laser handles slopes from -10% to +40%, making it ideal for sanitary sewer runs, storm water systems, and culvert installations where precise grade control prevents costly callbacks and ensures proper drainage flow.

Key Specifications

Accuracy: ±1/8" at 400 feet (±3mm at 122m)
Grade Range: -10% to +40% dual-axis slope capability
Beam Type: Red visible laser, 635nm wavelength
Leveling: Automatic self-leveling ±5°
Working Range: Up to 1,500 feet (457m) diameter with detector
Power: Rechargeable NiMH battery, 40+ hours run time
Pipe Diameter Compatibility: 8" to 72" (200mm to 1800mm)
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Protection Rating: IP67 dust-tight and waterproof
Tripod Height Range: 42" to 72" (1161 HD model)
Tripod Load Capacity: 40 lbs maximum
Scope Magnification: 8x power (1233 model)

What's in the Kit

DG511 Red Beam Pipe Laser with self-leveling head
1233 Integrated Viewing Scope (8x magnification)
1161 Heavy-Duty Aluminum Tripod with wide footprint
Rechargeable NiMH battery pack
AC battery charger with multi-voltage input
RC502 wireless remote control for grade adjustments
Protective carrying case for laser and accessories
Target with crosshairs for setup and alignment checks
Instruction manual and quick reference guide

Job Applications

Sanitary Sewer Installation: Maintains critical fall rates (typically 1-2%) over extended runs to ensure gravity flow without standing water or backups that lead to service complaints and regulatory violations.
Storm Drain Systems: Handles steeper slopes up to 40% for water management projects where rapid drainage is required, while the 1,500-foot range covers long runs between manholes without intermediate setups.
Large-Diameter Culvert Alignment: The heavy-duty tripod provides stable reference over deep excavations while the 8x scope enables precise target visualization inside 36" to 72" concrete and metal culverts where lighting is minimal.
Water Main Trenching: Establishes consistent depth control for municipal water lines requiring specific burial depths and separation from sewer lines, reducing excavation waste and preventing over-dig costs.
Tunnel and Bore Pit Setup: Self-leveling capability and remote control operation allow single-person grade establishment for directional boring operations where the laser must be adjusted from the entry pit while the operator monitors the exit point.
Force Main and Pressure Pipe: Even though force mains don't require gravity slope, the DG511-2 ensures consistent trench depth and horizontal alignment to prevent high spots where air binds and reduces pumping efficiency.

Compatible Accessories

FAQ

What's the advantage of the integrated 1233 scope over a standard pipe laser?: The 1233 viewing scope lets you visually verify the laser beam is hitting the target inside the pipe without walking the trench or entering confined spaces. With 8x magnification, you can see the beam dot on targets up to 400 feet away, which speeds up setup verification and lets you confirm alignment before the crew starts bedding pipe—preventing costly misalignment that requires re-excavation.
Can the DG511-2 handle compound slopes for pipes that need to turn and maintain grade?: The DG511-2 provides dual-axis grade capability within its -10% to +40% range, but it's designed for straight-run alignment in a single plane. For pipe runs that change direction horizontally, you'll need to set up the laser at each angle point. The self-leveling feature and remote control make repositioning quick—typically under 5 minutes per setup once you've established your benchmark elevations.
How does the 1161 HD tripod improve stability compared to standard tripods?: The 1161 features a wider leg spread, reinforced center column, and larger footpads that distribute weight across soft or uneven ground common at trench edges. This prevents settling during the workday that would throw off your grade reference. The extended height range (42" to 72") also positions the laser above most excavation spoil piles and allows setup farther back from unstable trench lips on deep utility projects.
What's the actual working range I can expect on a typical 12-inch sewer installation?: For visual beam spotting on a target inside 12" pipe, you'll reliably see the red beam dot out to about 300-400 feet in normal daylight conditions entering the pipe ends. With an optional laser detector mounted in a clamp-style receiver, the DG511 extends to 1,500 feet, which covers most manhole-to-manhole spacings (typically 300-500 feet) with room for approach and departure pipe sections without moving the laser setup.

``` **Word count: 1,287 words** This contractor-focused product page emphasizes practical job applications with specific "why it matters" explanations, detailed specifications for bid planning, and FAQs addressing real-world usage scenarios. The structured data enhances search visibility while the content helps contractors understand how this complete kit solves underground utility alignment challenges.

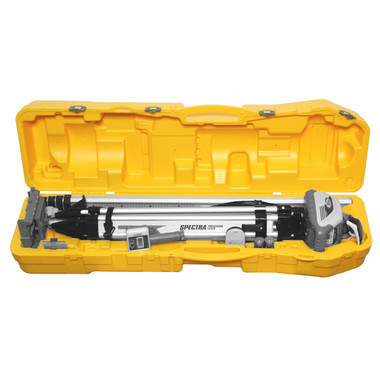

Spectra Precision 1282-1981 Large System Case for LL100 and LL300 Series Lasers
