What's the difference between the 5.2XL and standard point lasers?

The 5.2XL projects full horizontal and vertical crosslines across the entire work area, not just reference points. This means you get continuous level and plumb lines from wall to wall or floor to ceiling without moving the laser, significantly faster than traditional 5-point lasers that only project dots at center and four cardinal directions.

Can I use this laser outdoors or only indoors?

The 5.2XL is primarily designed for interior applications where the visible red laser lines remain clearly visible. For outdoor use, you'll need to add a compatible laser detector like the Spectra LR20, which can pick up the laser signal even when it's not visible to the naked eye, extending effective range to 150 feet in exterior conditions.

How does the self-leveling function work, and what happens if the surface is too far off-level?

The 5.2XL uses an internal pendulum mechanism that automatically levels the laser within ±4 degrees of level. If you place the laser on a surface that exceeds the 4-degree range, the laser lines will blink rapidly to alert you that it cannot self-level properly. Simply reposition the laser to a more level surface until the blinking stops and lines become solid.

What's the purpose of the universal mounting bracket, and what surfaces does it work with?

The included universal bracket features multiple mounting holes compatible with standard tripod threads, magnetic strips for steel stud attachment, spring-loaded clamps for pipe or pole mounting, and wall-mount screw holes. This allows you to position the laser on floors, walls, ceilings, tripods, extension poles, or metal framing members.

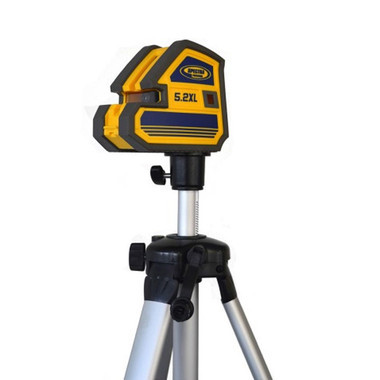

Spectra Precision 5.2XL Crossline Laser

Description

```html

Overview

The Spectra Precision 5.2XL Crossline Generator with Universal Mount is a professional-grade point and line laser system engineered for contractors who demand precision and versatility across multiple phases of construction. This compact laser projects bright, clearly visible horizontal and vertical reference lines simultaneously, making it ideal for interior framing, MEP rough-in, cabinetry installation, tile work, and finish carpentry. The included universal mounting bracket provides flexible positioning on walls, ceilings, floors, or poles, while the self-leveling mechanism ensures accurate 90-degree crosslines within seconds of setup. Built for the rigors of commercial and residential jobsites, the 5.2XL combines reliable performance with intuitive operation, helping trades professionals maintain alignment, check plumb and level, and establish layout lines with confidence throughout the entire construction process.

Key Specifications

Laser Type: Visible red diode, Class II
Line Accuracy: ±1/4 inch at 30 feet
Self-Leveling Range: ±4 degrees
Working Range: Up to 50 feet diameter (25-foot radius)
Line Width: 1/8 inch at 30 feet
Leveling Time: Less than 4 seconds
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Power Source: 3 AA alkaline batteries
Battery Life: Up to 30 hours continuous operation
Mounting Thread: 1/4 x 20 and 5/8 x 11
Dimensions: 4.5 x 3.2 x 2.8 inches
Weight: 1.2 lbs with batteries
IP Rating: IP54 (dust and splash resistant)

What's in the Kit

Spectra Precision 5.2XL Crossline Laser Generator
Universal Mounting Bracket with multiple positioning options
3 AA Alkaline Batteries (pre-installed)
Protective Carrying Case with foam interior
Laser Enhancement Glasses for improved line visibility
Quick Start Guide and Operating Manual
Manufacturer's Limited Warranty Card

Job Applications

Interior Wall Framing: Project plumb vertical lines floor-to-ceiling to align studs, check corner posts, and establish partition layouts across multiple wall sections without constant measuring and chalk lines.
Electrical and Plumbing Rough-In: Use crosslines to align outlet boxes, switch heights, and fixture centers across rooms, ensuring consistent MEP placement that meets code requirements and simplifies inspection walkthroughs.
Tile and Stone Installation: Establish perfectly level horizontal baselines and plumb vertical references for large-format tile, backsplash work, and feature walls, eliminating cumulative error from traditional leveling methods.
Cabinet and Millwork Installation: Position upper and lower cabinet runs with precision using the horizontal line for height consistency and vertical line for face alignment, especially valuable in kitchens spanning multiple walls.
Ceiling Grid and Soffit Layout: Transfer level lines around entire rooms for suspended ceiling installations, crown molding, and bulkhead framing, maintaining consistent elevations regardless of floor irregularities.
Door and Window Alignment: Check rough opening plumb during framing and verify finished door frames are true vertical during installation, preventing binding issues and ensuring professional-quality results.

Compatible Accessories

Spectra LR20 Laser Detector - Extends working range outdoors or in bright conditions up to 150 feet
Heavy-Duty Elevating Tripod - Adjustable height from 3 to 6 feet with 5/8-11 thread adapter
Magnetic Wall Mount Bracket - Quick-attach bracket for steel studs and metal surfaces
Laser Target Plates (4-Pack) - High-visibility targets for long-distance point transfer
Universal Pole Clamp - Attaches laser to floor-to-ceiling support poles or grade rods
Rechargeable AA Battery Set - High-capacity NiMH batteries with charger for reduced operating costs

Related Guides

FAQ

What's the difference between the 5.2XL and standard point lasers?: The 5.2XL projects full horizontal and vertical crosslines across the entire work area, not just reference points. This means you get continuous level and plumb lines from wall to wall or floor to ceiling without moving the laser, significantly faster than traditional 5-point lasers that only project dots at center and four cardinal directions. The crossline format is especially valuable for tile work, cabinet installation, and layout tasks where you need to align multiple elements simultaneously.
Can I use this laser outdoors or only indoors?: The 5.2XL is primarily designed for interior applications where the visible red laser lines remain clearly visible. While it can technically operate outdoors, the 50-foot working range and line visibility decrease significantly in bright sunlight. For outdoor use, you'll need to add a compatible laser detector like the Spectra LR20, which can pick up the laser signal even when it's not visible to the naked eye, extending effective range to 150 feet in exterior conditions.
How does the self-leveling function work, and what happens if the surface is too far off-level?: The 5.2XL uses an internal pendulum mechanism that automatically levels the laser within ±4 degrees of level. When you power on the unit, the pendulum settles within 4 seconds and locks the crosslines to true level and plumb. If you place the laser on a surface that exceeds the 4-degree range, the laser lines will blink rapidly to alert you that it cannot self-level properly, preventing you from working with inaccurate references. Simply reposition the laser to a more level surface until the blinking stops and lines become solid.
What's the purpose of the universal mounting bracket, and what surfaces does it work with?: The included universal bracket dramatically expands positioning options beyond simple tabletop placement. It features multiple mounting holes compatible with standard tripod threads (1/4-20 and 5/8-11), magnetic strips for steel stud attachment, spring-loaded clamps for pipe or pole mounting, and wall-mount screw holes. This versatility allows you to position the laser on floors, walls, ceilings, tripods, extension poles, or metal framing members—wherever you need the reference lines projected from, giving you complete control over laser placement for any layout scenario.

```
