What pipe sizes can the DG813 accommodate?

The DG813 works in pipes from 8 inches to 36 inches in diameter using the included adjustable pipe stand. The stand features spring-loaded extensions that secure the laser firmly against the pipe wall, maintaining stability even in wet conditions. For pipes larger than 36 inches, optional extension accessories are available to expand the range.

How far can I control the laser with the RC803 remote?

The RC803 wireless remote provides reliable control up to 300 feet from the laser, allowing operators to make grade adjustments, power the unit on/off, and check battery status without leaving the work area. This eliminates time-consuming trips back to the laser head and improves safety by keeping workers out of traffic zones and confined spaces.

Can the DG813 be used in wet or flooded pipe conditions?

Yes, the DG813 is rated IP68 for complete dust and water protection, meaning it can withstand submersion and operate reliably in wet trenches, flooded pipe sections, and muddy conditions typical of underground utility work. The sealed housing protects internal electronics while maintaining laser accuracy even when partially submerged.

What's the difference between the DG813 and older Dialgrade models?

The DG813 features an upgraded graphic LCD display with improved visibility in bright conditions, extended battery life (40+ hours vs. 30 hours), enhanced wireless range for the remote control, and lighter weight construction. The accuracy specification remains industry-leading at ±10 arc seconds, but the user interface has been redesigned for faster setup and fewer button presses to change grades.

Description

```html

Spectra Precision DG813 Pipe Laser with Dialgrade, RC803 Remote & SF803 Spotfinder

$5,196.00

Overview

The Spectra Precision DG813 Dialgrade Pipe Laser represents the latest generation in laser-guided underground utility construction, combining compact design with advanced beam intelligence. Designed for municipal sewer contractors, water authority crews, and utility installation firms, the DG813 delivers precision grade control in pipes ranging from 8 to 36 inches. The integrated graphic-display Dialgrade technology eliminates manual calculations and setup errors, while the included RC803 wireless remote provides full laser control from the trench—no trips back to adjust settings. Combined with the SF803 Spotfinder receiver for rapid beam acquisition, this complete kit ensures accurate installations whether you're laying storm drains, sanitary sewers, or force mains in challenging underground environments.

Key Specifications

Pipe Diameter Range: 8" to 36" (200mm to 900mm)
Grade Range: -10% to +40% in 0.01% increments
Accuracy: ±10 arc seconds (±1/16" at 100 feet)
Beam Type: Single-axis red visible laser, Class 3R
Working Range: Up to 1,500 feet (457m) with receiver
Display: High-contrast graphic LCD with Dialgrade interface
Remote Control Range: 300 feet (91m) with RC803
Power: Rechargeable Li-ion battery, 40+ hours runtime
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
IP Rating: IP68 waterproof and dustproof
Self-Leveling: Automatic single-axis leveling
Weight: 8.8 lbs (4.0 kg) with battery

What's in the Kit

DG813 Dialgrade Pipe Laser
RC803 Wireless Remote Control
SF803 Spotfinder Target/Receiver
Rechargeable Li-ion Battery
AC Wall Charger with International Adapters
8" Pipe Stand (adjustable to 36")
Heavy-Duty Protective Carrying Case
Calibration Certificate
Quick Start Guide and Full Manual
Two-Year Manufacturer Warranty

Job Applications

Sanitary Sewer Installation: Maintain precise fall rates (typically 1-2%) across long runs to ensure proper flow velocity and prevent settling—the Dialgrade interface lets you dial in exact percentages without conversion charts or calculators.
Storm Drain Systems: Achieve steeper grades for rapid water evacuation while maintaining accuracy in large-diameter concrete pipes—the expanded working range handles jobs up to 1,500 feet between manholes.
Force Main & Pressure Pipe: Set dead-level or minimal-grade installations for pressurized systems where air pockets must be eliminated—the ±10 arc second accuracy ensures proper air release valve placement.
Culvert Replacement: Work in confined spaces where the compact DG813 design fits easily, and the wireless remote eliminates dangerous trips through active traffic zones to make adjustments.
Trenchless Bore Operations: Guide auger boring and pipe jacking projects with continuous grade reference—the IP68 rating withstands mud, groundwater, and demanding underground conditions.
Municipal Utility Rehabilitation: Verify existing grades before rehabilitation and ensure new liner installations match design specifications—the Spotfinder provides quick confirmation without removing equipment.

Compatible Accessories

Related Guides

FAQ

What pipe sizes can the DG813 accommodate?: The DG813 works in pipes from 8 inches to 36 inches in diameter using the included adjustable pipe stand. The stand features spring-loaded extensions that secure the laser firmly against the pipe wall, maintaining stability even in wet conditions. For pipes larger than 36 inches, optional extension accessories are available to expand the range.
How far can I control the laser with the RC803 remote?: The RC803 wireless remote provides reliable control up to 300 feet from the laser, allowing operators to make grade adjustments, power the unit on/off, and check battery status without leaving the work area. This eliminates time-consuming trips back to the laser head and improves safety by keeping workers out of traffic zones and confined spaces.
Can the DG813 be used in wet or flooded pipe conditions?: Yes, the DG813 is rated IP68 for complete dust and water protection, meaning it can withstand submersion and operate reliably in wet trenches, flooded pipe sections, and muddy conditions typical of underground utility work. The sealed housing protects internal electronics while maintaining laser accuracy even when partially submerged.
What's the difference between the DG813 and older Dialgrade models?: The DG813 features an upgraded graphic LCD display with improved visibility in bright conditions, extended battery life (40+ hours vs. 30 hours), enhanced wireless range for the remote control, and lighter weight construction. The accuracy specification remains industry-leading at ±10 arc seconds, but the user interface has been redesigned for faster setup and fewer button presses to change grades.

```

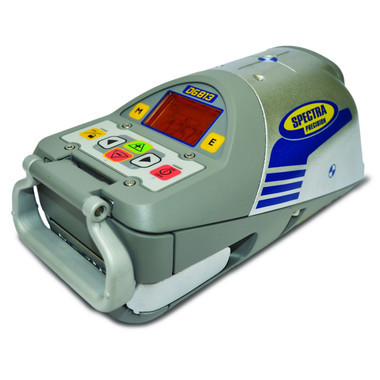

Spectra Precision DG813 Pipe Laser with Dialgrade graphic-display, RC803 Remote and SF803 Spotfinder
