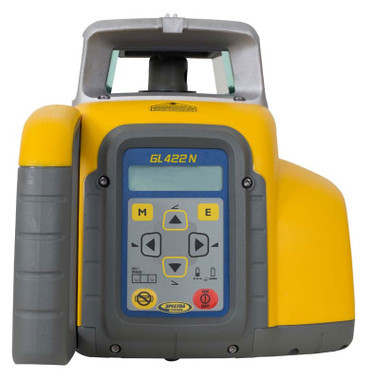

The Spectra Precision GL422N is a professional-grade, dual-axis self-leveling rotary laser built for contractors who demand accuracy and durability on demanding job sites. Whether you're grading a parking lot, establishing drainage slopes, or setting floor elevations across a large commercial slab, the GL422N delivers reliable performance with ±10 arc-second accuracy and a working range of up to 2,000 feet in diameter. As an authorized Spectra Precision dealer, Express Tools supplies the GL422N with full manufacturer warranty support and expert product guidance.
Overview & Jobsite Applications
The GL422N is engineered for heavy-duty outdoor use, featuring an IP66-rated housing that resists dust and water ingress — a critical requirement when working through rain, mud, and concrete dust. Its dual-axis self-leveling capability means it automatically compensates for slight variations in tripod setup, getting you working faster without manual fine-tuning. The instrument supports grade matching and dual-axis grade setting, making it the go-to choice for civil, grading, and site preparation crews who need a single tool to handle multiple layout tasks.
Key Specifications
- Accuracy: ±10 arc-seconds (self-leveling)
- Self-Leveling Range: ±5°
- Grade Range: ±10% on both axes simultaneously
- Rotation Speed: 100, 300, or 600 RPM
- Working Range: Up to 2,000 ft (610 m) diameter with detector
- Beam Visibility: Red visible laser diode
- Battery Life: Up to 90 hours (alkaline D-cell batteries)
- Protection Rating: IP66 dust- and water-resistant
- Operating Temperature: -20°C to +50°C (-4°F to +122°F)
- Tripod Mount: 5/8" x 11 thread
Key Features
- Dual-Axis Grade: Set independent slopes on X and Y axes simultaneously for complex drainage and site grading applications
- Auto Self-Leveling: Powers up and levels automatically within the 5° compensation range, minimizing setup time
- Out-of-Level Alarm: Audible and visible alert if the instrument is bumped beyond its leveling range mid-job
- Three Rotation Speeds: Select 100, 300, or 600 RPM to match your detector sensitivity and working distance
- Robust Construction: IP66-rated housing withstands jobsite abuse, blowing rain, and heavy dust environments
- Long Battery Runtime: Up to 90 hours on standard D-cell batteries reduces downtime and operating costs
- Remote-Ready: Compatible with Spectra RC402N remote for single-operator grade adjustments from the rod
Job Applications
Site Grading & Earthwork: Use the GL422N's dual-axis grade function to set precise cut-and-fill slopes across large grading projects, coordinating dozer and motor grader work without constant instrument repositioning.
Drainage & Sloped Flatwork: Establish exact drainage grades on parking lots, driveways, warehouse floors, and sports fields where precise slope-in-two-directions control is essential for water management compliance.
Commercial Concrete Flatwork: Set consistent slab elevations and control pour depth across large commercial slabs, reducing material waste and ensuring ADA-compliant floor tolerances.
Pipe & Utility Layout: Maintain consistent invert elevations and grade falls for storm sewer, sanitary, and utility pipe installations where grade accuracy directly impacts system performance.
Compatible Accessories
- Spectra HL760 Laser Detector — Extend working range and improve visibility in bright sunlight
- Spectra RC402N Remote Control — Adjust grade and rotation speed from the grade rod, single-operator capable
- Spectra HR320 Magnetic Mount Detector — Mounts directly to a grade rod for hands-free machine control setup
- Heavy-Duty Tripod for Rotary Lasers — Stable platform for long-range exterior applications
- Spectra Carrying Case for GL422N — Protective transport and storage case
Frequently Asked Questions
- Does the Spectra GL422N work in direct sunlight?
- The GL422N's red laser beam is difficult to see with the naked eye in bright sunlight. For outdoor use in daylight, pair it with a compatible laser detector such as the Spectra HL760, which extends the working range to 2,000 ft and provides a clear audio and visual grade signal regardless of ambient light conditions.
- Can the GL422N set grade on both axes at the same time?
- Yes. The GL422N supports simultaneous dual-axis grade settings, allowing you to dial in independent slope percentages on both the X and Y axes at the same time. This is essential for complex grading tasks such as parking lot drainage and sports field crown work.
- What batteries does the GL422N use and how long do they last?
- The GL422N runs on standard D-cell alkaline batteries and delivers up to 90 hours of continuous operation per set. This extended runtime significantly reduces battery replacement interruptions on multi-day projects and keeps your operating costs low.
- Is the GL422N compatible with machine control systems?
- The GL422N is designed primarily for manual grade control with a rod and detector. For machine control applications, it is compatible with select Spectra detectors such as the HR320 magnetic mount receiver. For fully integrated machine control, consider stepping up to a dedicated Spectra machine control laser system. Contact Express Tools for guidance on selecting the right laser for your equipment.
