# Spectra Precision HV302-7 Horizontal/Vertical Laser GC Package with HL760 Receiver
**Rechargeable dual-plane laser system engineered for general contractors managing multi-trade construction sites requiring continuous layout accuracy across foundation, framing, and finish phases.**
*Price: $1,750.00 | SKU: HV302-7-GC*
---
Overview
The Spectra Precision HV302-7 delivers both horizontal and vertical red laser planes with integrated HL760 receiver detection, purpose-built for contractors coordinating foundation through finish work without equipment changeovers. The rechargeable battery system eliminates disposable battery costs across multi-week projects, while the rugged GC package includes mounting hardware and grade rod for immediate deployment. Self-leveling within ±5° reduces setup time at each workstation, and the visible red beam provides direct visual reference for interior layout tasks while supporting receiver-extended range for exterior foundation work up to 2,600 feet diameter. This configuration suits general contractors managing 5,000-15,000 sq ft residential builds, commercial tenant improvements, and light industrial projects where the same crew handles multiple trades requiring both horizontal elevation control and vertical plumb reference without switching between dedicated single-plane tools. ---Key Specifications
- Laser Configuration: Horizontal plane + vertical plane (simultaneous or independent operation)
- Beam Type: Class II red laser diode (635nm wavelength)
- Accuracy: ±1/8" at 100 feet (±3mm at 30m) on both axes
- Self-Leveling Range: ±5° with out-of-level alert
- Working Range: 300' diameter (90m) visible beam / 2,600' diameter (800m) with HL760 receiver
- Rotation Speed: 0, 150, 300, 600 RPM (4-position selector)
- Power System: Rechargeable NiMH battery (18-hour runtime typical) with 110V charger included
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Environmental Rating: IP66 dust-tight and water-jet resistant
- Mounting Thread: 5/8"-11 industry standard
- Receiver Compatibility: HL760 (included), HL700, HL450, CR600 machine control receivers
- Warranty: 3 years manufacturer defect coverage
What's in the Kit
- HV302 horizontal/vertical rotating laser transmitter

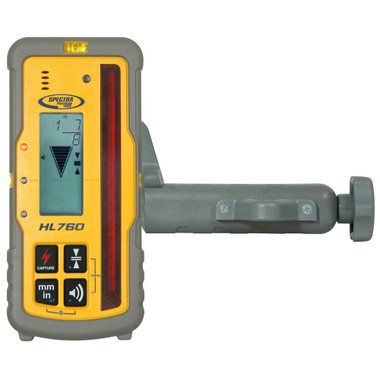

- HL760 digital laser receiver with rod clamp
- Rechargeable NiMH battery pack
- 110V AC battery charger with regional plug adapter
- Aluminum grade rod (8ft telescoping, tenths scale)
- Elevator tripod with quick-clamp head (5/8"-11 thread)
- Laser glasses (red-enhancement for beam visibility)
- Hard-shell carrying case with foam insert
- Quick-start laminated guide and full operation manual
Job Applications
- Foundation & Flatwork Layout: Establish continuous grade reference across formwork spanning 200+ linear feet without repositioning, while the HL760 receiver maintains accuracy in bright sunlight where beam visibility fails—critical for concrete pours requiring consistent depth control.
- Interior Wall Framing: Project vertical plumb lines for partition layout and door/window rough openings across 30-60 foot wall runs, then switch to horizontal mode for plate elevation without changing setups—reduces two-tool workflows to single-instrument efficiency on framing schedules.
- Suspended Ceiling Grid Installation: Rotate horizontal plane at 600 RPM to create continuous elevation reference around full room perimeters, allowing two-person crews to mark and hang main tees simultaneously at opposite walls while maintaining ±1/8" level tolerance across 50x80 foot spaces.
- Electrical & Mechanical Rough-In: Set consistent mounting heights for outlet boxes, panel boxes, and HVAC supports across multi-room installations where the rechargeable battery supports 8-12 hour workdays without mid-shift charging interruptions—eliminates battery-change downtime on time-sensitive rough-in phases.
- Deck & Railing Construction: Establish both horizontal ledger board elevation and vertical support post plumb from single setup position, while receiver mode extends working range to 130-foot deck spans where direct beam visibility becomes unreliable at distance or in partial shade conditions.
- Tile & Finish Carpentry: Visible red beam provides direct visual reference for tile layout lines and wainscot installation without receiver, speeding finish work where craftsmen align directly to the beam—the 150 RPM slow speed creates distinct line definition for precision trim applications.
Compatible Accessories
- RC803 Wireless Remote Control – Adjust rotation speed and plane selection from workstation up to 300' away
- 1283 Adjustable Wall Mount Bracket – Position laser on vertical surfaces for hallway and narrow-space layout
- HL750 Compact Receiver – Backup or secondary receiver for two-person crews working opposite zones
- Alkaline Battery Tray – Emergency power option using 4 D-cell batteries when recharging unavailable
- Magnetic Laser Target Plates – Enhance beam visibility on steel studs and metal framing members
- Tripod Extension Column – Raise laser height from 5ft to 8ft for high-ceiling applications
- Aluminum Grade Rods – Backup or extended-length rods for deep excavation work
Related Guides
- 5-Minute Rotary Laser Setup Workflow for Daily Job Sites
- When to Use Laser Receivers vs. Direct Beam Visibility
- Maximizing Rechargeable Battery Runtime in Cold Weather Conditions
- Field-Verifying Laser Accuracy Between Calibration Intervals
Frequently Asked Questions
- Can I run both horizontal and vertical planes simultaneously, or must I choose one axis?
- The HV302-7 operates both planes simultaneously, creating perpendicular reference lines from a single setup. This dual-plane mode suits corner layout and partition intersections where you're establishing both elevation and plumb alignment. You can also disable either plane individually when only single-axis reference is needed, which extends battery runtime approximately 20% by reducing laser diode power consumption.
- What's the actual working range difference between using the visible beam versus the HL760 receiver?
- The visible red beam remains usable to about 150 feet radius in shaded conditions or overcast outdoor work, and approximately 100 feet in direct sunlight before it becomes too faint for reliable alignment. The HL760 receiver extends detection to 1,300 feet radius (2,600' diameter) in the same conditions by sensing the laser signal electronically rather than relying on visual perception. For most residential and light commercial work under 10,000 sq ft, you'll work within visible beam range; the receiver becomes essential for site layout, foundation work, and large-format projects.
- How long does the rechargeable battery actually last on a typical workday, and what affects runtime?
- Expect 14-18 hours runtime under standard conditions: dual-plane operation at 300 RPM in moderate temperatures (50-75°F). Runtime decreases with faster rotation speeds (600 RPM consumes roughly 30% more power), cold weather below 40°F (battery chemistry becomes less efficient), and receiver mode operation where frequent beeping draws additional power. Most contractors get 2-3 full workdays between charges when running single-plane mode at slower speeds. The included charger fully replenishes the battery in 4-5 hours, so overnight charging supports continuous multi-day use.
- Is the HV302-7 accurate enough for foundation work requiring tight tolerances, or should I consider a different grade?
- The ±1/8" at 100 feet accuracy meets or exceeds requirements for residential foundations, slab-on-grade, and light commercial flatwork where building codes typically allow ±1/4" variance. This tolerance suits general construction applications including framing, MEP rough-in, and finish work. If you're performing precision machine base installation, specialized equipment pads, or work requiring ±1/16" tolerance, step up to the HV302G grade model with ±1/16" accuracy. For 90% of general contracting applications, the HV302-7's accuracy specification provides substantial margin beyond code minimums.
