Will the RC603 work with other Spectra laser models besides the UL633?

No, the RC603 is specifically designed and programmed to communicate exclusively with the Spectra Precision UL633 laser transmitter. It uses proprietary radio protocols that are not compatible with other Spectra models like the HV302, GL412, or LL300 series.

What is the actual working range in typical construction conditions?

While the maximum range is rated at 600 feet in ideal conditions with clear line-of-sight, expect reliable performance between 300-450 feet in typical construction environments where obstacles, metal structures, or electrical interference may be present.

How long do the batteries last, and can I use rechargeable batteries?

The RC603 provides approximately 60 hours of continuous operation on standard alkaline AA batteries. Yes, you can use NiMH rechargeable AA batteries, though runtime may be reduced to 40-50 hours depending on battery capacity and age.

Can multiple remotes control the same laser, or can one remote control multiple lasers?

The RC603 operates on a paired frequency system where one remote controls one UL633 laser at a time. You can pair multiple RC603 remotes to a single laser transmitter, which is useful when multiple crew members need control capability.

Description

```html

Spectra Precision RC603 Radio Remote Control

$695.00

Overview

The Spectra Precision RC603 Remote Control revolutionizes single-operator laser leveling workflows by providing wireless command of your Spectra UL633 laser transmitter directly from the rod position. This professional-grade remote eliminates the constant back-and-forth between the laser setup and worksite, allowing surveyors, contractors, and grading professionals to activate, deactivate, rotate, and adjust laser tilt without a second crew member. Operating on a reliable radio frequency with an impressive range of up to 600 feet (183 meters), the RC603 increases productivity while reducing labor costs on grading, excavation, and concrete projects. Its rugged, water-resistant construction withstands jobsite conditions, while intuitive controls ensure minimal learning curve for operators already familiar with Spectra Precision laser systems.

Key Specifications

Compatible Models: Spectra Precision UL633 Laser Transmitter
Operating Range: Up to 600 feet (183 meters)
Control Functions: Power on/off, rotation start/stop, tilt adjustment, speed control
Frequency: 2.4 GHz radio control
Power Source: 4 × AA alkaline batteries
Battery Life: Approximately 60 hours continuous operation
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Water Resistance: IP65 rated (dust-tight, water-resistant)
Dimensions: 7.5" × 3.2" × 1.8" (190mm × 81mm × 46mm)
Weight: 0.75 lbs (340g) with batteries
Display: Backlit LCD for low-light operation
Warranty: 3-year manufacturer warranty

What's in the Kit

RC603 Radio Remote Control Unit
4 × AA Alkaline Batteries (pre-installed)
Protective Carrying Case
Quick Start Guide
Operator's Manual
Belt Clip with Mounting Hardware
Warranty Registration Card

Job Applications

Building Foundation & Footings: Adjust laser slope and rotation from trench positions without climbing out repeatedly, maintaining precise elevation control while checking forms and depths across the entire foundation perimeter.
Site Grading & Excavation: Control laser settings from the grade rod or excavator bucket position, allowing real-time adjustments as you move across changing terrain without returning to the laser setup point.
Concrete Flatwork & Slabs: Manage laser rotation speed and slope from anywhere on the slab, enabling continuous monitoring and screed adjustments without walking back to the laser during concrete placement.
Drainage & Underground Utilities: Fine-tune laser tilt for precise pipe slope verification from inside trenches or manholes, ensuring accurate drainage grades without a second operator at the surface.
Agricultural Land Leveling: Adjust laser parameters from the tractor or scraper position across large fields, maintaining optimal water flow grades without interrupting equipment operation to manually change laser settings.
Parking Lot & Roadway Construction: Control laser functions from multiple check points across expansive paving projects, verifying grade consistency and making slope corrections without the delays of traveling back to the laser transmitter.

Compatible Accessories

Related Guides

FAQ

Will the RC603 work with other Spectra laser models besides the UL633?: No, the RC603 is specifically designed and programmed to communicate exclusively with the Spectra Precision UL633 laser transmitter. It uses proprietary radio protocols that are not compatible with other Spectra models like the HV302, GL412, or LL300 series. For remote control of other Spectra lasers, check the manufacturer's compatibility charts for model-specific remote options.
What is the actual working range in typical construction conditions?: While the maximum range is rated at 600 feet in ideal conditions with clear line-of-sight, expect reliable performance between 300-450 feet in typical construction environments where obstacles, metal structures, or electrical interference may be present. Range can be reduced by concrete buildings, heavy equipment, and dense vegetation. For critical long-range applications, conduct a range test in your specific work environment.
How long do the batteries last, and can I use rechargeable batteries?: The RC603 provides approximately 60 hours of continuous operation on standard alkaline AA batteries. Yes, you can use NiMH rechargeable AA batteries, though runtime may be reduced to 40-50 hours depending on battery capacity and age. The remote features a low-battery indicator on the LCD display. We recommend keeping spare batteries on site for uninterrupted workflow, especially on multi-day projects.
Can multiple remotes control the same laser, or can one remote control multiple lasers?: The RC603 operates on a paired frequency system where one remote controls one UL633 laser at a time. You can pair multiple RC603 remotes to a single laser transmitter, which is useful when multiple crew members need control capability. However, one remote cannot simultaneously control multiple lasers. The pairing process takes less than 30 seconds and is detailed in the operator's manual.

```

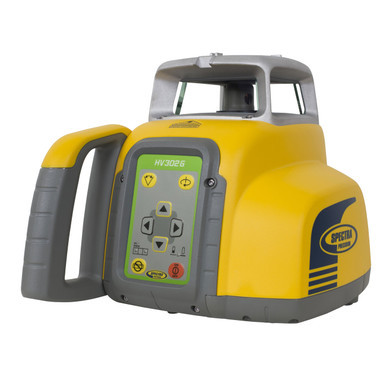

Spectra Precision HV302G-1NR Green Beam Laser Package - NO REMOTE
