Is the LL300-8 still supported even though it's discontinued?

Yes. Replacement parts, batteries, and receivers remain available through Spectra service channels and authorized dealers. The HR320 receiver included in this kit is compatible with current Spectra laser platforms, providing upgrade path flexibility.

Can I use this laser for dual-slope grading applications?

No. The LL300-8 provides single-axis manual slope only. Projects requiring compound slope (two-directional grade) need dual-slope platforms such as the Spectra LL400 series or comparable systems with X/Y-axis slope capability.

What's the practical working range with the HR320 receiver?

Under typical job site conditions with moderate sunlight, expect reliable detection to approximately 600–800 feet radius from the laser. Maximum advertised range of 1,600 feet diameter occurs in low-light conditions.

How does accuracy compare to current rotary laser models?

The LL300-8 accuracy of ±3/32 inch at 100 feet meets requirements for general excavation, grading, and concrete work but falls short of precision platforms offering ±1/16 inch or tighter tolerances.

Spectra Precision LL300-8 Rotary Laser

Description

```html

Overview

The Spectra Precision LL300-8 rotary laser delivers reliable single-slope grading capability for excavation contractors, site developers, and civil construction crews working on foundation layouts, drainage installation, and leveling operations. This discontinued legacy platform remains in active field use due to its proven durability and straightforward operation. The complete kit includes the LL300-8 laser transmitter, HR320 receiver with rod clamp, and essential accessories for immediate deployment. Contractors managing existing LL300-8 inventories benefit from continued parts availability, receiver compatibility with current Spectra platforms, and serviceable performance for basic site-leveling tasks where newer dual-slope and grade-matching technology isn't required.

Key Specifications

Accuracy: ±3/32" at 100 feet (±2.5mm at 30m)
Working Range (Diameter): Up to 1,600 feet with HR320 receiver
Rotation Speed: 600 RPM
Leveling: Manual leveling system
Slope Capability: Single-axis manual slope adjustment
Self-Leveling Range: ±5 degrees
Power Source: Alkaline D-cell batteries or rechargeable NiMH battery (optional)
Battery Life: Approximately 100 hours (alkaline)
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Ingress Protection: IP66 (dust-tight, water-resistant)
Drop Survival: 1 meter onto hard surface

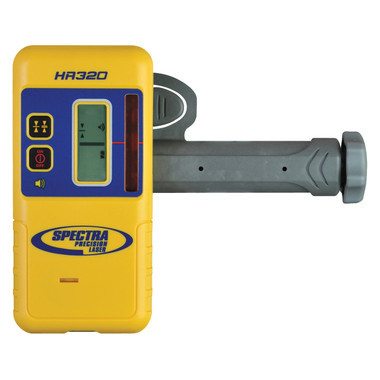

Receiver Type: HR320 with LCD display and rod clamp mount
Receiver Detection Range: 800-foot radius

What's in the Kit

LL300-8 rotary laser transmitter
HR320 laser receiver with digital LCD display
Rod clamp with quick-release mechanism
Alkaline battery pack (D-cell holder)
Hard-shell carrying case with foam insert
Operator manual and quick-start guide
Calibration certificate (may vary by supplier)

Job Applications

Building Foundation Excavation: Establishes consistent depth control across dig zones, ensuring uniform sub-grade elevation before concrete placement and reducing over-excavation costs.
Site Grading and Rough Leveling: Provides continuous elevation reference for dozer and scraper operators working pad preparation, parking lots, and building platforms where single-plane slope is adequate.
Drainage and Utility Trenching: Maintains accurate fall along sewer laterals, storm drain runs, and utility corridors by setting manual slope and tracking grade with the receiver on a grade rod.
Concrete Slab Preparation: Guides screed rail setup and sub-base compaction to proper elevations, preventing settlement issues and ensuring uniform slab thickness for warehouse floors and industrial pads.
Landscape Grading: Supports finish grading operations for athletic fields, golf course construction, and commercial landscaping where visual reference and basic slope control meet project tolerances.
Sidewalk and Curbing: Establishes grade references for formwork installation and screed operations on linear concrete placements with consistent pitch requirements.

Compatible Accessories

Expand system capability and protect your investment with field-proven accessories:

Spectra HL700 Receiver — Upgraded digital receiver with enhanced range and sensitivity
Spectra Rechargeable NiMH Battery Pack — Eliminates alkaline battery expense on high-use projects
8-Foot Aluminum Grade Rod — Lightweight leveling rod with tenths graduations
Heavy-Duty Detector Clamp — Reinforced clamp for use with larger-diameter leveling rods
Adjustable Laser Tripod — Stable platform with quick-release head and adjustable legs
Laser Target Plate — Wall-mount target for interior layout and elevation transfer

Related Guides

Frequently Asked Questions

Is the LL300-8 still supported even though it's discontinued?: Yes. Replacement parts, batteries, and receivers remain available through Spectra service channels and authorized dealers. The HR320 receiver included in this kit is compatible with current Spectra laser platforms, providing upgrade path flexibility. Calibration and repair services continue through certified service centers, though turnaround times may extend as parts inventory diminishes.
Can I use this laser for dual-slope grading applications?: No. The LL300-8 provides single-axis manual slope only. Projects requiring compound slope (two-directional grade) need dual-slope platforms such as the Spectra LL400 series or comparable systems with X/Y-axis slope capability. For most drainage, foundation, and simple site work, single-slope functionality meets project requirements.
What's the practical working range with the HR320 receiver?: Under typical job site conditions with moderate sunlight, expect reliable detection to approximately 600–800 feet radius from the laser. Maximum advertised range of 1,600 feet diameter (800-foot radius) occurs in low-light conditions or when using the receiver in narrow detection mode. Range decreases in bright sunlight or when ambient temperature affects laser beam visibility.
How does accuracy compare to current rotary laser models?: The LL300-8 accuracy of ±3/32" at 100 feet meets requirements for general excavation, grading, and concrete work but falls short of precision platforms offering ±1/16" or tighter tolerances. For applications like machine control integration, tight-tolerance paving, or survey-grade layout, newer laser technology with improved accuracy specifications and electronic leveling provides measurable performance advantages.

```
