Overview

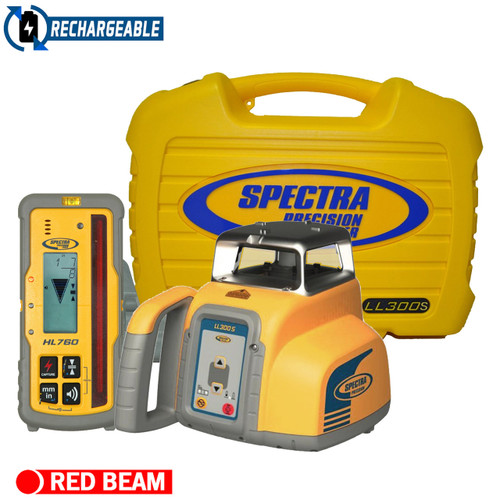

The Spectra Precision LL300S-7 Laser Level Package delivers professional-grade automatic leveling for general contractors, concrete crews, and site development teams requiring reliable horizontal plane reference across medium-range job sites up to 1,000 feet diameter. This complete kit pairs the rugged LL300S self-leveling rotary laser with the HL760 digital receiver, providing precise elevation control for formwork, foundation layout, grading prep, and interior leveling applications. Powered by standard alkaline D-cell batteries, this package eliminates charging downtime and supports immediate deployment on sites without electrical infrastructure, making it ideal for remote locations, fast-moving residential projects, and contractors managing multiple job sites who need grab-and-go reliability without rechargeable battery management.
Key Specifications
- Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
- Self-Leveling Range: ±5 degrees
- Working Diameter: Up to 1,000 feet (300m) with HL760 receiver
- Rotation Speed: 600 RPM (single speed)
- Beam: Single-grade horizontal plane, visible red laser
- Power Source: 4 × D-cell alkaline batteries (included)
- Battery Life: Approximately 60 hours continuous operation
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Receiver Detection Range: 1,000 feet (300m) diameter with HL760
- Receiver Accuracy: ±1/16 inch (±1.5mm) on-grade indication
- Receiver Display: Backlit LCD with 6-level visual proximity indication
- Drop Resistance: Laser unit survives 1-meter drops onto hard surfaces
- Ingress Protection: IP66 weather-resistant (dust-tight, water spray protected)
- Mounting Thread: 5/8"-11 standard tripod thread
- Laser Classification: Class 2 visible laser, eye-safe under normal use
- Weight: Laser 5.5 lbs (2.5 kg); Receiver 0.6 lbs (270g)
What's in the Kit
- LL300S Self-Leveling Rotary Laser with automatic compensator
- HL760 Digital Laser Receiver with rod clamp
- 4 × D-cell Alkaline Batteries (pre-installed in laser)
- 2 × AA Alkaline Batteries for HL760 receiver
- Heavy-Duty Carrying Case with custom foam inserts
- Operator Manuals for laser and receiver
- Quick Start Guide with field setup procedures
- Spectra Precision 2-Year Manufacturer Warranty documentation
Job Applications
- Concrete Slab and Foundation Forms: Establish consistent elevation for form boards, screed rails, and grade stakes across residential and light commercial foundations. The HL760 receiver mounted on a grade rod provides precise benchmark transfer to multiple form locations, eliminating string-line sag and enabling single-operator setup that saves labor hours compared to optical level workflows.
- Site Grading and Excavation Control: Guide excavator operators and grade checkers during rough grading, trench depth verification, and subbase preparation. The 1,000-foot working diameter covers typical residential lot dimensions from a single laser setup, while the receiver's audio tone allows machine operators to stay on grade without continuous visual reference to the display.
- Suspended Ceiling Installation: Transfer level reference around interior perimeter walls for ceiling grid systems in commercial tenant improvements and office renovations. The continuous 360-degree beam eliminates the need to reposition the laser between wall sections, and the receiver's ±1/16-inch on-grade accuracy ensures tight tolerance for grid rail alignment.
- Exterior Drainage and Landscape Grading: Set proper slope for surface drainage, swale construction, and hardscape base preparation on residential and light commercial sites. The alkaline battery system provides full-shift runtime without recharging concerns on spread-out landscape projects where electrical access is unavailable.
- Deck and Patio Layout: Establish consistent height references for ledger boards, beam pockets, and post-to-beam connections on exterior structures. The laser's 1-meter drop survival and IP66 weather resistance withstand outdoor job site conditions including unexpected rain and dusty conditions during framing operations.
- Interior Floor Leveling and Tile Layout: Mark elevation benchmarks for self-leveling underlayment pours, large-format tile installation, and flooring transition planning in residential remodels and commercial spaces. The visible red beam provides clear wall reference marks in typical interior lighting without requiring tinted viewing glasses.
Compatible Accessories
Spectra Heavy-Duty Aluminum Tripod — Stable platform with quick-clamp legs and flat head for laser mounting
Spectra 8-foot Telescoping Grade Rod — Graduated rod for elevation measurements with HL760 receiver clamp
HL760 Replacement Rod Clamp — Spare mounting bracket for grade rod attachment
Rechargeable D-Cell Battery Kit — NiMH rechargeable batteries with charger for contractors preferring rechargeable power
Magnetic Laser Target Plate — Wall-mount reference target for indoor alignment work
RC402N Laser Remote Control — Wireless control for laser operation from receiver position
Related Guides
Complete Guide to Rotary Laser Setup for Concrete Formwork
Spectra LL300S vs LL400 Comparison: Which Laser Level for Your Business?
Understanding Laser Receiver Accuracy and Detection Range
Troubleshooting: Why Your Rotary Laser Won't Self-Level
Frequently Asked Questions
- What's the actual working range for the LL300S-7 package on typical job sites?
- The HL760 receiver detects the laser beam up to 1,000 feet diameter (500-foot radius) in optimal conditions. Practical working range depends on ambient light—expect full 500-foot radius in overcast conditions or indoor environments, reducing to 300-400 feet in bright direct sunlight. For diameter work beyond 800 feet in sunny conditions, plan morning/evening operation or use shading techniques to maximize receiver detection.
- Can I use this laser for slope work or just level applications?
- The LL300S in this package is horizontal-only, creating a level reference plane with no grade capability. For drainage slopes, ramps, or other grade work, you'll need to calculate and mark offset measurements from the level plane, or consider the LL300SG model which includes built-in single-axis slope functionality with manual grade adjustment.
- How does alkaline battery operation compare to rechargeable battery packages?
- Alkaline D-cells provide approximately 60 hours runtime and are available at any hardware store, eliminating charging infrastructure requirements and battery memory concerns. This makes the LL300S-7 ideal for contractors running multiple crews, remote sites, or intermittent use patterns. The trade-off is higher long-term operating cost compared to rechargeable systems—calculate breakeven based on your usage frequency. The laser accepts standard rechargeable D-cells if you later want to convert to rechargeable operation.
- Is the HL760 receiver compatible with other Spectra laser models if I upgrade later?
- Yes, the HL760 is a universal receiver compatible with all Spectra Precision rotary lasers operating at standard rotation speeds (600-700 RPM), including the LL400, LL500, and HV302 models. This provides investment protection if you upgrade to dual-grade or longer-range lasers—the receiver transfers to your new system. The HL760 is not compatible with specialized machine-control lasers operating at different pulse rates.
