How long does the rechargeable battery actually last on a typical grading job?

Field runtime averages 50-60 hours of continuous rotation at 600 RPM in moderate temperatures (50-80°F). On typical earthwork projects running 10-hour days, you'll get 5-6 full shifts per charge. Cold weather below 40°F reduces runtime approximately 20-30%, so winter operators often charge nightly.

Can I still use standard alkaline D-cells if I forget to charge the NiMH pack?

No, the LL500-4 configuration is dedicated rechargeable-only and does not accept alkaline batteries. The battery compartment is engineered specifically for the NiMH pack form factor. Most contractors running rechargeable systems keep the laser on charger during overnight hours to prevent dead-battery situations.

What's the maximum working range in bright sunlight without a receiver?

Visible laser beam detection without receiver ranges 100-200 feet depending on ambient light intensity. The HL700 receiver is essential for the advertised 2,600-foot range and provides digital elevation readout you cannot achieve with visual beam detection alone.

How does the IP66 rating hold up to actual concrete pour washdown and rain exposure?

IP66 certification means total dust ingress protection and high-pressure water jet resistance from any direction. The LL500 withstands direct rain, concrete splatter, and careful washdown with standard hose pressure. It is not submersion-rated—don't leave it in standing water.

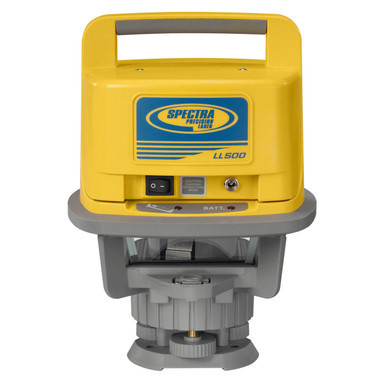

Spectra Precision LL500-4 Rechargeable Laser Level

Description

```html

Overview

The Spectra Precision LL500-4 Long Range Laser Package delivers professional-grade horizontal leveling for contractors running extended site operations where battery management becomes a critical workflow factor. Excavation crews, concrete contractors, and site preparation teams deploy this self-leveling rotary laser across multi-acre projects requiring consistent elevation reference over days or weeks. The integrated rechargeable NiMH battery system eliminates the logistical burden of alkaline battery inventory, reduces per-shift operating costs, and maintains full 2,600-foot diameter working range with the included HL700 digital receiver. This package provides the durability and runtime performance demanded by high-volume earthwork, foundation layout, and large-format grading operations where laser downtime directly impacts crew productivity.

Key Specifications

Leveling Range: ±5 degrees self-leveling with out-of-level alert
Leveling Accuracy: ±1/16 inch at 100 feet (±1.5 mm at 30 m)
Working Diameter: Up to 2,600 feet (800 m) with HL700 receiver
Rotation Speed: 600 RPM (standard), 0 RPM manual mode
Power System: Rechargeable NiMH battery pack with AC charger
Runtime: Up to 60 hours continuous operation per charge
Receiver Accuracy: ±1/16 inch digital readout at standard range
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Drop Resistance: Survives 3-foot drops to concrete per IP rating
Environmental Rating: IP66 dust-tight and water-resistant enclosure
Laser Class: Class 2 / Class II visible red beam
Weight: 5.5 lbs (2.5 kg) laser unit only

What's in the Kit

LL500 Self-Leveling Rotary Laser (rechargeable configuration)
HL700 Digital Laser Receiver with rod clamp
Rechargeable NiMH Battery Pack (installed)
AC Battery Charger with regional plug adapter
RC502 Full-Function Remote Control
Soft Carrying Case with interior foam organization
Laser Safety Glasses (red beam enhancement)
Operator Manual and Quick-Start Guide
Calibration Certificate with serial traceability

Job Applications

Site Grading and Excavation: Establishes consistent elevation planes across multi-acre cuts and fills where the 2,600-foot range eliminates instrument moves and the rechargeable system supports 10+ hour shifts without battery swaps interrupting blade operators.
Foundation Layout and Formwork: Provides accurate horizontal reference for footing depth verification and slab edge elevation control, with remote operation allowing single-operator workflow when setting screeds or checking form heights across spread-out commercial foundations.
Concrete Flatwork and Floor Slabs: Guides screed rail installation and laser screed operations on warehouse floors, parking structures, and tilt-up panels where the rechargeable system reduces consumable costs on projects requiring continuous laser operation over multiple pours.
Underground Utility Installation: Controls trench depth and pipe grade on gravity-flow systems, with the long-range capability supporting 600+ foot trench runs from single setups and rechargeable runtime matching typical excavator shift durations without mid-day charging.
Exterior Drainage and Hardscape: Sets elevation benchmarks for swale grading, retaining wall courses, and paver base preparation where IP66 weather resistance handles outdoor exposure and the self-leveling compensator maintains accuracy despite job-site vibration from compaction equipment.
Agricultural Land Leveling: Supports precision land plane operations and irrigation system grade control across large fields where extended battery life and long detection range reduce setup frequency on acreage-scale leveling projects.

Compatible Accessories

Extend capability with HR320 Machine Receiver for dozer and grader mast mounting, Heavy-Duty Flat Head Tripod for stable instrument positioning, 25-Foot Aluminum Grade Rod with metric/engineer scales, Laser Detector Card for quick beam visibility in bright conditions, and Replacement NiMH Battery Pack for double-shift operations or emergency backup on critical-path schedules.

Related Guides

Frequently Asked Questions

How long does the rechargeable battery actually last on a typical grading job?: Field runtime averages 50-60 hours of continuous rotation at 600 RPM in moderate temperatures (50-80°F). On typical earthwork projects running 10-hour days, you'll get 5-6 full shifts per charge. Cold weather below 40°F reduces runtime approximately 20-30%, so winter operators often charge nightly. The included charger completes full recharge in 16 hours, making overnight charging standard practice for continuous multi-day operations.
Can I still use standard alkaline D-cells if I forget to charge the NiMH pack?: No, the LL500-4 configuration is dedicated rechargeable-only and does not accept alkaline batteries. The battery compartment is engineered specifically for the NiMH pack form factor. If you require alkaline battery compatibility as backup, consider the LL500 standard model or maintain a spare charged NiMH pack on site. Most contractors running rechargeable systems keep the laser on charger during overnight hours to prevent dead-battery situations.
What's the maximum working range in bright sunlight without a receiver?: Visible laser beam detection without receiver ranges 100-200 feet depending on ambient light intensity, beam angle to operator, and whether you're using the included laser enhancement glasses. The HL700 receiver is essential for the advertised 2,600-foot range and provides digital elevation readout you cannot achieve with visual beam detection alone. On controlled indoor environments or overcast days, visual range extends slightly, but receiver use is standard practice for professional accuracy and OSHA-compliant sight-line safety.
How does the IP66 rating hold up to actual concrete pour washdown and rain exposure?: IP66 certification means total dust ingress protection and high-pressure water jet resistance from any direction. In practice, the LL500 withstands direct rain, concrete splatter, and careful washdown with standard hose pressure. It is not submersion-rated—don't leave it in standing water or pressure-wash directly into the battery compartment seals. After wet exposure, wipe down the rotating head and charging contacts before storage. Hundreds of concrete contractors run these lasers through finishing operations daily with proper handling producing multi-year service life.

```
