Can the LL300N be used outdoors in full sunlight?

Yes, but you'll need the HL450 receiver for best results. While the red beam is visible to the naked eye up to about 300 feet in low light, bright outdoor conditions make it nearly impossible to see beyond 50-75 feet. The receiver detects the laser signal up to 1,500 feet in any lighting condition.

How does the HL450 receiver mount to a grade rod?

The HL450 includes a rod clamp that fits most standard grade rods from 1" to 1.5" wide. The clamp tightens with a thumbscrew and can slide up and down the rod for quick height adjustments.

What's the difference between this and the LL300S model?

The LL300N (N-series) is the current generation with improved battery management and slightly faster self-leveling calibration. The older LL300S has been discontinued but offered nearly identical specifications.

How often does this laser need calibration?

Spectra recommends annual calibration checks for lasers in daily professional use, or immediately after any drop or impact. Most contractors verify accuracy monthly using a simple two-point check at 100 feet.

Description

```html

Spectra Precision LL300N Laser Package w/ HL450 Receiver

$948

Overview

The Spectra Precision LL300N laser level package is designed for general contractors, concrete finishers, landscapers, and excavation crews who need reliable elevation control on small to mid-size job sites. This red beam rotary laser delivers ±3/16" accuracy at 100 feet, making it ideal for foundation layout, drainage grading, interior slab work, and site leveling tasks where millimeter precision isn't critical but consistent reference elevation is essential.

Bundled with the HL450 digital receiver, this configuration extends the laser's working range to 1,500 feet diameter and enables one-person operation in bright conditions where the beam may be difficult to see with the naked eye. The HL450's large LCD display and audible alerts help operators quickly find grade, reducing setup time and minimizing costly errors during concrete pours or excavation work.

This package represents the practical choice for crews who need dependable laser leveling without the premium cost of dual-grade or green beam systems. It's rugged enough for daily job site use, simple enough for new operators to master in minutes, and accurate enough for residential and light commercial applications.

Key Specifications

Leveling Accuracy: ±3/16" at 100 feet (±4.5mm at 30m)
Working Range (Diameter): 1,500 feet with HL450 receiver / 300 feet visible beam
Beam Type: Red rotary laser (635nm)
Rotation Speed: 600 RPM
Self-Leveling Range: ±5 degrees
Power: Rechargeable NiMH battery (up to 30 hours runtime) or 4 D-cell alkaline
Operating Temperature: 14°F to 122°F (-10°C to 50°C)
Durability: IP66 water and dust resistance
Receiver Detection Accuracy: ±1/16" (±1.5mm) with HL450
Receiver Channels: 2 selectable frequencies to avoid interference
Warranty: 3 years laser / 2 years receiver

What's in the Kit

LL300N rotary laser level with carrying handle
HL450 digital laser receiver with clamp
Rechargeable NiMH battery pack for laser
110V battery charger
Note: Tripod, grade rod, and mounting accessories sold separately
Hard-shell storage case with custom foam insert
Operating manuals and quick-start guides

Job Applications

Foundation and Footings: Establish consistent depth and elevation for trenches and footing forms. The HL450 receiver lets your excavator operator check grade from the cab without stopping work, speeding up foundation prep by 30-40% compared to manual string lines.
Concrete Slab Leveling: Set screed rails and verify flatwork elevation during pours. The 600 RPM rotation speed provides continuous reference around the entire slab perimeter, and the receiver's audible beeps help finishers maintain grade in noisy environments.
Site Grading and Drainage: Check cut-and-fill elevations for parking lots, building pads, and drainage swales. The 1,500-foot range covers most residential lots from a single setup, and the IP66 rating handles dust and occasional rain without shutdown.
Landscape Leveling: Establish grades for retaining walls, paver patios, athletic fields, and irrigation systems. The red beam's visibility in open outdoor settings and the long battery life support full-day operations without recharging.
Suspended Ceiling Installation: Set consistent height for grid systems in commercial remodels. Wall-mount the laser or use a tripod in the center of the room for 360-degree reference that eliminates the tedious process of snapping chalk lines.
Utility Trench Layout: Verify proper slope for sewer, water, and electrical conduit runs. The dual-channel receiver prevents signal interference when multiple crews are working nearby with their own lasers.

Compatible Accessories

Expand system capabilities with these field-tested accessories:

Heavy-Duty Laser Tripods – Aluminum and composite models with quick-release mounts
Telescoping Grade Rods – 8ft to 25ft options with tenths and metric scales
Universal Receiver Clamps – Machine control mounts for excavators and dozers
Laser Target Plates – High-visibility cards for long-range beam spotting
Replacement Battery Packs – Spare NiMH batteries for extended shifts
RC402N Remote Control – Adjust laser functions from up to 150 feet away

Related Guides

Frequently Asked Questions

Can the LL300N be used outdoors in full sunlight?: Yes, but you'll need the HL450 receiver for best results. While the red beam is visible to the naked eye up to about 300 feet in low light, bright outdoor conditions make it nearly impossible to see beyond 50-75 feet. The receiver detects the laser signal up to 1,500 feet in any lighting condition, making it essential for excavation and site work.
How does the HL450 receiver mount to a grade rod?: The HL450 includes a rod clamp that fits most standard grade rods from 1" to 1.5" wide. The clamp tightens with a thumbscrew and can slide up and down the rod for quick height adjustments. For machine control applications, universal excavator mounts are available separately to attach the receiver to bucket arms or blade masts.
What's the difference between this and the LL300S model?: The LL300N (N-series) is the current generation with improved battery management and slightly faster self-leveling calibration. The older LL300S has been discontinued but offered nearly identical specifications. Both work with the same receivers and accessories. If you find LL300S units at closeout pricing, they're functionally equivalent for field work.
How often does this laser need calibration?: Spectra recommends annual calibration checks for lasers in daily professional use, or immediately after any drop or impact. Most contractors verify accuracy monthly using a simple two-point check at 100 feet. If the laser shows drift beyond ±3/16", send it to a certified service center. Proper storage in the included case and avoiding vehicle vibration during transport extends calibration intervals significantly.

```

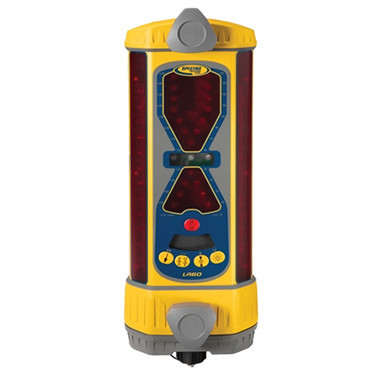

Spectra Precision LR60W Laser Machine Display Receiver (NiMH) RD20 Wireless Remote Display
