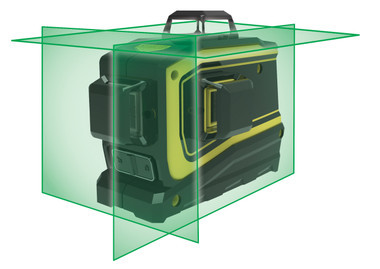

Spectra Precision LT58G-3 Universal Three-Plane Green Laser Level
The Spectra Precision LT58G-3 is a professional-grade, three-plane green beam laser level engineered for contractors who demand fast, accurate layout across every trade. By simultaneously projecting one horizontal and two vertical green laser planes, the LT58G-3 eliminates the need for multiple setups and gives framing crews, mechanical contractors, electricians, and finish carpenters a single reference tool that covers floors, walls, and ceilings in one shot. Green beam technology delivers up to four times greater visibility than comparable red beam lasers, making the LT58G-3 a reliable performer even on bright, active jobsites where red beams wash out and slow production.
Jobsite Overview
From ground-up commercial construction to occupied tenant improvement projects, the LT58G-3 handles the full range of interior layout tasks without compromise. Set it on a tripod or floor, power it on, and all three planes self-level automatically within seconds. The tool locks out and provides a visible out-of-level warning if the surface is too far out of range, protecting the accuracy of every reference line. The LT58G-3 is built around a pendulum self-leveling system with a wide leveling range that accommodates uneven subfloors and rough framing conditions common on active construction sites. Whether you are running ceiling grid, plumbing stud walls, aligning sprinkler drops, or setting door and window openings, the three-plane configuration means your horizontal and both vertical references are live at the same time.
Key Specifications
- Laser Color: Green (532 nm)
- Number of Planes: 3 (1 horizontal, 2 vertical at 90°)
- Self-Leveling Range: ±4°
- Accuracy: ±1/8 in at 30 ft (±3 mm at 10 m)
- Working Range: Up to 100 ft diameter (unaided); up to 165 ft with receiver
- Laser Class: Class II (CDRH) / Class 2 (IEC)
- Power Source: 4 x AA alkaline batteries
- Battery Life: Up to 20 hours typical use
- Tripod Mount: 5/8 in x 11 TPI standard thread
- Dust and Water Protection: IP54 rated
- Operating Temperature: 14°F to 122°F (-10°C to 50°C)
- Weight: Approximately 3.5 lbs (1.6 kg) without batteries
What's in the Kit
- Spectra Precision LT58G-3 Three-Plane Green Laser Unit
- Carry Case with foam insert
- 4 x AA batteries (pre-installed)
- Operator's Manual
- Warranty Card
Key Features
- Three Simultaneous Green Planes: One horizontal and two vertical planes at 90° give you a complete layout reference in every direction without repositioning the tool
- Green Beam Advantage: Green laser diodes are significantly brighter to the human eye than red, reducing eye strain and improving snap-to-line accuracy in high-ambient-light environments
- Automatic Self-Leveling: Pendulum-based leveling system settles quickly after placement, with out-of-level lockout and alert to prevent costly layout errors
- IP54 Rated Housing: Dust and splash resistance keeps the tool running through the daily abuse of an active construction site
- Standard 5/8-11 Mount: Compatible with virtually all contractor tripods, grade rods, and wall brackets without adapters
- Long Battery Life: Up to 20 hours on standard AA batteries minimizes downtime and reduces operating cost per shift
- Receiver Compatible: Extends working range in bright outdoor conditions or large open interior spaces
- Pulse Mode: Activates laser receiver compatibility for extended range and outdoor use
Job Applications
Metal Stud Framing
Use both vertical planes to establish parallel wall lines and 90° corner references simultaneously. Snap your layout on the floor and ceiling deck at the same time with a single instrument position, cutting layout time on large open-floor commercial projects by a significant margin compared to traditional chalk line methods.
Drop Ceiling and Grid Installation
The horizontal plane gives ceiling crews a continuous 360° reference at finished ceiling height. Combine the vertical planes to locate partition offsets and light fixture centerlines without moving the laser. The green beam stays sharp under standard fluorescent and LED site lighting found in occupied tenant improvement projects.
MEP Rough-In and Coordination
Mechanical, electrical, and plumbing contractors use the LT58G-3 to align conduit runs, duct hangers, sprinkler drops, and pipe supports to a common horizontal datum. The simultaneous three-plane projection allows trades to work off the same instrument position during coordination walkouts, reducing re-work caused by conflicting reference marks.
Door, Window, and Finish Carpentry
Plumb door bucks and window frames quickly using the vertical planes as a direct plumb reference. Transfer finish floor elevations, chair rail heights, and wainscoting lines around a room in one setup using the horizontal plane as a continuous level reference without resetting a water level or running multiple measurements.
Compatible Accessories
- Spectra Precision Laser Receiver — extends working range for outdoor and large-space use
- Heavy-Duty Contractor Tripod (5/8-11) — stable platform for demanding jobsite conditions
- Laser Target Plates — improves beam visibility for long-range layout shots
- Adjustable Wall Mount Bracket — positions the laser on walls or columns without a tripod
- Green Laser Enhancement Glasses — improves beam contrast in high-ambient-light environments
Related Guides
- How to Layout Metal Stud Walls with a Laser Level
- Drop Ceiling Installation: Using a Laser Level for Grid Layout
- Green vs. Red Laser Levels: A Contractor's Guide
- Multi-Plane Laser Level Setup Tips for Commercial Interiors
Frequently Asked Questions
- Can the LT58G-3 project all three planes at the same time?
- Yes. The LT58G-3 is designed to project one horizontal plane and both vertical planes simultaneously in its standard operating mode. You can also select individual planes depending on the task, which helps conserve battery life when only one reference is needed.
- Does the LT58G-3 work with a laser detector or receiver?
- Yes. The LT58G-3 includes a pulse mode that makes it compatible with a green beam laser receiver. Using a receiver significantly extends the working range, making the tool practical for larger open spaces and outdoor layout work where the beam may not be visible to the naked eye in direct sunlight.
- What is the accuracy of the LT58G-3 and how does self-leveling work?
- The LT58G-3 achieves an accuracy of ±1/8 inch at 30 feet. It uses a pendulum-based automatic self-leveling system that compensates for minor surface irregularities within a ±4° range. If the instrument is placed on a surface that exceeds this range, the laser will lock out and provide a visible warning so you do not inadvertently work off an unlevel reference.
- Is the LT58G-3 suitable for outdoor use?
- The LT58G-3 is primarily optimized for interior layout work, but its IP54 rating protects it from dust and water splash on outdoor jobsites. For outdoor use where sunlight reduces beam visibility, pair the tool with a compatible green beam receiver and activate pulse mode to extend the effective working range and maintain accuracy in high-ambient-light conditions.
