Secure Manhole Setup for Topcon TP-L4 Pipe Lasers

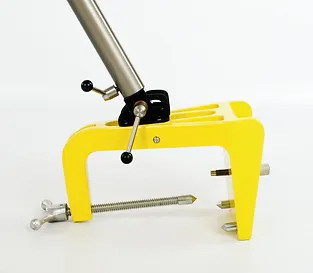

The Topcon 56095 Manhole Transit Mount is a purpose-built rigging accessory designed for sewer, storm drain, and underground pipeline contractors who need a stable, reliable platform when setting up a Topcon TP-L4 series pipe laser from inside a manhole or access pit. Rather than relying on improvised supports or unstable field fabrications, the 56095 delivers a rigid, plumb mounting solution that anchors directly over the existing pipe invert, eliminating setup error and getting your crew on grade faster. If your workflow depends on accurate line and grade from the first shot, this mount is a non-negotiable addition to your laser kit.
Overview & Jobsite Applications
The Topcon 56095 is engineered to work seamlessly with the TP-L4 and TP-L4A pipe laser series, two of the most trusted instruments in underground utility construction. The mount spans the manhole opening or access pit and positions the laser directly over the pipe centerline so you can establish grade without having to enter the pipe or build temporary blocking. This approach keeps your crew safer, reduces setup time, and ensures your laser is consistently centered over the invert. Whether you are laying new sewer mains, rehabilitating existing lines, or setting storm drainage on a tight schedule, the 56095 is the professional way to get your laser into position.
Key Specifications
- Model Number: 56095
- Compatible Instruments: Topcon TP-L4, TP-L4A pipe laser series
- Thread Standard: 5/8 x 11 (industry-standard tripod thread)
- Mount Type: Manhole Transit / Access Pit Mount
- Construction: Heavy-duty steel with corrosion-resistant finish
- Manufacturer: Topcon Positioning Systems
- Warranty: Backed by Topcon manufacturer warranty
Key Features
- Designed specifically for TP-L4 series compatibility — no adapters required
- 5/8 x 11 threaded connection provides a secure, wobble-free instrument mount
- Heavy-duty steel construction handles the demanding conditions of underground utility work
- Positions laser precisely over pipe invert for accurate centerline alignment
- Eliminates the need for improvised blocking or temporary support structures
- Compact design allows easy transport and storage with your pipe laser kit
- Speeds up manhole setup so your crew can establish grade quickly and move on
Job Applications
New Sewer Main Installation: Set up your TP-L4 directly over the upstream manhole invert and shoot grade the full length of the run. The 56095 keeps the laser centered and stable while your crew lays pipe, reducing grade check interruptions and rework.
Storm Drain Construction: When working from access pits or manholes on storm drainage projects, the manhole mount gives you a repeatable, plumb setup position every time — critical when holding tight tolerances on large-diameter RCP or HDPE runs.
Sewer Rehabilitation & CIPP Lining: Use the 56095 to position your pipe laser for pre-lining or post-lining surveys where precise alignment verification is required from the manhole without sending personnel into a confined space unnecessarily.
Utility Inspection & Grade Verification: When field-checking existing grade or verifying as-built conditions on municipal sewer systems, the 56095 allows quick, accurate setups from the surface access point without additional rigging equipment.
Compatible Accessories
- Topcon TP-L4 Pipe Laser
- Topcon TP-L4A Pipe Laser
- Topcon Pipe Laser Detector & Target Set
- Topcon Pipe Laser Carrying Case
- Topcon Laser Grade Rod & Target
Related Guides
- How to Set Up a Pipe Laser from a Manhole
- Topcon TP-L4 Series Overview & Accessory Guide
- Pipe Laser Setup Tips for Sewer & Storm Drain Contractors
- Choosing the Right Pipe Laser Mount for Your Application
Frequently Asked Questions
- Which pipe lasers is the Topcon 56095 compatible with?
- The 56095 Manhole Mount is designed specifically for use with the Topcon TP-L4 and TP-L4A pipe laser series. If you are unsure whether this mount is compatible with your instrument, contact our team and we will confirm before you order.
- Does the 56095 work in all manhole sizes?
- The Topcon 56095 is designed to span standard manhole openings and access pits typical in municipal sewer and storm drain construction. For unusually large or non-standard access structures, consult your Topcon dealer to confirm fit before purchasing.
- Do I need any additional adapters to mount my TP-L4 to the 56095?
- No additional adapters are required. The 56095 uses the standard 5/8 x 11 thread connection, which mates directly with the TP-L4 series instrument. Simply thread your laser onto the mount and you are ready to set grade.
- Is the Topcon 56095 covered under a manufacturer warranty?
- Yes. As an authorized Topcon dealer, Express Tools sells the 56095 backed by the full Topcon manufacturer warranty. If you experience a defect or issue, contact us and we will help you navigate the warranty process quickly.
