Overview

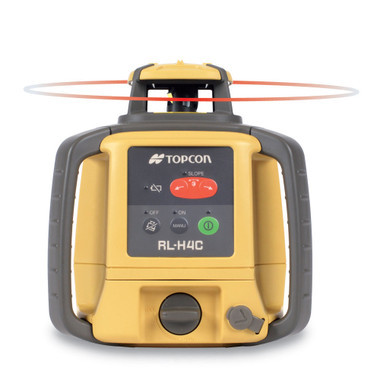

The Topcon RL-H4C Self-Leveling Laser DB Kit is a professional-grade rotary laser system designed for construction contractors, site grading specialists, and building professionals who demand reliable horizontal leveling across jobsites. This comprehensive double-battery (DB) kit includes everything needed to establish accurate elevation references up to 600 meters in diameter, making it ideal for foundation work, concrete forming, and general site grading applications. Unlike stripped-down laser-only packages, this complete kit includes the LS-80L laser receiver with rod clamp, a 15-foot measuring rod with standard inch graduations, and an aluminum tripod—eliminating the need for separate accessory purchases. The RL-H4C's IP66 waterproof rating and alkaline battery power system make it exceptionally reliable in demanding outdoor conditions where rechargeable systems might fail. For contractors working with traditional U.S. measurement systems rather than decimal feet or metric units, this kit's inches-graduated rod provides the familiar measurements needed for efficient fieldwork.
Key Specifications
| Specification | Details |
|---|---|
| Accuracy | ±10 arc seconds (±3mm at 30m) |
| Self-Leveling Range | ±5 degrees |
| Working Range | 600m diameter (with receiver) |
| Laser Class | Class 2 |
| Battery Type | Alkaline D-cell batteries |
| Battery Life | Up to 100 hours continuous use |
| IP Rating | IP66 (dust-tight and waterproof) |
| Operating Temperature | -4°F to 122°F (-20°C to 50°C) |
| Rotation Speed | 600 RPM |
| Weight | Approximately 5.5 lbs (laser unit) |
| Leveling System | Horizontal self-leveling only |
| Mounting Thread | 5/8-inch x 11 TPI |
What's in the Kit
- Topcon RL-H4C Rotary Laser: The main laser unit featuring self-leveling horizontal laser plane projection with 600 RPM rotation speed for visibility and stability in outdoor conditions
- LS-80L Laser Receiver: Digital laser detector with LCD display showing elevation position, allowing you to detect the laser beam on the measuring rod even in bright sunlight conditions where the beam isn't visible to the naked eye
- 15-Foot Measuring Rod (Inches Graduation): Telescoping aluminum grade rod with traditional inch markings for easy reading and communication of measurements in standard U.S. construction units
- Aluminum Tripod: Adjustable-height tripod with quick-clamp legs providing stable mounting platform for the laser at comfortable working heights
- Alkaline Batteries: Initial set of D-cell alkaline batteries for immediate operation without additional purchases
- Carrying Case: Protective hard case with custom foam cutouts securing all kit components for safe transportation between jobsites
Job Applications
Foundation Layout and Excavation: The RL-H4C establishes consistent elevation references around foundation perimeters, allowing excavation crews to verify dig depths and ensure footer trenches maintain proper depth throughout the foundation footprint. The 600-meter range covers even large residential and commercial building sites from a single laser setup.
Concrete Slab and Deck Leveling: When pouring concrete slabs, garage floors, or elevated decks, the laser creates an invisible reference plane that contractors use with the receiver and rod to set screed rails and verify pour thickness, ensuring consistent elevation across the entire surface and preventing low spots or excessive material waste.
Grading and Drainage Installation: Sitework contractors use the RL-H4C to establish benchmark elevations when grading parking lots, driveways, and drainage swales. The receiver's multiple detection windows allow grade checking from any direction without repositioning equipment, significantly speeding up cut-and-fill operations.
Suspended Ceiling Installation: Interior contractors installing drop ceilings reference the laser plane to mark wall angles and verify ceiling grid height throughout large spaces, ensuring consistent ceiling elevation even in areas with uneven floor conditions. The indoor range is more than sufficient for even large commercial spaces.
Deck and Patio Construction: When building elevated decks or leveling patio bases, the laser helps establish consistent post heights and deck joist elevations, critical for proper drainage and aesthetic appearance. The inches-graduated rod makes it easy to communicate measurements when cutting posts to length.
Retaining Wall Construction: Landscaping contractors reference the laser beam to maintain consistent top-of-wall elevation when building segmental block or timber retaining walls, ensuring professional appearance and proper drainage away from structures.
Form Setting for Tilt-Up Construction: Commercial contractors setting forms for tilt-up concrete panels use the laser to verify form elevation at multiple points, preventing costly panel irregularities that would appear after the pour has cured.
Compatible Accessories
- Topcon LS-100D Laser Receiver - Upgraded digital receiver with higher accuracy and additional features for demanding applications
- Topcon RC-40 Remote Control - Wireless remote for controlling laser functions from receiver position, eliminating trips back to the laser unit
- Heavy-Duty Fiberglass Grade Rod (Inches) - More durable fiberglass construction for high-use commercial applications
- Aluminum Grade Rod (Tenths Graduation) - Alternative rod with decimal feet markings for engineering and survey work
- Heavy-Duty Laser Tripod - Reinforced tripod for improved stability in windy conditions or uneven terrain
Related Guides
Frequently Asked Questions
- What is the difference between this kit and the Topcon RL-H4C 883 kit?
- The primary difference is the grade rod graduation. This kit (313980752-2) includes a 15-foot measuring rod with standard inch markings, while the 883 kit includes a rod graduated in tenths of a foot (decimal feet). Both kits include the same RL-H4C laser, LS-80L receiver, tripod, and accessories. Choose this kit if you prefer working with traditional inch measurements rather than decimal feet.
- Can the RL-H4C be used for vertical leveling or plumb applications?
- No, the RL-H4C is a horizontal-only rotary laser without a vertical compensator. It creates a level horizontal plane for elevation reference work. If you need both horizontal leveling and vertical/plumb capabilities, consider a dual-grade laser like the Topcon RL-H5A which includes vertical alignment features.
- How long do the alkaline batteries last in the RL-H4C?
- The RL-H4C operates for approximately 100 hours of continuous use on a fresh set of alkaline D-cell batteries under normal temperature conditions. Battery life may be reduced in extremely cold weather. The alkaline battery system provides excellent reliability compared to rechargeable batteries that may lose charge during storage between jobs.
- Is the LS-80L receiver compatible with other Topcon rotary lasers?
- Yes, the LS-80L laser receiver works with all Topcon rotating lasers operating on the standard red laser wavelength. This provides flexibility if you add additional Topcon lasers to your equipment fleet or need to share receivers between multiple units on large jobsites with multiple crews working simultaneously.
