What's the advantage of a red beam versus green beam pipe laser?

Red beam lasers like the TP-L5AV offer excellent visibility in most pipe materials at a lower price point than green beam models. While green beams provide enhanced visibility in certain conditions and over longer distances, red beams deliver outstanding performance for the majority of underground utility applications.

How long does the battery last on a typical workday?

The TP-L5AV's rechargeable battery system typically provides 20-30 hours of continuous operation on a single charge, depending on environmental conditions and usage patterns.

Can this pipe laser be used in wet conditions or standing water?

Absolutely. The TP-L5AV features an IP68 waterproof rating, meaning it's fully protected against dust ingress and can withstand continuous submersion in water.

What diameter pipes can I use this laser in without additional accessories?

The standard TP-L5AV package accommodates pipes from approximately 8 inches to 24 inches in diameter with the included cradle and mounting system.

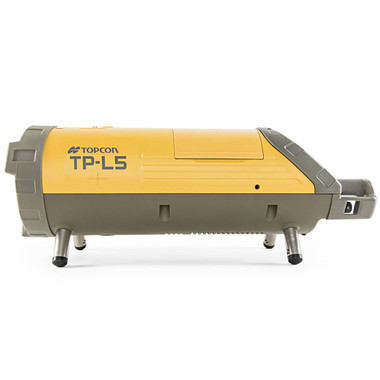

Topcon TP-L5AV Red Beam Pipe Laser

Description

```html

Overview

The Topcon TP-L5AV Pipe Laser Package represents the pinnacle of precision alignment technology for underground utility installation. This professional-grade red beam pipe laser (Model 329560141) delivers the accuracy, durability, and ease-of-use that demanding contractors require on sewer line, stormwater drainage, and utility conduit projects. Engineered with Topcon's legendary build quality, the TP-L5AV combines a highly visible red laser beam with intuitive controls and rugged construction to ensure fast, repeatable setup and reliable performance in the harshest jobsite conditions.

Designed specifically for pipe diameters ranging from small residential connections to large-bore municipal installations, this complete package includes everything needed for immediate deployment. The TP-L5AV excels in applications where precise grade control is non-negotiable—from gravity-fed sewer systems requiring exact slope percentages to horizontal utility bores demanding perfect alignment over extended distances. With its IP68-rated waterproof housing and drop-tested durability, this pipe laser continues working when other tools fail, making it the go-to choice for professional excavation and utility contractors who can't afford downtime.

The red beam technology provides exceptional visibility in most pipe materials including concrete, PVC, vitrified clay, and HDPE, while the intuitive grade adjustment system allows operators to dial in slopes quickly without complex calculations. Whether you're working on residential subdivisions, commercial site development, or large-scale municipal infrastructure projects, the TP-L5AV delivers consistent accuracy that keeps your crew productive and your grades on specification.

Key Specifications

Beam Type: Red laser diode, highly visible in standard pipe materials
Grade Range: -10% to +40% (advanced models offer expanded range)
Accuracy: ±10 arc seconds (approximately ±1/16" at 100 feet)
Pipe Diameter Range: 6 inches to 60+ inches with appropriate accessories
Power Source: Rechargeable battery system with extended runtime
Environmental Protection: IP68 waterproof and dustproof rating
Operating Temperature: -4°F to 122°F (-20°C to 50°C)
Self-Leveling: Automatic leveling and grade setting capability
Drop Resistance: Tested to withstand jobsite impacts and rough handling
Weight: Approximately 11 lbs (varies with battery configuration)

What's in the Kit

TP-L5AV Red Beam Pipe Laser (main unit)
Rechargeable battery pack with charger
Heavy-duty carrying case with custom foam insert
Standard pipe target with mounting hardware
Adjustment cradle for grade setting
Remote control unit for one-person operation
AC power adapter for continuous operation
Calibration certificate and documentation
Quick-start guide and comprehensive operator's manual
Protective lens cap and cleaning cloth

Job Applications

Municipal Sewer Line Installation: The TP-L5AV's superior accuracy ensures gravity-fed sewer systems maintain precise fall rates, preventing settling solids and future maintenance issues while meeting stringent municipal inspection requirements.
Stormwater Drainage Systems: Proper slope is critical for stormwater management—this pipe laser enables crews to establish optimal grades that prevent ponding and ensure efficient water evacuation during heavy rainfall events.
Horizontal Directional Drilling (HDD): When boring under roadways, rivers, or structures, the visible red beam provides continuous alignment reference, reducing the risk of costly path deviations and minimizing the need for correction drilling.
Agricultural Drainage Tile: Farm drainage projects covering extensive acreage demand consistent grades across long runs—the TP-L5AV's range and accuracy keep tile installations performing efficiently for decades.
Industrial Process Piping: Manufacturing facilities and treatment plants require precise slope control for chemical drains, wastewater conveyance, and process fluids—this laser ensures installations meet engineering specifications.
Residential Site Development: Subdivision contractors working on multiple house connections simultaneously benefit from the quick setup and reliable performance that keeps crews moving efficiently from connection to connection.

Compatible Accessories

Extended-range laser targets for large-diameter pipe and long runs
Pipe cradle adapters for various diameter pipes (6" through 60")
Wireless remote control with extended range capability
Additional battery packs for all-day operation without recharging
Magnetic mounting accessories for steel pipe applications
Grade rod and receiver for above-ground grade transfer
Protective transport case upgrades for fleet vehicle storage
Replacement targets and target accessories

Related Guides

FAQ

What's the advantage of a red beam versus green beam pipe laser?: Red beam lasers like the TP-L5AV offer excellent visibility in most pipe materials at a lower price point than green beam models. While green beams provide enhanced visibility in certain conditions and over longer distances, red beams deliver outstanding performance for the majority of underground utility applications, making them the cost-effective choice for contractors working primarily in standard pipe diameters and distances under 500 feet.
How long does the battery last on a typical workday?: The TP-L5AV's rechargeable battery system typically provides 20-30 hours of continuous operation on a single charge, depending on environmental conditions and usage patterns. This extended runtime easily covers multiple workdays for most applications. Many contractors keep a spare battery charged for large projects or invest in the AC adapter for jobs with accessible power.
Can this pipe laser be used in wet conditions or standing water?: Absolutely. The TP-L5AV features an IP68 waterproof rating, meaning it's fully protected against dust ingress and can withstand continuous submersion in water. This makes it ideal for sewer and drainage work where wet conditions are inevitable. The sealed housing protects sensitive electronics while maintaining accuracy even when the laser is partially or fully submerged during installation.
What diameter pipes can I use this laser in without additional accessories?: The standard TP-L5AV package accommodates pipes from approximately 8 inches to 24 inches in diameter with the included cradle and mounting system. For smaller pipes (6-8 inches) or larger pipes (24 inches and up), pipe-specific cradle adapters are available separately to ensure proper centering and stability of the laser within the pipe.

```
