Topcon TP-L5BG: Professional Green Beam Pipe Laser for Underground Contractors

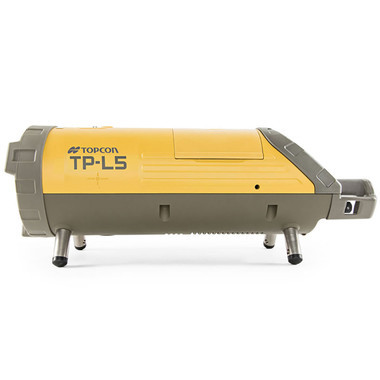

The Topcon TP-L5BG is an economy-class green beam pipe laser engineered for underground contractors who demand precision without sacrificing budget. Combining a highly visible green laser diode with an integrated LED plumb reference, the TP-L5BG delivers the accuracy and reliability professionals expect from Topcon at a price point that makes equipping multiple crews practical. Whether you are laying gravity-fed sewer mains, storm drain laterals, or conduit runs, the TP-L5BG keeps your grade on target from the first pipe to the last.
Jobsite Overview & Applications
Designed specifically for open-cut and trenchless underground utility work, the TP-L5BG thrives in partially lit trenches and confined-space environments where red beam lasers fall short. The green wavelength is up to four times more visible to the human eye, reducing setup time and virtually eliminating costly misreads. The LED plumb indicator allows crews to verify vertical alignment simultaneously with slope, making it equally useful for manhole drops and vertical structure placement. Its compact, self-leveling design fits standard target systems and mounts quickly inside pipe diameters common to municipal and residential utility projects.
Key Specifications
- Laser Color: Green beam (520 nm)
- Accuracy: ±1/16 in. per 100 ft. (±1.5 mm per 30 m)
- Grade Range: 0% to 40% (0° to 21.8°)
- Grade Setting Resolution: 0.001%
- Self-Leveling Range: ±5°
- LED Plumb Reference: Integrated, 360° visible
- Battery Life: Up to 35 hours (4 x AA alkaline)
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Ingress Protection: IP66 dust and water resistant
- Laser Class: Class IIIa / Class 3R
Key Features
- Green Beam Visibility: Up to 4x brighter than comparable red beam lasers for faster, more confident target acquisition underground
- LED Plumb Reference: 360° visible LED ring confirms vertical plumb simultaneously with grade laser output
- Wide Grade Range: 0–40% grade capability covers the steepest utility slopes encountered in residential and municipal work
- Automatic Self-Leveling: Built-in compensator levels the instrument within ±5° and alerts the operator when out of range
- IP66 Protection: Sealed against dust ingress and heavy water jets — built to survive trench conditions
- Economy Value: Topcon-quality optics and electronics at a price point suited for multi-crew operations
- Long Battery Runtime: Up to 35 hours on standard AA alkaline batteries minimizes mid-shift interruptions
Job Applications
Gravity Sewer Mains & Laterals: Set precise grades on 4" to 24" sewer pipe with confidence. The green beam cuts through trench shadow and partial daylight so your grade rod operator can call shots without delay.
Storm Drain & Culvert Installation: Wide grade range and fast self-leveling make the TP-L5BG ideal for storm drain runs that transition between steep hillside cuts and flatter outfall sections on the same shift.
Conduit & Duct Bank Runs: When electrical or telecom conduit must maintain consistent fall for drainage or meet precise elevation benchmarks, the TP-L5BG's 0.001% resolution keeps tolerances tight.
Manhole & Structure Plumb Checks: The integrated LED plumb reference lets one operator simultaneously control pipe grade and verify manhole barrel plumb — eliminating a second instrument setup and saving measurable time per structure.
Compatible Accessories
- Topcon TP-L5 Target Set — Standard laser target compatible with TP-L5 series instruments
- Topcon Pipe Laser Cradle & Mounting Bracket — For secure in-pipe positioning
- Topcon RC-4 Remote Control — Adjust grade settings from the trench without disturbing the instrument
- Protective Carrying Case — Hard-shell transport case sized for TP-L5BG and accessories
- Replacement AA Battery Pack — Bulk batteries for extended field operations
Related Guides
- How to Set Grade with a Pipe Laser: Step-by-Step Guide
- Green vs. Red Beam Pipe Lasers: Which Should You Choose?
- Topcon TP-L5 Series Comparison: BG vs. GS vs. Standard
- Underground Utility Layout Best Practices for Contractors
Frequently Asked Questions
- What pipe diameter range is the Topcon TP-L5BG designed for?
- The TP-L5BG is compatible with standard pipe diameters from approximately 4 inches up to 24 inches when used with the appropriate cradle and target system. Always verify cradle fitment for your specific pipe ID before ordering.
- How does the green beam improve performance over a red beam pipe laser?
- The human eye is most sensitive to green light (around 520 nm), making a green beam appear up to four times brighter than a red beam of equivalent power. In partially lit trenches or when working in partial daylight, this translates to faster target acquisition, reduced eye strain, and fewer misreads for your crew.
- Can the TP-L5BG be used for aboveground applications like building layout?
- While the TP-L5BG is optimized for in-pipe underground use, its grade and plumb functions can assist with some aboveground tasks such as setting drainage slopes on flatwork or checking structural plumb. However, for primary aboveground layout work, a rotary laser or grade laser designed for surface use is recommended.
- Does the TP-L5BG come with a warranty?
- The Topcon TP-L5BG is backed by Topcon's standard manufacturer warranty. As an authorized Topcon dealer, Express Tools ensures your instrument is covered and that warranty service can be properly facilitated. Contact us for current warranty terms and service center information.
