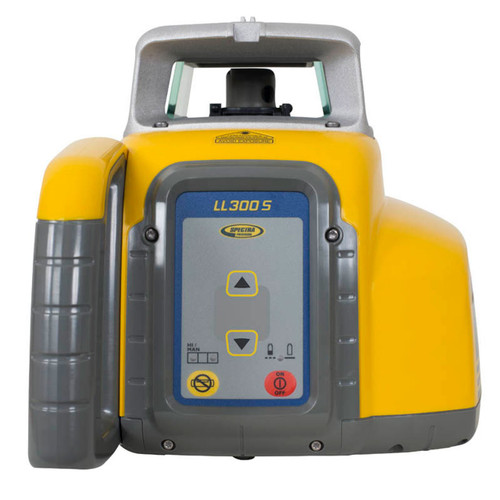

The Spectra Precision LL300S-BCA is a professional-grade self-leveling rotary laser designed for concrete contractors, grading crews, and site prep teams who demand reliable horizontal accuracy on every pour. This complete kit bundles the LL300S red beam laser unit with an alkaline battery set and a rugged carrying case, giving you everything needed to start working from the first day on site. Whether you're establishing benchmarks for foundation work, setting elevation for slab pours, or verifying grades across large commercial pads, the LL300S delivers consistent ±10 arc-second accuracy without the complexity or cost of a full-featured grade laser.
Overview & Jobsite Applications
Built for demanding horizontal leveling tasks, the Spectra LL300S operates in a wide range of conditions and environments. Its self-leveling compensator automatically locks in a true horizontal plane within ±5° of plumb, reducing setup time and eliminating operator error during critical elevation shots. With an operating range of up to 2,600 feet in diameter when paired with a compatible detector, this unit is suited for both tight foundation setups and sprawling site work. The red beam is visible in low-light conditions, and the out-of-level alarm alerts crews immediately if the instrument is disturbed during operation—keeping accuracy intact without constant re-checks.
Key Specifications
- Accuracy: ±10 arc seconds (±1/16" at 100 ft)
- Self-Leveling Range: ±5° automatic compensation
- Operating Range: Up to 2,600 ft diameter with detector
- Rotation Speed: 150, 300, or 600 RPM (selectable)
- Laser Class: Class IIIa / Class 3R red beam
- Battery Life: Up to 100 hours on alkaline batteries
- IP Rating: IP66 dust and water resistant
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Weight: 4.0 lbs (1.8 kg)
What's in the Kit
- Spectra Precision LL300S red beam rotary laser unit
- Alkaline battery set (included, ready to use out of the box)
- Rugged protective carrying case for transport and storage
- User documentation and quick-start guide
Job Applications
Concrete Slab Pours: Set a consistent elevation reference across the entire slab area. Use the LL300S with a grade rod and detector to screed to exact height, eliminating low spots and high crowns before the concrete sets.
Foundation Layout & Benchmarking: Establish horizontal control points for footing and stem wall elevations. The LL300S's self-leveling compensator ensures your benchmark transfers accurately across all corners of the structure.
Site Grading & Earthwork: Mount the LL300S on a tripod at a central control point and use a compatible machine control receiver or grade rod to verify cut-and-fill depths across a site before finish grading begins.
General Building Layout: Transfer floor elevations between stories, confirm deck and ledger heights, and check subfloor flatness—all tasks where reliable horizontal reference beats a water level or hand transit every time.
Compatible Accessories
- Spectra HR320 Laser Receiver / Detector
- Spectra HL700 Alkaline Detector
- Grade Rod (Inches/Tenths)
- Heavy-Duty Aluminum Tripod
- Spectra RC601 Remote Control
Related Guides
- How to Set Up a Rotary Laser for Concrete Slab Work
- Rotary Laser vs. Line Laser: Which Do You Need?
- Using a Grade Rod and Detector with a Rotary Laser
- Spectra LL300S vs. LL300N: What's the Difference?
Frequently Asked Questions
- Does the LL300S-BCA work outdoors in daylight?
- Yes, but like all red beam rotary lasers, the LL300S beam is most visible in shaded or low-light conditions. For full daylight outdoor use at extended ranges, pair the unit with a compatible laser detector such as the Spectra HR320, which picks up the beam at distances well beyond unaided eye visibility.
- What does the "BCA" designation mean?
- BCA identifies the package configuration: the LL300S laser unit bundled with an alkaline Battery set and a protective Carrying case (A = alkaline). This distinguishes it from other LL300S packages that may include NiMH batteries, a receiver, or a remote control.
- Can the LL300S be used for vertical or grade applications?
- The LL300S is designed specifically for horizontal leveling and does not offer a grade or slope mode. If your work requires setting a consistent percentage of slope—such as for drainage or pipe installation—consider the Spectra LL300N or a dual-grade laser like the Spectra GL422N.
- How long do the alkaline batteries last in the LL300S?
- Spectra rates the LL300S at up to 100 hours of runtime on a fresh set of alkaline batteries at standard rotation speed. Actual runtime will vary depending on ambient temperature and rotation speed selected. Cold temperatures can reduce battery performance, so keep spare batteries on hand for winter jobsites.
