Spectra Precision GL422N-16 Dual Grade Laser w/ CR700 Receiver, TENTHS-Rod and Tripod

Overview

The Spectra Precision GL422N-16 Dual Grade Laser represents a professional-grade solution for contractors who demand precision in complex grading operations. This comprehensive kit combines Spectra's proven dual-slope laser technology with the advanced CR700 digital receiver, a tenths-graduated leveling rod, and a rugged aluminum tripod—everything needed to execute demanding site work with survey-level accuracy. Unlike single-slope lasers that limit you to basic elevation work, the GL422N-16 enables simultaneous grading in two directions, dramatically reducing setup time on projects requiring complex drainage patterns, parking lots, building pads, and athletic fields.

Built on Spectra's reputation for durability in harsh jobsite conditions, the GL422N-16 features self-leveling functionality, an operating range up to 2,600 feet diameter with the included CR700 receiver, and intuitive controls that get crews productive quickly. The system's tenths-rod provides direct decimal readings that eliminate fraction-to-decimal conversion errors, while the dual-grade capability handles sophisticated slope requirements that would otherwise require multiple setups orTotal Station intervention. For contractors balancing productivity demands with accuracy requirements, this kit delivers professional performance at a midrange investment point of $2,975.

Key Specifications

• Grade Range: Dual-axis capability with -10% to +10% in both X and Y directions
• Leveling Accuracy: ±1/16 inch at 100 feet (±1.5 mm at 30 m)
• Self-Leveling Range: ±5 degrees with automatic shutdown if disturbed beyond range
• Working Diameter: Up to 2,600 feet (800 m) with CR700 receiver; 1,600 feet (490 m) visible beam
• Rotation Speed: 0, 60, 120, 300, 600, 900 RPM (user-selectable for varying conditions)
• Display: Multi-function backlit LCD showing grade settings, battery status, and system diagnostics
• Power Source: Rechargeable NiMH battery providing 40+ hours runtime; alkaline D-cell option available
• Environmental Rating: IP66 dust-tight and water-resistant construction
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Receiver Accuracy: CR700 digital display with ±1/16 inch (±2 mm) on-grade indication

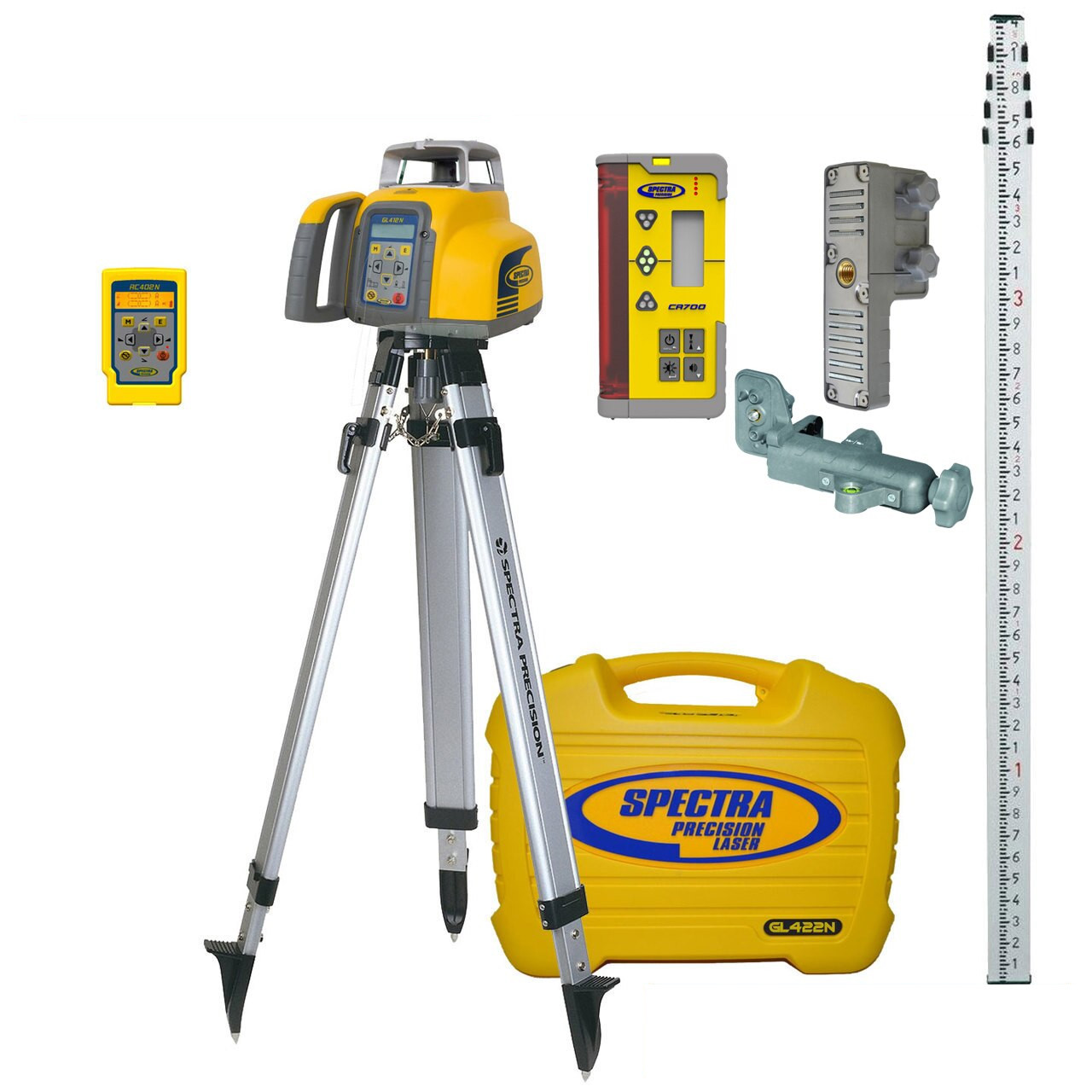

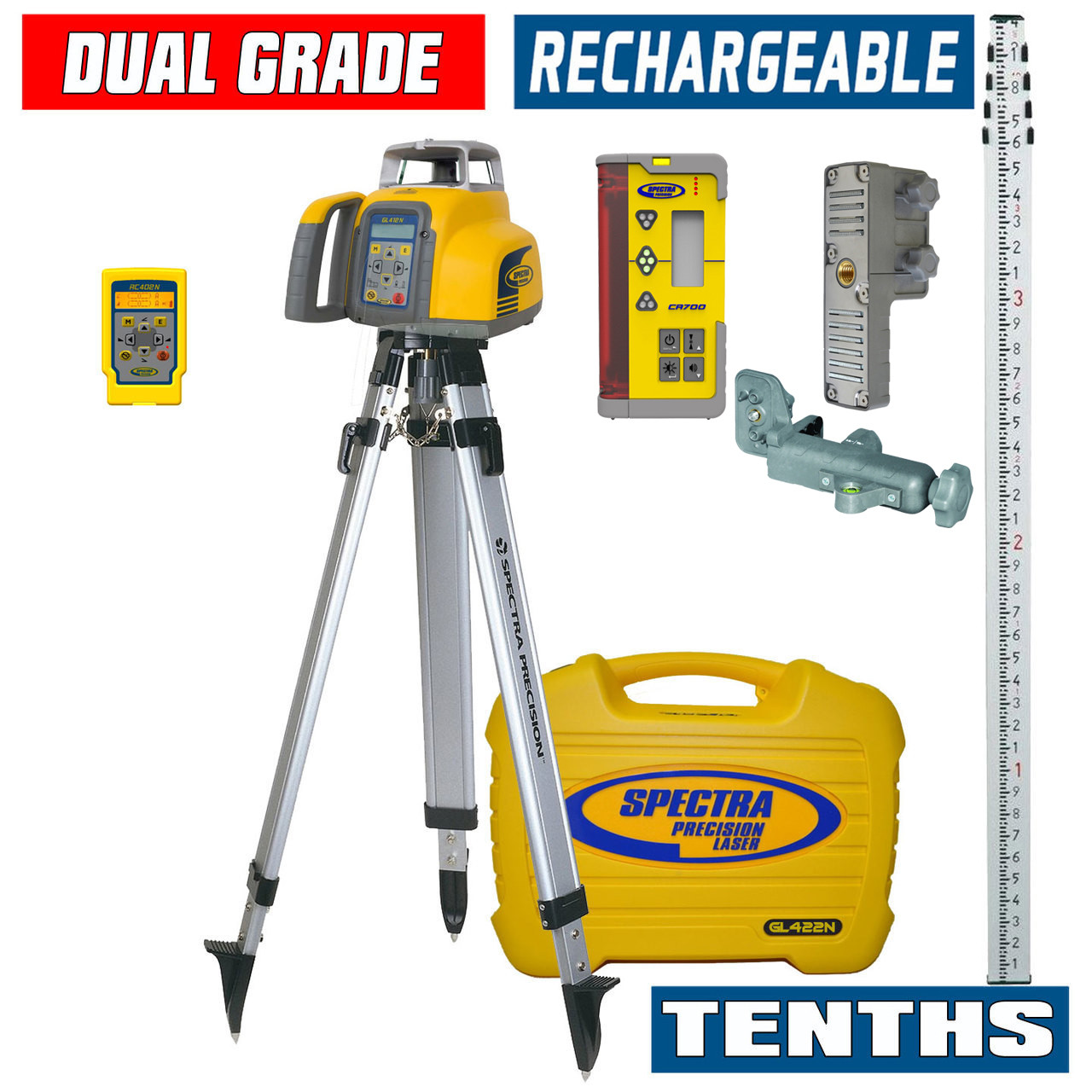

What's in the Kit

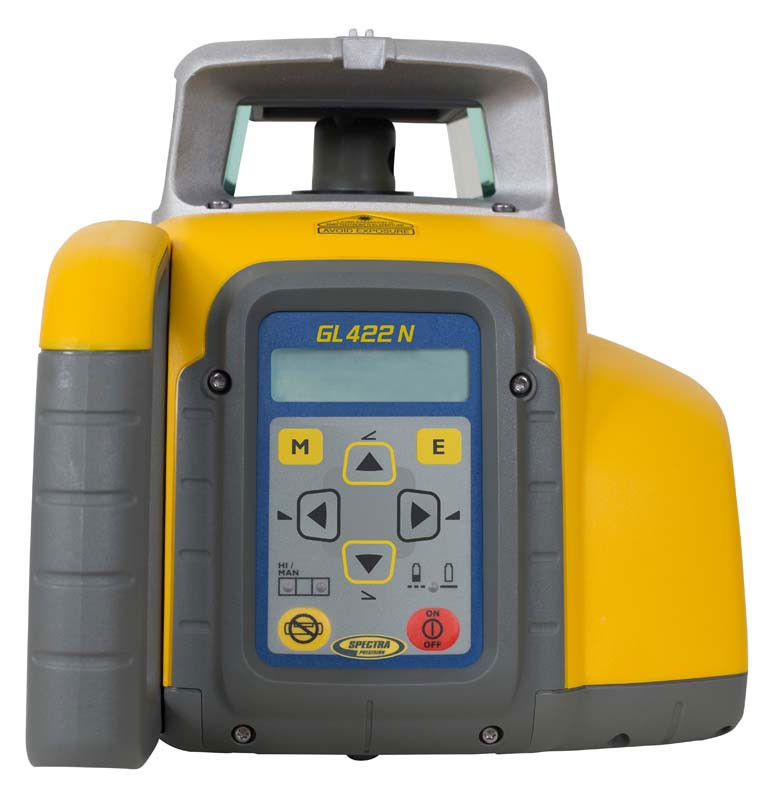

• GL422N Dual Grade Laser Transmitter with protective carrying case

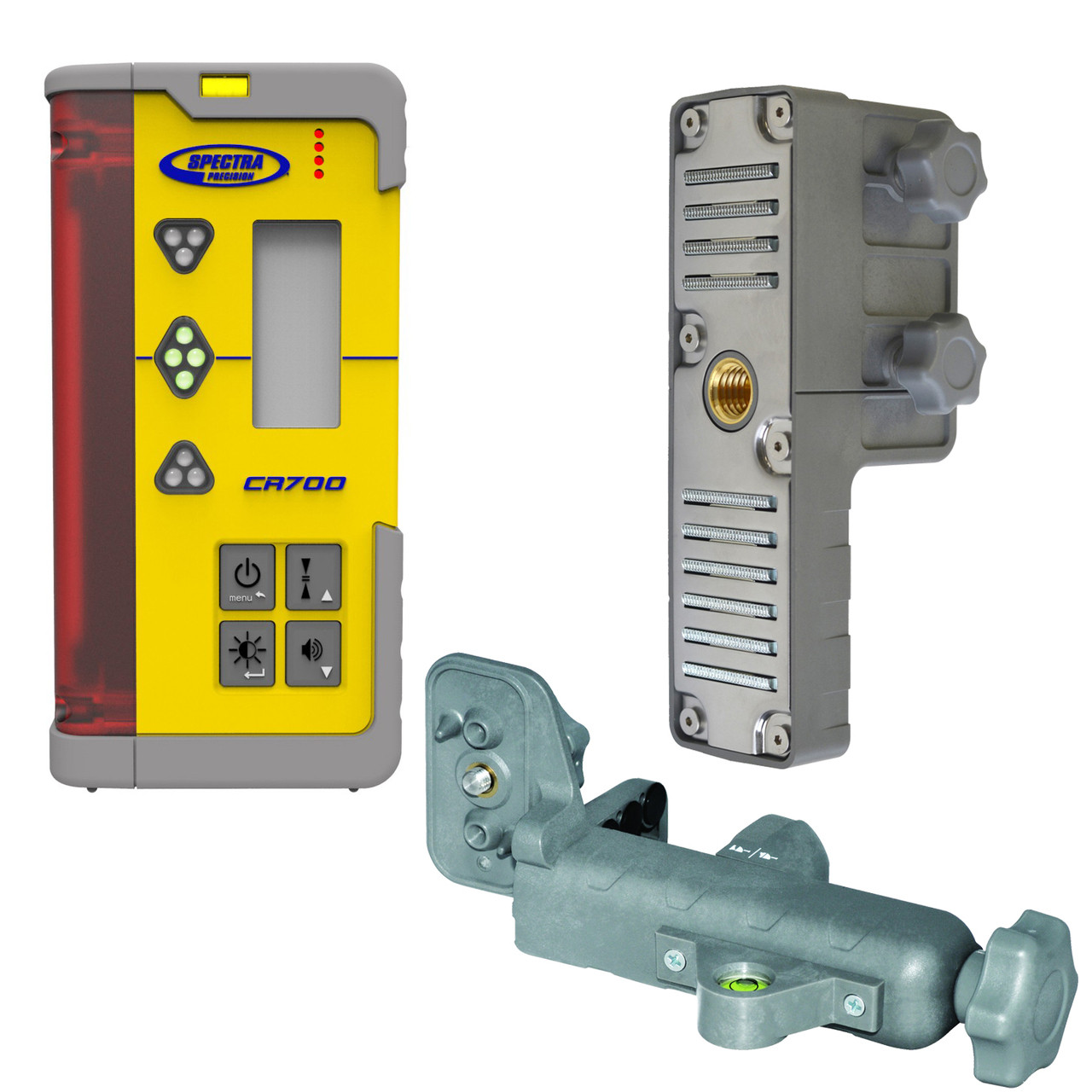

• CR700 Digital Laser Receiver with rod clamp and integrated display
• Tenths-Graduated Leveling Rod (extends to 16 feet with direct decimal readings)
• Heavy-Duty Aluminum Tripod with adjustable legs and locking mechanisms
• Rechargeable NiMH Battery Pack with AC charger
• Remote Control for grade adjustments from up to 300 feet
• Laser Safety Glasses for visible beam protection
• Quick Start Guide and Complete User Manual
• Factory Calibration Certificate with NIST traceability

Job Applications

• Site Excavation and Building Pads: Dual-slope capability enables precise crown or cross-drainage on large pads without repositioning the laser, reducing setup time on foundation work where water management is critical to structural integrity and site compliance.
• Parking Lot and Roadway Grading: Simultaneously control centerline crown and longitudinal slope for proper water runoff, eliminating the multiple setups required with single-grade lasers while maintaining the tight tolerances demanded by paving specifications and municipal stormwater regulations.
• Athletic Field Construction: Create complex multi-directional drainage patterns essential for turf health and playability, with the precision needed for NCAA and professional field specifications where subsurface drainage effectiveness depends on consistent grade execution.
• Concrete Slab Placement: Guide screed operations for warehouse floors, tilt-up panels, and commercial slabs where flatness specifications (FF/FL numbers) directly impact client acceptance and the performance of material handling equipment or retail fixtures.
• Drainage Swale and Ditch Grading: Establish accurate multi-directional slopes for erosion control features and stormwater conveyance systems, ensuring hydraulic design intent is achieved in the field where calculation errors or grade breaks can cause pooling or undermining.
• Agricultural Land Leveling: Precision irrigation efficiency depends on controlled grades across large acreage; the GL422N's extended range and dual-slope control optimize water distribution while minimizing the repositioning that interrupts scraper or float operations.

Compatible Accessories

• RC702 Advanced Remote Control with extended 1,000-foot range and grade memory storage
• HL700 Excavator-Mount Receiver for machine control integration on GPS-ready equipment
• Alkaline Battery Tray for extended field operation in remote locations without charging access
• Heavy-Duty Wooden Tripod for maximum stability in high-wind environments
• Laser Detector Card for quick beam location during initial setup procedures
• Elevating Tripod for improved line-of-sight over existing grade obstacles
• Protective Transit Case with custom foam for multi-unit transport protection

Related Guides

Rotating Laser Level Buyer's Guide: Single vs. Dual Grade Systems

Optimizing Laser Receiver Accuracy: Setup and Calibration Best Practices

Site Grading Workflow: From Topo Survey to Final Grade Verification

Laser Level Maintenance Schedule: Protecting Your Investment

FAQ

What's the difference between single-grade and dual-grade laser systems?

Single-grade lasers establish slope in only one direction, requiring rotation or multiple setups for complex drainage. The GL422N's dual-grade capability controls slope simultaneously in both X and Y axes, enabling parking lot crowns, multi-directional drainage, and complex pad work from a single setup—reducing project time by 40-60% on jobs requiring two-directional grading.

Can the GL422N be used for basic elevation work like a rotary laser?

Absolutely. The GL422N functions as a standard self-leveling rotary laser when both grade axes are set to zero, making it ideal for foundation elevation checks, suspended ceiling installation, or any application requiring a level reference plane. This versatility means one tool handles both precision grading and general elevation work, eliminating the need for separate equipment.

How does the CR700 receiver compare to analog receiver/rod systems?

The CR700 provides a digital numeric display showing exact elevation relative to grade in 1/16-inch increments, compared to analog receivers that require interpreting LED or beep patterns. Combined with the tenths-graduated rod, crews get instant decimal readings without mental conversion from fractions—reducing measurement errors and speeding documentation for quality control or pay verification.

What maintenance does the GL422N require to maintain accuracy?

Beyond basic cleaning and careful handling, Spectra recommends annual factory calibration to verify accuracy specifications, particularly for contractors bidding work with tight tolerance requirements. Regular checks include confirming self-leveling function, inspecting the compensator for free movement, verifying battery contacts, and testing receiver response across the working range. Most contractors perform field accuracy checks monthly using a known benchmark or against established control points.
