Spectra Precision HV302-14 Horizontal / Vertical RED Laser Package with CR700 Multi-Use Receiver and Remote

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Laser Class: Red visible laser, Class IIIa / 3R
Self-leveling Range: ±5° automatic compensation
Accuracy: ±1/16 in. at 100 ft (±1.5 mm at 30 m)
Operating Range (with CR700 Receiver): Up to 2,000 ft (600 m) diameter
Rotation Speed: Variable — 0 to 600 RPM
Grade Capability: Manual grade via tilting mechanism

Spectra PrecisionHV302-14SKU Spectra Precision UL633N-24New

Accessories →

Spectra Precision HV302-14 Horizontal / Vertical RED Laser Package with CR700 Multi-Use Receiver and Remote

Name: Spectra Precision HV302-14 Horizontal / Vertical RED Laser Package with CR700 Multi-Use Receiver and Remote
Brand: Spectra Precision
SKU: Spectra Precision UL633N-24
Price: 1883.00 USD
Availability: InStock

$1883.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Qty:

±5° automatic compensation Range

Cover large layout jobs with a ±5° automatic compensation working reach.

±1/16 in. at 100 ft (±1.5 mm at 30 m) Accuracy

Hold grade with a ±1/16 in. at 100 ft (±1.5 mm at 30 m) accuracy rating.

Grade Capability

Handles Manual grade via tilting mechanism so crews can match design slopes.

Power Source

Runs on Alkaline D-cell batteries (included) for jobsite flexibility.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Spectra Precision equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this accessory?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Spectra Precision HV302-14?

The Spectra Precision HV302-14 Horizontal / Vertical RED Laser Package with CR700 Multi-Use Receiver and Remote is a professional-grade rotary laser system designed for contractors who need reliable leveling and grading on job sites. It features a red visible laser with ±1/16 in. accuracy at 100 ft and operates up to 2,000 ft diameter with the included CR700 receiver. It's available from Express Tools.

FIELD APPLICATIONS

What contractors use this accessories for

Construction Layout

Precise positioning for structural and civil work

As-Built Documentation

Field-verified position records for project closeout

Grade Verification

Confirm elevations against design before pouring or paving

PRODUCT OVERVIEW

Product Description

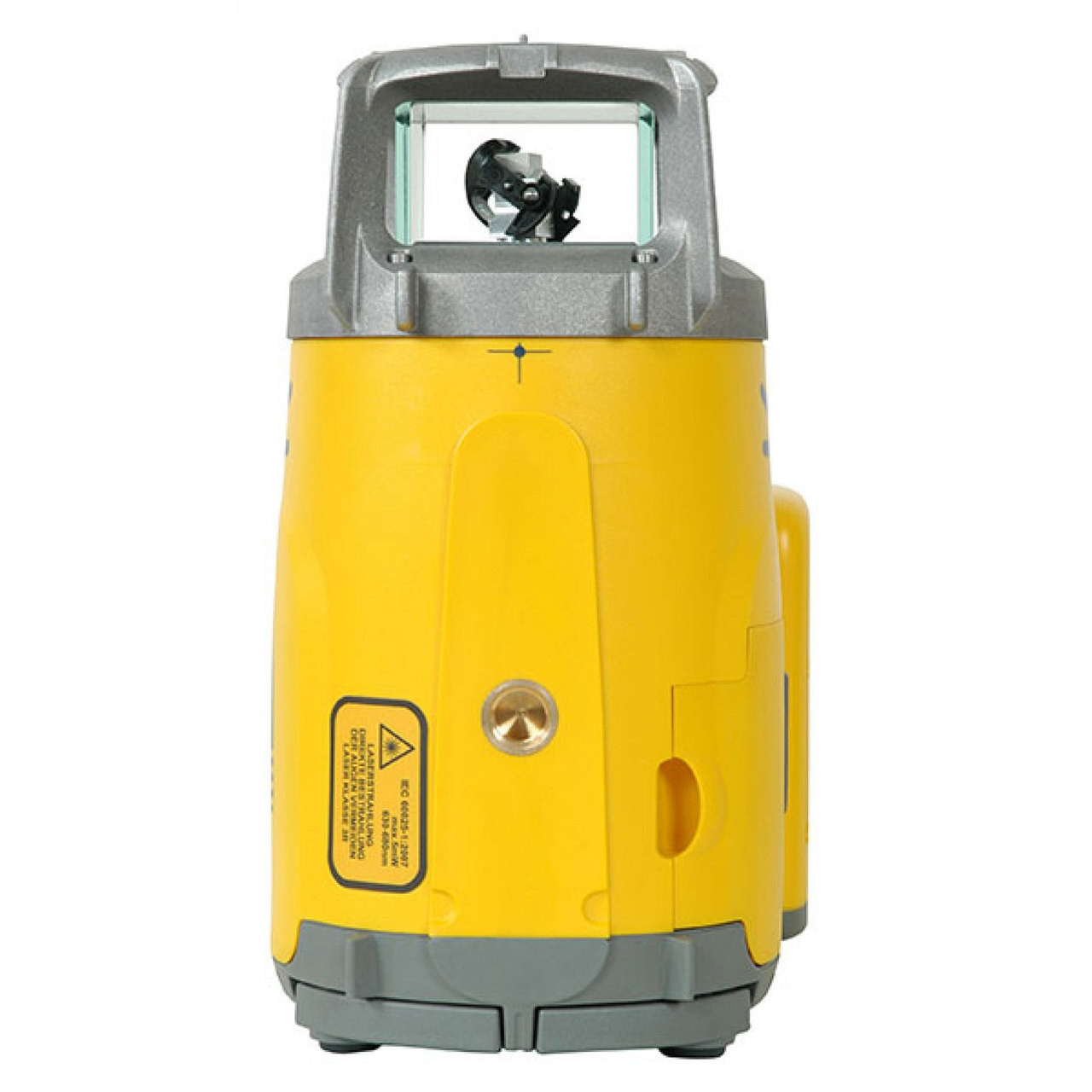

The Spectra Precision HV302-14 is a professional-grade red rotating laser system engineered for contractors who need reliable horizontal and vertical plane projection in a single instrument. Packaged with the CR700 remote-capable receiver, wireless remote control, and batteries, this kit is ready to deploy straight out of the case for earthwork grading, structural layout, and plumb verification — no additional accessories required on day one.

Built for Mixed-Use Job Sites

Whether you are establishing finished floor elevations on a slab pour, shooting grade across a large excavation, or setting building corners during framing, the HV302-14 delivers the range and accuracy that mixed-use crews demand. Its dual-axis self-leveling design eliminates setup errors common with manual instruments, and the variable scan mode lets operators focus beam intensity on specific work zones to maximize visibility in challenging light conditions. The wireless remote control keeps one operator productive without a second person at the instrument — a real labor saver on solo or small-crew jobs.

Key Specifications

Laser Class: Red visible laser, Class IIIa / 3R
Self-Leveling Range: ±5° automatic compensation
Accuracy: ±1/16 in. at 100 ft (±1.5 mm at 30 m)
Operating Range (with CR700 receiver): Up to 2,000 ft (600 m) diameter
Rotation Speed: Variable — 0 to 600 RPM
Grade Capability: Manual grade via tilting mechanism
Dust and Water Protection: IP66-rated housing

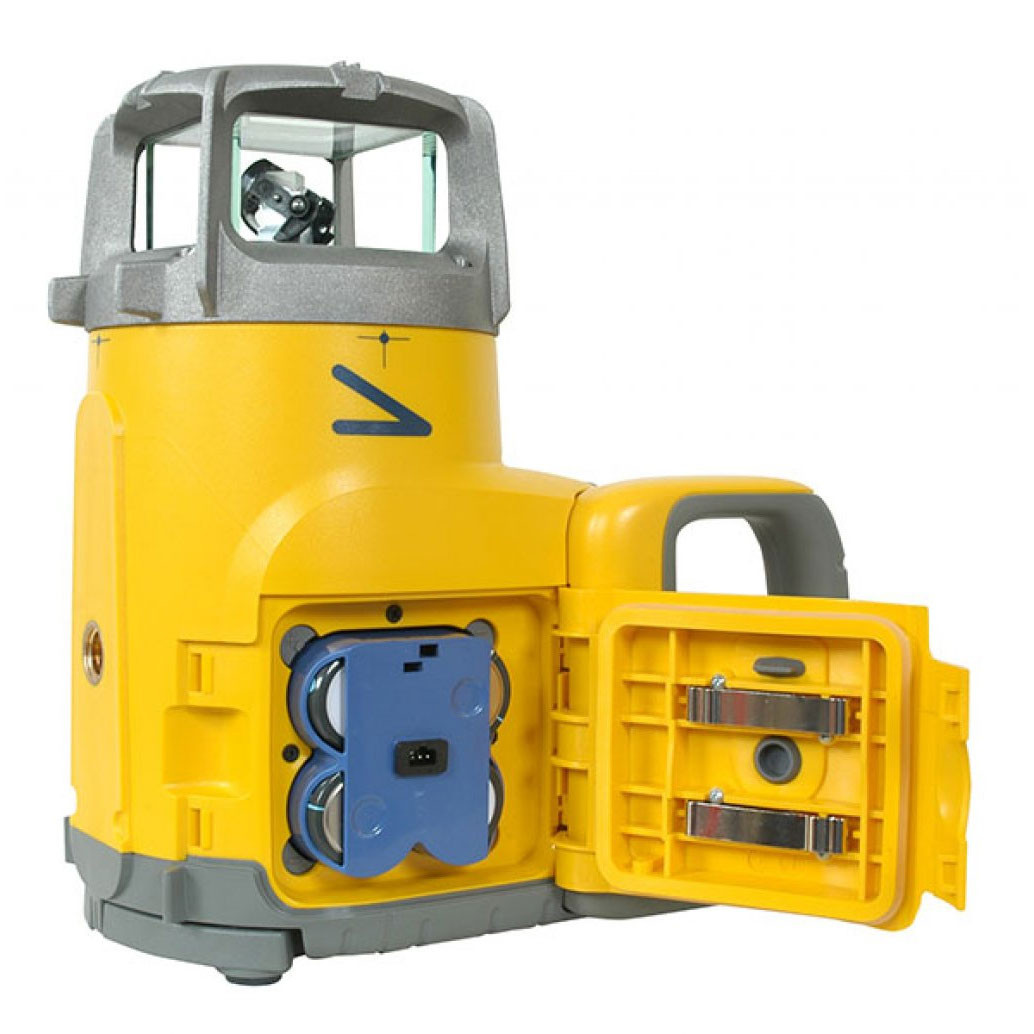

Power Source: Alkaline D-cell batteries (included)
Battery Life: Up to 100 hours typical operation
Tripod Mount: Standard 5/8 in. x 11 thread
Weight: Approximately 5.5 lb (2.5 kg) with batteries

What's in the HV302-14 Kit

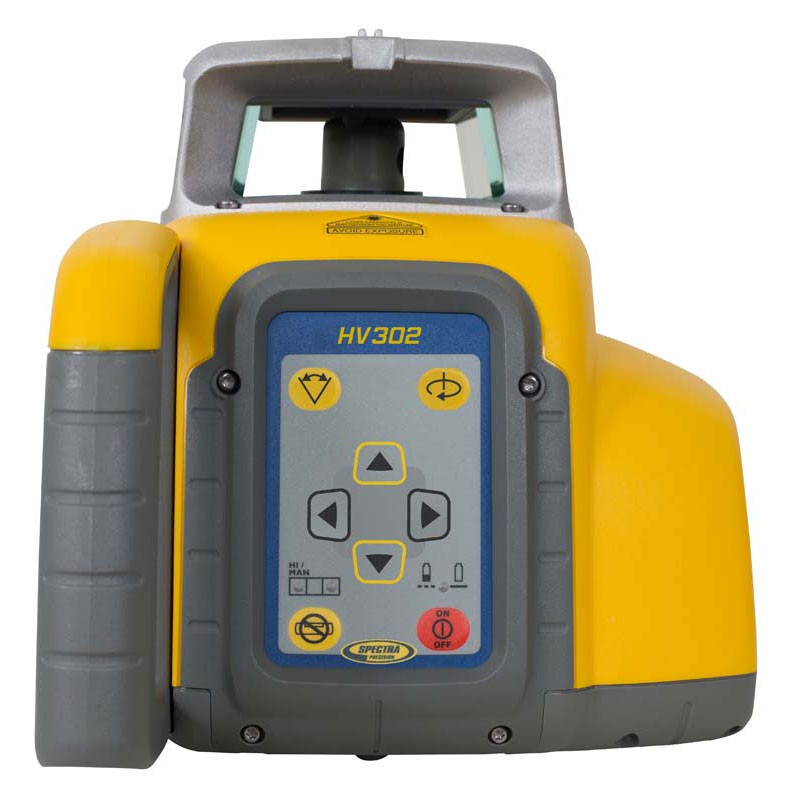

Spectra Precision HV302 horizontal/vertical rotating red laser

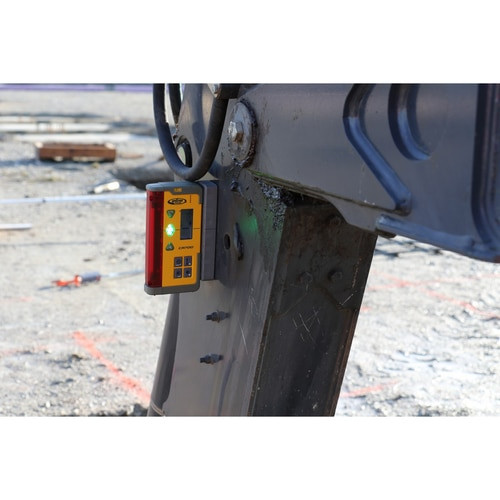

CR700 laser receiver with remote capability and audible/visual grade indication

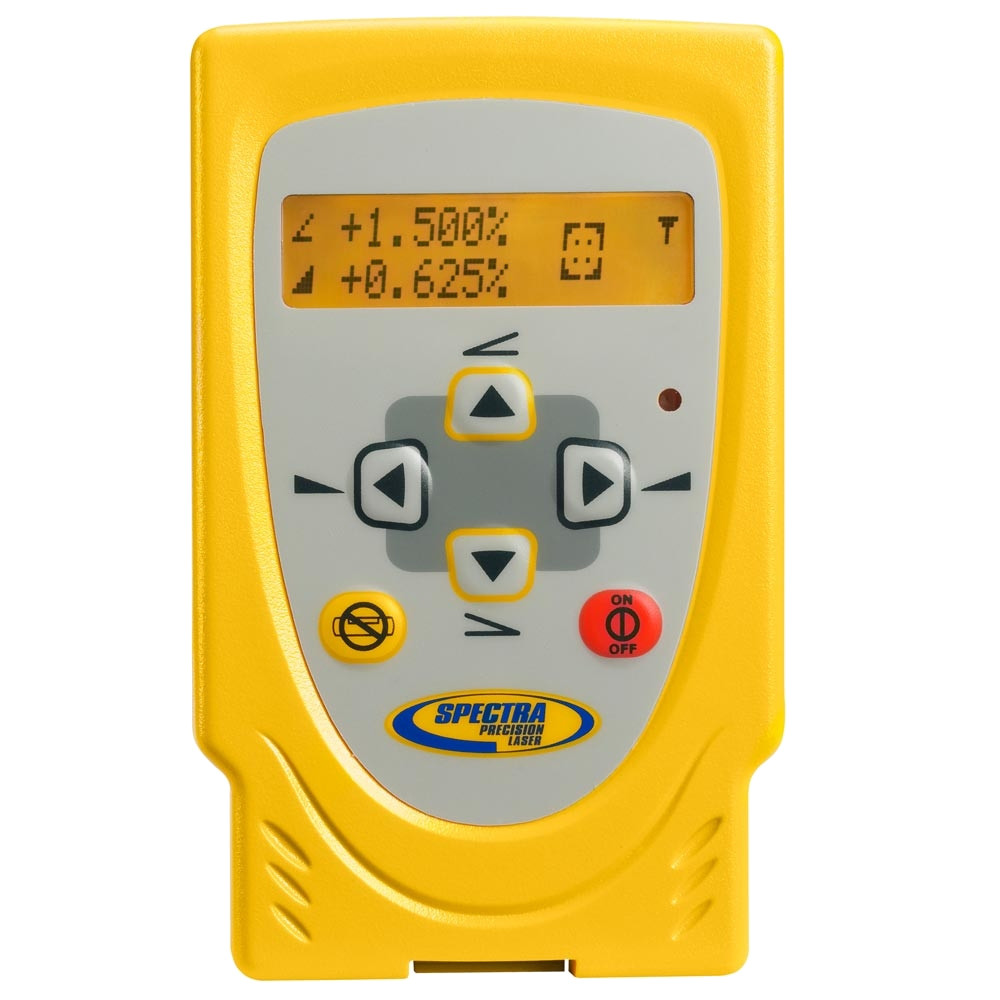

RC703 wireless remote control for single-operator use
Alkaline D-cell batteries
Carrying case for transport and storage
Operator's manual and warranty documentation

Job Site Applications

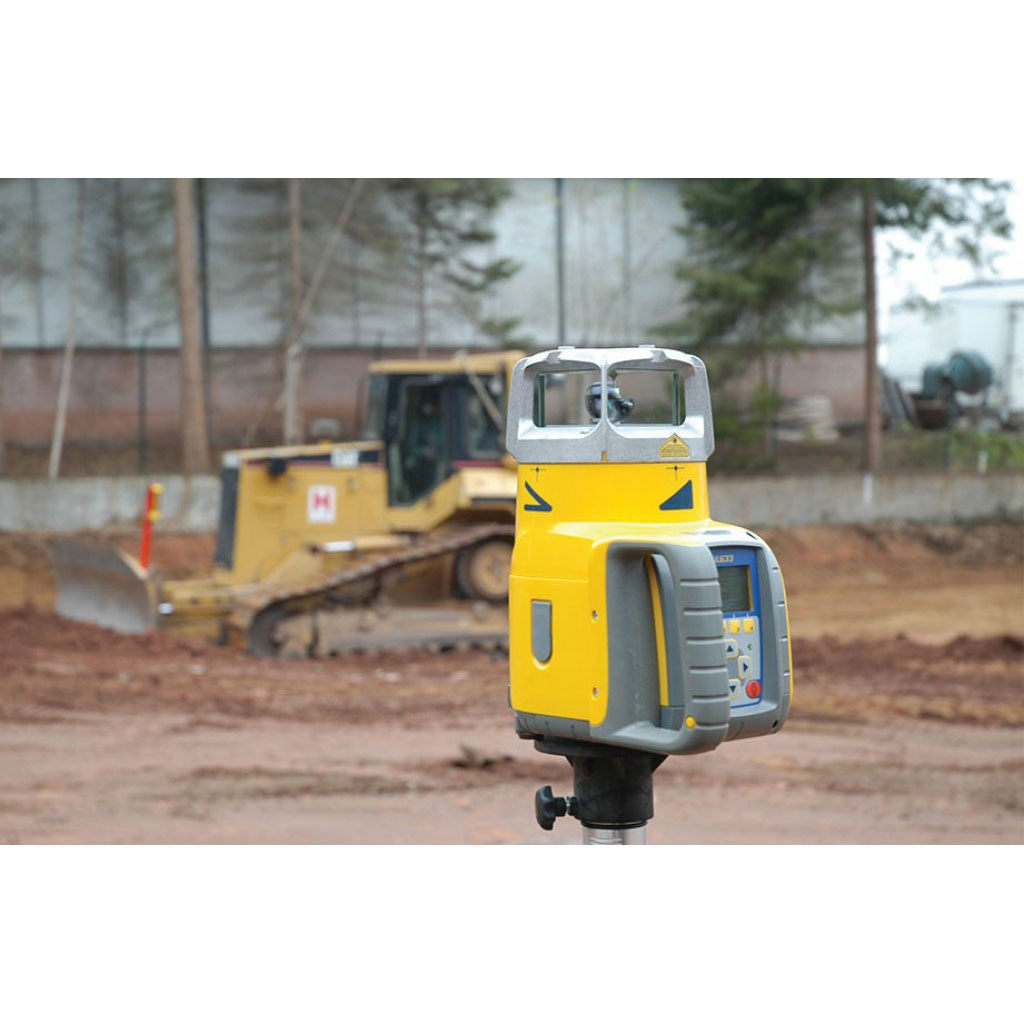

Excavation and Rough Grading: Set the HV302 on a tripod at the edge of the cut zone and use the CR700 receiver on a grade rod to establish consistent cut and fill targets across the entire excavation — no stringlines required.

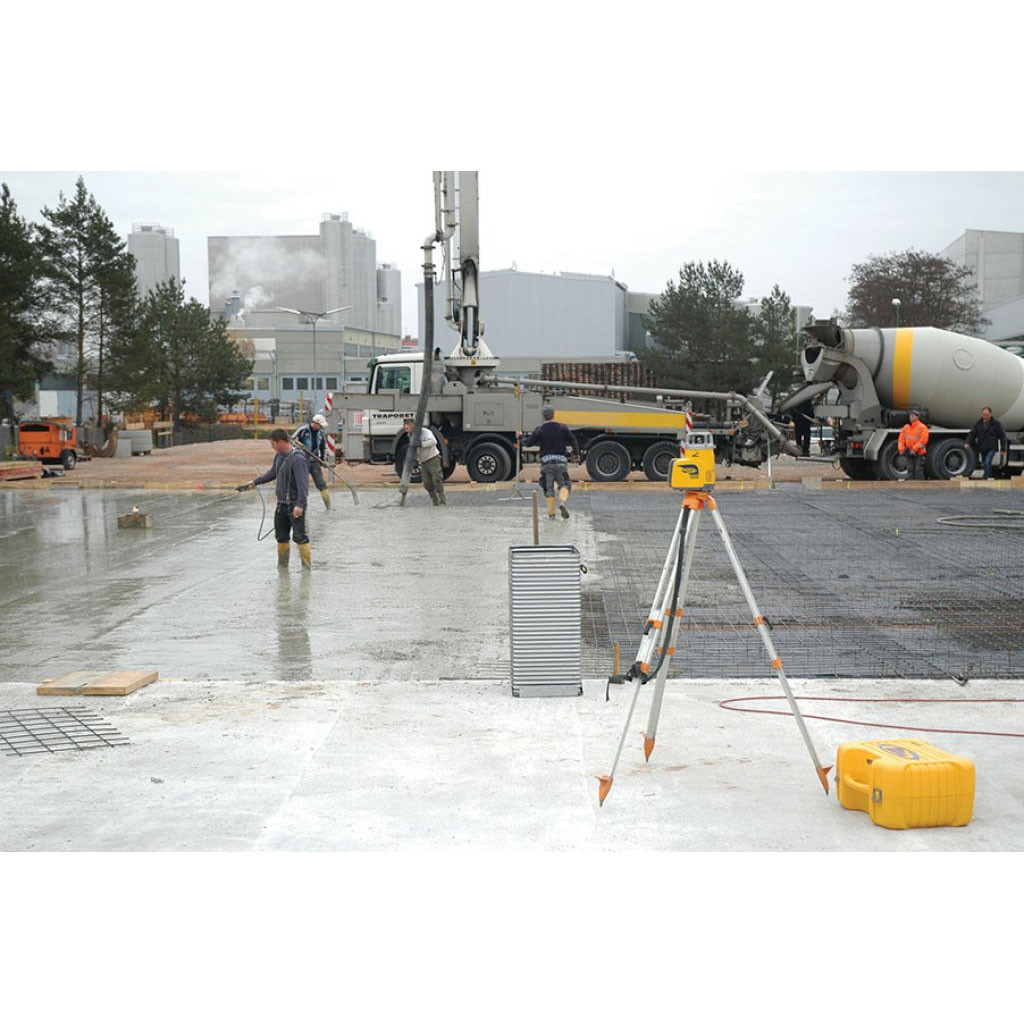

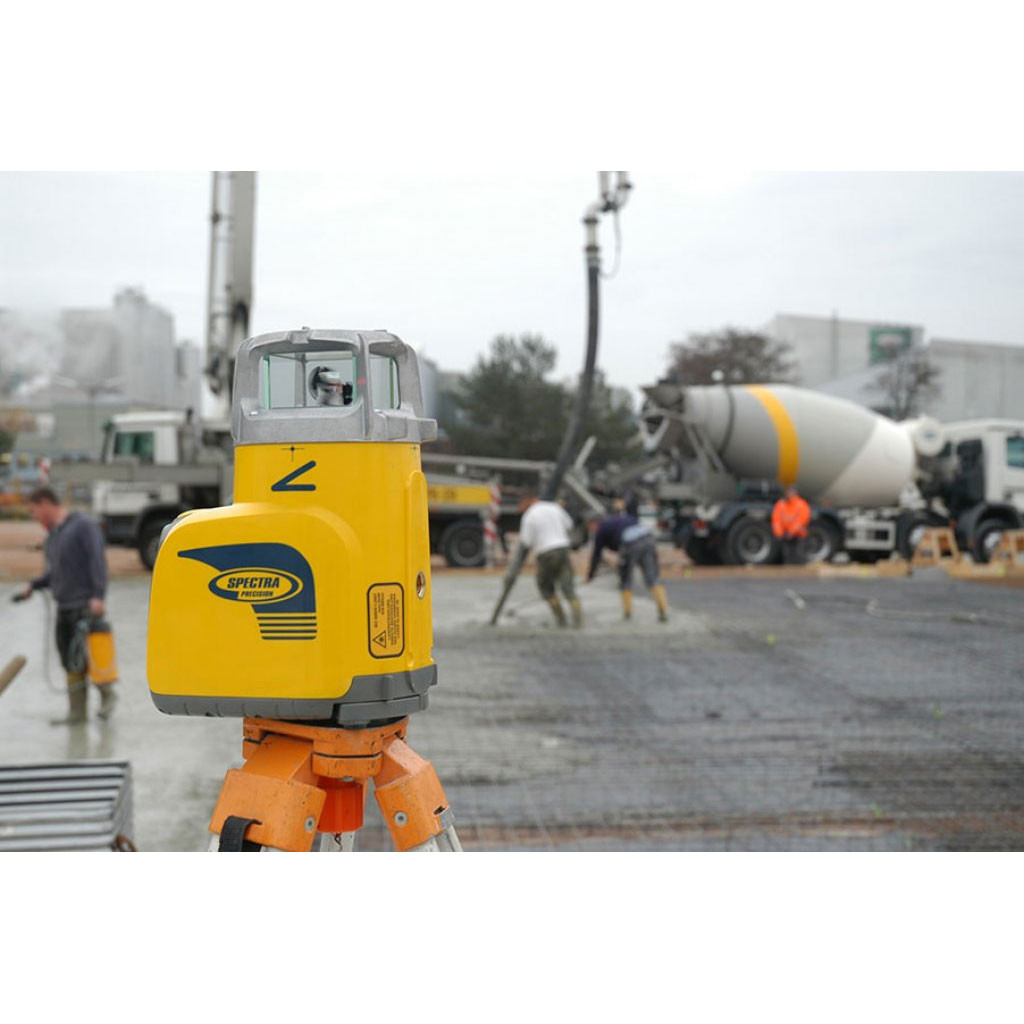

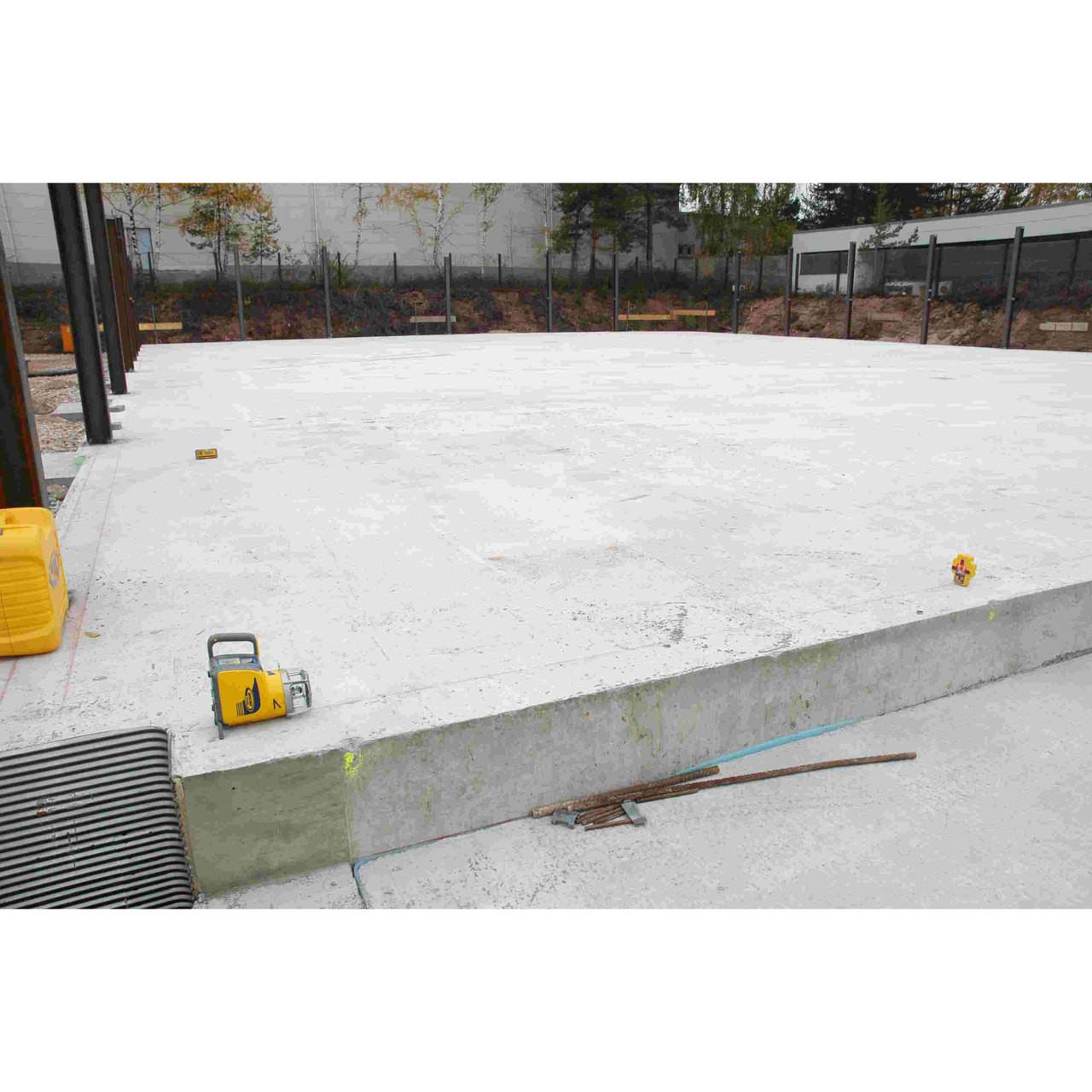

Foundation and Slab Layout: Project a vertical plane to transfer building lines from batter boards to footing forms, maintaining squareness and alignment without constant re-measurement from a baseline.

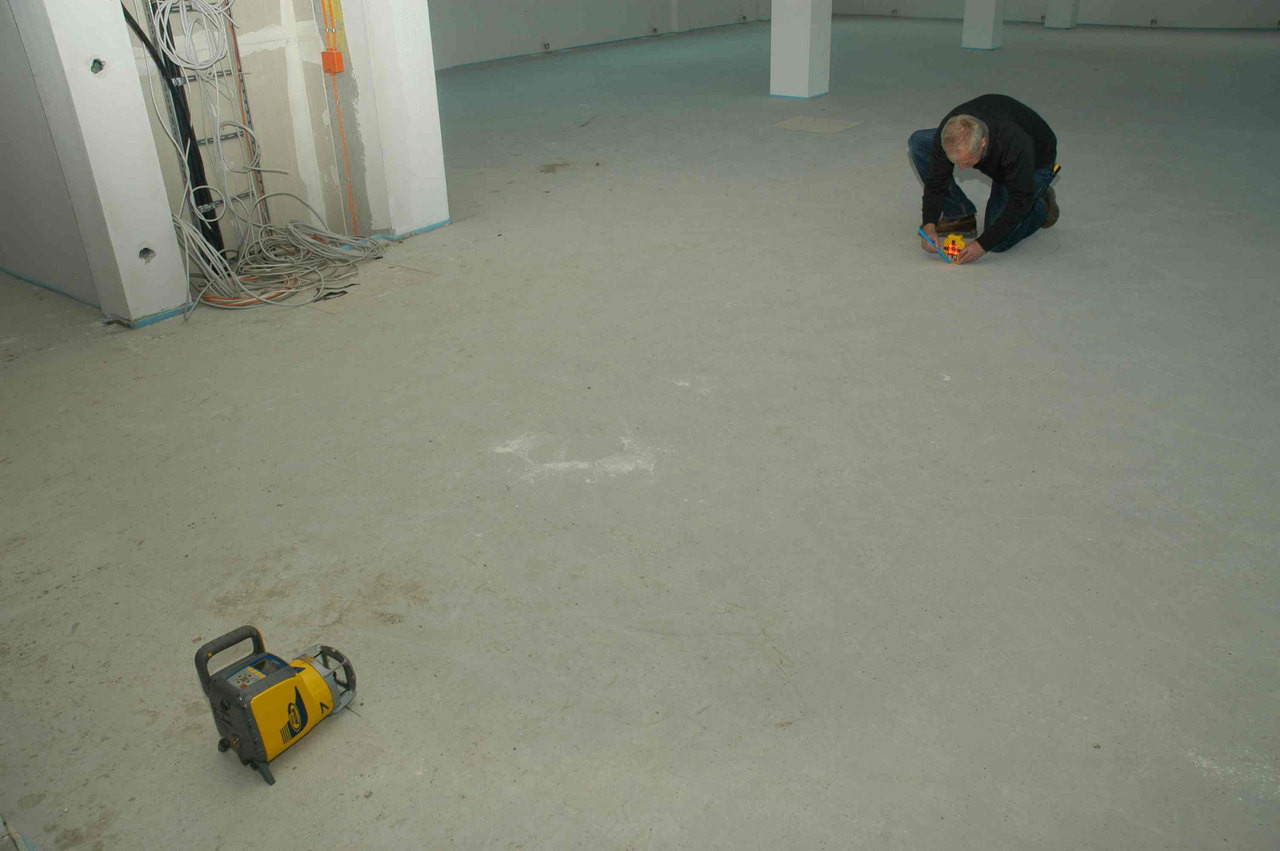

Interior Framing and Ceiling Work: Use horizontal mode to project a level reference line around a room perimeter for drop ceiling grid installation, partition wall top-plate alignment, and MEP rough-in elevations.

Plumb Transfer and Column Setting: Switch to vertical plane mode to plumb-check columns, curtain wall mullions, and rough door or window openings in a single pass, replacing traditional plumb bobs and reducing cycle time.

Compatible Accessories

Frequently Asked Questions

Can the HV302-14 be used outdoors in direct sunlight?: Yes. When paired with the included CR700 receiver, the HV302-14 operates effectively outdoors at ranges up to 2,000 ft even in bright sunlight. The receiver detects the beam electronically, so ambient light that limits naked-eye visibility does not affect instrument performance.
Does this kit include everything needed to start working on day one?: Yes. The HV302-14 package includes the laser instrument, CR700 receiver, RC703 wireless remote, batteries, and a carrying case. You will need a tripod and grade rod for most elevation and grading tasks, both of which are available separately on our site.
What is the self-leveling range of the HV302?: The HV302 self-levels automatically within a ±5° range. If the instrument is set up on terrain or a surface that exceeds this tilt, an out-of-level alarm activates and the laser shuts off to prevent inaccurate readings. Always set up on a reasonably stable, near-level surface.
Is the HV302 compatible with other Spectra Precision receivers beyond the CR700?: Yes. The HV302 is compatible with a range of Spectra Precision and Trimble laser receivers, including the HL760. Using an alternative receiver may affect available remote-control functionality, so confirm compatibility with your specific receiver model before substituting.

Why This Equipment

Authorized Dealer

Genuine, factory-fresh inventory with legitimate firmware and calibration documentation.

Same-Day Shipping

In-stock orders placed before 2PM ship same day from our Texas warehouse.

Expert Support

Call or chat with a contractor equipment specialist before and after your purchase.

Free Shipping

Free ground shipping on orders $99+ to the continental US.

Why Buy This?

Professional-grade equipment, authorized dealer pricing.

The tools contractors trust on municipal infrastructure, commercial projects, and high-tolerance earthwork aren't available at hardware stores — and they shouldn't be. This equipment is engineered for professionals, and buying it through an authorized dealer means you get full manufacturer support when it matters.

Express Tools carries only factory-fresh inventory from brands contractors specify by name. No gray-market product, no import-spec units, just authentic gear with legitimate firmware and calibration documentation.

Same-day shipping on in-stock items, expert support before and after the sale, and a 30-day return window on most products. If you have questions about specs, compatibility, or applications, call us — we know this equipment.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Laser Class	Red visible laser, Class IIIa / 3R
Self-leveling Range	±5° automatic compensation
Accuracy	±1/16 in. at 100 ft (±1.5 mm at 30 m)
Operating Range (with CR700 Receiver)	Up to 2,000 ft (600 m) diameter
Rotation Speed	Variable — 0 to 600 RPM
Grade Capability	Manual grade via tilting mechanism
Dust And Water Protection	IP66-rated housing
Power Source	Alkaline D-cell batteries (included)
Battery Life	Up to 100 hours typical operation
Tripod Mount	Standard 5/8 in. x 11 thread
Weight	Approximately 5.5 lb (2.5 kg) with batteries
IP Rating	IP66-rated housing
Power	Alkaline D-cell batteries (included)
