Spectra Precision HV302-4 Horizontal / Vertical Laser GC Package Rechargeable with HL760 Receiver

Overview

The Spectra Precision HV302-4 Horizontal/Vertical Laser GC Package represents the evolution of construction layout technology—combining dual-axis laser precision with rechargeable battery efficiency in a complete contractor-ready system. This professional-grade package delivers both horizontal and vertical reference planes with exceptional accuracy, eliminating the operational costs and environmental impact of disposable batteries while maintaining the rugged reliability Spectra Precision is known for across commercial, residential, and civil construction applications.

Designed for contractors who demand versatility without compromise, the HV302-4 seamlessly transitions between grade checking, elevation transfer, vertical alignment, and 90-degree layout tasks. The included HL760 laser receiver extends detection range beyond visual beam limits, enabling single-operator efficiency on larger jobsites. The rechargeable battery system delivers consistent runtime performance while reducing consumable costs over the tool's operational lifetime—a practical advantage for businesses managing multiple crews and tracking project expenses.

This mid-range package strikes an optimal balance between capability and value, offering contractors dual-axis functionality previously reserved for premium systems at a price point that supports fleet standardization. Whether you're establishing foundation elevations, plumbing structural columns, or transferring reference points across multi-story construction, the HV302-4 provides the accuracy, reliability, and operational flexibility required for modern construction workflows.

Key Specifications

• Accuracy: ±1/8 inch at 100 feet (±3mm at 30m) for both horizontal and vertical axes
• Range (Diameter): 1,300 feet (400m) with HL760 receiver; 300 feet (90m) visible beam
• Self-Leveling Range: ±5 degrees with automatic out-of-level alert
• Rotation Speed: 0, 150, 300, 600, 1,200 RPM (variable for different detection conditions)
• Power System: Rechargeable NiMH battery pack with AC charger included
• Battery Runtime: Up to 40 hours horizontal; up to 20 hours dual-axis operation
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Ingress Protection: IP66 rating (dust-tight and water-resistant)
• Laser Class: Class 2 visible red laser diode
• Mounting Thread: 5/8-11 standard tripod thread

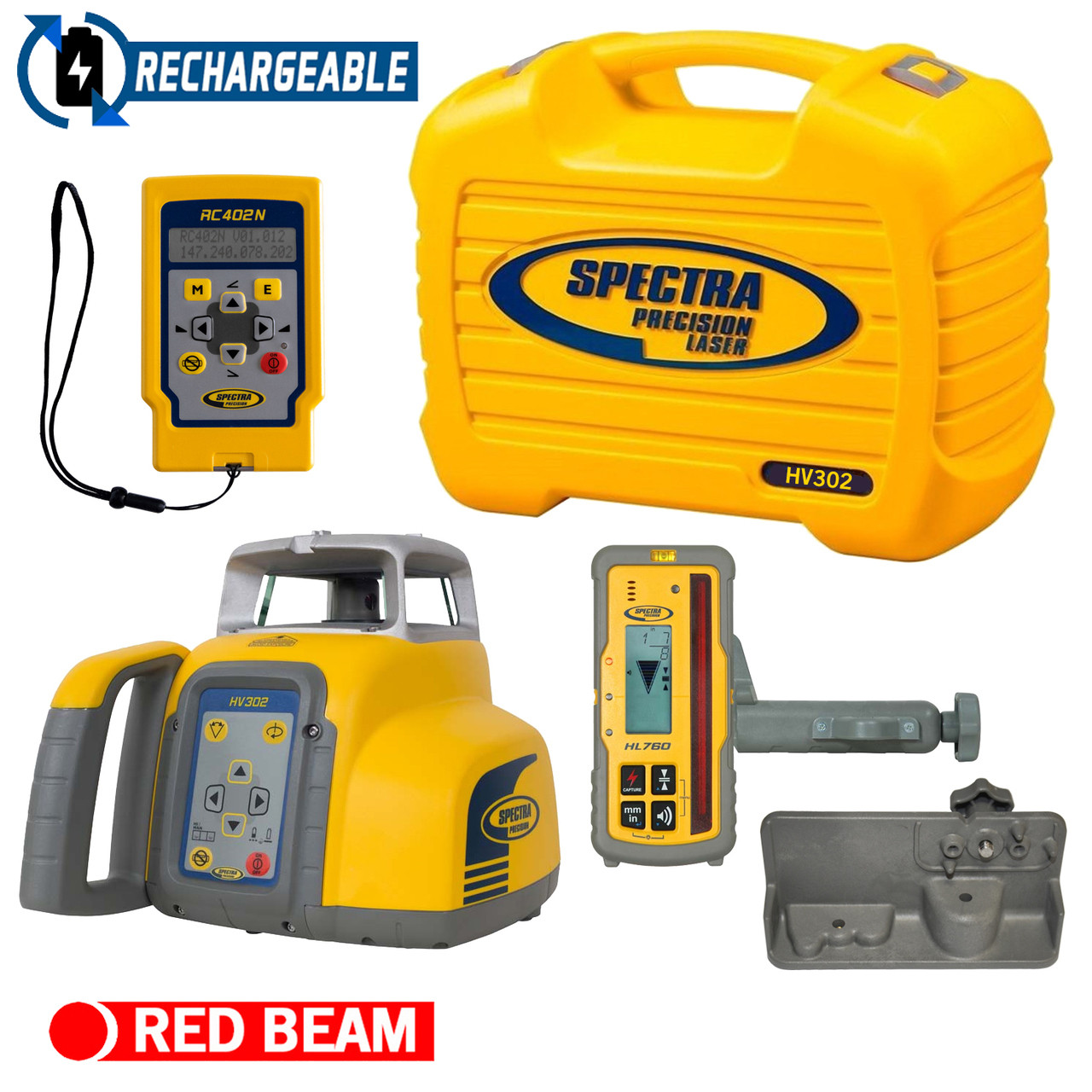

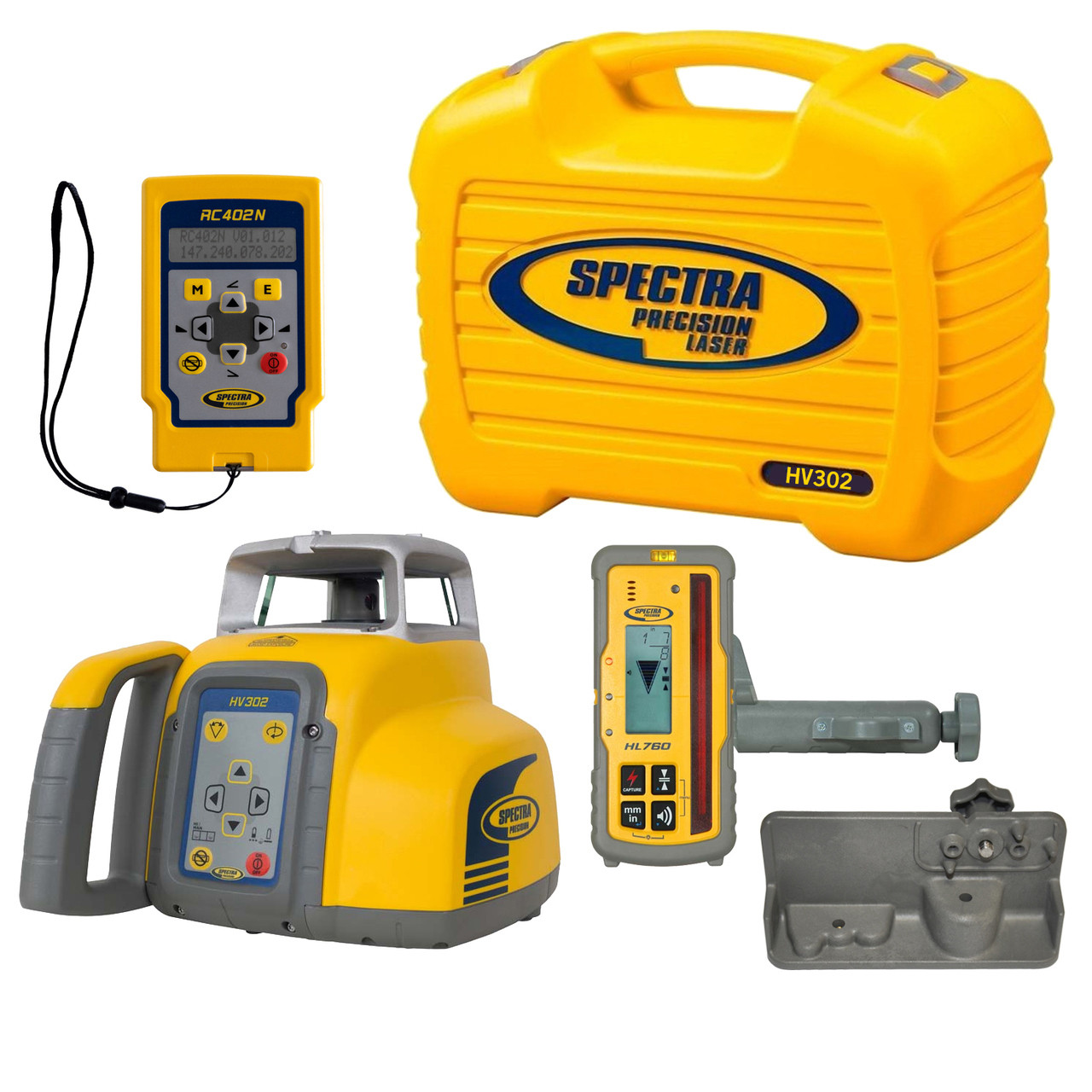

What's in the Kit

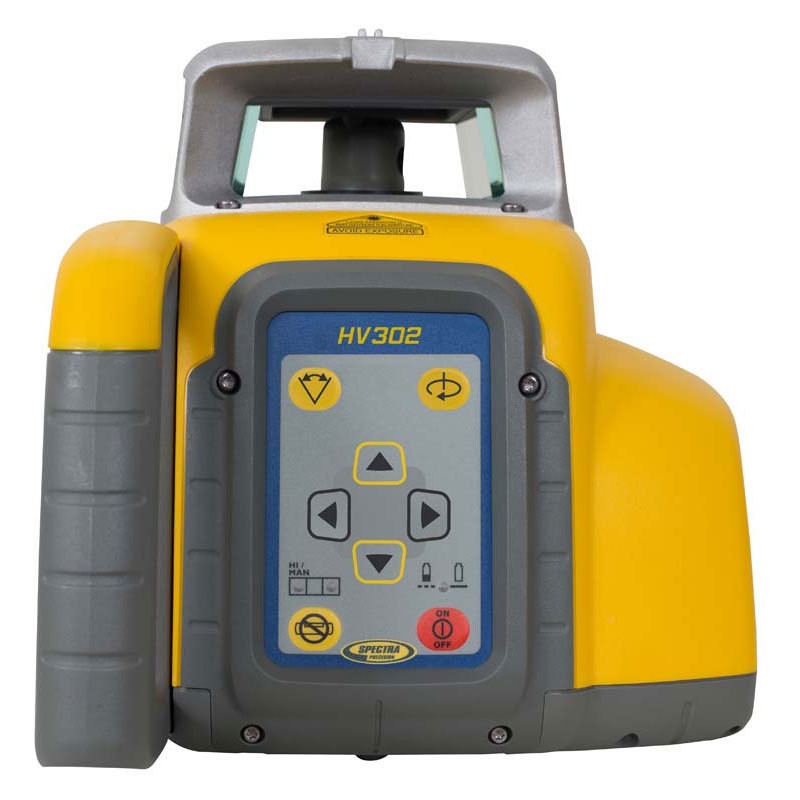

• HV302-4 Horizontal/Vertical Laser Level with integrated rechargeable battery

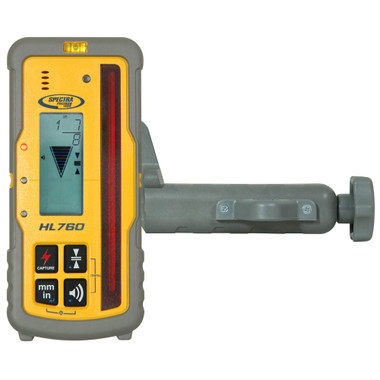

• HL760 Laser Receiver with rod clamp and integrated display
• Rechargeable NiMH battery pack (installed)
• AC battery charger with North American plug configuration
• Heavy-duty protective carrying case with custom foam insert
• Magnetic wall/ceiling mounting bracket
• Basic target plate for visible beam alignment
• Operator's manual with quick-start guide
• 2-year manufacturer's warranty documentation

Job Applications

• Foundation and Flatwork Elevation Control: Establish consistent grade references across foundation perimeters, slab pours, and flatwork installations. The horizontal plane eliminates elevation errors that compound across large pours, while the rechargeable system supports all-day operation without battery interruption during critical concrete placement windows.
• Interior Build-Out and Drop Ceiling Installation: Create horizontal reference planes for suspended ceiling grids, soffit framing, and elevation-critical finish work. The 1,300-foot receiver range allows single-point setup for entire floor plates, eliminating time-consuming benchmark transfers and reducing measurement errors across large commercial interiors.
• Structural Column Plumbing and Layout: Verify vertical alignment of steel columns, concrete forms, and load-bearing walls using the vertical axis with 90-degree positioning capability. The dual-axis functionality enables simultaneous elevation and plumb checks, reducing setup time and improving accuracy for multi-story construction sequencing.
• Mechanical and Electrical Rough-In: Establish invert elevations for underground plumbing, drainage systems, and conduit runs requiring precise slope control. The HL760 receiver provides acoustic feedback for hands-free operation in trenches and confined spaces where visual line-of-sight to the rotating beam isn't practical.
• Exterior Site Development and Hardscape: Control grades for paving, curbing, retaining walls, and site drainage features. The IP66 weatherproof rating and rechargeable power system support extended outdoor deployment in variable conditions, while the magnetic mount enables quick setup on steel formwork and equipment.
• Vertical Reference Transfer Between Building Levels: Project elevation benchmarks vertically through floor penetrations and elevator shafts to maintain consistent datums across multiple stories. The vertical beam eliminates cumulative error inherent in traditional leveling methods when transferring heights in high-rise construction.

Compatible Accessories

• Spectra Precision Elevator Tripod: Quick-setup tripod with center column extending 42-72 inches for rapid height adjustment
• Grade Rod (Telescoping): Extends from 8 to 25 feet for working with HL760 receiver in high-ceiling and vertical applications
• Machine Control Mount: Universal bracket for attachment to excavators, graders, and skid steers
• Replacement Rechargeable Battery Pack: Additional power source for continuous operation with battery rotation

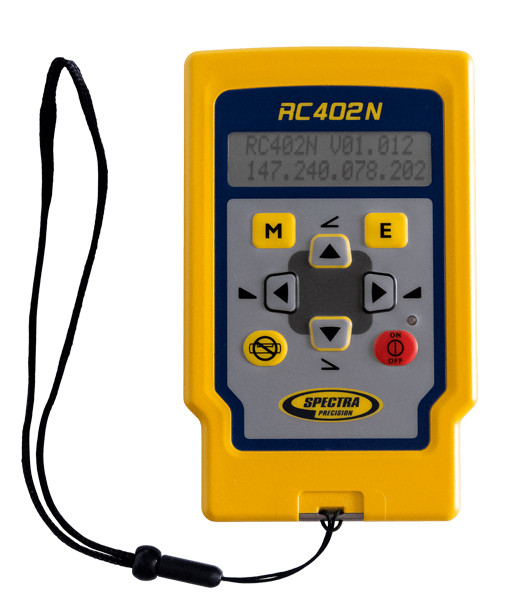

• Remote Control: Wireless operation for adjusting rotation speed and activating functions at distance
• Laser Enhancement Glasses: Red-optimized viewing glasses for improved beam visibility in bright ambient conditions
• Heavy-Duty Tripod Package: Professional-grade aluminum tripod with fine-adjustment head

Related Guides

• Rotary Laser Level Buying Guide: Matching Capabilities to Applications
• Maximizing Detection Range: Laser Receiver Operation Best Practices
• Total Cost of Ownership: Rechargeable vs. Alkaline Battery Systems
• Dual-Axis Laser Applications: When Horizontal and Vertical Reference Matter

FAQ

What's the practical difference between horizontal-only and dual-axis laser levels?

Dual-axis lasers like the HV302-4 project both horizontal and vertical reference planes, enabling plumb alignment, 90-degree layout, and vertical transfers in addition to standard elevation work. This eliminates the need for separate optical plumb tools and allows simultaneous horizontal and vertical referencing, significantly reducing setup time on jobs requiring both capabilities. If your work includes structural alignment, column plumbing, or vertical reference transfers, dual-axis functionality provides substantial workflow advantages.

How does the rechargeable battery system compare to alkaline-powered models in real-world use?

The rechargeable NiMH system delivers 40-hour horizontal runtime (20 hours dual-axis), comparable to premium alkaline sets, but eliminates recurring battery purchases that typically cost $8-15 per replacement cycle. For contractors running lasers 2-3 days weekly, this represents $400-800 annual savings per unit while eliminating battery disposal concerns. The included charger enables overnight charging, and the battery maintains performance across hundreds of charge cycles before replacement becomes necessary.

Can I use the HV302-4 for machine control applications on excavators or dozers?

Yes, with the appropriate machine mount accessory, the HV302-4 integrates with grade control systems on excavation and grading equipment. The 1,300-foot receiver range and IP66 weatherproofing support site development applications, though dedicated machine control lasers offer additional features like dual-grade capability and enhanced vibration resistance for intensive earthmoving operations. For light grading and trench work, the HV302-4 provides excellent capability at this price point.

What's the functional difference between the included HL760 receiver and visual beam detection?

The HL760 extends detection range from 300 feet (visible beam limit in ideal conditions) to 1,300 feet in any lighting, including bright sunlight where the visible beam becomes impossible to see. It provides acoustic feedback for single-operator use, position indication with millimeter-level precision on its LCD, and enables working in conditions where line-of-sight to the laser isn't practical—such as trenches, behind obstacles, or at extreme distances. For jobs exceeding 100-150 feet or outdoor daytime work, the receiver transforms operational capability.
