Leica Rugby 620 Red Beam Rotary Laser Package - Large Case (6019425) with Rod Eye 120 Receiver - Alkaline / Complete Kit with Rod/Inches, HD Tripod

The Leica Rugby 620 Complete Kit (6019425) is the ready-to-work K2 package for contractors who want a single purchase that covers every component of a professional rotary laser setup. Inside the large, foam-lined carrying case you'll find the Rugby 620 laser unit, the Rod Eye 120 receiver, a 14-foot grade rod, and a heavy-duty tripod — all sourced, matched, and verified for full system compatibility by Leica. No hunting for add-ons, no compatibility guesswork. Unbox it in the morning and be shooting grades before the first coffee break.

Rugby 620 Overview & Jobsite Applications

Building on the proven Rugby 610 platform, the Rugby 620 introduces manual slope capability, letting operators tilt the laser head to a user-defined grade on a single axis. This makes the 620 the natural step-up for crews that split time between flat layout work and single-slope grading tasks such as drainage ditches, parking-lot crowns, and sub-base prep. The self-leveling system engages automatically within a ±5° range, and an out-of-level alarm alerts the operator if the instrument is disturbed during operation — protecting grade accuracy without requiring a manual recheck.

Key Specifications

• Model: Leica Rugby 620 (Kit SKU: 6019425)
• Rotation Speed: 600 RPM standard operating speed
• Self-Leveling Range: ±5°
• Slope Range: Manual single-axis slope setting
• Working Range: Up to 800 m diameter with receiver
• Accuracy: ±1.5 mm at 30 m
• Power Source: Alkaline batteries (D-cell) — no proprietary packs required
• IP Rating: IP67 dust and water protection
• Operating Temperature: -20°C to +50°C

What's in the K2 Kit

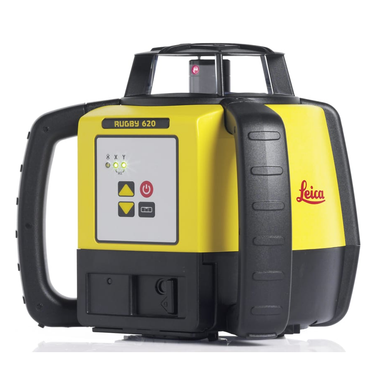

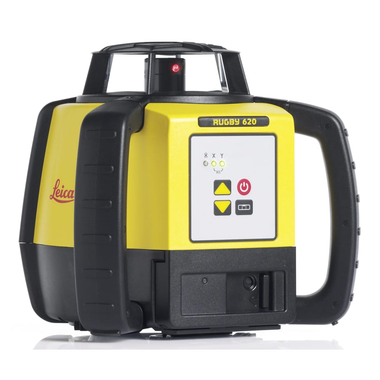

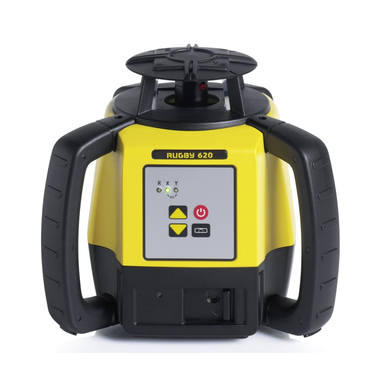

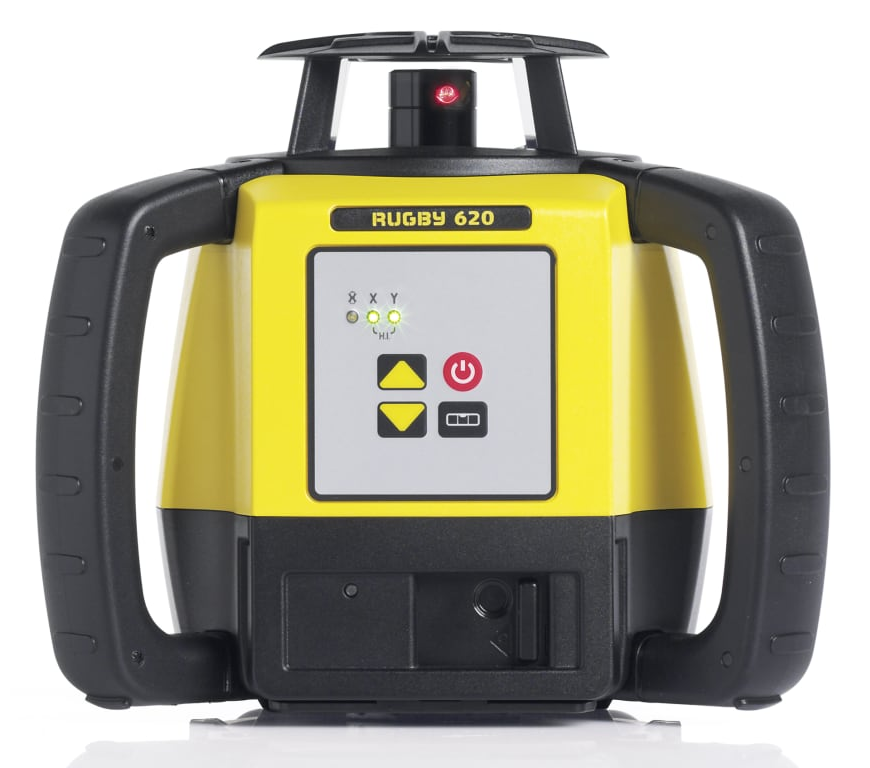

• Leica Rugby 620 rotary laser unit
• Rod Eye 120 laser receiver with clamp
• 14-foot grade rod for elevation measurement

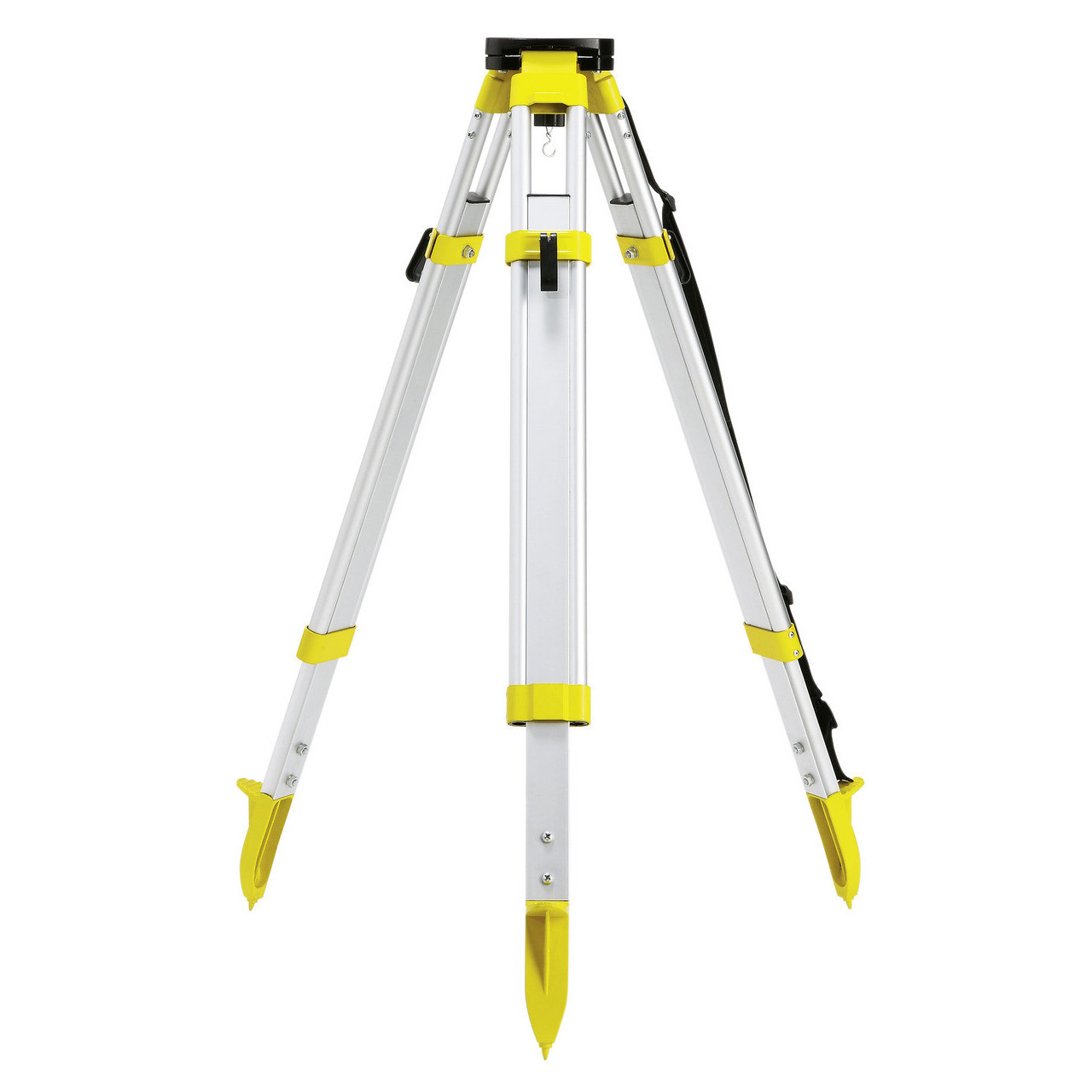

• Heavy-duty adjustable tripod for stable, repeatable setups

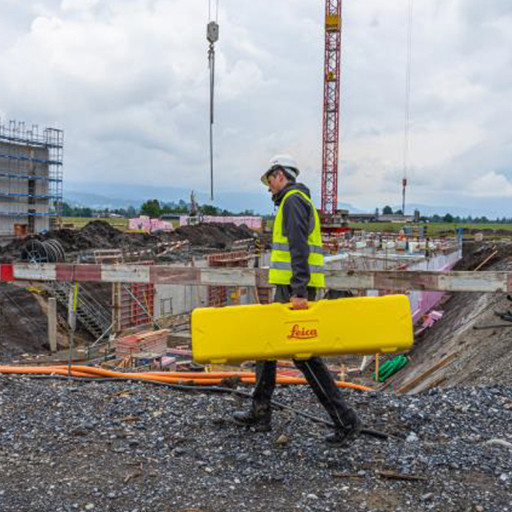

• Large foam-lined carrying case that stores and protects all components
• Batteries, documentation, and calibration certificate

Job Applications

Site Grading & Earthwork: The manual slope mode lets operators dial in a consistent fall across a pad or swale without re-shooting reference points. Combined with the 800 m working diameter, the 620 keeps up with excavators and scrapers on large cut-and-fill sites.

Concrete Flatwork: Fast self-leveling and a stable spin speed give form-setters a reliable horizontal plane for screeding slabs, setting edge forms, and checking sub-base elevation in a single instrument setup.

Drainage & Utility Trenching: Single-axis slope capability is purpose-built for setting pipe grades. Dial in the design slope on the laser head, lock it, and the Rod Eye 120 gives the crew a constant elevation reference along the entire trench run.

Building Layout & Foundation Work: The automatic self-leveling plane gives layout crews a fast, accurate reference for setting batter boards, checking footing elevations, and confirming floor-to-floor heights on multi-level pours.

Compatible Accessories

• Leica Rod Eye 120 Replacement Receiver
• Leica Rod Eye 160 Digital Receiver (extended range)
• Leica Heavy-Duty Tripod (replacement)
• Leica 14-ft Grade Rod (replacement)
• Leica Rugby Remote Control Unit
• Alkaline D-Cell Battery 4-Pack

Related Guides

• How to Set Manual Slope on the Leica Rugby 620
• Rugby 610 vs. Rugby 620: Which Kit Is Right for Your Crew?
• Rotary Laser Receiver Comparison: Rod Eye 120 vs. Rod Eye 160
• Rotary Laser Setup Best Practices for Grade Work

Frequently Asked Questions

What is the difference between the Rugby 620 and the Rugby 610?

The Rugby 610 is a self-leveling horizontal plane laser without slope capability. The Rugby 620 adds manual single-axis slope, allowing the laser head to be tilted to a user-defined grade — making it suitable for drainage, pipe-laying, and any application requiring a consistent fall across a run.

Does the 6019425 kit include everything needed to start working?

Yes. The K2 kit includes the Rugby 620 laser, Rod Eye 120 receiver, 14-ft grade rod, heavy-duty tripod, large carrying case, and batteries. No additional purchases are required to begin taking grade shots on site.

What type of batteries does the Rugby 620 use?

The Rugby 620 is powered by standard alkaline D-cell batteries, which are widely available at hardware and big-box stores. This eliminates dependence on proprietary rechargeable packs and reduces downtime when batteries run low on the jobsite.

Is the Leica Rugby 620 waterproof?

The Rugby 620 carries an IP67 rating, meaning it is fully protected against dust ingress and can withstand temporary immersion in water up to 1 meter for 30 minutes. It is designed to remain operational in rain and muddy jobsite conditions.
