RL-H5A Self-Leveling Laser PS.RB Kit with LS-100D Receiver, Rechargeable Batteries, Grade Rod INCHES and Tripod

Overview

The Topcon RL-H5A Self-Leveling Laser Kit delivers professional-grade elevation control for contractors who demand accuracy without complexity. This complete horizontal laser package combines Topcon's proven self-leveling rotary laser with a precision LS-100D receiver, US-standard inch-marked grade rod, rechargeable battery system, and heavy-duty tripod. General contractors, concrete finishers, excavators, and site work professionals rely on this configuration for foundation layout, slope control, and elevation transfer across residential and light commercial jobsites. The kit eliminates the need to purchase components separately while ensuring all accessories are factory-matched for optimal performance. The inch-graduated grade rod specifically addresses the needs of American contractors who work in feet-and-inches measurements, removing conversion delays and calculation errors that slow down field operations.

Key Specifications

• Self-Leveling Range: ±5 degrees with automatic compensation
• Leveling Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Working Diameter: 2,600 feet (800m) with LS-100D receiver
• Rotation Speed: 600 RPM standard
• Environmental Protection: IP66 rating (dust-tight, water-resistant)
• Power System: Rechargeable Ni-MH batteries with charger included
• Operating Time: 100+ hours per charge
• Laser Weight: 5.3 lbs (2.4 kg) with batteries
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)

What's in the Kit

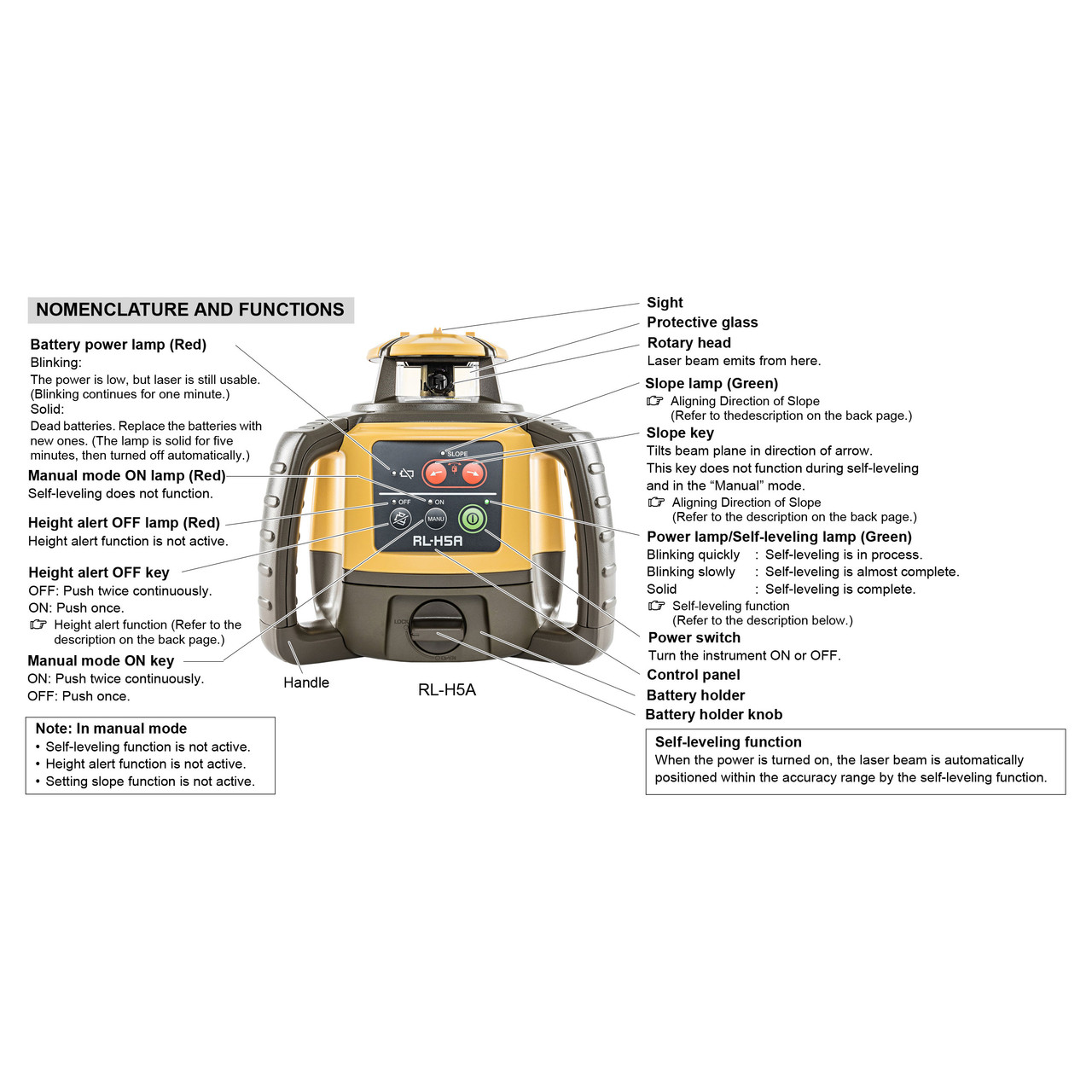

• RL-H5A Rotary Laser: Self-leveling horizontal laser with automatic grade compensation and out-of-level alert

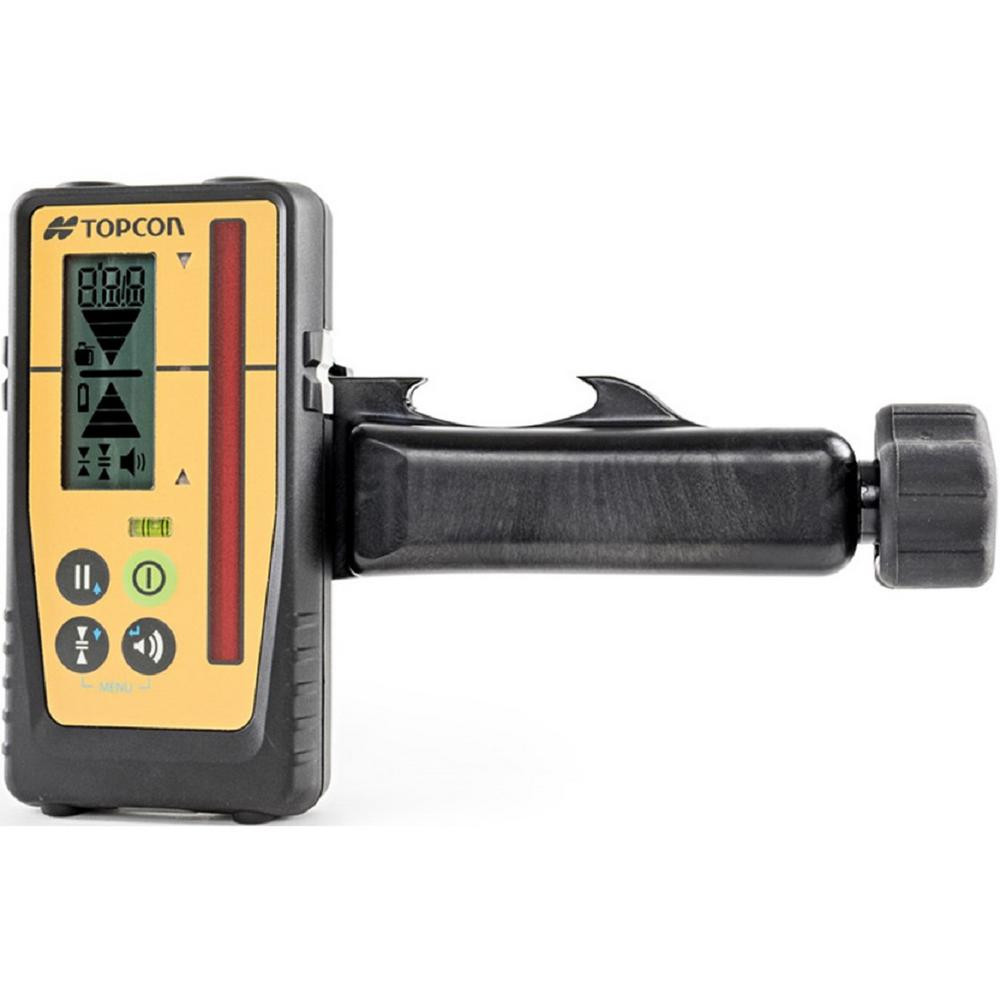

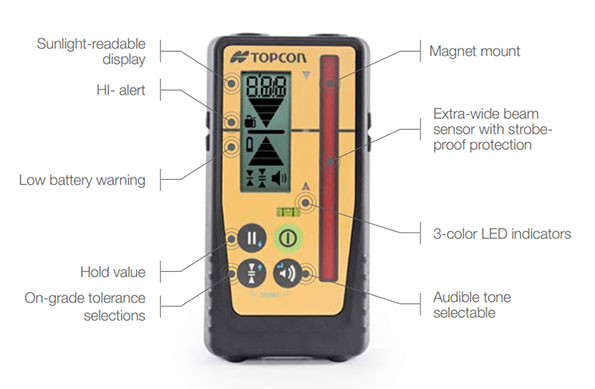

• LS-100D Digital Receiver: Dual-sided LCD display with audio beep and visual LED indicators for precision rod readings

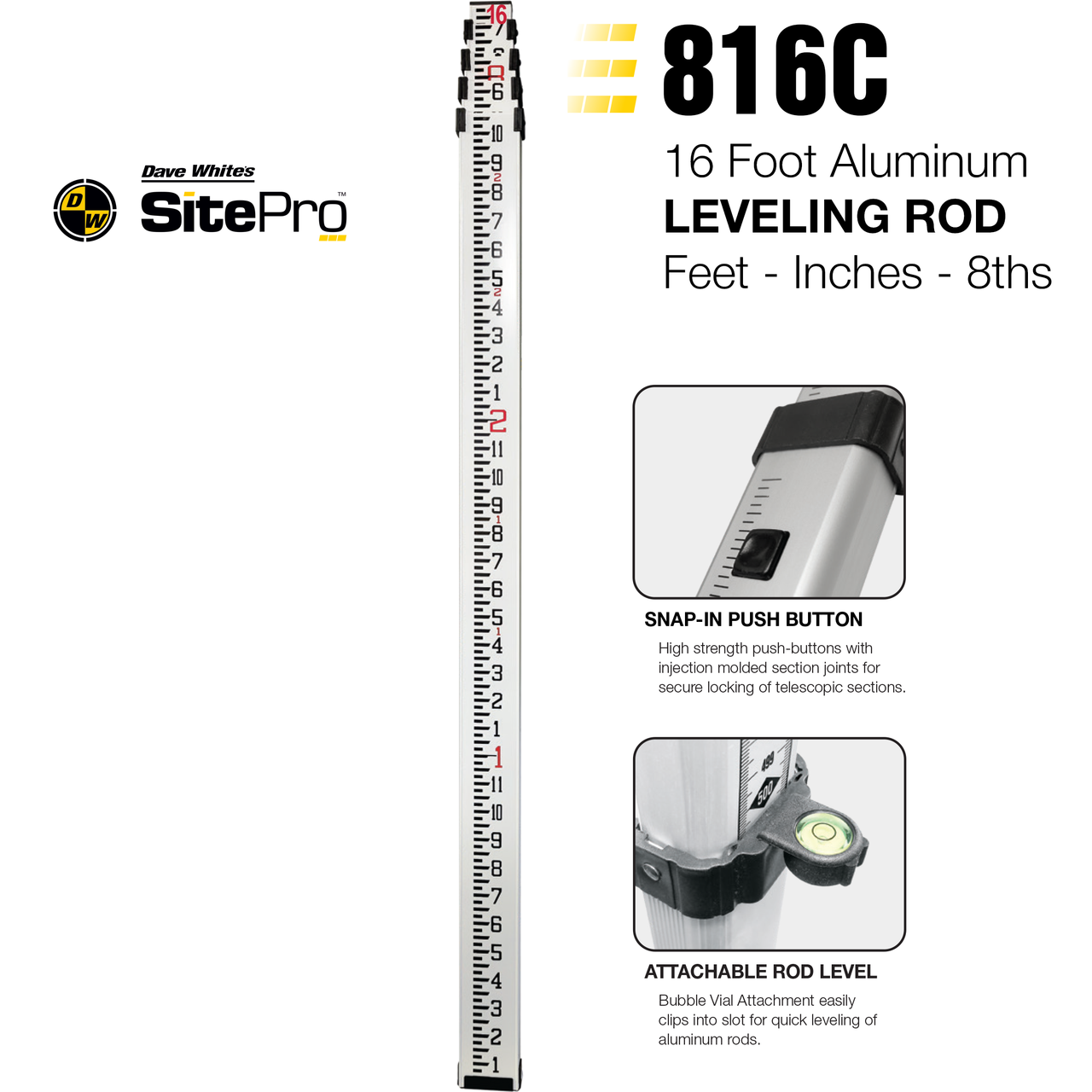

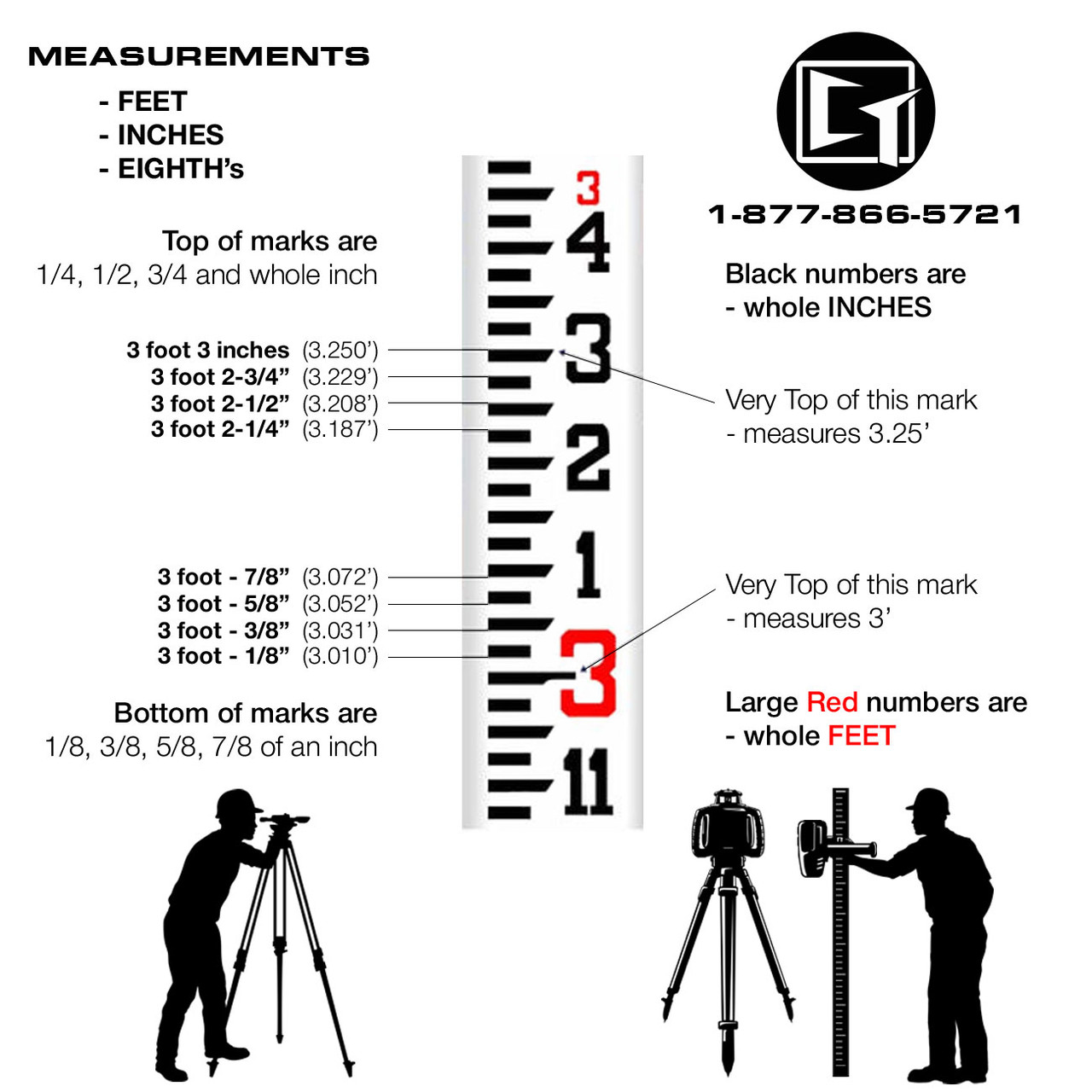

• Inch-Marked Grade Rod: Telescoping aluminum rod with clear US-standard graduations in feet, inches, and 1/8-inch increments
• Rechargeable Battery Pack: Ni-MH rechargeable batteries with intelligent charge management
• AC Battery Charger: 110V wall charger with status indicator
• Heavy-Duty Tripod: Adjustable-height aluminum tripod with quick-clamp legs and 5/8×11 threaded mount
• Hard Shell Carrying Case: Impact-resistant protective case with custom foam insert
• Operator's Manual: Complete setup and operation guide with troubleshooting reference

Job Applications

• Foundation and Footing Layout: Establish consistent elevation benchmarks across foundation perimeters to ensure level pours and prevent structural issues caused by uneven settling.
• Concrete Slab Finishing: Set screeds and verify deck elevations during flatwork to maintain specified slope and eliminate low spots that cause drainage problems.
• Excavation Depth Control: Monitor cut depths in real-time during grading operations to prevent over-excavation and reduce material waste on site development projects.
• Drop Ceiling Installation: Transfer level reference lines around interior perimeters for consistent grid height in commercial tenant improvements and office build-outs.
• Drainage and Slope Work: Verify positive drainage away from structures and establish proper grade for swales, parking lots, and surface water management systems.
• Elevation Transfer Between Floors: Carry benchmark elevations vertically through multi-story construction to maintain floor-to-floor height consistency and coordinate with structural elements.

Compatible Accessories

Expand system capabilities with these factory-compatible Topcon accessories:

• LS-80L Basic Laser Receiver – Budget-friendly backup detector for crew expansion
• RC-500 Remote Control – Wireless laser operation up to 300 feet for single-operator efficiency
• Topcon Tri-Bracket Mounting System – Attach laser to pipe laser tripods or existing survey equipment
• Professional Grade Aluminum Tripod – Upgrade replacement tripod with extended height range
• Magnetic Receiver Mount – Hands-free receiver positioning on steel structures and equipment
