Leica Rugby 610 Red Beam Rotary Laser Package (6008614) with Rod Eye 140 Receiver - Alkaline

Built for Contractors Who Need a Reliable Horizontal Reference All Day, Every Day

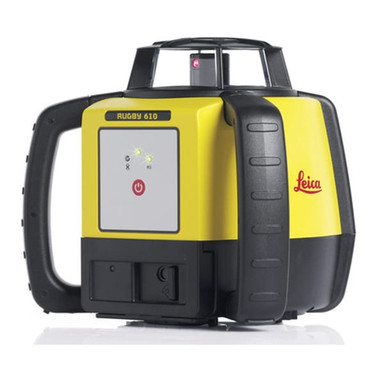

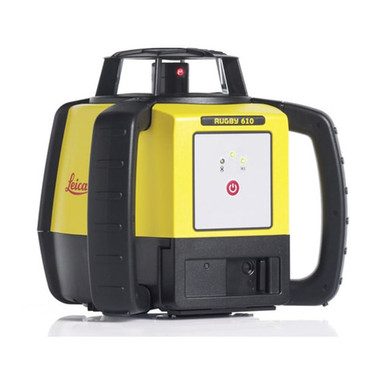

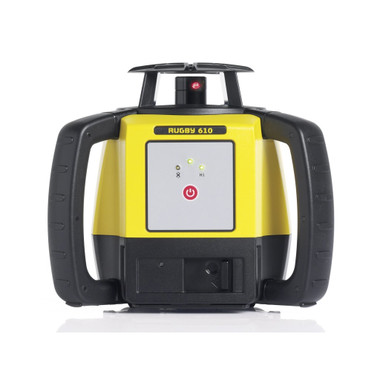

The Leica Rugby 610 (model 6008614) is a no-frills, purpose-built rotary laser designed for high-volume horizontal leveling on the jobsite. With a single button to power on and self-level, this red beam laser eliminates the learning curve entirely. Whether you're running grade checks on a slab, transferring elevations across a floor deck, or establishing reference lines in a new build, the Rugby 610 delivers consistent, accurate horizontal plane projection without menus, mode switches, or configuration. It's the tool crews keep reaching for when precision and uptime both matter.

Overview: Where the Rugby 610 Fits on the Jobsite

Designed for horizontal applications, the Rugby 610 operates best where a flat reference plane is the primary need. The instrument self-levels within its working range and immediately begins rotating—no warm-up, no adjustment. Paired with the included Rod Eye 140 laser detector, it extends your effective working range well beyond unaided eye detection, making it practical for open sites, poured foundation work, and large interior spaces. Running on standard AA alkaline batteries, the Rugby 610 avoids the charger dependency of lithium-ion tools and offers long runtime on cells you can pick up anywhere.

Key Specifications

• Model Number: 6008614
• Beam Color: Red
• Operating Mode: Horizontal rotation only
• Self-Leveling Range: ±5°
• Accuracy: ±1.5mm at 10m (±1/16" at 33 ft)
• Working Range (unaided): Up to 100m (330 ft) diameter
• Working Range (with detector): Up to 250m (820 ft) diameter
• Rotation Speed: 300 or 600 RPM selectable
• Power Source: 4x AA alkaline batteries
• Battery Runtime: Up to 70 hours
• IP Rating: IP54 dust and splash resistant
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)

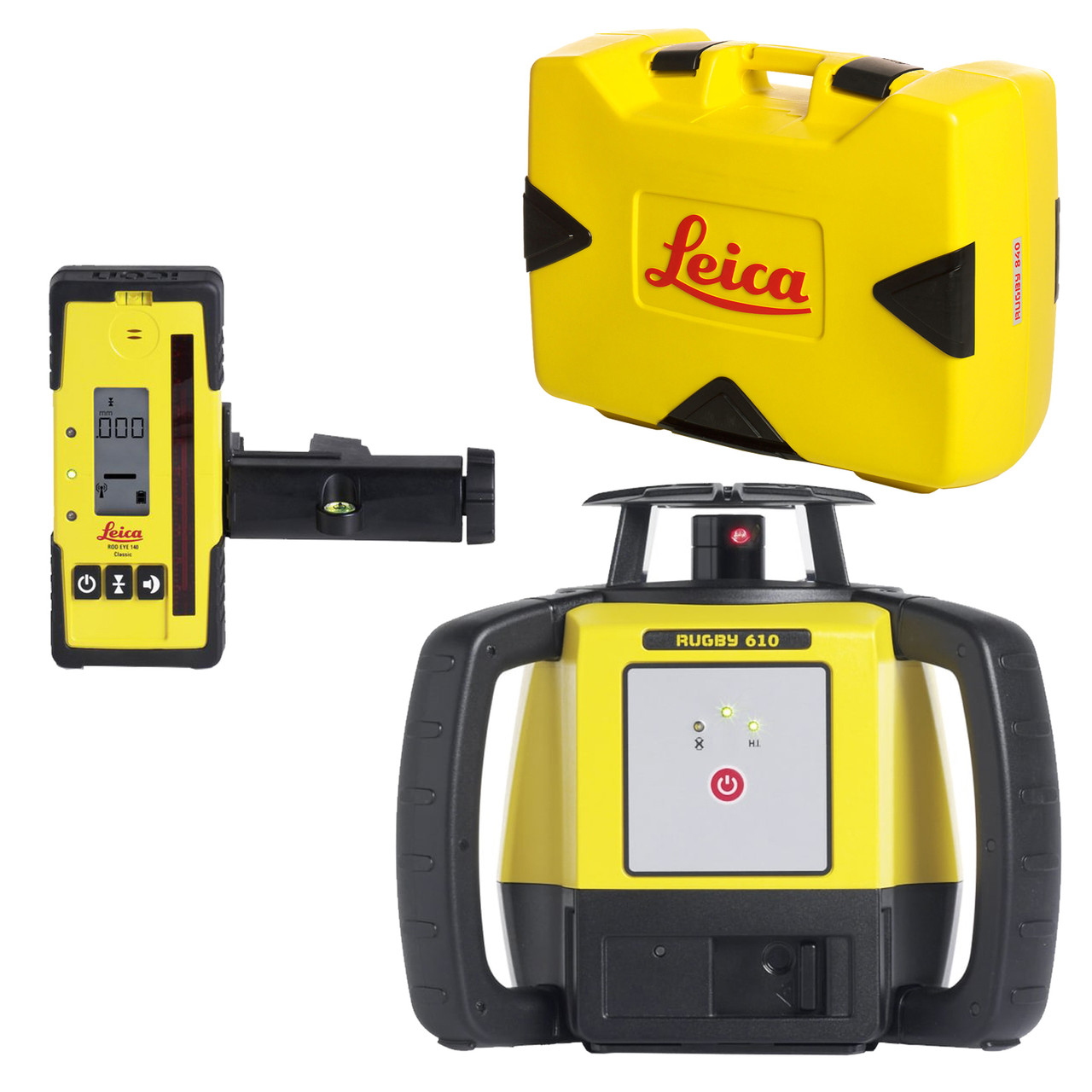

What's in the Kit

• Leica Rugby 610 rotary laser instrument
• Rod Eye 140 laser detector with bracket
• 4x AA alkaline batteries (pre-installed)
• Carrying case
• Quick-start documentation

Job Applications

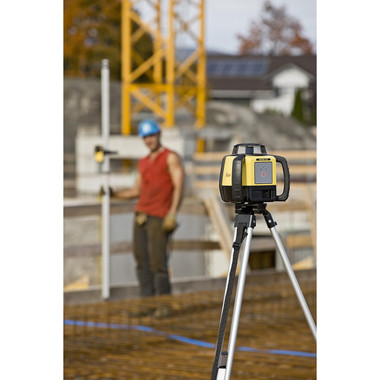

Slab and Foundation Work: Establish a consistent horizontal reference across the full pour area. The Rod Eye 140 lets a single operator check grade at grade stakes or screed guides without a second person at the instrument.

Interior Leveling and Drop Ceilings: Transfer ceiling heights around a full room perimeter without snapping chalk lines. The Rugby 610's continuous rotation gives every trade a reference at any point in the space simultaneously.

Site Prep and Rough Grading: Run elevation checks across excavated areas or compacted sub-base with the detector mounted on a grade rod. Long battery life keeps the instrument running through a full shift without swapping cells mid-task.

Deck and Floor Elevation Transfer: Check flatness and establish pour stops on elevated decks. The ±1.5mm accuracy at 10m is sufficient for most concrete and framing tolerances at typical residential and light commercial scales.

Compatible Accessories

• Rod Eye 140 Replacement Detector
• Leica Rugby Grade Rod
• Leica Rotating Laser Tripod
• Alkaline AA Battery Pack (8-count)
• Rugby 610 Replacement Carrying Case

Related Guides

• How to Set Up a Rotary Laser for Slab Work
• Rotary Laser Buying Guide: Red vs. Green Beam
• Using a Laser Detector to Extend Working Range
• Leica Rugby Series Comparison: 610 vs. 640 vs. 680

Frequently Asked Questions

Does the Rugby 610 support vertical or grade applications?

No. The Rugby 610 is a dedicated horizontal laser. It does not offer vertical plane projection or dual-axis grade matching. Contractors needing grade or slope functions should consider the Leica Rugby 640 or 680 models.

What detector is included and what range does it provide?

The package includes the Rod Eye 140 detector, which extends working range to approximately 250 meters (820 feet) diameter in outdoor conditions. The detector mounts to a grade rod via a sliding bracket and features an audible and visual signal to help operators find and hold the beam quickly.

Can I use rechargeable AA batteries in the Rugby 610?

Leica recommends standard alkaline AA batteries for rated performance and runtime. NiMH rechargeables can be used but may show reduced runtime and may not perform as consistently in cold weather conditions. Keep a spare set of alkalines on site for critical work.

Is the Rugby 610 covered under warranty through Express Tools?

Yes. As an authorized Leica dealer, Express Tools sells the Rugby 610 with full Leica manufacturer warranty coverage. Leica provides a standard warranty on Rugby series instruments. Contact our team with the serial number and purchase date if a warranty claim is needed.
