Spectra Precision HV302GC-2 Horiz/Vert - Interior/Exterior RED Beam Laser GC Package with Remote, HL760 Receiver, Rod in INCHES and Tripod

# Spectra Precision HV302GC-2 Horiz/Vert RED Beam Laser GC Package ```html

Overview

The Spectra Precision HV302GC-2 GC Package delivers a complete interior-exterior leveling and grade control solution for contractors managing concrete pours, interior finishing, and site preparation. This red beam dual-grade laser combines horizontal self-leveling with single-axis vertical capability, supported by the HL760 digital receiver for 2,600-foot diameter working range outdoors. The "GC" variant includes heavy-duty tripod, inches-graduated digirod, remote control, and detector—eliminating the need to source grade checking components separately. Built for demanding job sites, the HV302GC-2 handles daily layout, flatwork elevation checks, and wall plumb applications with ±1/16-inch accuracy at 100 feet, while IP66 dust and water resistance protects against concrete splash and rain exposure during active pours.

Key Specifications

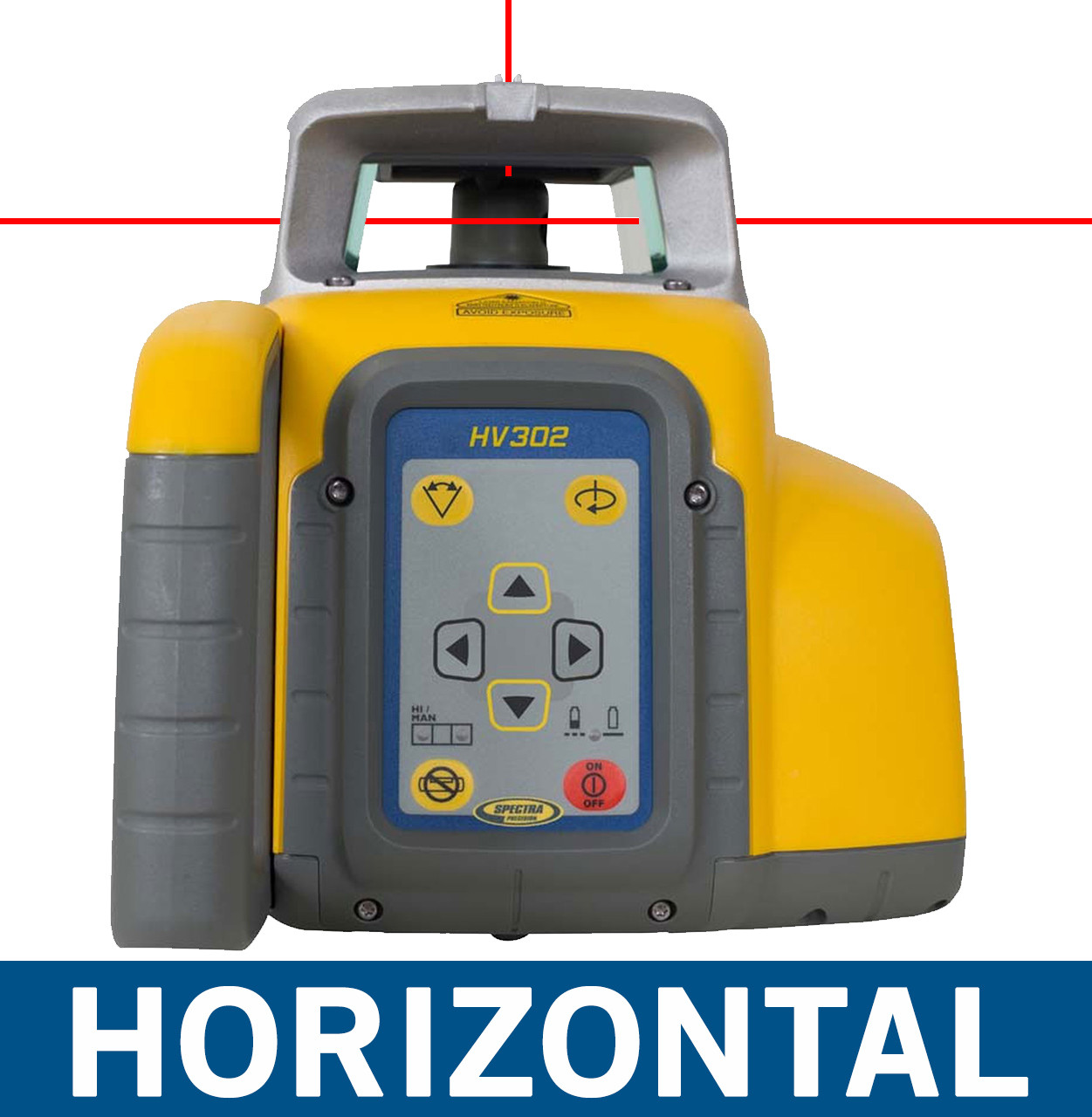

• Beam Configuration: Horizontal 360° self-leveling + single-axis vertical (manual rotation)
• Laser Type: Class 3R red beam (635nm) – improved visibility in lit conditions vs. standard red
• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m) horizontal/vertical
• Self-Leveling Range: ±5° with out-of-level alert
• Working Diameter: 2,600 feet (800m) with HL760 receiver; 200 feet (60m) beam visibility
• Rotation Speed: 0, 150, 300, 600, 1,500 RPM (5 speeds for varying light/distance)
• Power: Rechargeable Li-ion battery pack; 60+ hours runtime at 600 RPM
• Environmental: IP66 rating; operating -4°F to 122°F (-20°C to 50°C)
• Remote Range: 300-foot RC602 remote for slope adjustment and speed control
• HL760 Receiver: 4-channel digital detector with LCD readout; accuracy to 1/16 inch on-grade
• Rod System: Inches-graduated telescoping digirod (extends to 9 feet)
• Tripod: Heavy-duty aluminum construction with quick-clamp legs
• Warranty: 3 years laser unit, 1 year accessories

What's in the Kit

• HV302GC-2 horizontal/vertical red beam laser with manual single-axis slope (GreenBeam variant identifier)
• RC602 infrared remote control with belt clip
• HL760 digital laser receiver/detector with rod clamp
• Telescoping digirod with inches graduations (extends 3–9 feet)

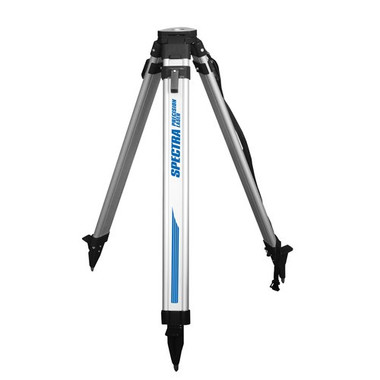

• Heavy-duty aluminum tripod with quick-release legs
• Rechargeable lithium-ion battery pack and AC charger
• Hard-shell protective carrying case for laser unit
• Laser safety glasses (red beam enhancement)
• Operating manual and quick-start guide

Job Applications

• Concrete Slab Pours & Flatwork: Rotate horizontal plane across formwork to verify screeding elevation at multiple pour points; HL760 receiver on inches rod provides instant numeric grade readings, eliminating string lines and reducing checker callbacks on flatwork, parking decks, and warehouse floors.
• Interior Finish Leveling: Establish level reference for drop ceiling grid installation, chair rail alignment, and tile layout across multi-room commercial spaces; 360° beam covers entire floor plates from single setup without laser repositioning during drywall phase.
• Foundation & Footer Grade Checking: Use vertical beam with receiver to check excavation depth against benchmark elevations during footer trenching; digirod inches scale matches blueprints on residential and light commercial foundations without metric conversion.
• Exterior Site Grading & Drainage Slopes: Apply manual slope (via remote) to horizontal plane for parking lot drainage, sidewalk pitch, and ADA-compliant ramp verification; receiver extends working range to 1,300-foot radius for large site development beyond beam visibility.

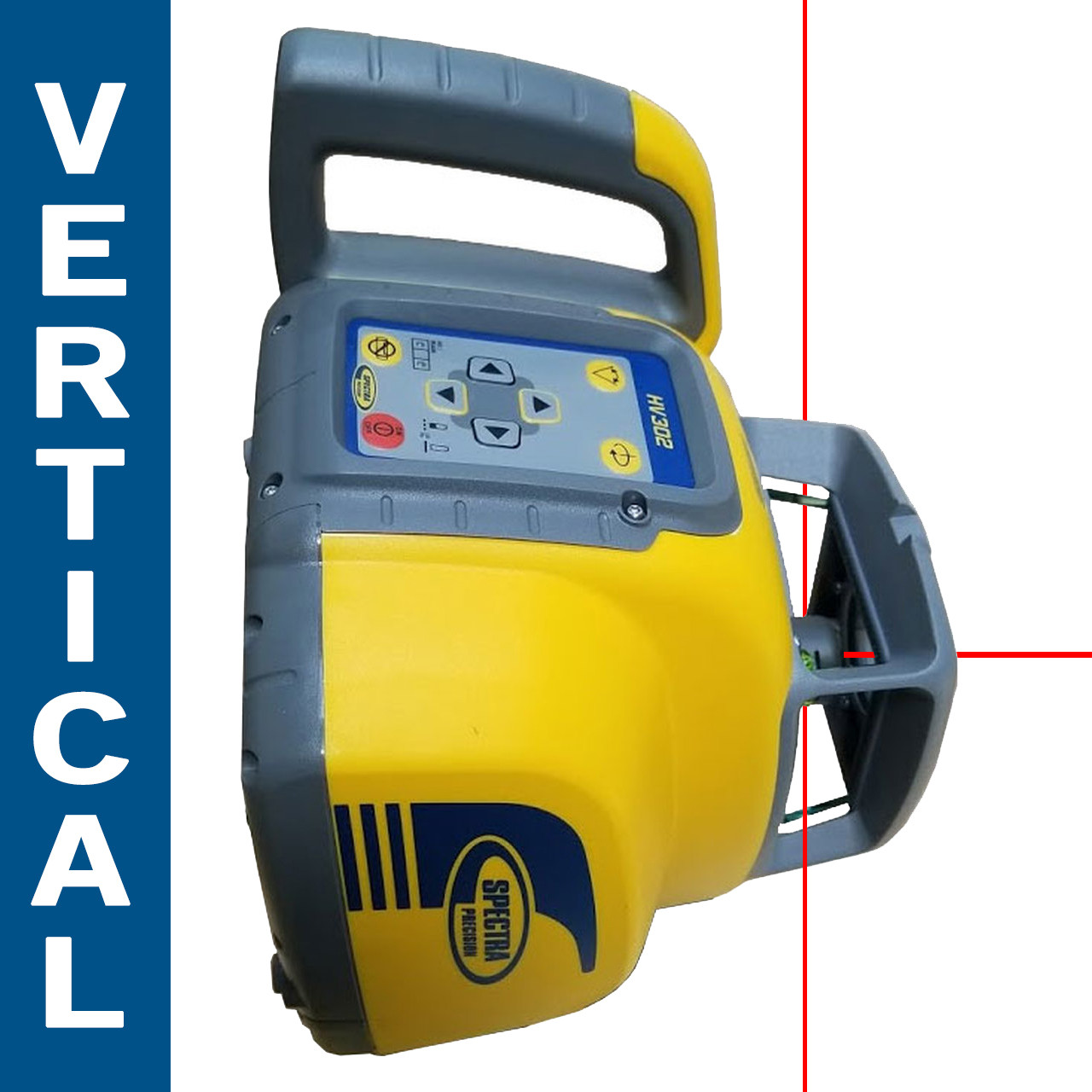

• Wall Plumb & Vertical Alignment: Deploy single-axis vertical beam for tilt-wall bracing checks, precast panel plumb verification, and elevator shaft alignment; detector on rod confirms vertical position at multiple heights without moving laser base.
• Structural Steel & MEP Installation: Set horizontal plane for ductwork hanger elevation, sprinkler head alignment, and beam elevation checks during structural erection; remote slope function accommodates pitched roof decks and mezzanine floors without mechanical tripod head.

Compatible Accessories

• Spectra Precision HL700 Laser Receiver – Budget detector alternative for basic on-grade indication
• Spectra Precision RC402N Remote Control – Replacement or secondary remote for crew coordination
• Universal Laser Detector Rod Clamps – Aftermarket clamps for metric rods or damaged original hardware
• Heavy-Duty Laser Tripods – Replacement tripods and elevation extensions for deep excavations
• Spectra Precision Battery Packs & Chargers – Spare Li-ion packs for extended shifts without recharge downtime
• Red Beam Laser Enhancement Glasses – High-visibility eyewear for bright sunlight conditions

Related Guides

• Rotary Laser Setup for Concrete Slab Pours
• Using Laser Receivers for Accurate Grade Checking
• Red vs. Green Beam Lasers: Visibility & Range Comparison
• Rotary Laser Calibration & Field Maintenance

FAQ

Can the HV302GC-2 do dual-axis slope, or only single-axis grade?

This model offers manual single-axis slope adjustment on the horizontal plane only—you rotate the laser head to align the slope axis with your grade direction, then use the remote to set pitch percentage. It does not self-level on slope (like motorized dual-grade models), so complex compound slopes require slope-matching lasers or multiple setups. The vertical beam remains plumb-only without slope capability.

What's the real-world working range outdoors with the HL760 receiver on a sunny day?

Expect 800–1,000 feet radius in overcast or dawn/dusk conditions, dropping to 500–700 feet in full midday sun due to red beam washout. The HL760's digital filtering helps, but for maximum range over 1,000 feet, position the laser in shade or use higher rotation speeds (1,500 RPM) to concentrate beam energy. Green beam lasers extend this range 30–50% in bright light if your jobs consistently hit the 1,300-foot limit.

Does the inches digirod work with metric measurements, or do I need a separate rod?

The included digirod displays inches/feet graduations only—there's no dual-scale or switchable readout. For metric projects, you'll need to purchase a centimeter/meter rod separately (Spectra's metric digirods are compatible with the HL760 clamp). The receiver itself doesn't convert units; it indicates on-grade/off-grade position against whatever rod scale you're reading manually.

How does the IP66 rating hold up to concrete splash and pressure washing on active job sites?

IP66 certification means the laser is dust-tight and handles powerful water jets from any direction, so concrete splatter, rain, and washdown won't damage electronics. However, the rating doesn't cover submersion—don't leave it in standing water or drop it in mud-filled forms. After wet pours, wipe the rotating head window clean before the next setup; dried concrete residue on the lens degrades beam quality and receiver accuracy until cleaned.
