Spectra Precision LL300S-16 PRO Laser Complete Package w/ CR700 Receiver, 10ths Rod and Tripod

The Spectra Precision LL300S-16 PRO is a professional-grade self-leveling rotary laser level kit built for contractors who need dependable elevation control across grading, drainage, foundation, and site work applications. Packaged as a complete field-ready system, the LL300S-16 PRO includes the CR700 multi-mode laser receiver, a 15-foot tenths rod, a heavy-duty tripod, and batteries — so your crew hits the ground running without waiting on secondary orders or missing components.

Product Overview

Designed for mid-range jobsite accuracy and built to Spectra Precision's proven durability standards, the LL300S delivers consistent horizontal plane coverage up to 800 feet in diameter with the included CR700 receiver. Whether you're shooting grades for a parking lot, setting drainage slopes, or verifying foundation elevations, the LL300S-16 PRO provides the performance and reliability that keeps your project on schedule. The self-leveling mechanism activates within ±5° of level and locks the beam automatically, reducing setup time and operator error on uneven terrain.

Key Specifications

• Accuracy: ±1/16 inch at 100 feet (±1.5 mm at 30 m)
• Self-Leveling Range: ±5°
• Working Range (with CR700): Up to 800 ft (244 m) diameter
• Rotation Speed: 150, 300, or 600 RPM selectable
• Grade Capability: Single-axis grade matching (0–25%)
• IP Rating: IP66 — dust-tight and protected against heavy water ingress
• Battery Life: Up to 100 hours on D-cell alkaline batteries
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Laser Class: Class II, 635 nm visible red beam

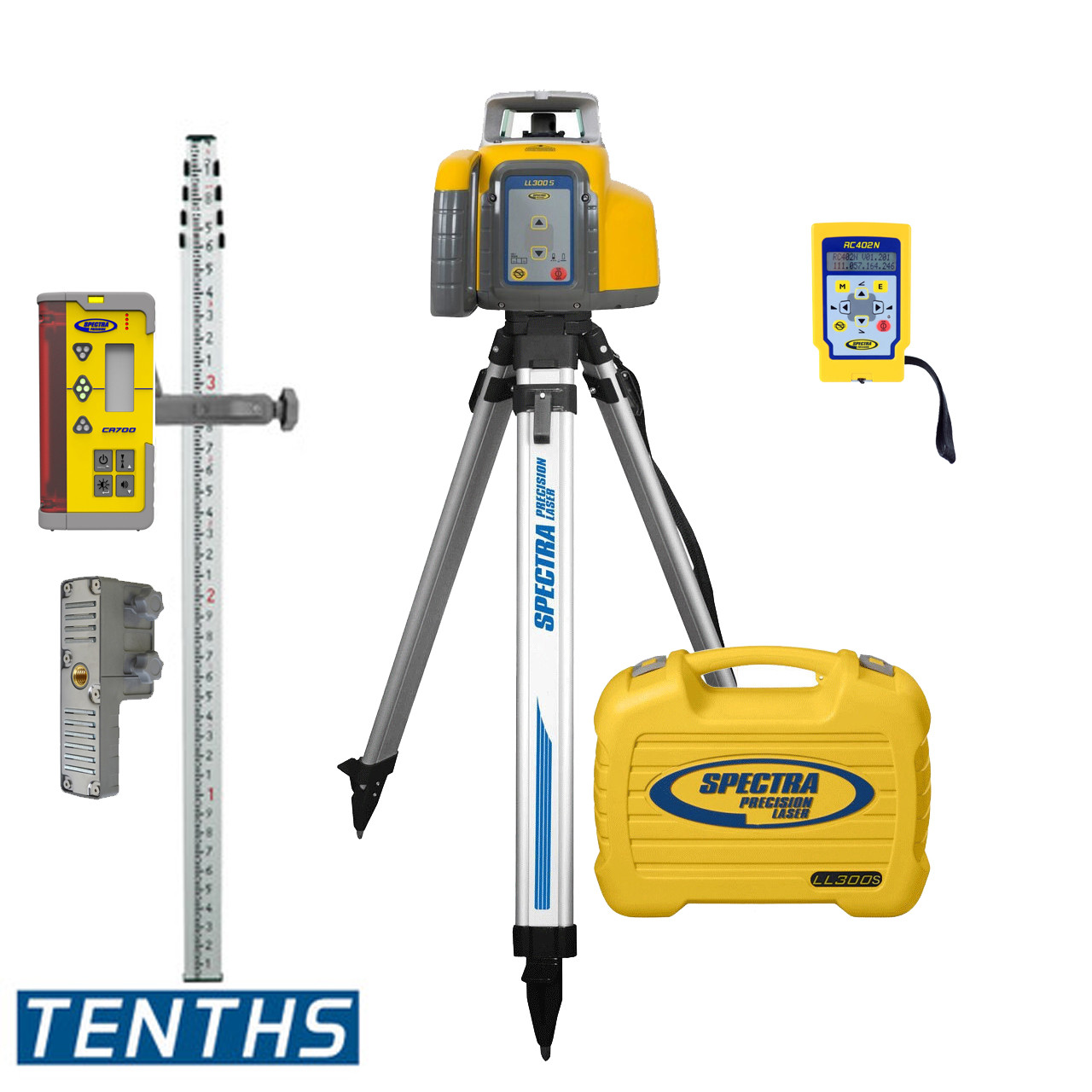

What's in the Kit

• Spectra Precision LL300S-16 Rotary Laser Level — the core instrument with self-leveling and single-axis grade capability

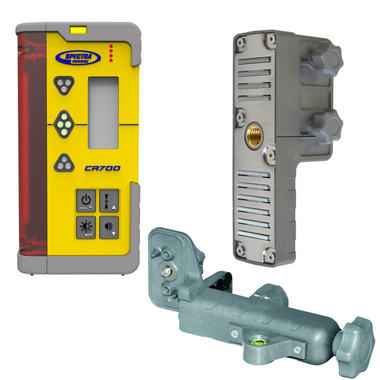

• CR700 Laser Receiver — multi-mode receiver with intuitive light-bar display and audible/visual grade indicators for fast beam acquisition in bright daylight conditions

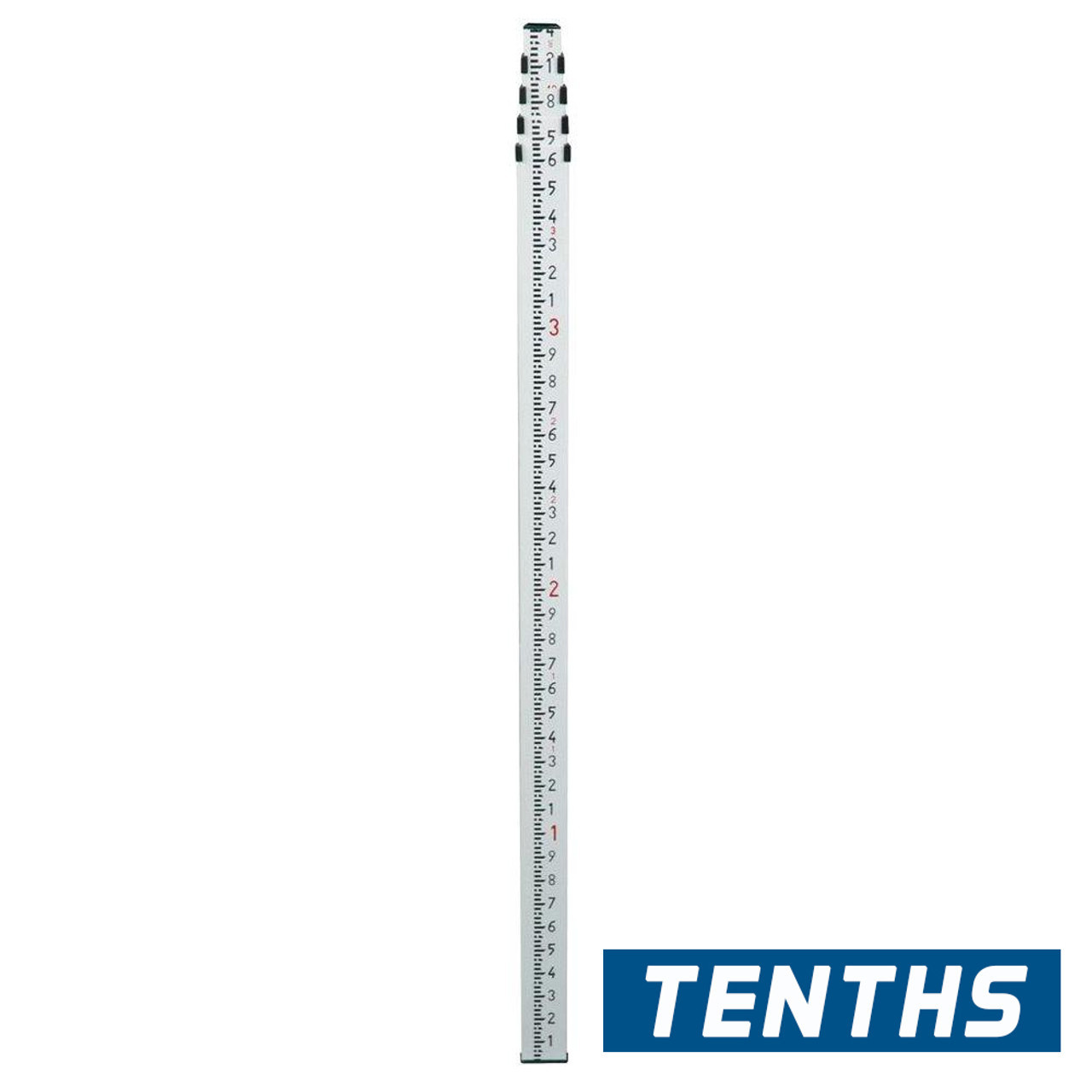

• 15-Foot Tenths Rod — direct-reading grade rod graduated in tenths of a foot for fast elevation transfer
• Heavy-Duty Tripod — contractor-grade aluminum tripod with quick-clamp legs for stable setup on soft or hard surfaces
• D-Cell Batteries — included for immediate field deployment
• Carrying Case — molded hard case for instrument protection during transport and storage

Job Applications

Site Grading & Earthwork: Set consistent cut-and-fill grades across large disturbed areas. The 800-foot working diameter means fewer instrument moves per site, keeping your operators productive and reducing overall grading time.

Drainage & Slope Control: The single-axis grade function lets you dial in specific slope percentages for swales, detention basins, and pipe trenches without secondary calculations or string lines — improving accuracy and eliminating rework.

Foundation Layout & Elevation Checks: Verify form elevations and slab benchmarks with ±1/16-inch accuracy at 100 feet. The CR700 receiver's light-bar readout gives rod operators instant above/below/on-grade confirmation without radio communication delays.

Agricultural & Landscape Leveling: The IP66 rating and -4°F low-end operating temperature make the LL300S-16 a reliable choice for field leveling, irrigation grading, and landscape contouring in variable outdoor conditions throughout the work year.

Compatible Accessories

• Spectra Precision CR700 Replacement Receiver
• Spectra Precision HL760 Alkaline Battery Pack
• Spectra Precision RC703 Remote Control
• Replacement Tenths Grade Rod
• Spectra Precision Heavy-Duty Tripod (Replacement)
• Laser Level Carrying Case — LL300 Series

Related Guides

• How to Set Up a Rotary Laser Level for Site Grading
• CR700 Receiver Calibration & Maintenance Guide
• Rotary Laser vs. Grade Laser: Which Do You Need?
• How to Read a Tenths Rod for Elevation Transfer

Frequently Asked Questions

Does the LL300S-16 PRO work in outdoor daylight conditions?

Yes. The included CR700 receiver is required for outdoor use in ambient light. The CR700 detects the rotating laser beam even in full sun, providing directional feedback via its light-bar display at distances up to 800 feet. The laser is not visible to the naked eye at typical working distances in daylight.

Can the LL300S-16 shoot grades, or is it horizontal-only?

The LL300S-16 includes single-axis grade capability, allowing operators to dial in slopes from 0 to 25% on one axis. This makes it suitable for drainage grading, pipe trenching, and sloped slab work without the need for a full dual-axis grade laser.

What is the difference between the LL300S-16 and the LL300N?

The LL300S adds single-axis grade matching capability and is packaged as a more complete PRO kit. The LL300N is a horizontal-only self-leveling laser better suited for interior or flat-grade applications. If your work involves drainage or slope control, the LL300S-16 PRO is the appropriate choice.

Is the LL300S-16 PRO covered under warranty?

Yes. Spectra Precision backs the LL300S-16 with a standard manufacturer's warranty. As an authorized Spectra Precision dealer, Express Tools supports warranty claims and can facilitate service through authorized repair channels. Contact our team for warranty registration assistance or service inquiries.
