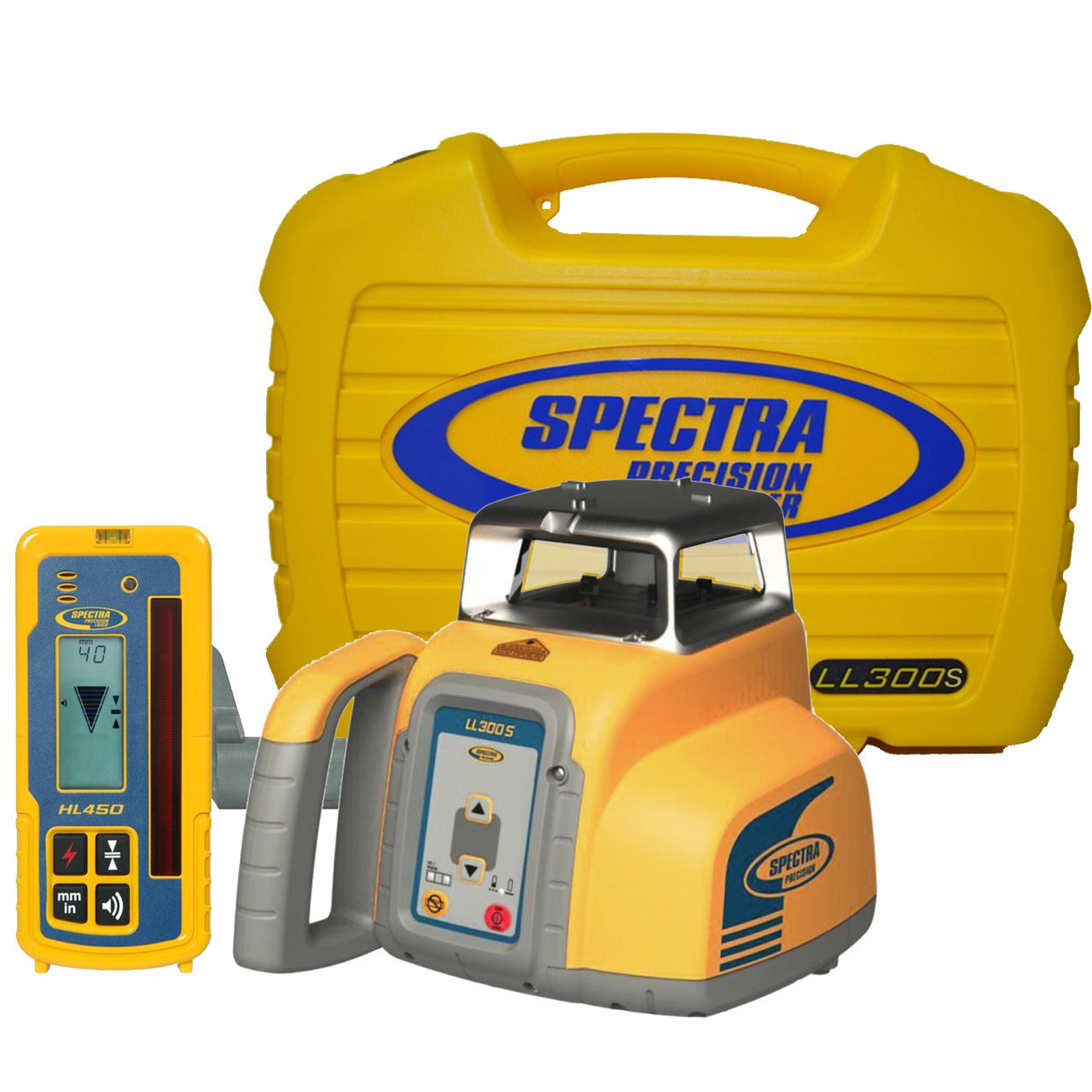

Spectra Precision LL300S-X2 Laser Package, HL450 Receiver, INCHES-Rod, HD Tripod and Small Case

The Spectra Precision LL300S-X2 is a fully equipped rotary laser package built for contractors who demand imperial-standard measurements without sacrificing performance. Pairing the proven LL300S self-leveling rotary laser with the advanced HL450 receiver, an inches-graduated grade rod, a heavy-duty tripod, and a protective carrying case, this kit arrives on your jobsite ready to work from day one. Whether you're grading a site, setting forms, or checking elevations across a large structure, the LL300S-X2 delivers the range, accuracy, and durability professionals rely on.

Package Overview & Jobsite Applications

The LL300S-X2 is engineered for general construction, civil grading, concrete flatwork, and interior fit-out. The LL300S laser unit self-levels within ±5° automatically, eliminating setup delays on uneven terrain. Combined with the HL450's wide detection window and industry-leading sensitivity, this system can be used effectively across large open sites, inside steel-framed buildings, and in bright outdoor conditions where visible beams wash out. The inches-graduated rod makes reading elevations intuitive for crews accustomed to working in feet and inches, reducing measurement errors and rework on the job.

Key Specifications

• Model: Spectra Precision LL300S-X2
• Laser Class: Class IIIa / 3R
• Accuracy: ±1/16 in at 100 ft (±1.5 mm at 30 m)
• Self-Leveling Range: ±5°
• Operating Range (with HL450): Up to 2,000 ft (610 m) diameter
• Rotation Speed: 100, 300, 600 RPM selectable

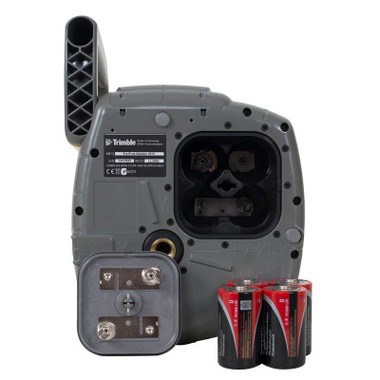

• Battery Life: Up to 100 hours (4 x D-cell alkaline)
• IP Rating: IP66 – dust-tight and water-resistant
• Receiver: HL450 with 5.4 in (138 mm) detection window
• Rod Graduation: Inches (imperial standard)

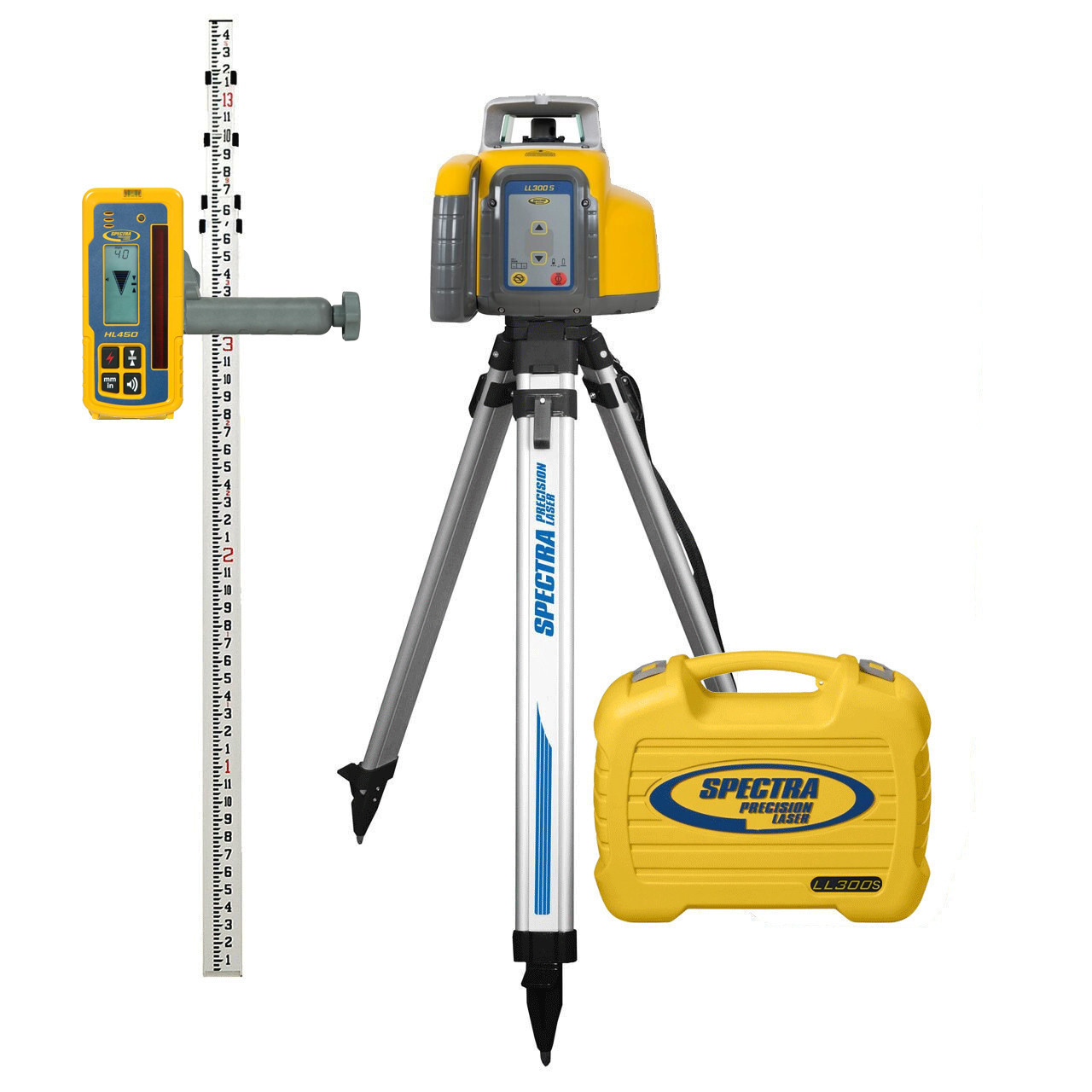

What's in the Kit

• Spectra Precision LL300S Self-Leveling Rotary Laser
• HL450 Laser Receiver with rod clamp and carrying pouch
• Inches-graduated grade rod for imperial measurements

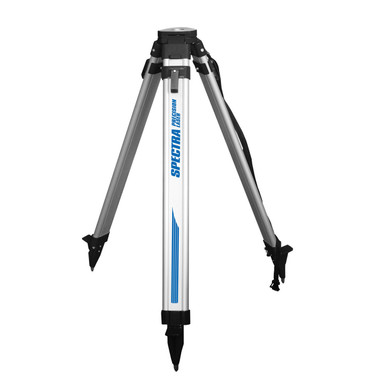

• Heavy-duty adjustable tripod for stable, fast setup

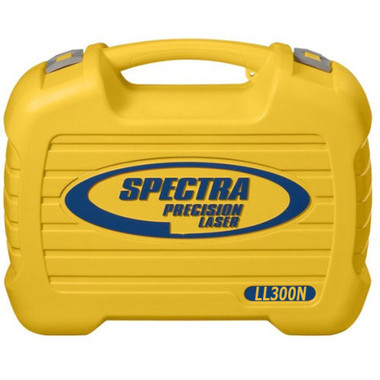

• Hard-shell protective carrying case
• 4 x D-cell batteries (pre-installed)
• Operator's manual and warranty documentation

Job Applications

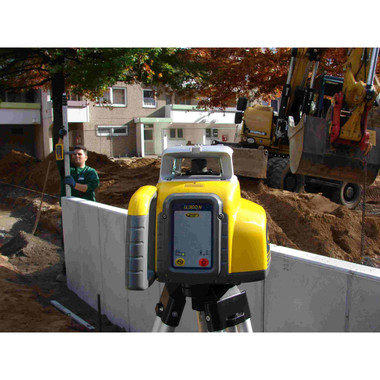

Site Grading & Earthwork: The HL450 receiver's 2,000 ft operating range lets machine operators and grade checkers work across expansive sites without repositioning the instrument. Use the inches rod to verify cut-and-fill elevations quickly in the field.

Concrete Formwork & Flatwork: Set form heights and screed rails to exact elevations using the HL450's fine-resolution detection. The LL300S's ±1/16 in accuracy at 100 ft keeps slabs within tolerance on the first pour.

Building Layout & Interior Fit-Out: At 600 RPM, the laser produces a bright, fast-sweeping reference plane ideal for suspended ceiling grids, partition walls, and MEP rough-in inside framed structures.

Utility & Pipeline Grade: Dial in a fixed grade reference for drainage pipe runs, culverts, and utility trenches. The selectable rotation speeds help optimize visibility in both bright outdoor and shaded trench conditions.

Compatible Accessories

• HL450 Replacement Receiver
• Spectra Precision CR600 Machine Control Receiver
• Heavy-Duty Aluminum Tripod (Tall)
• Metric Grade Rod – LL300S Compatible

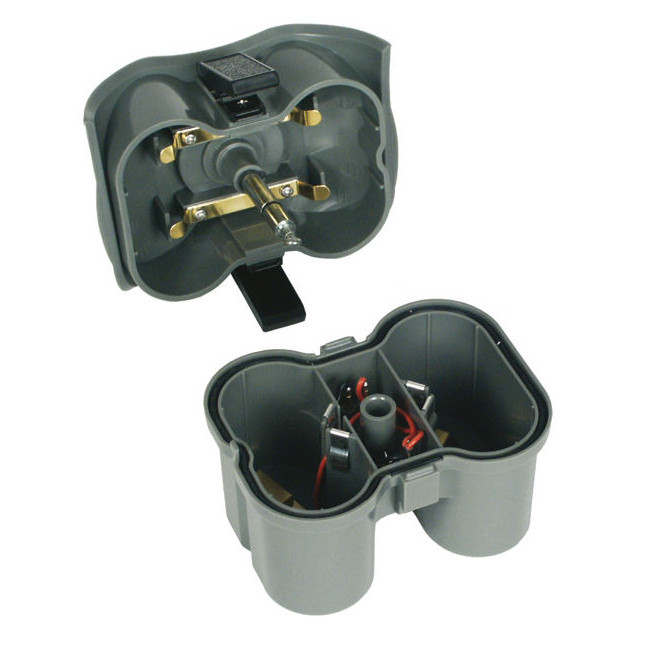

• Replacement D-Cell Battery Pack
• LL300S Replacement Carrying Case

Related Guides

• How to Set Up a Rotary Laser Level on a Jobsite
• HL450 Receiver Calibration & Sensitivity Guide
• Rotary Laser vs. Line Laser: Choosing the Right Tool
• Spectra Precision LL300S Series Comparison Chart

Frequently Asked Questions

What is the difference between the LL300S-X1 and LL300S-X2 packages?

The LL300S-X2 includes an inches-graduated grade rod, making it the preferred choice for crews working in imperial measurements. The X1 package typically includes a metric rod. Both packages include the same LL300S laser unit and HL450 receiver.

Can the HL450 receiver be used with other Spectra Precision lasers?

Yes. The HL450 is compatible with the full Spectra Precision LL-series rotary laser lineup, including the LL300, LL400, and LL500 models, as well as many Trimble rotary lasers. It is a versatile receiver suitable for long-term use across multiple instruments.

Is the LL300S waterproof enough for rain?

The LL300S carries an IP66 rating, meaning it is fully protected against dust ingress and high-pressure water jets. It can withstand typical jobsite rain and splashing without damage, though it should be stored in its case during severe weather or transport.

What rotation speed should I use for grading versus interior work?

For outdoor grading and machine control with the HL450 receiver, 600 RPM provides the fastest beam updates and best receiver response. For interior layout work where visibility of the beam dot matters, 100 or 300 RPM produces a more visible, slower-moving dot on walls and surfaces.
