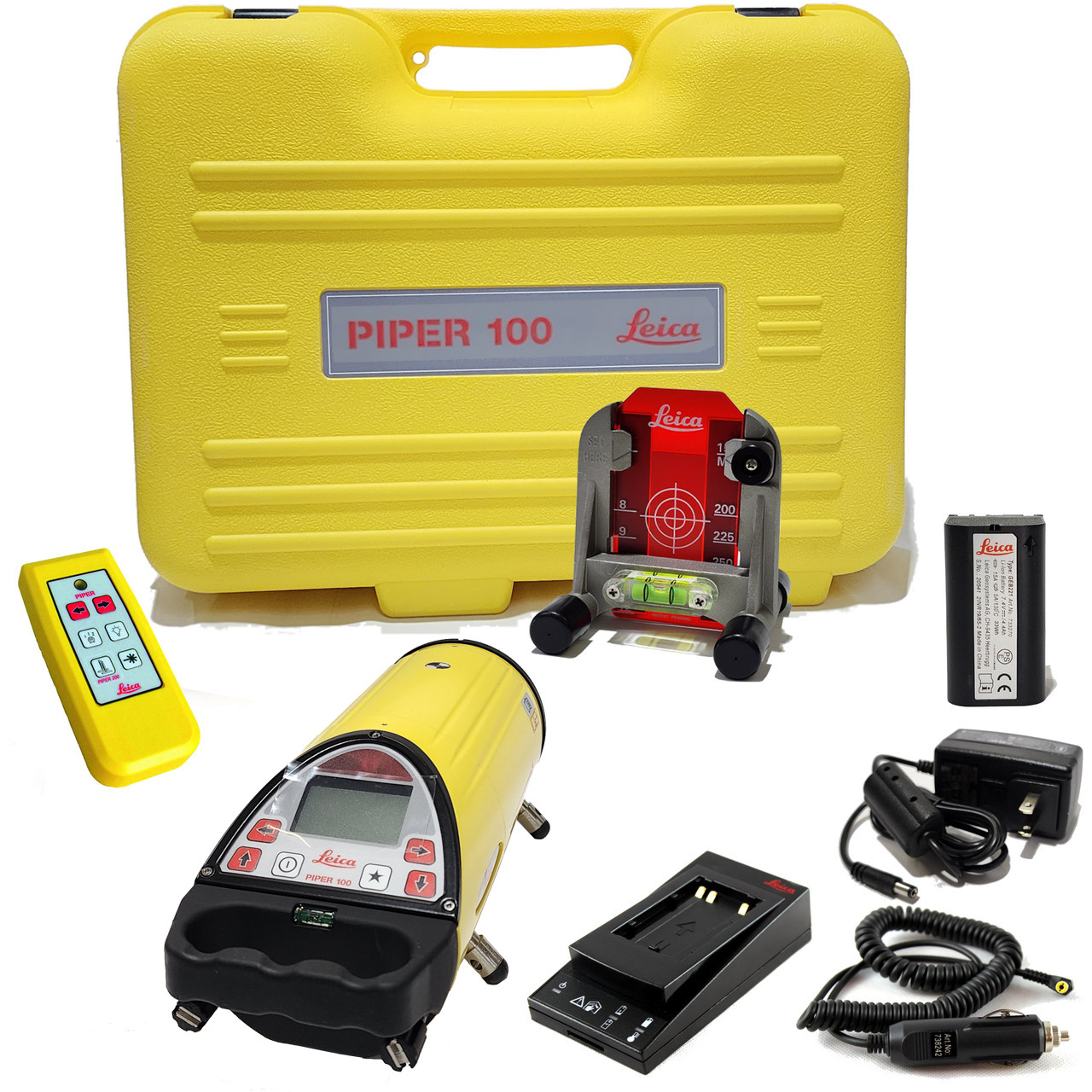

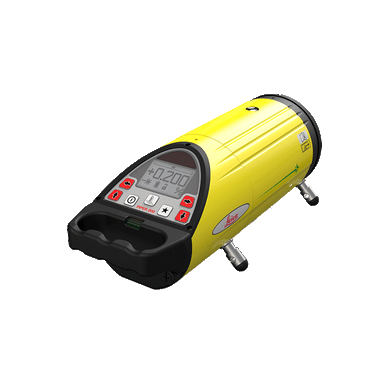

Leica Piper 100 Pipe Laser Package - Red Beam 748704 - with Remote Control

Versatile Red Beam Pipe Laser for Gravity Sewer, Drain, and Utility Line Installation

The Leica Piper 100 is the go-to pipe laser for utility contractors who demand reliable grade control and alignment on residential and commercial projects. Built for real jobsite conditions, it combines a high-visibility red beam, integrated plumb laser, and wireless remote into a rugged, self-leveling package that keeps crews on grade and on schedule. Whether you're laying gravity sewer mains, storm drain laterals, or utility conduit, the Piper 100 delivers the accuracy and workflow efficiency that justify the investment on every project.

Product Overview and Jobsite Applications

The Leica Piper 100 is engineered for contractors who routinely manage multi-section pipe runs requiring frequent grade checks and alignment verification across multiple access points. Its intuitive interface reduces setup time in the trench, while the wireless remote allows operators to adjust grade and slope without climbing back into the excavation. The self-leveling range of ±5% accommodates most gravity drainage grades, and the automatic out-of-level warning prevents costly misalignment errors before they compound down the line.

Key Specifications

• Laser Class: Class 3R, red beam (635 nm)
• Leveling Range: ±5% (±2.86°) automatic self-leveling
• Grade Range: 0% to ±10% (manual grade setting)
• Grade Accuracy: ±0.1 mm/m (±0.01%)
• Working Range: Up to 200 m (656 ft) with detector
• Battery Life: Up to 50 hours on 4x AA alkaline batteries
• Protection Rating: IP67 — fully dustproof and submersible to 1 m
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Weight: Approximately 2.8 kg (6.2 lbs) with batteries

Key Features

• Integrated Plumb Laser: Projects a vertical reference beam for manhole alignment and structure centering without a separate instrument
• Wireless Remote Control: Adjust grade, slope direction, and instrument settings from above ground — no re-entry required
• Automatic Self-Leveling: Locks on grade within seconds of placement; out-of-level alarm engages if the instrument is disturbed
• Large, Readable Display: Clearly shows current grade and instrument status even in low-light trench conditions
• Robust IP67 Housing: Withstands full submersion, heavy dust, and jobsite abuse — no babying required
• Universal Pipe Adapter System: Compatible with a wide range of pipe diameters for fast, secure centering in the pipe invert
• Long Battery Life: Up to 50 hours on standard AA batteries keeps the laser running across multi-day excavations

Job Applications

Gravity Sewer Mains and Laterals: Set precise invert grades on residential sewer connections and municipal collection mains. The remote control lets the grade setter adjust slope from the surface while the pipe crew works below.

Storm Drain and Culvert Installation: Maintain consistent drainage grades on storm sewer runs where even minor deviations cause ponding or structural backpressure issues downstream.

Utility Conduit and Sleeve Installation: Align electrical, telecommunications, and water service conduit during site development. The plumb laser simplifies vertical structure alignment at vaults and pull boxes.

Inspection and Grade Verification: Use the Piper 100 as a reference instrument during CCTV inspection prep or pre-pour verification to confirm as-built grades match design before backfill.

Compatible Accessories

• Leica Rod Eye 140 Laser Detector — Extends visible working range and enables grade checking in bright daylight
• Leica Universal Pipe Adapter Set — Fits pipe diameters from 4 in. to 24 in. for versatile trench deployment
• Leica Piper Remote Control (Replacement) — Spare remote for crews running multiple active setups

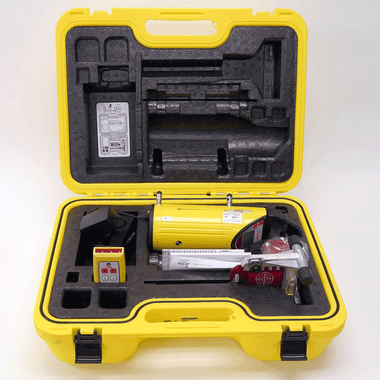

• Leica Hard Carrying Case — Protective transport and storage case sized for the Piper 100 and accessories

Related Guides

• How to Set Grade with a Pipe Laser: Step-by-Step for Utility Crews
• Pipe Laser Buying Guide: Choosing the Right Instrument for Sewer and Drain Work
• Leica Piper 100 vs. Piper 200: Which Model Is Right for Your Project?
• IP Ratings Explained: Why Waterproofing Matters for Trench Lasers

Frequently Asked Questions

What is the maximum grade the Leica Piper 100 can be set to?

The Piper 100 self-levels automatically within ±5% (±2.86°). For grades beyond that range, it can be manually set up to ±10%, though manual mode requires careful setup on a stable tripod or pipe adapter outside the self-leveling window.

Does the Piper 100 work with a grade rod and detector in daylight?

Yes. Paired with a compatible Leica laser detector such as the Rod Eye 140, the Piper 100 can be used effectively in full daylight at working ranges up to 200 m. The detector's audio and visual signals replace direct beam visibility when ambient light washes out the red dot.

Is the wireless remote included with the Leica Piper 100?

Yes, the remote control is included in the standard Piper 100 kit. It allows operators to adjust grade percentage, slope direction, and activate the plumb laser from above the trench without disturbing the instrument's position or level.

How does the integrated plumb laser work on the Piper 100?

The integrated plumb laser projects a vertical reference beam upward from the instrument body. This allows crews to accurately center the laser over a manhole invert, align with a benchmark stake, or verify structure placement without setting up a separate plumb bob or optical plummet.
