Spectra Precision GL1425C-2 Dual Grade Laser w/ CR700 Receiver, INCHES Rod, Tripod and Large Case - Rechargeable

The Spectra Precision GL1425C-2 is a professional dual-axis grade laser engineered for contractors who demand precise compound slope control on complex earthwork, grading, and drainage projects. Whether you're setting fall lines on a parking lot, establishing dual-pitch drainage, or aligning multi-axis site grades, the GL1425C-2 delivers the independent X and Y axis grade adjustment that demanding job sites require. This complete GL1425C-2 kit ships free and includes everything you need to work the day it arrives.

Product Overview & Jobsite Applications

The GL1425C transmitter projects a highly visible red laser reference plane across both horizontal and vertical axes, with independent dual-axis slope capability ranging from -10% to +10% on each axis simultaneously. The CR700 machine-mount receiver extends working range and integrates with machine control systems, while the RC1402N wireless remote lets one operator run the instrument from the cab or across the site. Built for outdoor use with IP66-rated weather resistance, the GL1425C-2 handles rain, dust, and rough handling common on active construction sites.

Key Specifications

• Laser Class: Red beam, Class 3R
• Grade Range (X & Y Axis): -10% to +10% independently
• Grade Accuracy: ±1 arc second (±0.0002 ft/ft)
• Self-Leveling Range: ±5°
• Operating Range: Up to 2,000 ft diameter with CR700 receiver
• Rotation Speed: 0, 100, 300, 600 RPM selectable
• Power: Rechargeable battery pack, up to 20 hours runtime
• Weather Resistance: IP66 rated
• Operating Temperature: -4°F to 131°F (-20°C to 55°C)

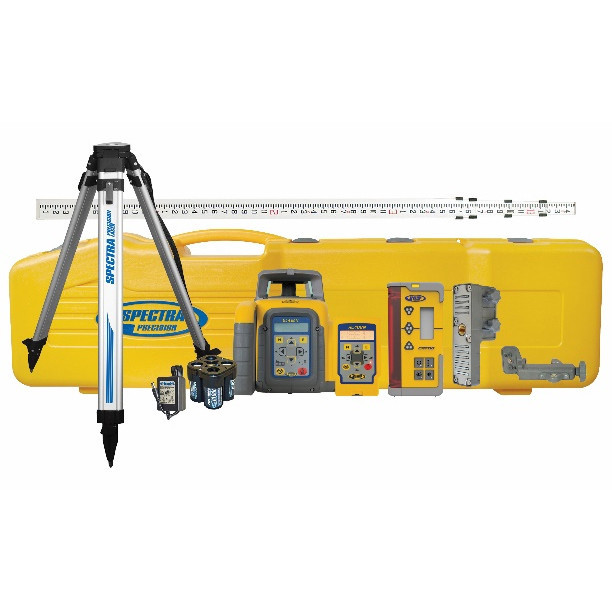

What's in the GL1425C-2 Kit

• Spectra GL1425C Dual Grade Laser Transmitter

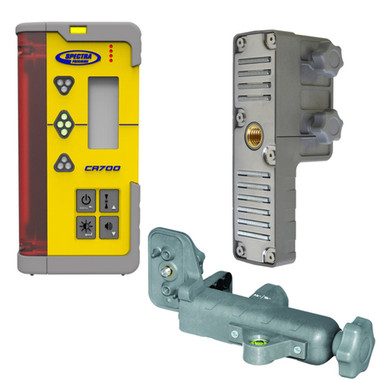

• CR700 Machine/Grade Rod Receiver — extended range digital detection
• RC1402N Wireless Remote Control — full instrument control at up to 1,000 ft
• Inches-Graduated Grade Rod — for direct elevation readings
• Heavy-Duty Tripod — stable setup on uneven terrain
• Rechargeable Battery Pack & Charger
• Protective Carrying Case — organized storage for all components

Job Applications

Parking Lot & Pavement Grading: Set compound cross-slopes and longitudinal grades simultaneously to meet ADA drainage and stormwater requirements without repositioning.

Agricultural & Land Drainage: Establish precision fall lines and cut grades across large open fields where dual-axis slope control eliminates multiple instrument setups.

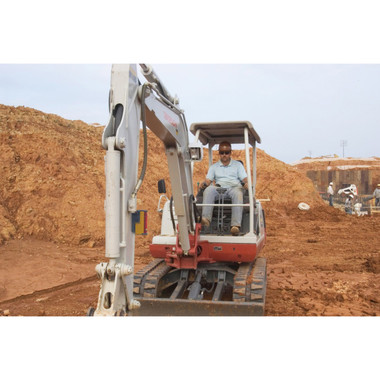

Site Earthwork & Rough Grading: Mount the CR700 receiver on your blade or scraper for real-time grade feedback during cut-and-fill operations across the entire site.

Foundation & Slab Layout: Use the vertical beam plane for wall layout and column alignment while maintaining reference elevations for slab-on-grade pours.

Compatible Accessories

• Spectra CR700 Replacement Receiver
• RC1402N Wireless Remote Control
• Spectra Precision Grade Rod Extensions
• Replacement Rechargeable Battery Pack
• Heavy-Duty Machine Mounting Bracket

Related Guides

• How to Set Dual-Axis Slope with the GL1425C-2
• Choosing the Right Grade Laser for Your Project
• Using the CR700 Receiver for Machine Control
• RC1402N Remote Setup & Pairing Guide

Frequently Asked Questions

Can the GL1425C-2 set two different grade percentages at the same time?

Yes. The GL1425C features fully independent X-axis and Y-axis grade adjustment, each ranging from -10% to +10%. You can dial in a different slope on each axis simultaneously, making it ideal for compound drainage slopes, crowned surfaces, and multi-directional grade control without repositioning the instrument.

What is the working range of the GL1425C-2 with the CR700 receiver?

With the included CR700 receiver, the GL1425C-2 delivers a working diameter of up to 2,000 feet, making it well suited for large open sites. Indoor or obstructed environments will reduce effective range.

Does the RC1402N remote control all instrument functions?

The RC1402N wireless remote provides full control of grade settings, rotation speed, and power functions from up to approximately 1,000 feet away. This allows a single operator to adjust grades from a machine cab or across the site without returning to the instrument.

Is the GL1425C-2 compatible with machine control systems?

The CR700 receiver included in this kit is designed for machine mounting and integrates with grade control systems commonly used on motor graders, dozers, and scrapers. Check with your machine control manufacturer for specific compatibility with your existing system.
