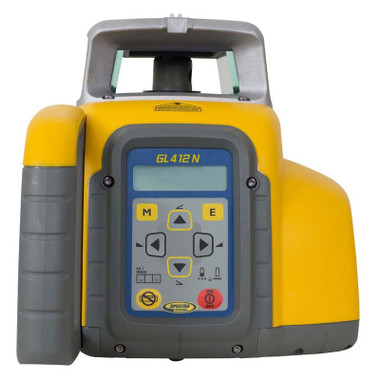

Spectra Precision GL412N-BL Single Grade Laser

The Spectra Precision GL412N-BL is a professional single-grade rotating laser designed for contractors who need reliable slope control on demanding jobsites. Whether you are pouring sloped concrete floors, grading drainage channels, or setting ramp elevations, the GL412N-BL delivers consistent red beam accuracy with a setup process experienced crews can complete in minutes. Express Tools is an authorized Spectra Precision dealer, so every unit ships with full manufacturer support and warranty coverage.

Product Overview & Jobsite Applications

The GL412N-BL occupies the sweet spot between entry-level leveling lasers and full dual-grade systems. Its single-axis grade capability handles the vast majority of slope work encountered on residential and light commercial sites without the added cost or complexity of a second tilting axis. The red beam performs strongly in indoor and shaded outdoor environments, and the built-in receiver compatibility extends the working range on open sites. The rechargeable battery system reduces consumable costs over the life of the tool, making it a smart long-term investment for high-use crews.

Key Specifications

• Beam Color: Red
• Grade Range: ±10% single axis
• Self-Leveling Range: ±5°
• Accuracy: ±1/16 in at 100 ft (±1.5 mm at 30 m)
• Working Range: Up to 2,000 ft (610 m) diameter with compatible detector
• Rotation Speed: 150, 300, 600 RPM selectable
• Power Source: Rechargeable NiMH battery pack included
• Battery Life: Up to 20 hours per charge
• Dust & Water Protection: IP66-rated housing
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Mounting: 5/8-11 threaded base, tripod compatible

Key Features

• Single-axis grade projection up to ±10% for slopes, ramps, and drainage runs
• Red rotating beam visible to the naked eye at close to mid range without a detector
• Electronic self-leveling with out-of-level warning alarm and beam shutoff
• Selectable rotation speeds to optimize visibility versus beam brightness
• Rechargeable NiMH battery pack with charger included — no disposable batteries required
• IP66-rated sealed housing resists jobsite dust, mud splash, and rain exposure
• Compatible with Spectra HL700 and similar grade rod receivers for extended outdoor range
• Rugged over-molded housing with integrated carrying handle for field durability

Job Applications

Sloped Concrete Floor Pours: Set a precise single-axis grade across warehouse floors, equipment pads, or wash-down bays where positive drainage slope must be consistent across the entire slab before the truck arrives.

Ramp & ADA Approach Construction: Establish and verify ramp grades that meet ADA or site-specific slope tolerances, ensuring compliance without repeated manual checks during forming and pour operations.

Site Drainage & Swale Grading: Control cut-and-fill operations along drainage swales, retention pond slopes, and pipe trench grades where a consistent fall per foot is critical to long-term drainage performance.

Interior Finish & Underlayment Work: Use the red beam at close range without a detector for self-leveling floor underlayment screeds, shower pan slopes, and tile substrate preparation in residential and commercial interiors.

Compatible Accessories

• Spectra HL700 Laser Detector & Clamp — extends outdoor working range significantly
• Spectra GR1600 Grade Rod — direct-read rod calibrated for grade laser use
• Heavy-Duty Elevating Tripod — provides stable, height-adjustable mounting for the GL412N-BL

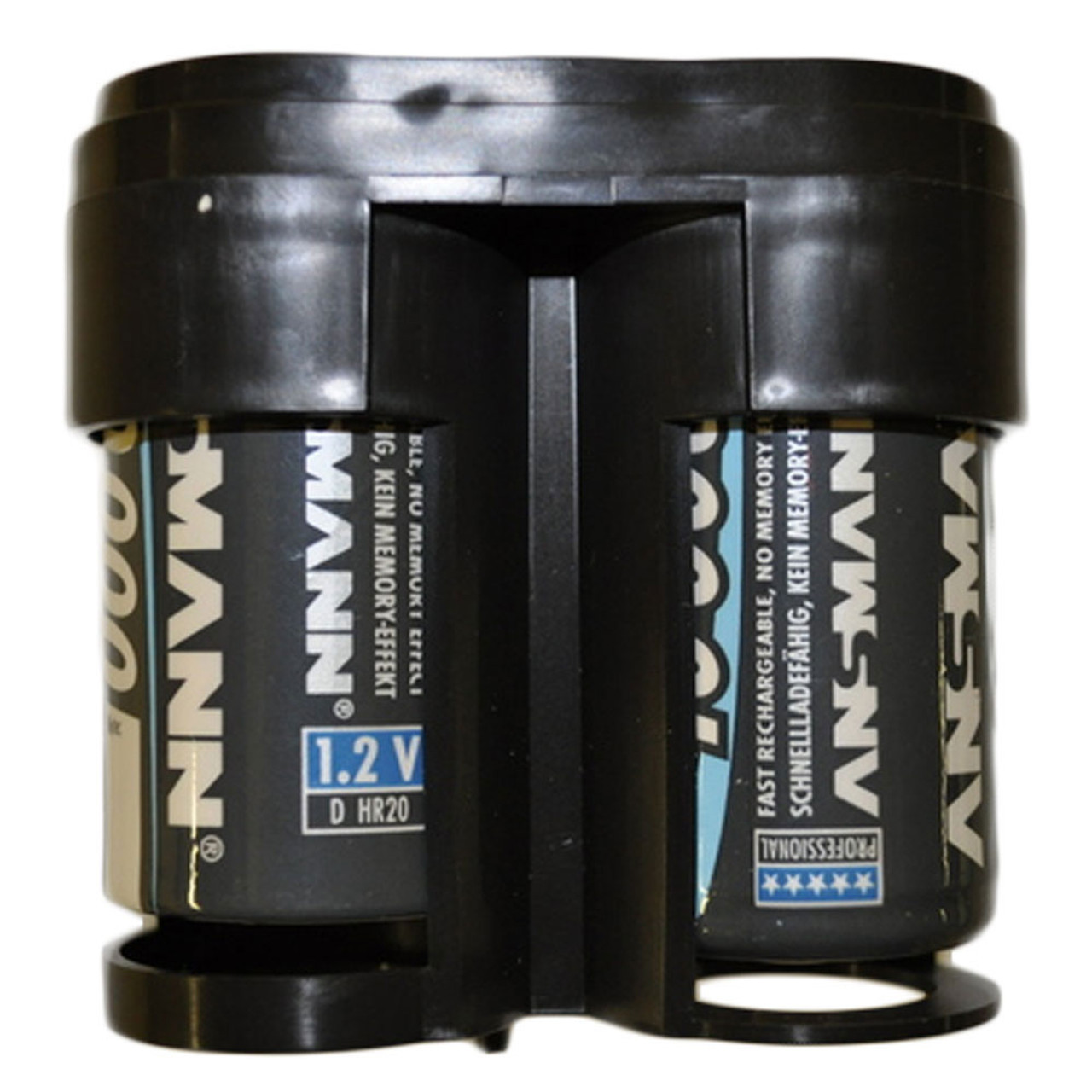

• Replacement NiMH Battery Pack for GL412N — keep a spare charged and ready on long pours
• Spectra Hard Carrying Case — foam-lined protection for transport and storage

Related Guides

• How to Set Grade with a Single-Axis Rotating Laser
• Choosing Between Single Grade and Dual Grade Lasers
• Red Beam vs. Green Beam Lasers: Which Do You Need?
• Laser Level Maintenance and Calibration Tips for Contractors

Frequently Asked Questions

Can the GL412N-BL be used outdoors without a detector?

In direct sunlight or bright outdoor conditions, a compatible red beam detector such as the Spectra HL700 is recommended to pick up the beam reliably at distances beyond approximately 50 to 100 feet. Indoors or in shaded conditions, the red beam is visible to the naked eye at typical working distances.

What is the maximum slope the GL412N-BL can project?

The GL412N-BL supports single-axis grade projection up to ±10%, which covers the vast majority of drainage, ramp, and sloped-floor applications encountered on construction sites. For grades beyond this range, a manual-slope or dual-grade laser would be required.

Does the laser include a battery and charger in the box?

Yes. The BL designation in the model name indicates the unit ships with a rechargeable NiMH battery pack and wall charger included. No separate battery purchase is required to begin using the laser immediately upon receipt.

Is the GL412N-BL compatible with other brand detectors?

The GL412N-BL is optimized for use with Spectra Precision red beam detectors. While some third-party red beam receivers may function, Express Tools recommends using a Spectra-matched detector such as the HL700 to ensure full accuracy and compatibility with the laser's beam frequency.
