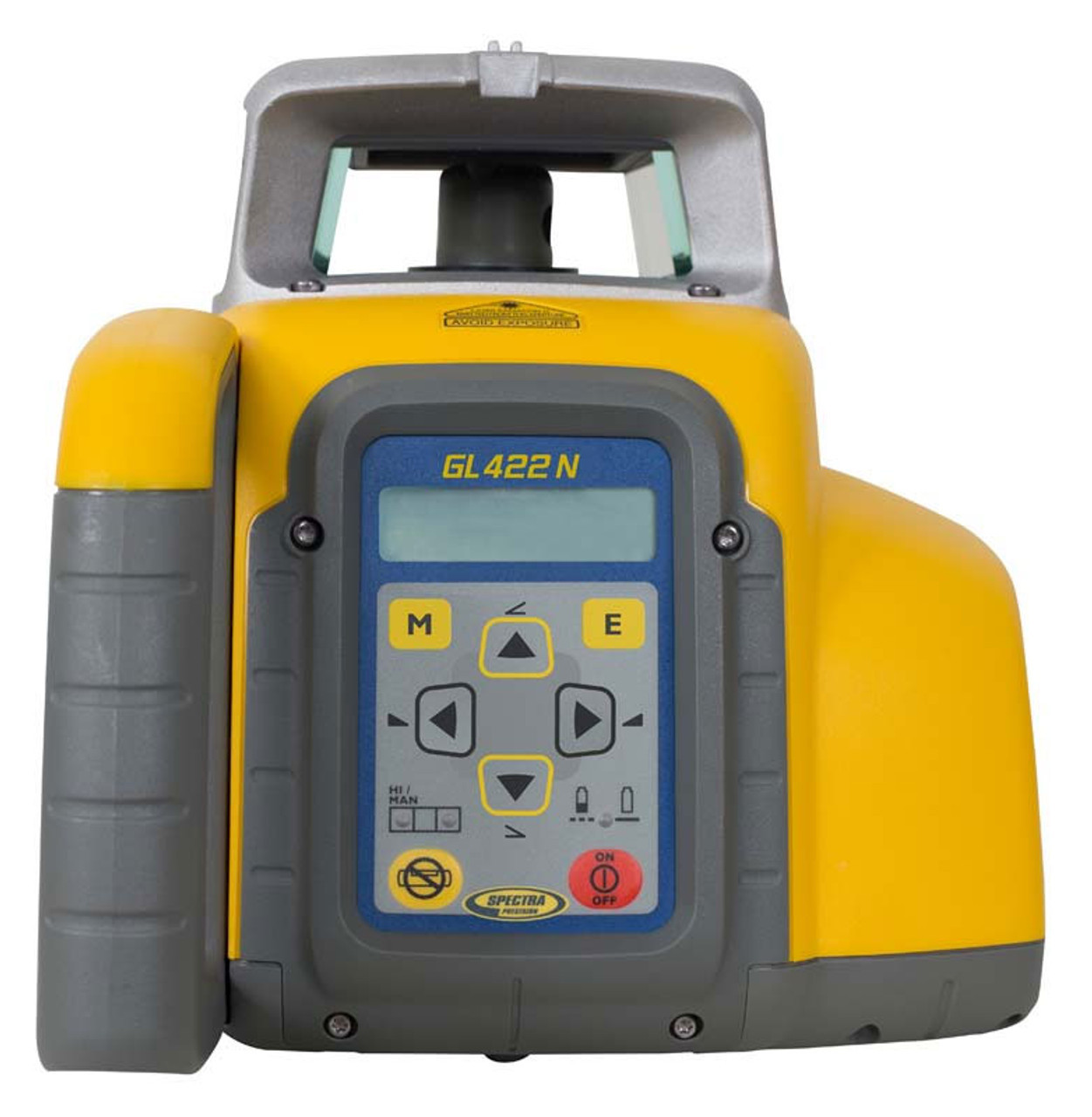

Spectra Precision GL422N-BL Dual Grade Laser

The Spectra Precision GL422N-BL is a professional dual-grade rotating laser engineered for contractors who need to set simultaneous slopes on two axes without repositioning equipment. Whether you are grading a parking lot, establishing drainage planes on a concrete slab, or cutting roads, the GL422N-BL delivers precise X and Y slope control in a single instrument setup — saving layout time and reducing costly rework on grade-critical projects.

Product Overview

Dual-grade lasers are a force multiplier on any jobsite where simple level is not enough. The GL422N-BL auto-levels itself on the horizontal plane and then allows operators to dial in independent slopes on both the X and Y axes, up to 25% on each. The bright red beam pairs with the included receiver for long-range work in outdoor daylight conditions, and the fully sealed, ruggedized housing stands up to the dust, moisture, and vibration common on active grading and civil construction sites. The rechargeable battery pack — included in the BL bundle — eliminates the recurring cost of disposables and keeps the instrument running through full work shifts.

Key Specifications

• Laser Class: Class IIIa / Class 3R red beam, 635 nm wavelength
• Working Range: Up to 2,000 ft (610 m) diameter with compatible receiver
• Grade Range: 0% to ±25% on both X and Y axes simultaneously
• Grade Accuracy: ±0.5% of set grade value
• Self-Leveling Range: ±5° automatic compensation
• Rotation Speed: 100, 300, and 600 RPM selectable
• IP Rating: IP66 dust-tight and water-jet resistant
• Power: Rechargeable NiMH battery pack (included); up to 40 hours run time per charge
• Operating Temperature: -4°F to +131°F (-20°C to +55°C)
• Weight: Approximately 7.5 lbs (3.4 kg) with battery

Key Features

• Simultaneous Dual-Axis Grade: Set independent slopes on X and Y simultaneously — no need to re-set the instrument for compound grade work
• Auto-Leveling with Out-of-Level Alarm: Instrument self-levels on startup and shuts down the beam with an audible/visual alert if disturbed beyond the leveling range

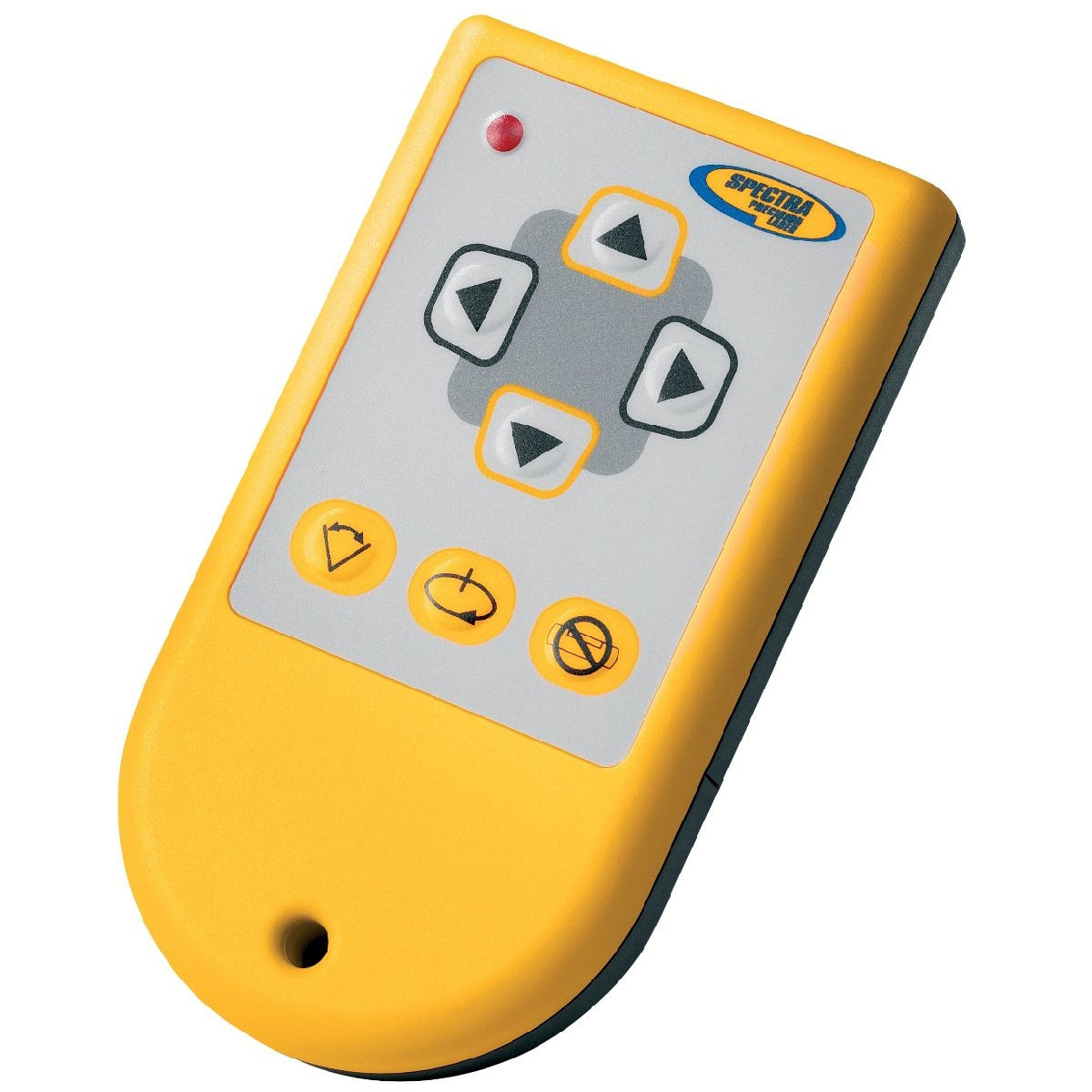

• Remote Control Ready: Full instrument control via optional RC602N remote, allowing grade adjustments from the machine cab or from grade rod position
• Single-Button Grade Entry: Intuitive keypad lets operators enter slope values numerically for fast, repeatable setup
• Heavy-Duty Sealed Housing: IP66-rated aluminum and composite body resists job-site abuse, water, and fine dust ingress

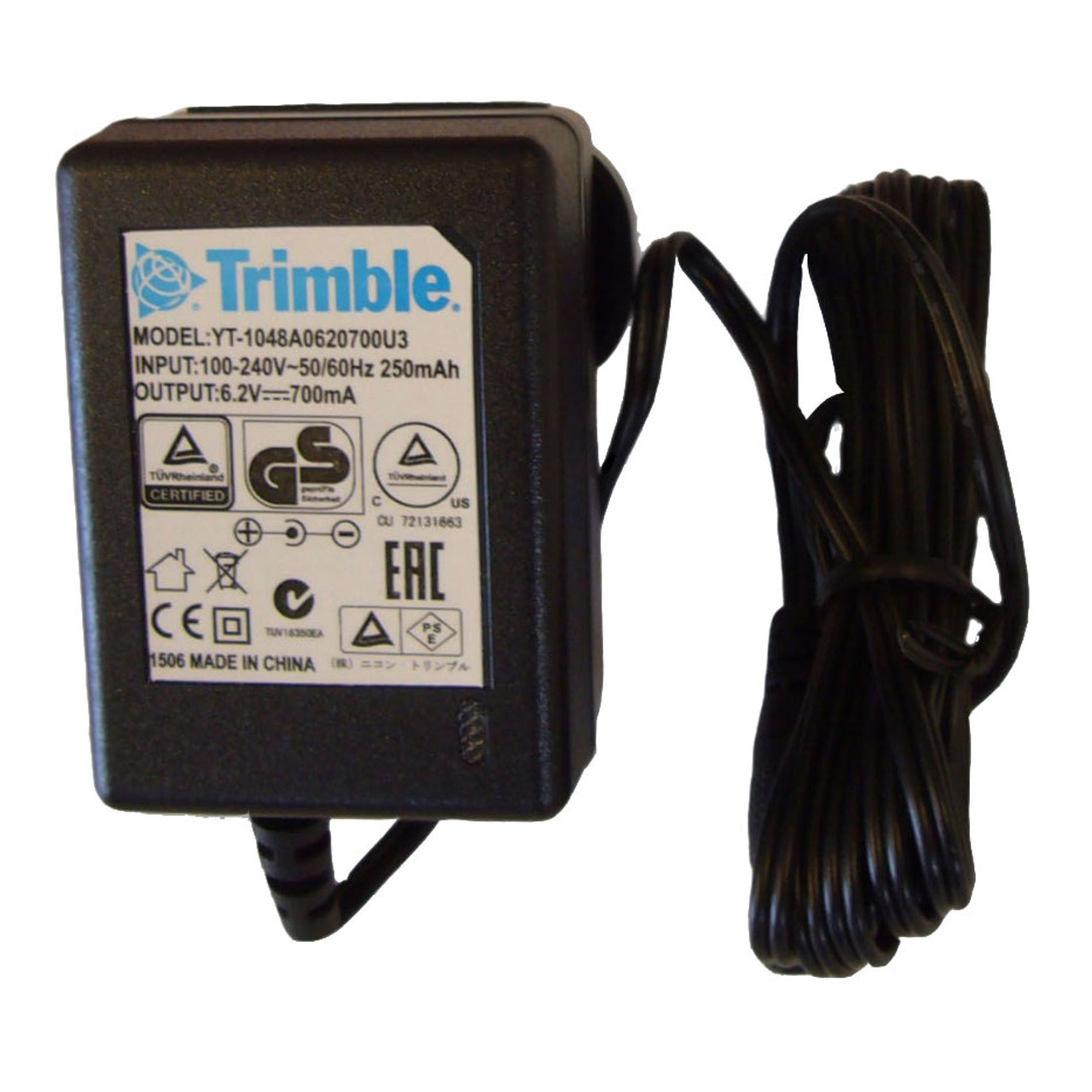

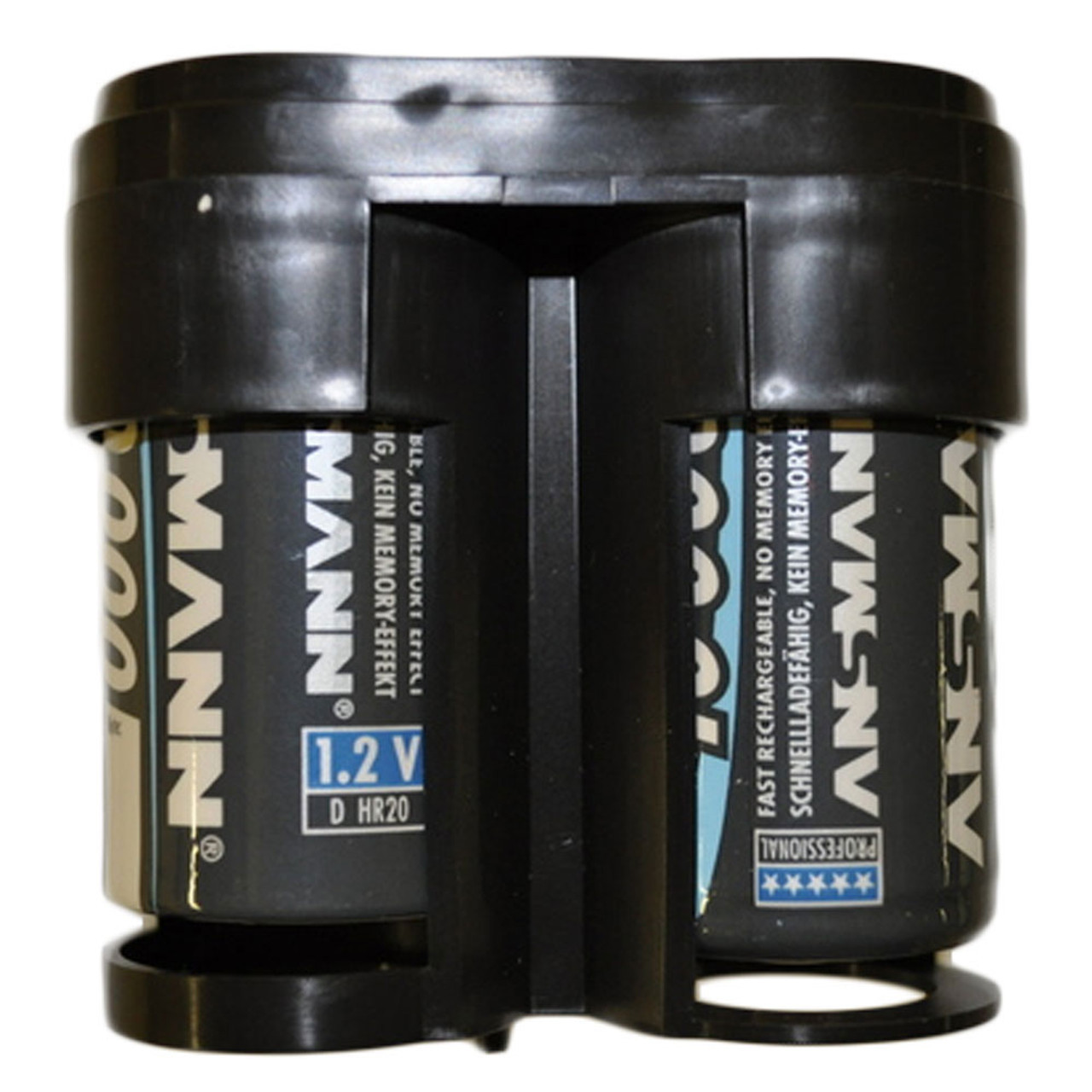

• Rechargeable Battery Bundle (BL): Includes rechargeable NiMH pack and charger — lower long-term operating cost versus alkaline batteries
• Multiple Rotation Speeds: 100 RPM for precise manual rod work, 300 RPM for general layout, 600 RPM for machine control applications

Job Applications

Parking Lot and Drainage Grading: Dial in cross-slope and longitudinal slope simultaneously to meet ADA requirements and stormwater drainage specs without moving the instrument between passes.

Concrete Slab-on-Grade: Establish dual-pitch planes for warehouse floors, loading docks, or car wash facilities where a single-axis level is insufficient for proper drainage design.

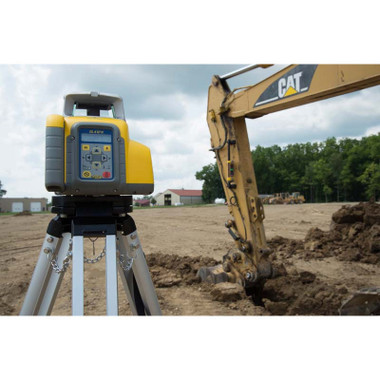

Road and Highway Construction: Set crown and profile grades in one shot, keeping grading machine operators on grade throughout the cut-and-fill process and reducing the need for frequent re-checks by the survey crew.

Irrigation and Agricultural Grading: Achieve precise field drainage slopes on large acreage where compound grade control determines the efficiency of irrigation water distribution.

Compatible Accessories

• Spectra HL760 Laser Receiver — extended range rod-mounted detector
• Spectra RC602N Remote Control — wireless grade adjustment from up to 300 ft
• Spectra TP69 Tripod — heavy-duty adjustable tripod for stable setup
• Spectra CR600 Rechargeable Battery Pack — spare battery for all-day operation
• Spectra MC Series Machine Control Mast — blade or bucket mounting for grade control

Related Guides

• How to Set Dual-Axis Slope with the Spectra GL422N — Step-by-Step Guide
• Choosing the Right Grade Laser for Your Grading Project
• Rotating Laser Levels vs. Grade Lasers: What Contractors Need to Know
• How to Pair a Laser Receiver with Your Spectra Grade Laser

Frequently Asked Questions

Can the GL422N-BL set slopes on both axes at the same time?

Yes. The GL422N-BL is a true dual-grade instrument that allows you to set independent slope values on both the X and Y axes simultaneously, making it ideal for compound-grade work such as parking lots, crowned roads, and sloped slabs where two-direction drainage is required.

What receiver is recommended for use with the GL422N-BL?

Spectra recommends the HL760 laser receiver for most grading applications. It provides an extended detection window and grade readout, and it is compatible with the GL422N-BL's red beam at working ranges up to 2,000 ft in diameter under typical daylight conditions.

How long does the rechargeable battery last on a full charge?

The included NiMH rechargeable battery pack provides approximately 40 hours of continuous run time at standard rotation speed. A spare CR600 battery pack is available from Express Tools if your workflow demands uninterrupted multi-shift operation.

Is the GL422N-BL compatible with machine control systems?

The GL422N-BL supports machine control applications when used with a compatible mast-mounted receiver system. Its selectable 600 RPM rotation speed is specifically suited for blade and bucket control use cases. For fully integrated machine control, consult with an Express Tools specialist about compatible Spectra machine control kits.
