Spectra Precision GL612N-14 Single Grade Laser with CR700 Laser Receiver and RC602N Remote

Overview

The Spectra Precision GL612N-14 Single Grade Laser with CR700 Laser Receiver and RC602N Remote is a professional-grade machine control system engineered for contractors who demand precision and reliability in their automated grading operations. This comprehensive kit transforms standard heavy equipment into precision grading machines, delivering accurate single-slope measurement capabilities across demanding construction and excavation sites.

Designed specifically for machine-mounted applications, the GL612N-14 integrates seamlessly with dozers, motor graders, excavators, and scrapers to provide continuous grade control. The system combines Spectra Precision's renowned laser accuracy with the advanced CR700 machine-mount receiver, creating a complete solution that increases productivity while reducing material costs and rework. The included RC602N remote control allows operators to make real-time adjustments without leaving the cab, streamlining workflow and maximizing efficiency on every project.

Built to withstand the harshest jobsite conditions, this laser system features rugged construction that protects against dust, moisture, and vibration. Whether you're establishing drainage slopes, building roads, preparing building pads, or creating athletic fields, the GL612N-14 delivers the accuracy and reliability that professional contractors require to complete projects on time and within budget.

Key Specifications

• Laser Type: Single-axis rotating laser with grade capability
• Grade Range: -10% to +10% in single axis
• Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
• Working Diameter: Up to 2,600 feet (800 meters)
• Rotation Speed: 600 RPM for maximum range and visibility
• Self-Leveling Range: ±5 degrees with automatic leveling
• Power Source: Rechargeable NiMH battery system
• Battery Life: Up to 60 hours continuous operation
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Receiver Detection Range: Up to 1,300 feet (400 meters) diameter with CR700
• Remote Control Range: 800+ feet (250+ meters) with RC602N
• Protection Rating: IP67 weatherproof and dustproof certification

What's in the Kit

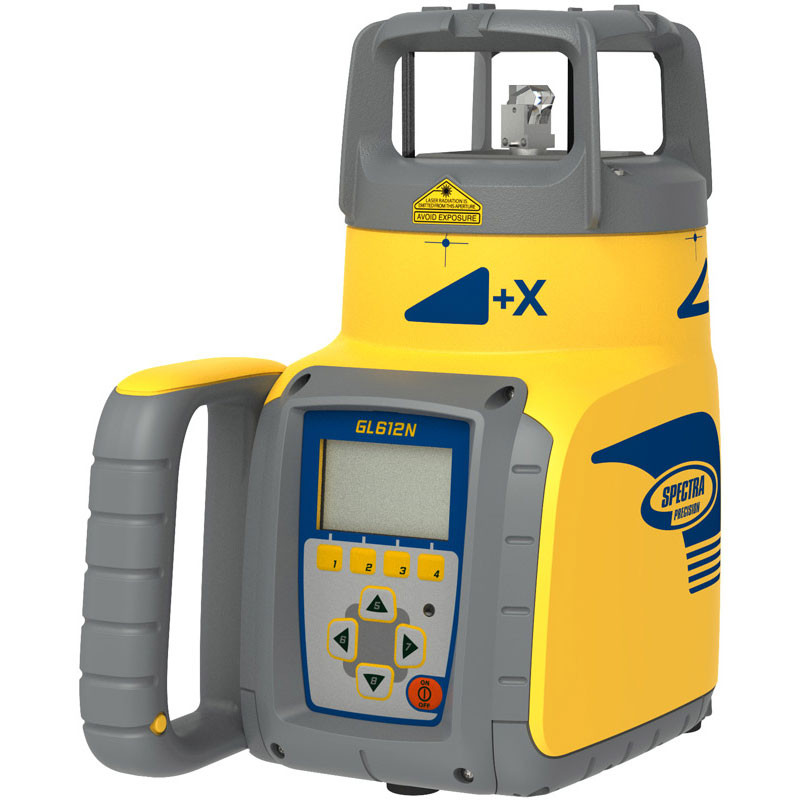

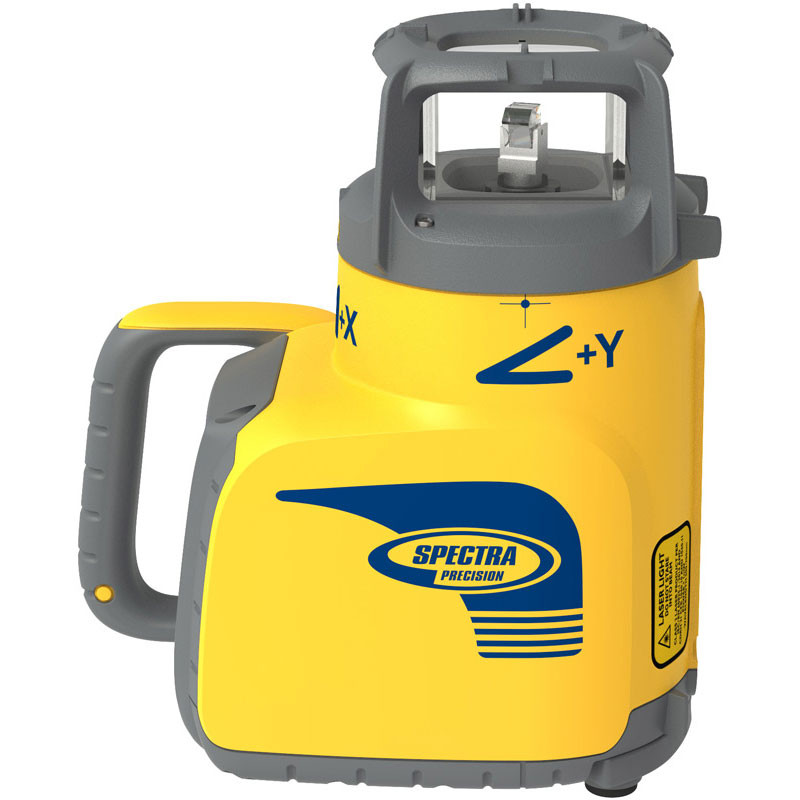

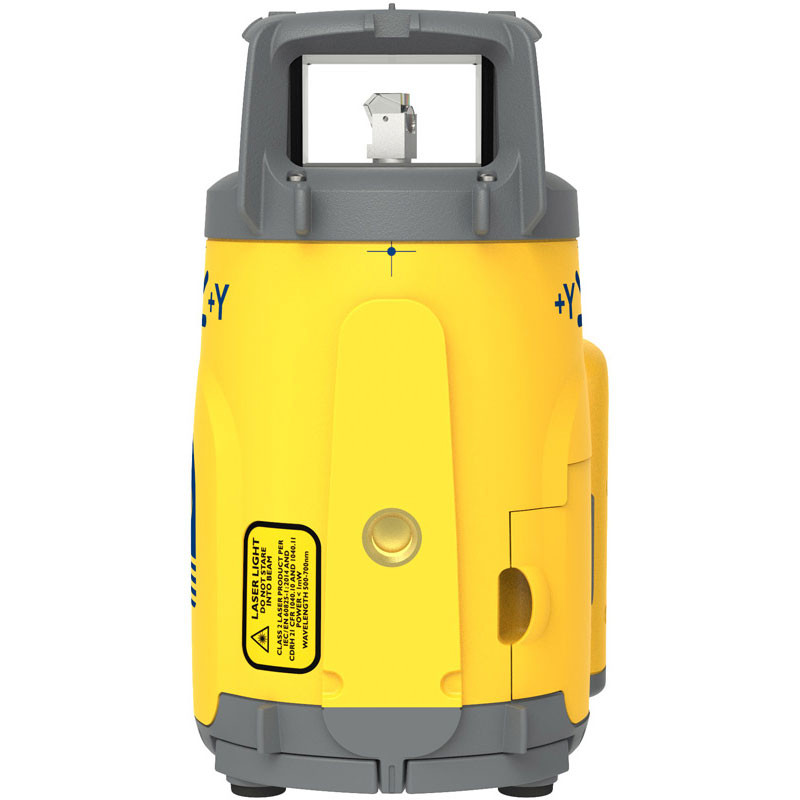

• GL612N-14 Single Grade Laser Transmitter with protective housing
• CR700 Machine-Mount Laser Receiver with integrated mast and rod clamp

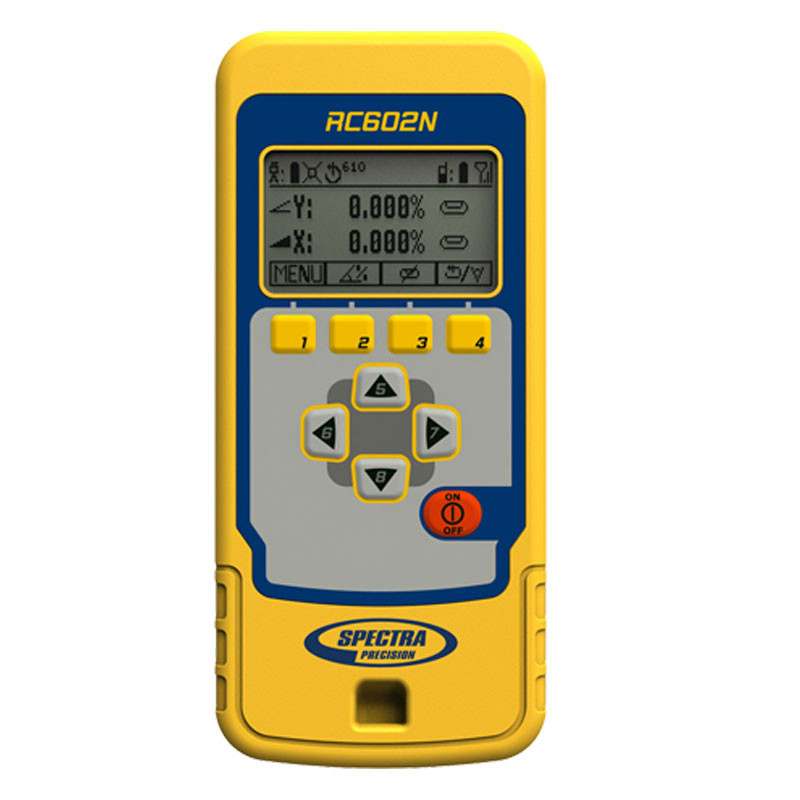

• RC602N Wireless Remote Control for in-cab operation

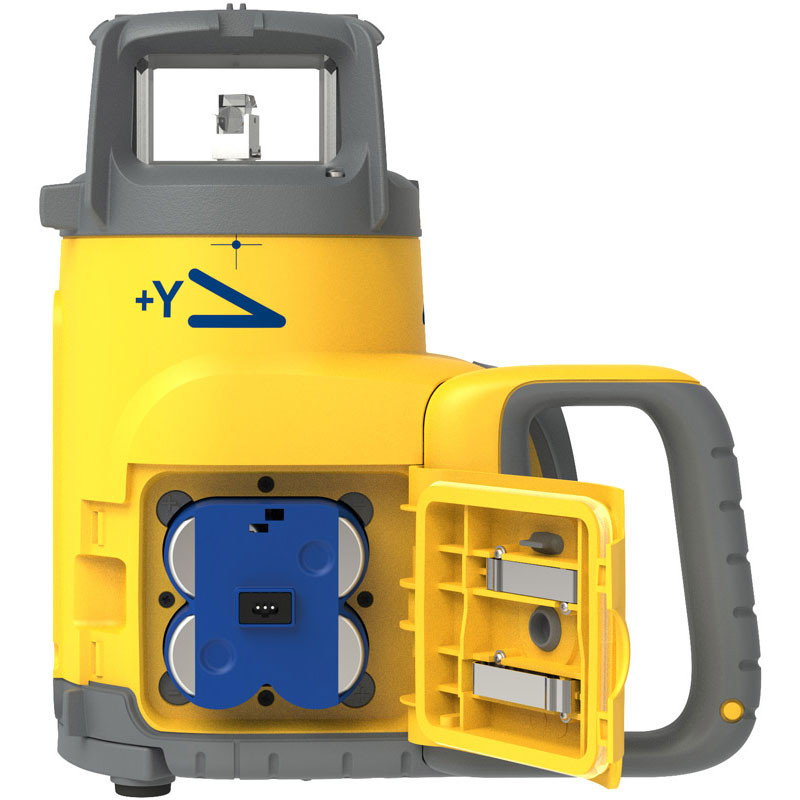

• Rechargeable NiMH battery packs for laser and receiver
• AC wall charger with international plug adapters
• 12V vehicle charging adapter for field charging
• Heavy-duty carrying case with foam insert protection
• Calibration certificate with test results and accuracy verification
• Comprehensive operator's manual and quick-start guide
• Alignment targets and laser safety glasses
• Limited manufacturer's warranty documentation

Job Applications

• Excavation and Site Preparation: Achieve precise depths and slopes for foundations, basements, and utility trenches, eliminating costly over-excavation and reducing material hauling expenses while ensuring proper drainage from the start.
• Road Construction and Paving: Maintain exact crown slopes and cross-fall grades on highways, parking lots, and private roads, ensuring proper water runoff and extending pavement life while meeting DOT specifications without constant surveyor intervention.
• Agricultural Land Leveling: Create uniform field grades for optimal irrigation efficiency and crop yield, preventing water pooling and erosion while reducing fuel consumption during future field operations through improved tractor performance on level ground.
• Sports Field and Recreation Development: Construct baseball diamonds, football fields, golf courses, and running tracks with professional-grade drainage and playing surface uniformity that meets athletic association standards and reduces maintenance requirements.
• Drainage and Erosion Control: Install precise slopes for swales, retention ponds, and stormwater management systems that function as engineered, preventing flooding and soil loss while satisfying environmental compliance requirements.
• Commercial Site Development: Grade building pads, parking areas, and landscaping zones to exact specifications on large-scale projects, accelerating construction timelines and ensuring proper site drainage that protects structures and hardscaping investments.

Compatible Accessories

• Spectra Precision HL700 Handheld Laser Receiver for manual grade checking and verification
• Replacement NiMH battery packs for extended runtime on multi-shift operations
• Solar panel charging system for remote sites without power access
• Heavy-duty tripod with adjustable height and leveling head for transmitter mounting
• Magnetic mount kit for rapid attachment to steel equipment surfaces
• Grade rod extensions and telescoping poles for increased receiver height range
• Laser detector cards and alignment tools for maintenance and calibration
• Weatherproof storage case with wheels for transport between jobsites
• Additional RC602N remote controls for multiple equipment operators

Related Guides

Complete Laser Level Buying Guide for Construction Professionals

Machine Control System Setup and Calibration Tutorial

Rotating Laser Maintenance and Troubleshooting Best Practices

Maximizing Grade Laser Accuracy in Challenging Conditions

FAQ

Can the GL612N-14 be used for both horizontal leveling and grading applications?

Yes, the GL612N-14 operates in both level mode for horizontal reference planes and grade mode for single-axis slopes up to ±10%. You can switch between modes using the RC602N remote control, making it versatile for different jobsite requirements including building pad leveling and drainage installations.

How does the CR700 receiver communicate grade information to the equipment operator?

The CR700 features bright LED indicators and can integrate with machine control displays in the equipment cab. It provides visual on-grade/off-grade signals that guide operators in real-time, and can also connect to automatic blade control systems on compatible machines for hands-free grading precision.

What is the effective working range in typical construction site conditions?

Under normal daylight conditions, the GL612N-14 with CR700 receiver provides reliable operation up to 1,300 feet diameter (650-foot radius). Range may be reduced in extremely bright sunlight or extended in overcast conditions. For maximum range, ensure the receiver mast is positioned at an appropriate height to maintain line-of-sight with the laser beam.

Is this system suitable for use on multiple pieces of equipment on the same site?

Absolutely. A single GL612N-14 transmitter can serve multiple machines equipped with CR700 receivers simultaneously. Each machine operates independently from the same laser plane, making it cost-effective for contractors running several grading machines on large projects. Additional receivers are sold separately.
