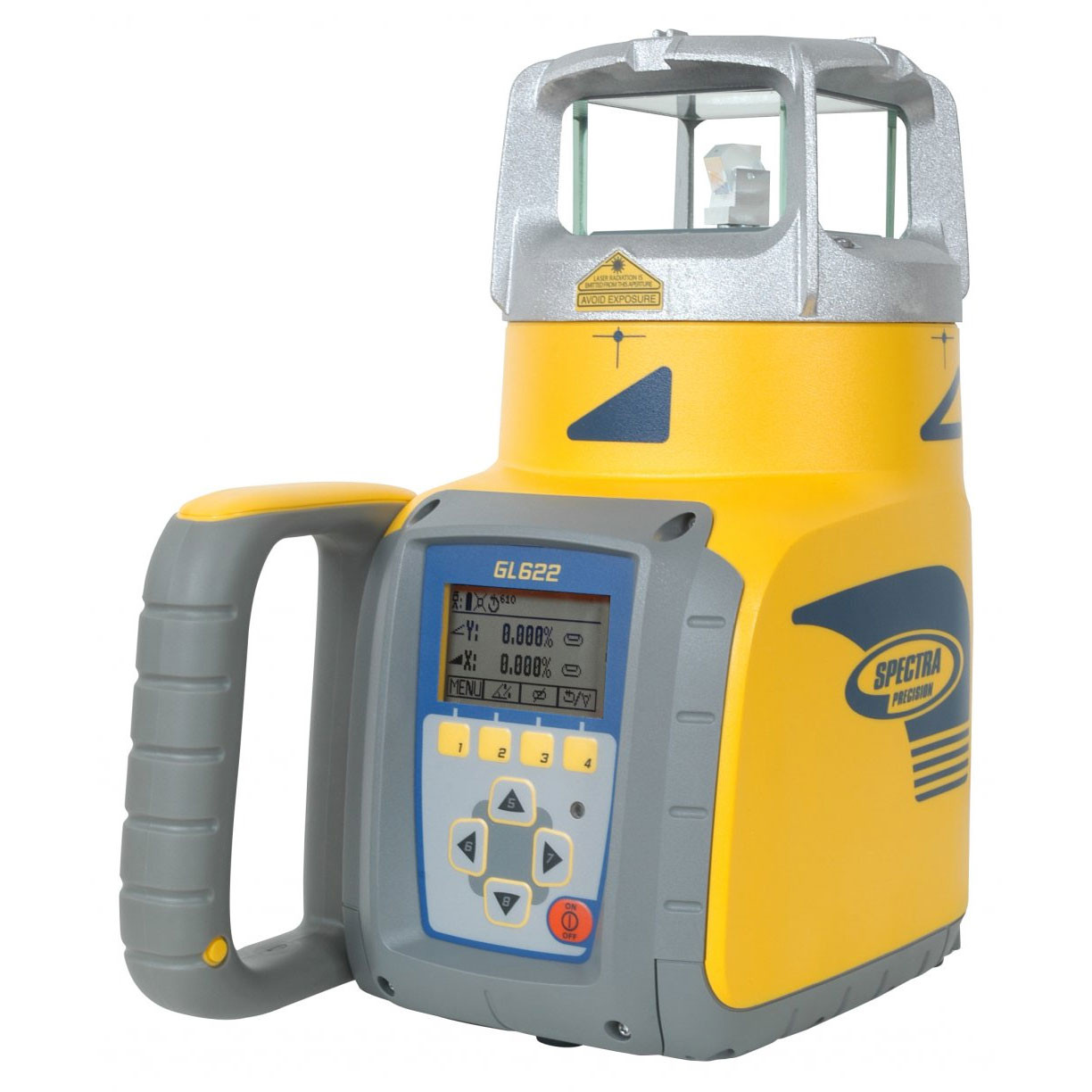

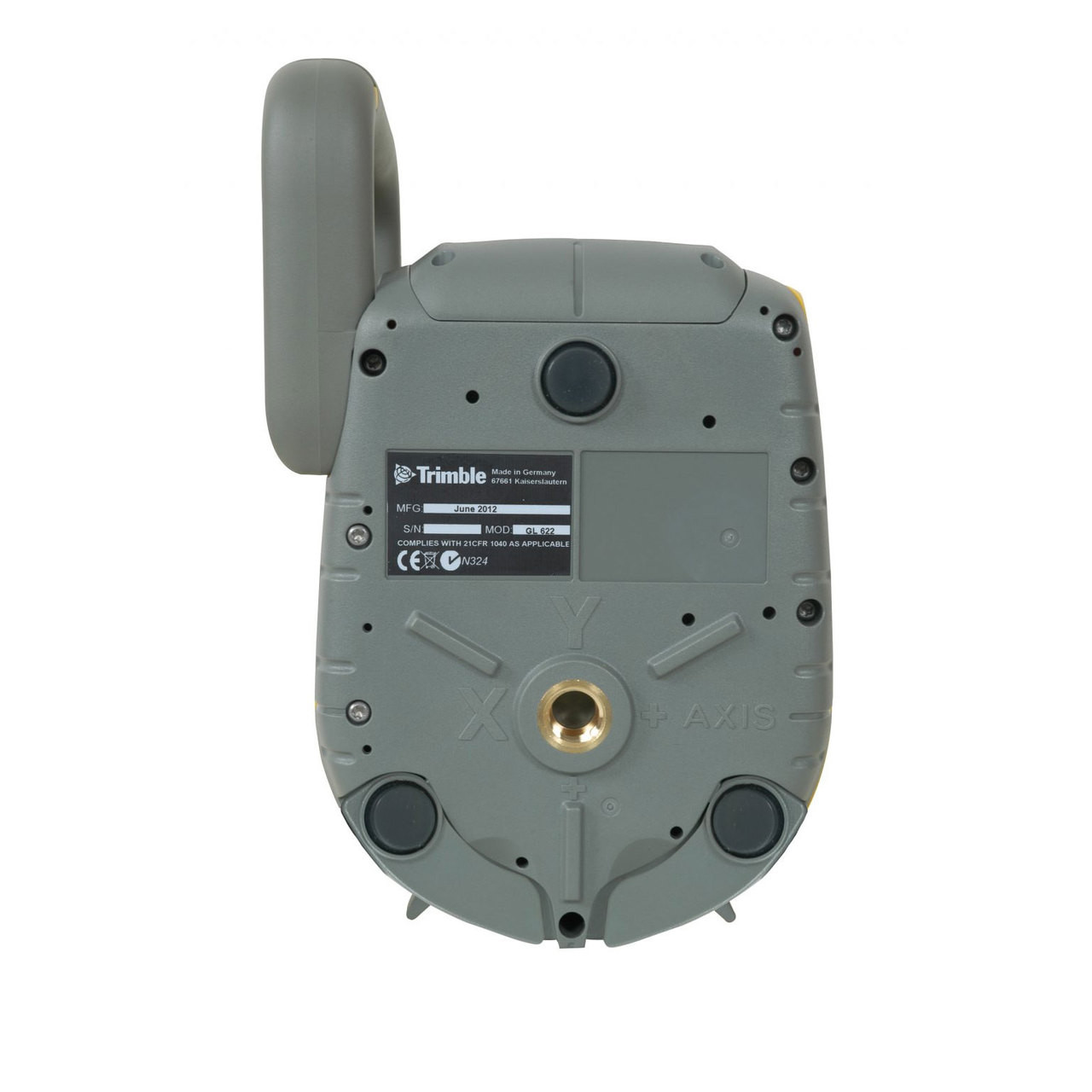

Spectra Precision GL622 Dual Grade Laser with HL750 Receiver

Overview

The Spectra Precision GL622 Dual Grade Laser with HL750 Receiver delivers simultaneous two-axis grade control from a single rotating laser platform—essential for contractors managing complex excavation, drainage installations, and site preparation requiring perpendicular or asymmetrical slopes. Unlike single-grade lasers that force repositioning or multiple setups, the GL622 enables independent X and Y axis grade management, reducing equipment moves and crew downtime on projects like parking lots with multi-directional drainage, utility corridors with cross-fall requirements, and agricultural land leveling. This complete kit pairs Spectra's proven dual-slope laser head with the HL750 digital receiver, providing accurate grade tracking across both planes. Designed for earthwork contractors, utility installers, and site development crews managing projects where drainage flows in multiple directions or transitions occur across perpendicular planes.

Key Specifications

• Grade Range (Both Axes): -10% to +10% in both X and Y directions
• Leveling: Self-leveling within ±5°, electronic auto-leveling system
• Accuracy: ±1/16" at 100 feet (±1.5mm at 30m)
• Working Diameter: Up to 2,600 feet (800m) with HL750 receiver
• Rotation Speed: 600 RPM (class 2 visible red beam)
• Power: Rechargeable NiMH battery or alkaline D-cells, up to 60 hours runtime
• Receiver Type: HL750 rod-mounted digital receiver with LCD display
• Receiver Accuracy: ±1/16" (±1.5mm) in all modes
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Environmental Rating: IP67 dust-tight and waterproof protection
• Warranty: 3-year manufacturer warranty on laser, 2-year on receiver

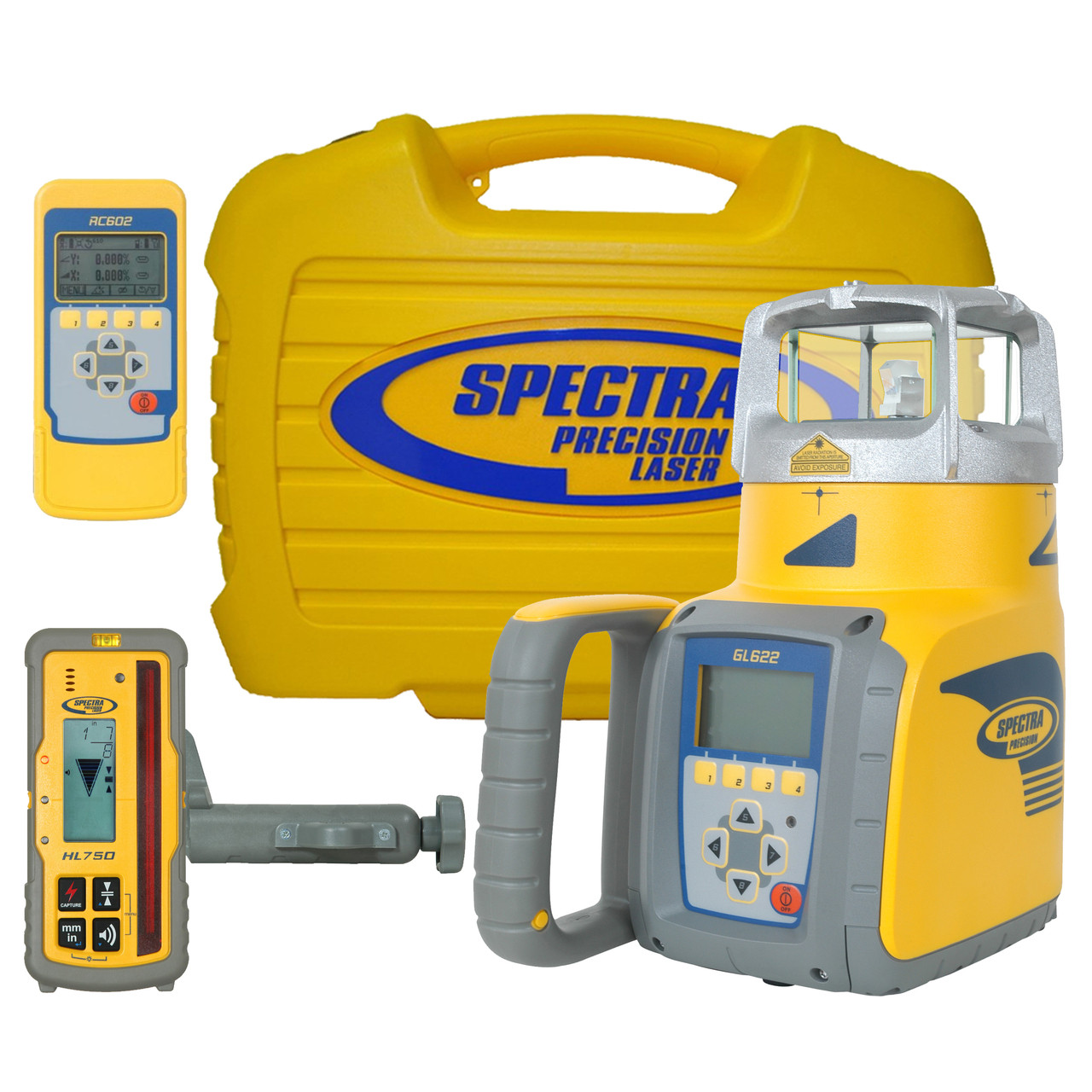

What's in the Kit

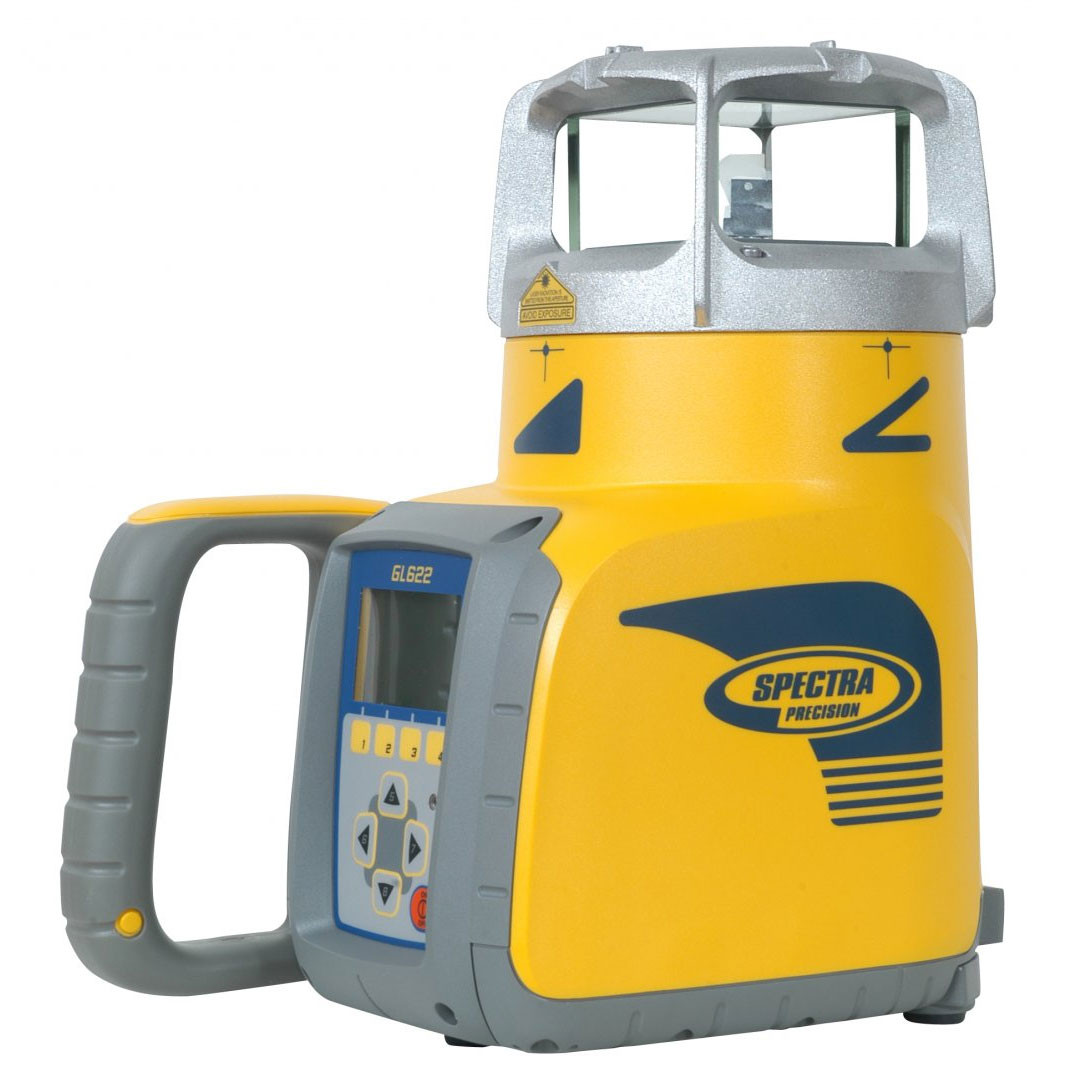

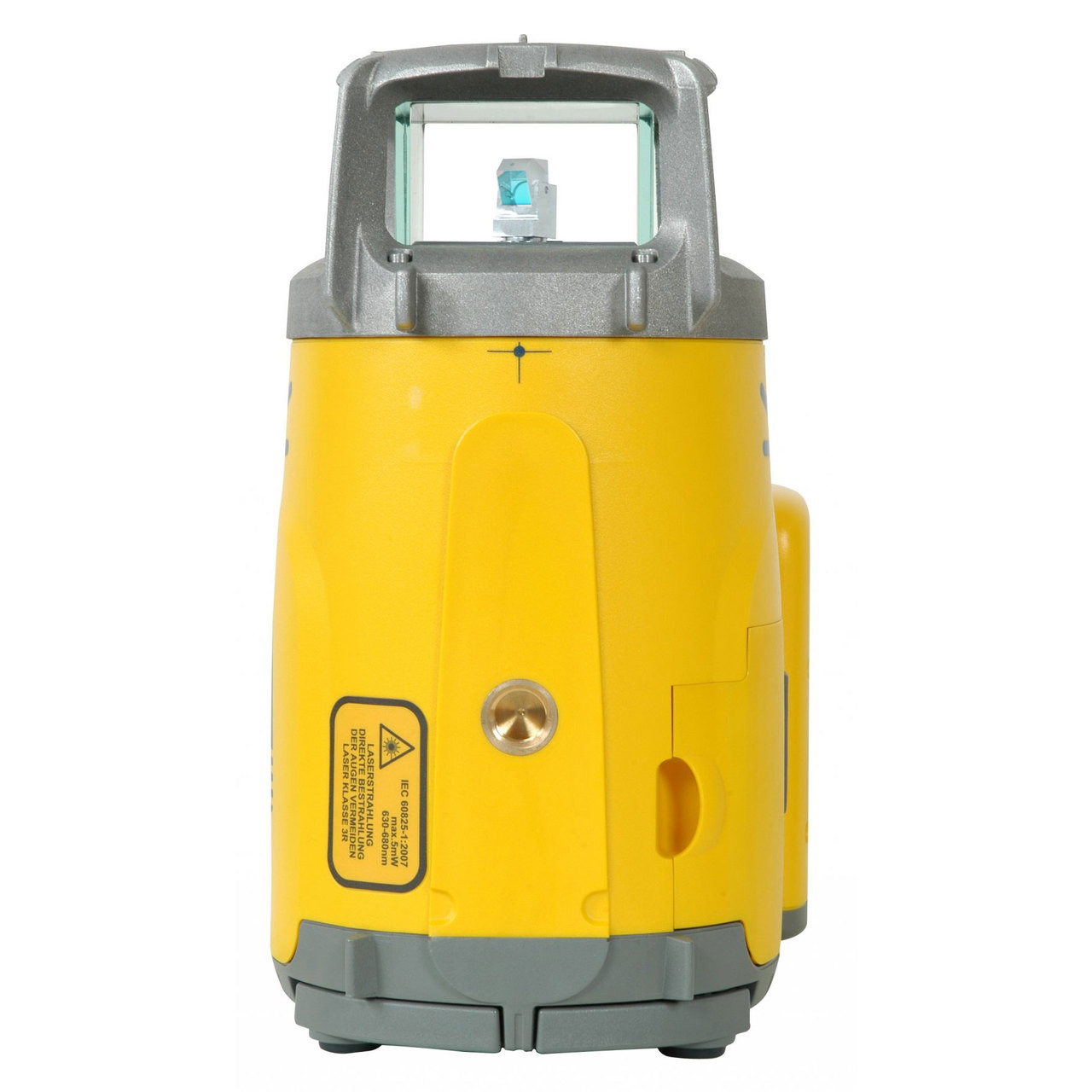

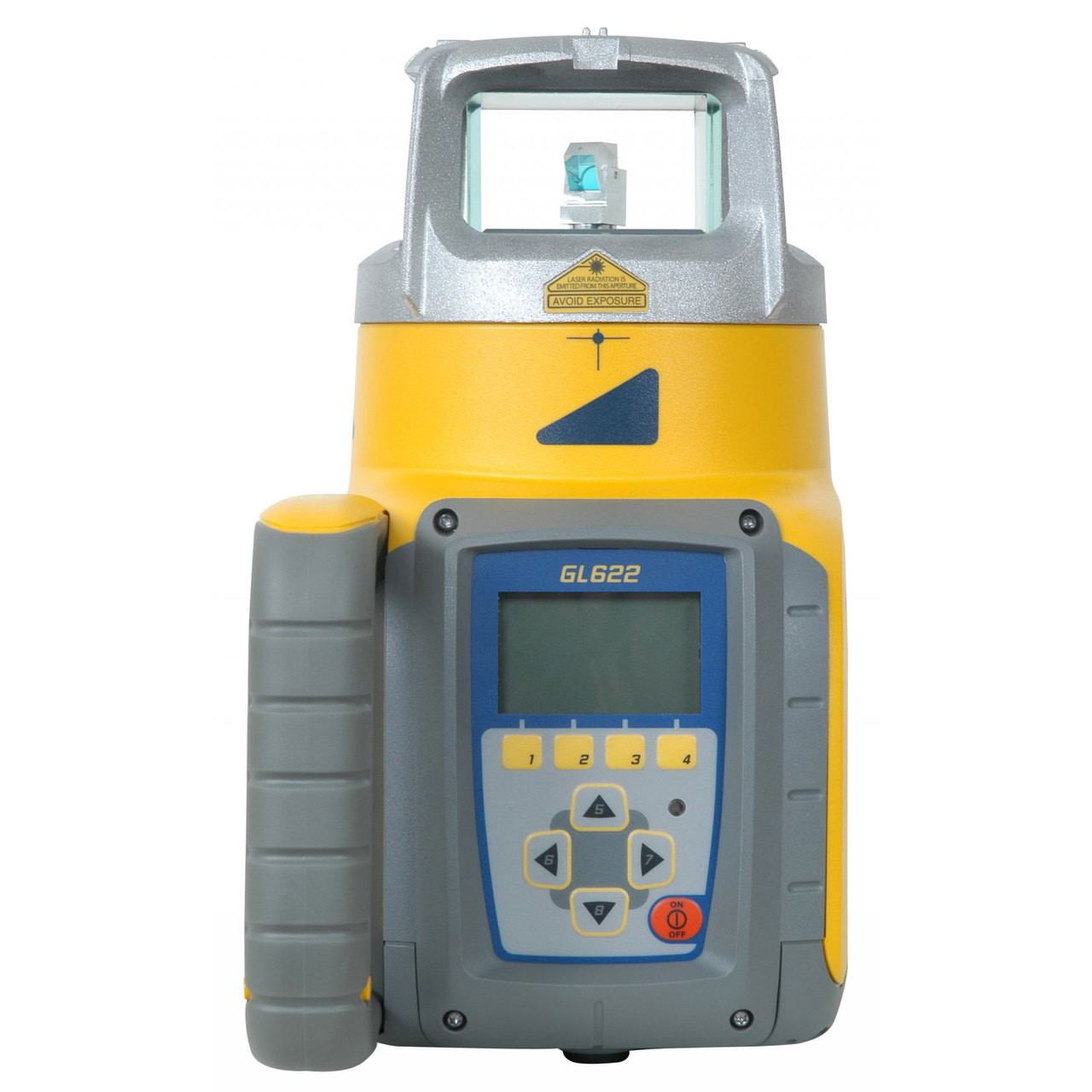

• GL622 dual grade rotating laser transmitter

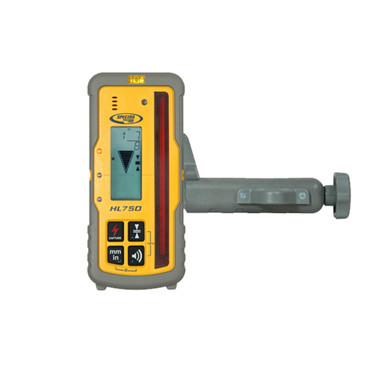

• HL750 digital laser receiver with rod clamp

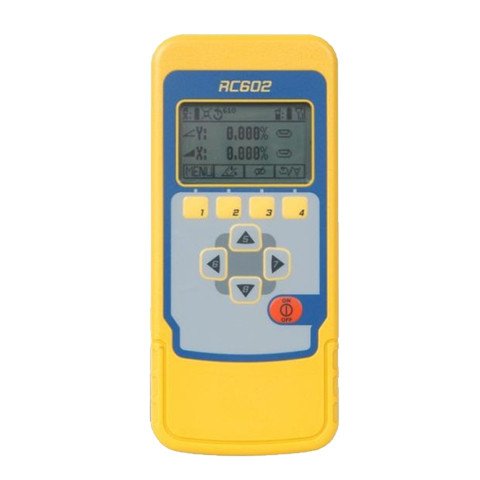

• RC602 full-function remote control

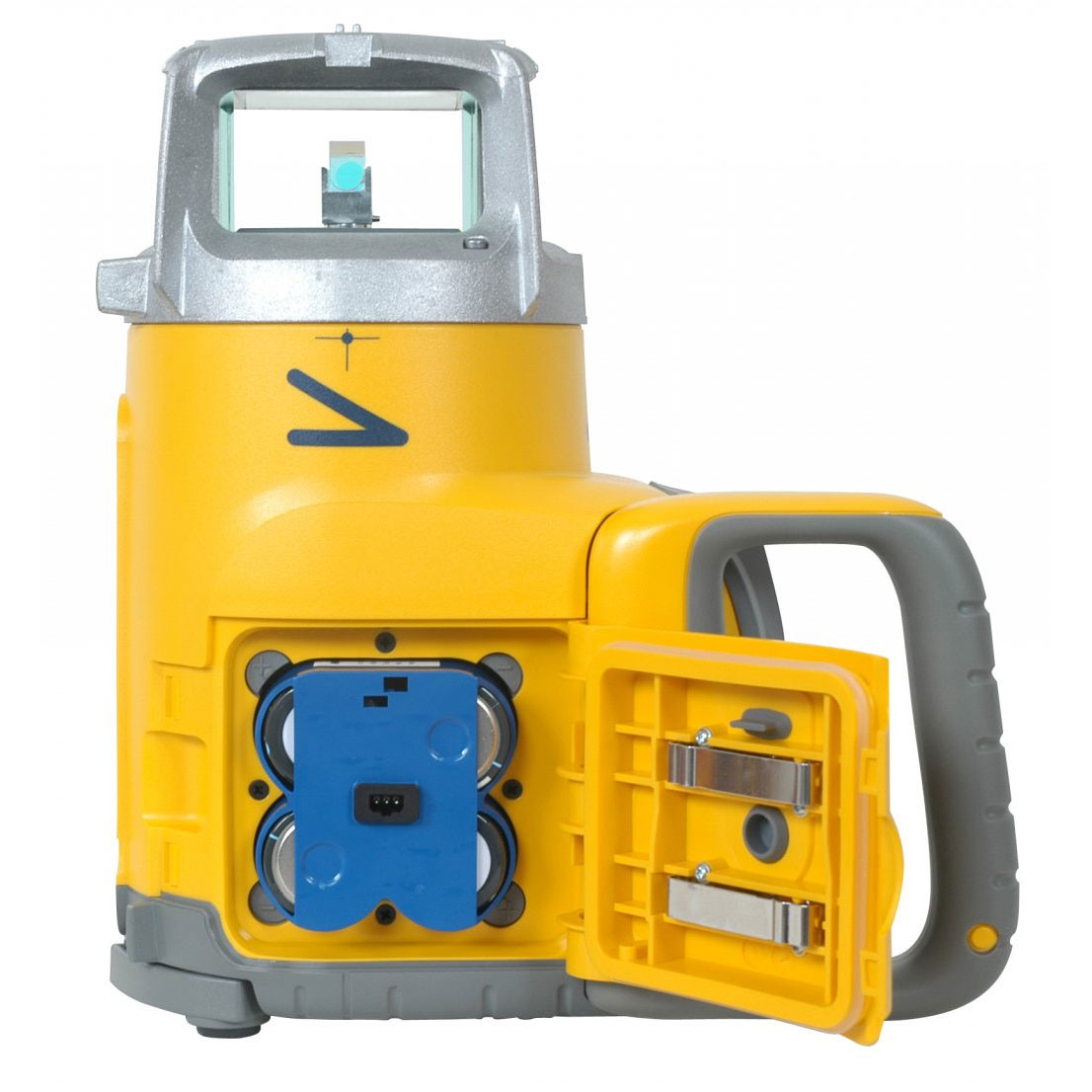

• Rechargeable NiMH battery pack
• 110V AC battery charger

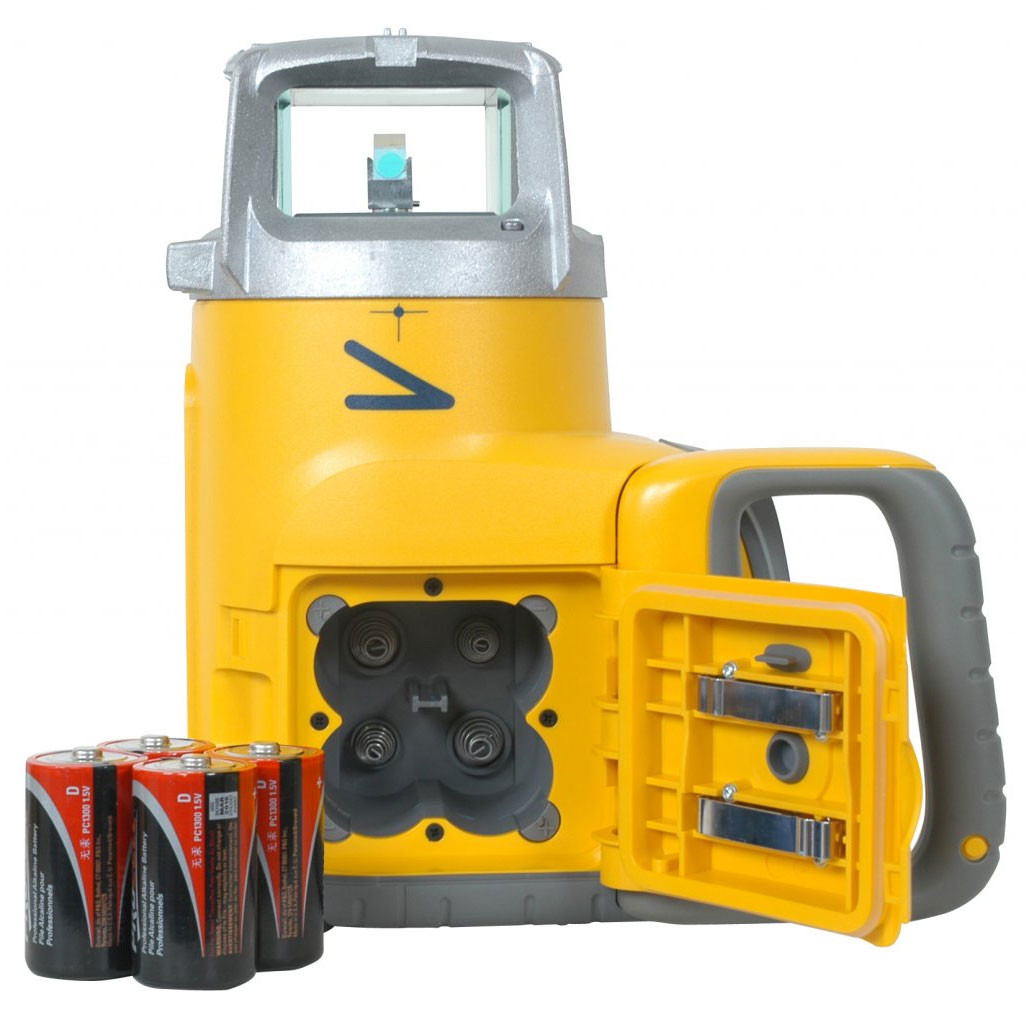

• Alkaline battery tray (D-cell backup)
• Heavy-duty aluminum carry case
• Laser safety glasses
• Instruction manual and quick reference guide

Job Applications

• Parking Lot Grading: Establish crown elevations along centerlines while simultaneously controlling cross-slope drainage to catch basins—eliminating the need to reposition lasers between longitudinal and transverse passes.
• Storm Drain Installation: Maintain primary trench grade along pipe runs while controlling perpendicular bench cuts and lateral tie-ins, keeping excavation crews productive without constant laser moves.

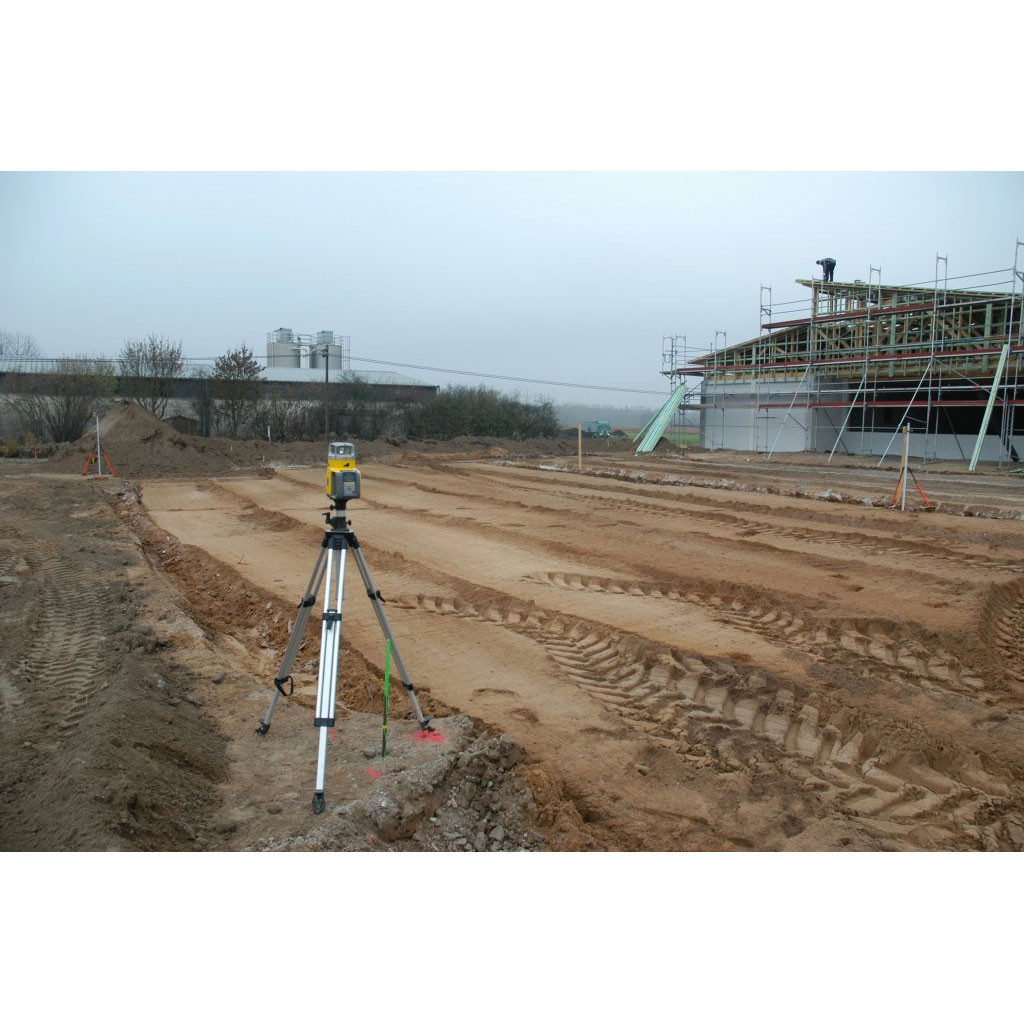

• Building Pad Preparation: Set independent slopes for rough grading on sites with multi-directional drainage requirements, ensuring positive flow away from foundation perimeters in all directions from one setup.
• Agricultural Land Leveling: Create precise field planes with controlled drainage fall across long runs and perpendicular crowns, critical for uniform irrigation distribution and preventing standing water in row crops.
• Roadway Sub-base: Control longitudinal profile grade while managing superelevation transitions and cross-slopes through curves, maintaining blueprint elevations without repositioning equipment through transition zones.
• Utility Corridor Development: Manage primary trench elevation for mains while simultaneously controlling lateral service stub grades branching perpendicular to main runs—keeping multiple crews working from one laser reference.

Compatible Accessories

• Spectra HL760 Machine Receiver – dual-grade machine control for excavators and dozers
• Spectra HR550 Handheld Receiver – portable receiver for spot-checking elevations
• Heavy-Duty Aluminum Grade Rod (15ft) – extending receiver height for deep excavations
• Universal Laser Detector Pole Clamp – replacement or backup receiver mounting
• REVOLVE Robotic Laser Positioning Platform – remote-controlled laser positioning

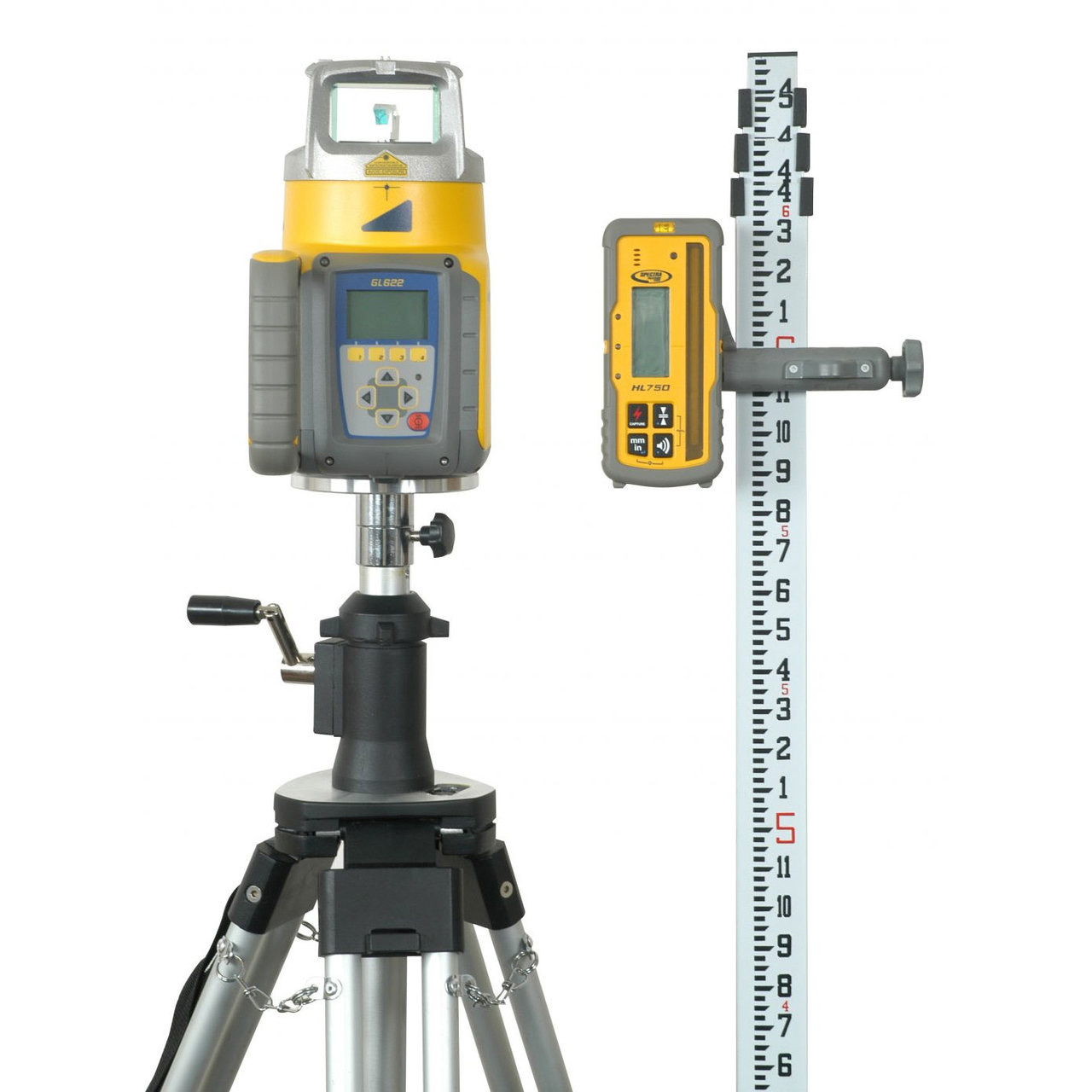

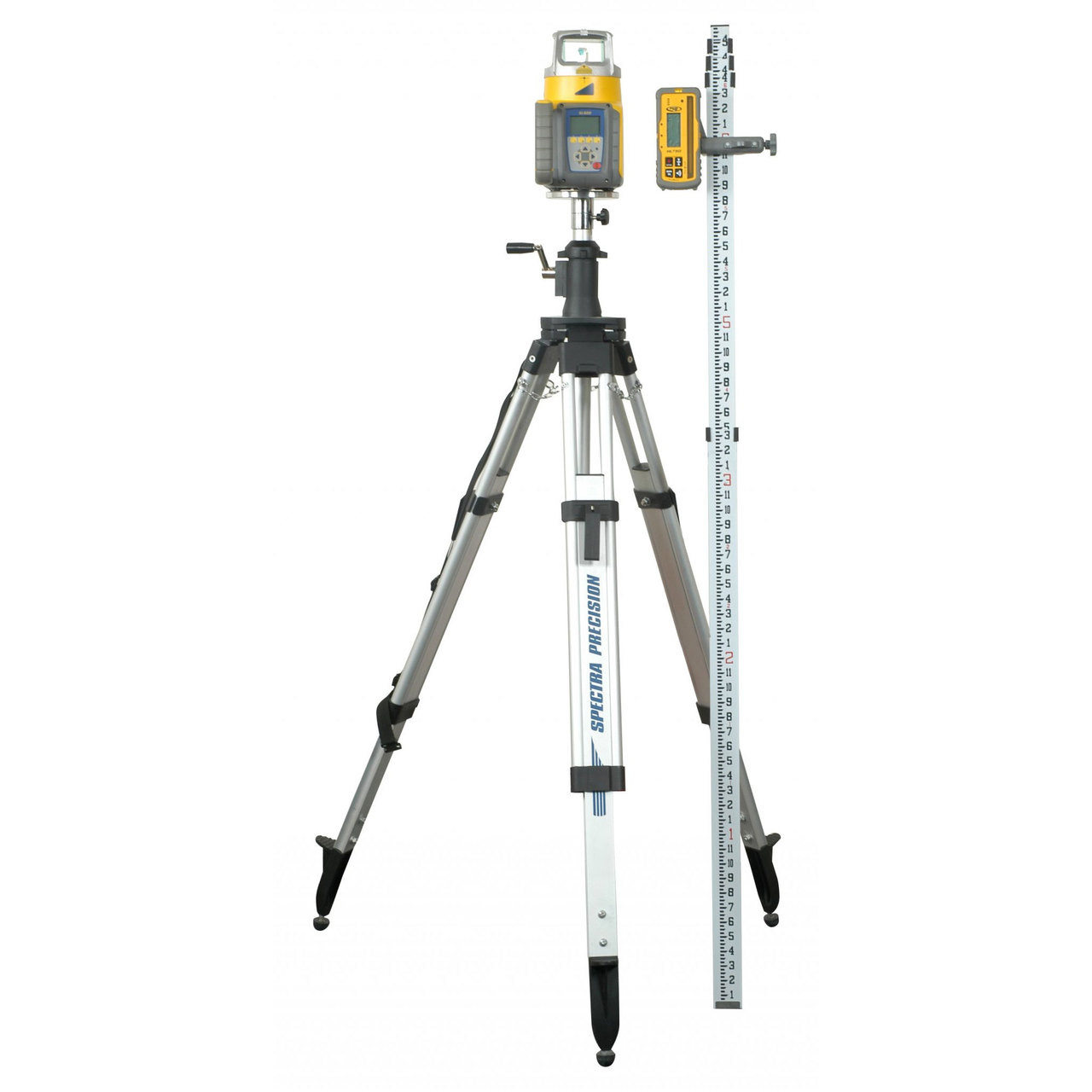

• Spectra Heavy-Duty Laser Tripod – stable setup platform for uneven terrain
• Excavator/Dozer Machine Control Mounts – boom and blade mounting hardware

Related Guides

• Dual Grade Laser Setup: Best Practices for Complex Drainage Projects
• Single Grade vs. Dual Grade Lasers: When the Cost Difference Pays Off
• Maintaining Laser Receiver Accuracy: Calibration and Field Checks
• Troubleshooting Rotating Laser Grade Errors and Setup Problems

Frequently Asked Questions

Can I use the GL622 in single-grade mode, or must both axes always be active?

The GL622 operates in single-grade mode when needed—simply set one axis to 0% (level) and establish grade only on the working axis. The receiver will track whichever plane you're referencing. This flexibility lets you use it as a standard single-slope laser on simple jobs while having dual-grade capability available when projects require it, maximizing equipment utilization across different job types.

What's the practical working range with the HL750 receiver on a typical grading job?

In normal daylight conditions, expect reliable detection to 1,200-1,500 feet diameter. The advertised 2,600-foot range is achievable in low-light conditions (dawn, dusk, overcast) or when using the receiver in narrow detection mode. For most earthwork applications, 600-800 foot radius from laser position provides optimal accuracy and consistent signal strength across the jobsite.

How does the receiver differentiate between X and Y grade planes when both are active?

The GL622 transmits encoded signals identifying each axis. The HL750 receiver displays which axis is being tracked and allows operators to toggle between X-axis, Y-axis, or dual-axis display modes using the receiver controls. In dual-display mode, the LCD shows elevation relative to both planes simultaneously, letting you verify position on complex grades without switching receiver settings.

Is this system compatible with machine control systems, or only hand operation with the rod-mounted receiver?

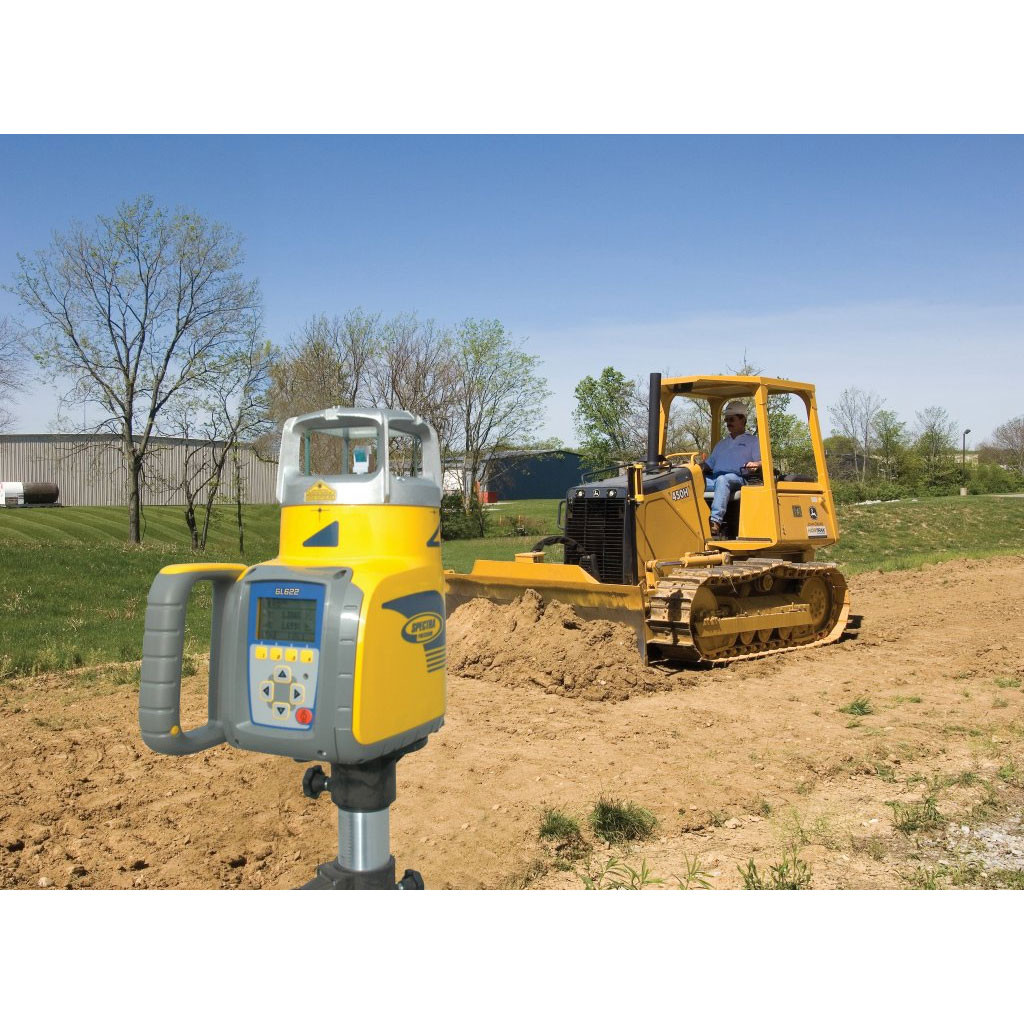

The GL622 is fully compatible with Spectra machine receivers (HL760 and similar units) for excavator and dozer blade control. The dual-grade signal works with 2D machine control systems that manage both cross-slope and longitudinal grade simultaneously. You can run hand crews with the HL750 while operating machine control on the same laser reference, keeping multiple operations coordinated to the same grade planes.
