Spectra Precision GL622N-29 Dual Grade Laser INCHES Package with HL760 Receiver, Remote and Elevator Tripod

Built for Complex Grade Work on Multi-Level and Terraced Job Sites

The Spectra Precision GL622N-29 delivers professional dual-grade laser control paired with an elevator tripod, giving contractors the vertical reach and grade accuracy needed for demanding site development. Whether you're managing stacked building pads, terraced landscaping, retention systems, or drainage networks across significant elevation changes, this kit is configured to keep your crew productive and on spec. The inches-based measurement system is purpose-built for North American grading standards, eliminating conversion steps and reducing layout errors on every pour and cut.

Overview & Jobsite Applications

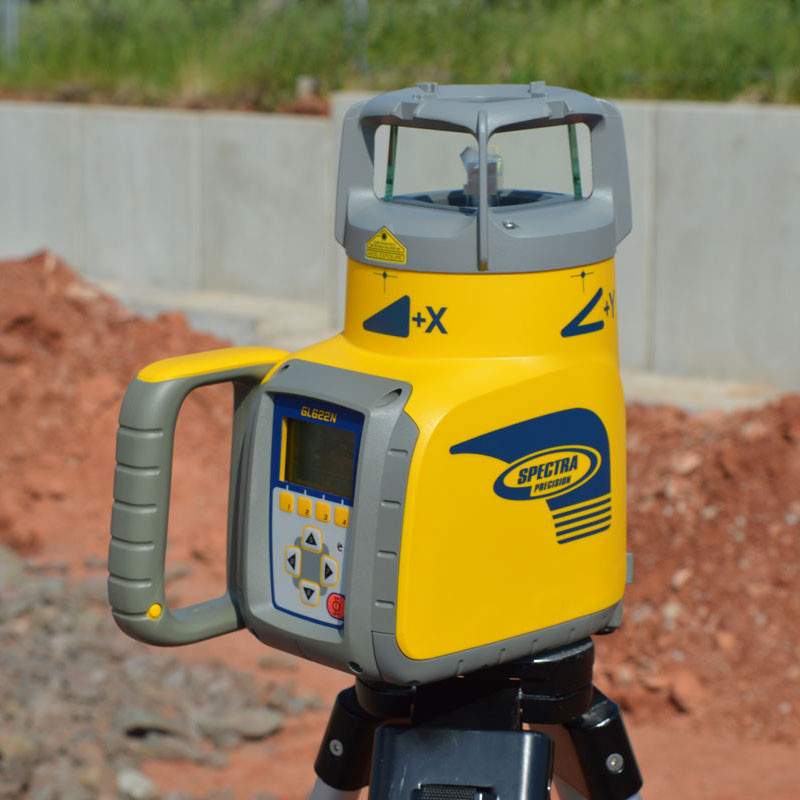

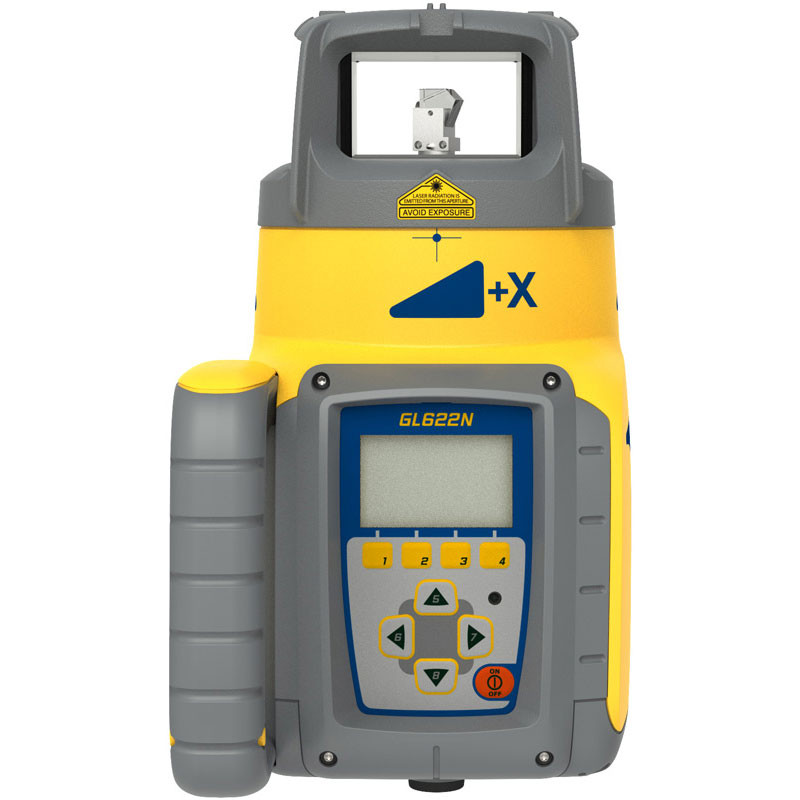

The GL622N is a self-leveling rotating laser that sets grade on two axes simultaneously — X and Y — giving you independent slope control in any combination. Paired with the included elevator tripod, the unit gains significant height adjustment range, allowing operators to position the laser head above equipment, stockpiles, or grade stakes without relocating the instrument. The system works with Spectra's full range of laser receivers and machine control sensors, making it compatible with most existing grade control setups on your fleet. Designed for outdoor use in real construction conditions, the GL622N-29 maintains accuracy through vibration, wind, and temperature swings common on active grading sites.

Key Specifications

• Grade Range: ±10% on both X and Y axes simultaneously
• Self-Leveling Range: ±5° automatic compensation
• Accuracy: ±1.5mm at 30m (1/16" at 100 ft)
• Rotation Speed: 100, 300, or 600 RPM selectable
• Operating Range: Up to 800m (2,600 ft) diameter with compatible receiver
• Measurement System: Inches (North American standard)

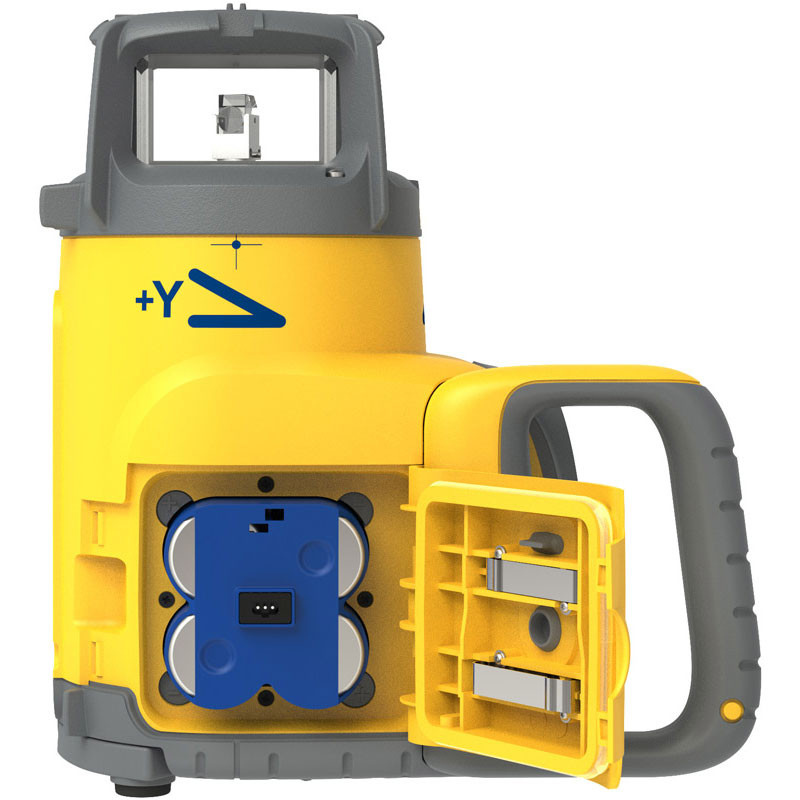

• Power: Internal rechargeable battery, up to 40 hours runtime
• Dust & Water Protection: IP66 rated for all-weather field use
• Tripod Type: Elevator tripod with extended height range included
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)

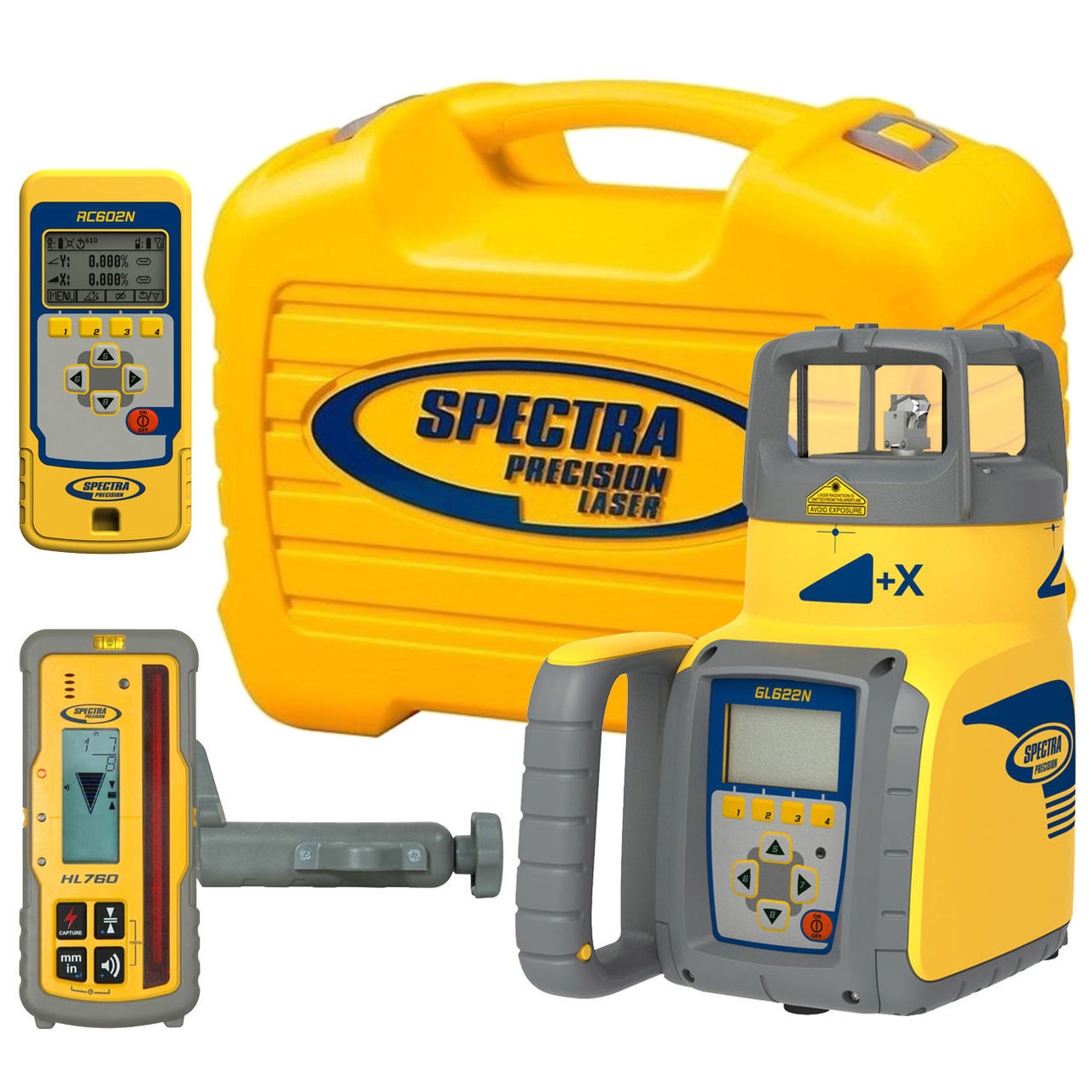

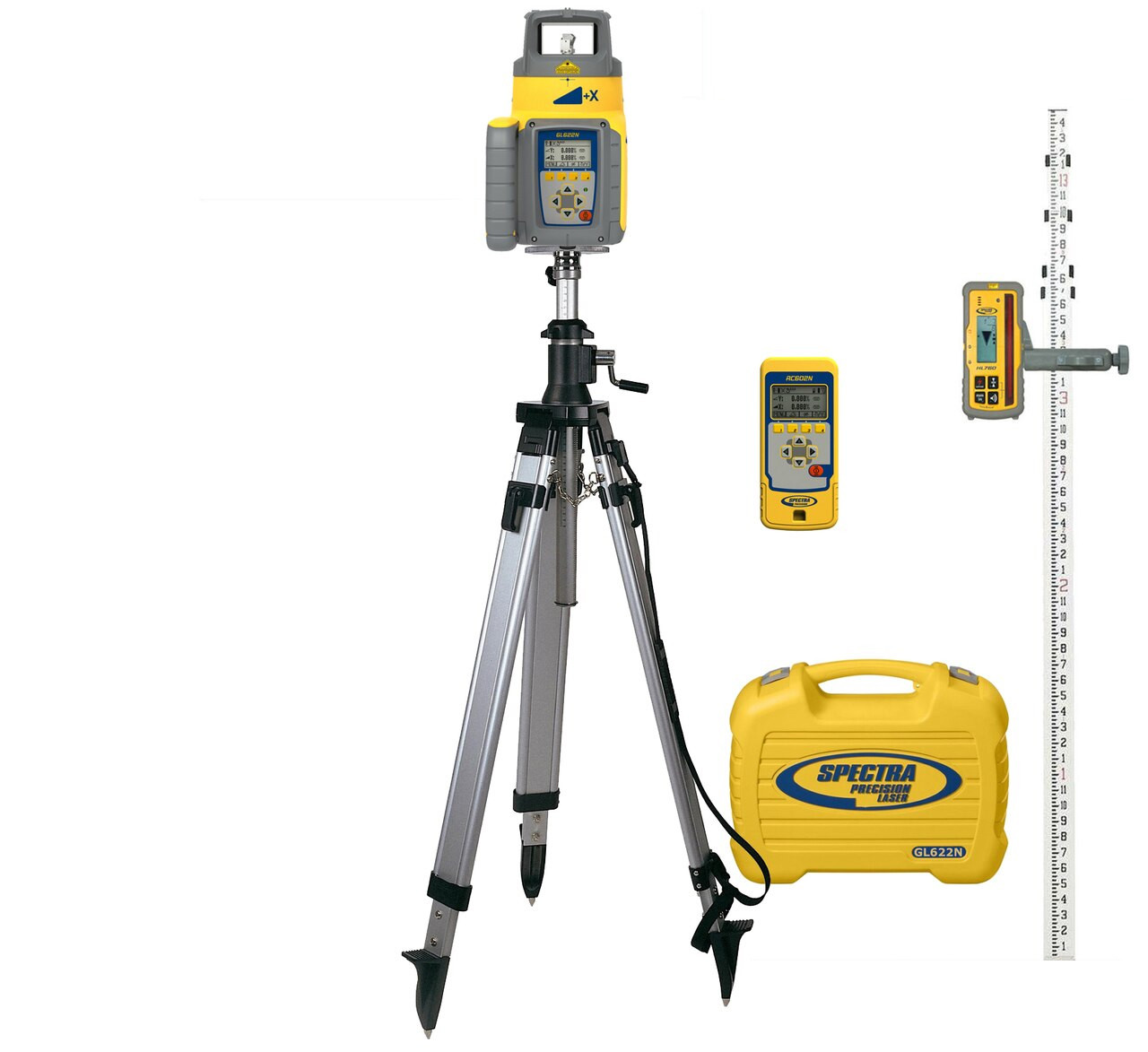

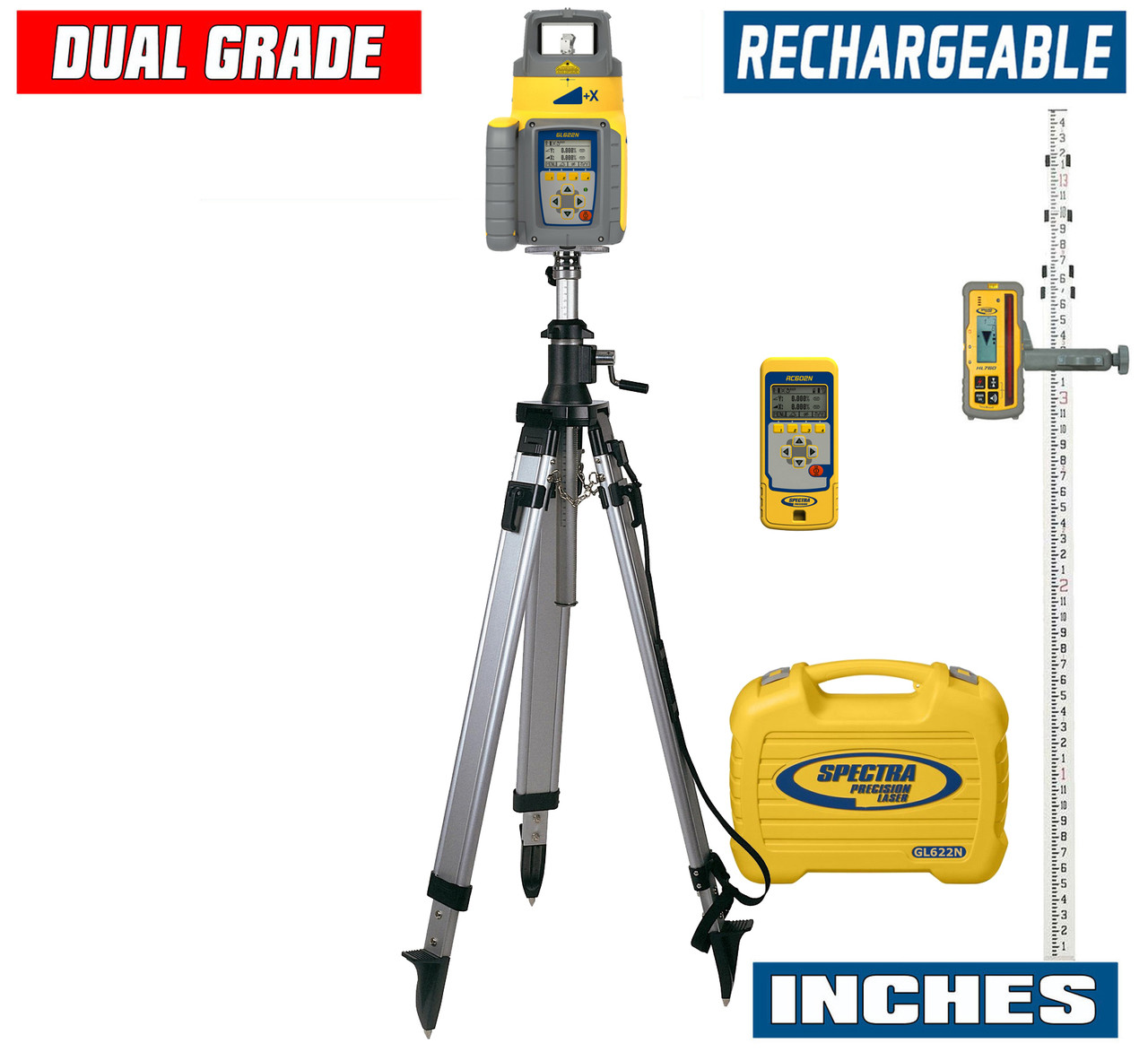

What's in the Kit

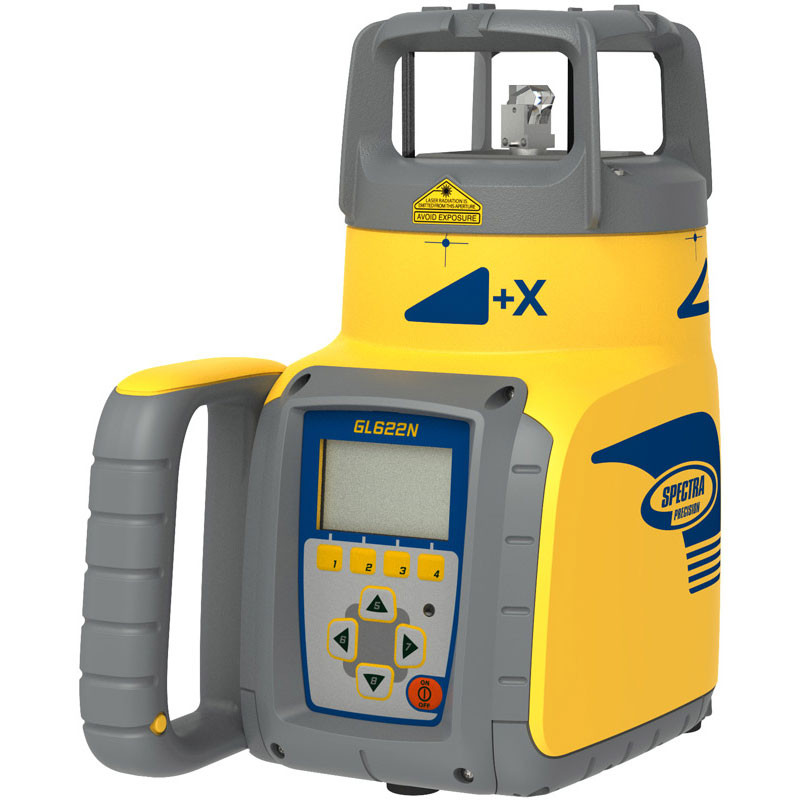

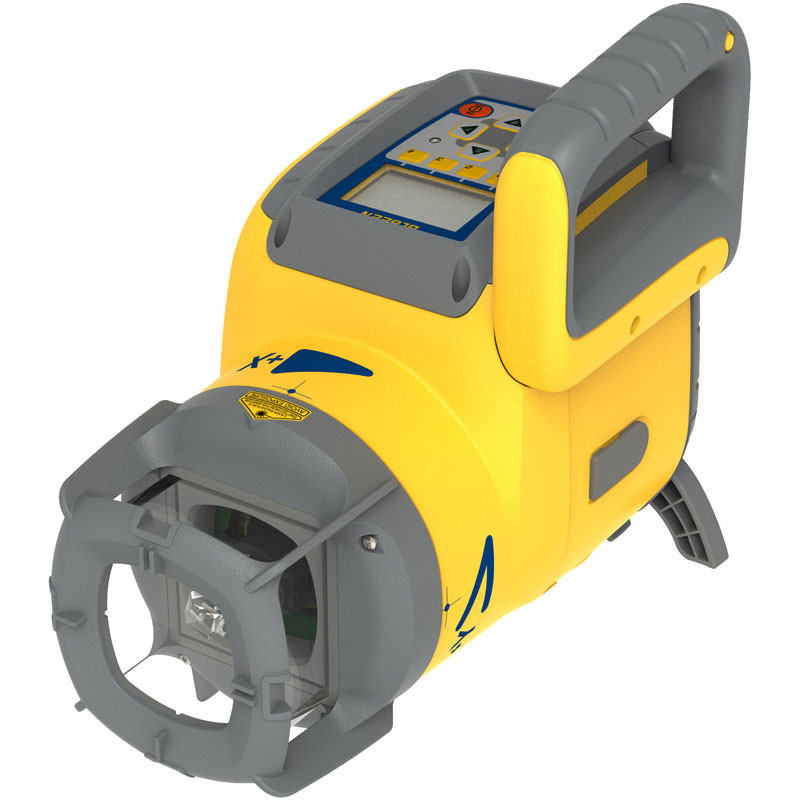

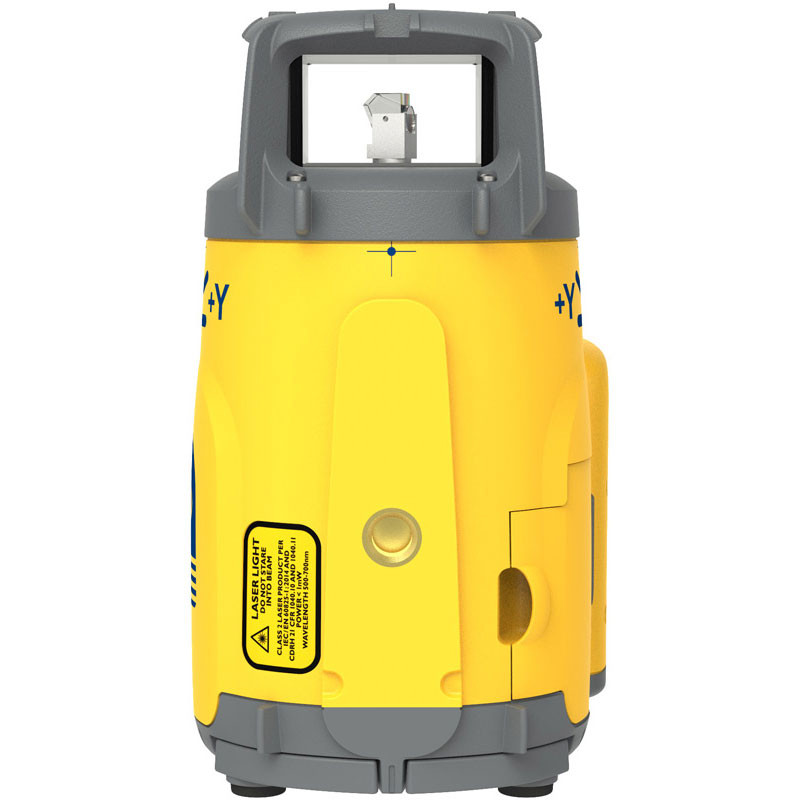

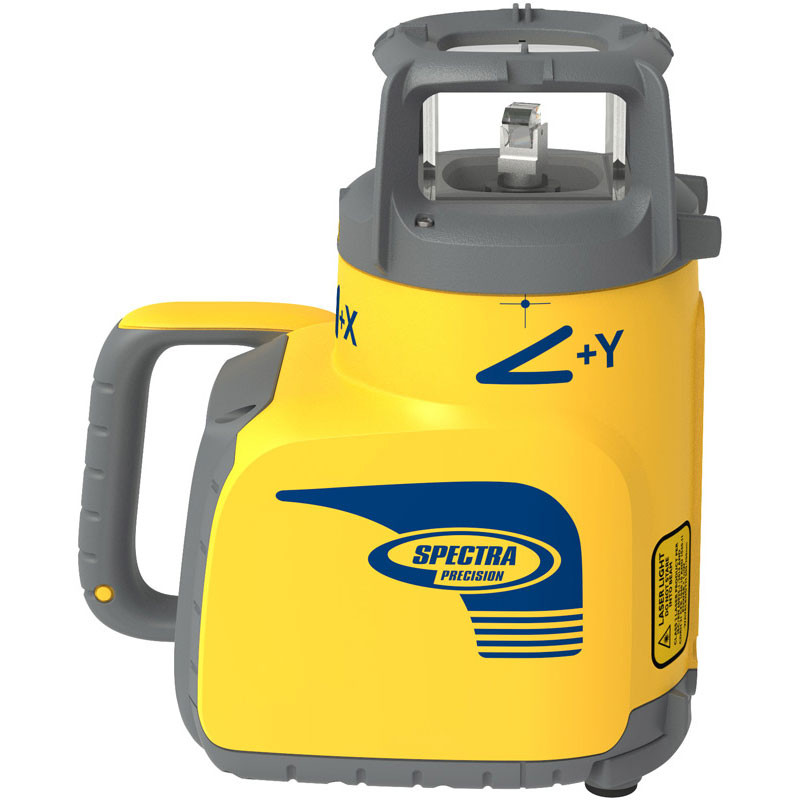

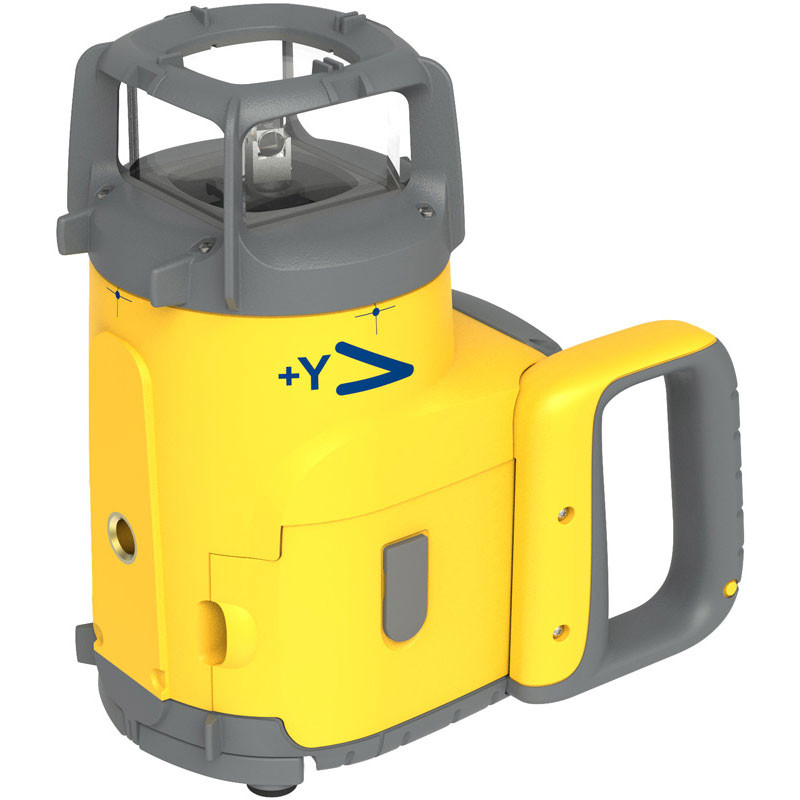

• Spectra Precision GL622N Dual Grade Laser Head
• Elevator Tripod for extended vertical positioning
• HL760 Laser Receiver with clamp
• Rechargeable battery pack and AC charger
• Heavy-duty carrying case for field transport
• Operator's manual and quick-start guide

Job Applications

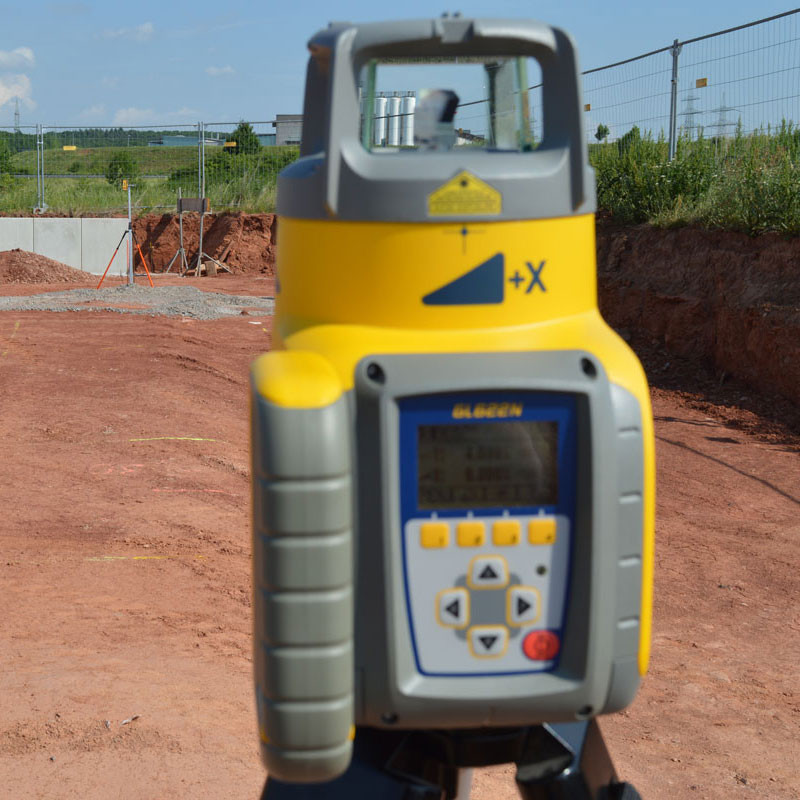

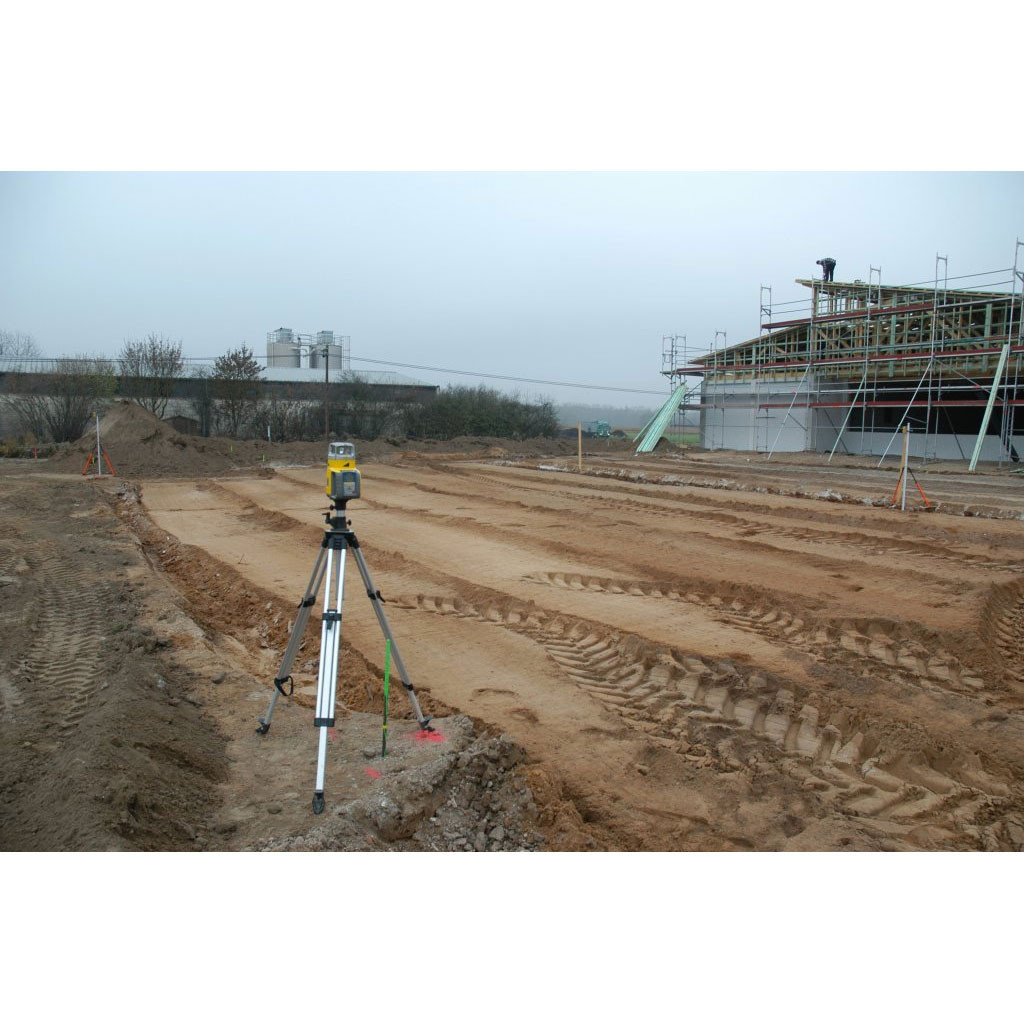

Site Preparation & Pad Grading: Set independent X and Y grades across large building pads with a single instrument setup. The dual-grade capability eliminates the need to reposition for cross-slope — critical on tight schedules with multiple pads at different finished floor elevations.

Drainage & Stormwater Infrastructure: Dial in precise flow-line grades for swales, detention basins, and underground pipe networks. The inches display system matches North American civil drawings directly, reducing layout errors during trench and pipe installation.

Terraced and Multi-Level Developments: The elevator tripod gives the laser head the height it needs to maintain line-of-sight across retaining walls, berms, and grade transitions — keeping one instrument working across multiple terrace levels without constant repositioning.

Agricultural Land Grading: Achieve consistent field drainage slopes across large acreage. The GL622N's wide operating range and robust IP66 housing handle open field environments where wind and dust are constant factors.

Compatible Accessories

• Spectra HL760 Laser Receiver — High-visibility receiver for bright outdoor conditions
• Spectra HR320 Machine Control Receiver — Blade and bucket control integration

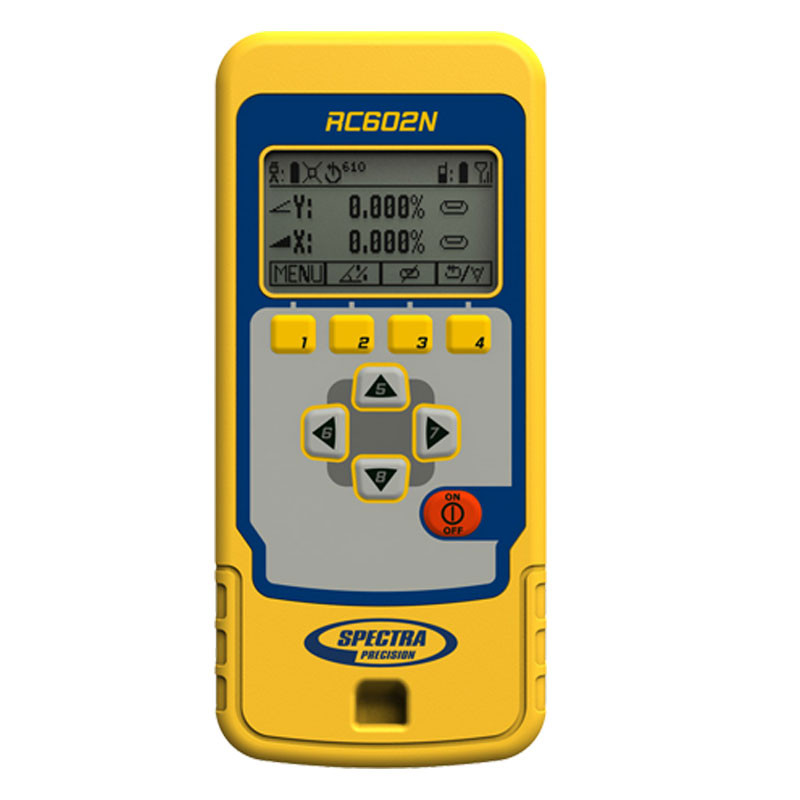

• Spectra RC602 Remote Control — Full instrument control from grade stake or machine cab
• Replacement Rechargeable Battery Pack — Extended runtime for full-day shifts
• Heavy-Duty Field Tripod — Standard tripod alternative for fixed-height setups

Related Guides

• How to Set Dual Grade with the Spectra GL622N — Step-by-Step
• Choosing the Right Laser Level for Site Grading Work
• Elevator Tripod Setup Tips for Terraced Job Sites
• GL622N vs GL622 — What's the Difference?

Frequently Asked Questions

What does the "N" designate in the GL622N model name?

The "N" indicates the inches-based measurement system optimized for North American grading standards. This matches the way most U.S. and Canadian civil drawings express slope — in inches per foot — so crews can read grade settings directly from plans without conversion.

Does this kit include a laser receiver?

Yes. The GL622N-29 kit includes the HL760 laser receiver with grade rod clamp. The HL760 is a full-featured outdoor receiver with audible and visual grade indicators, compatible with all Spectra rotating lasers.

Can the GL622N-29 be used with machine control systems?

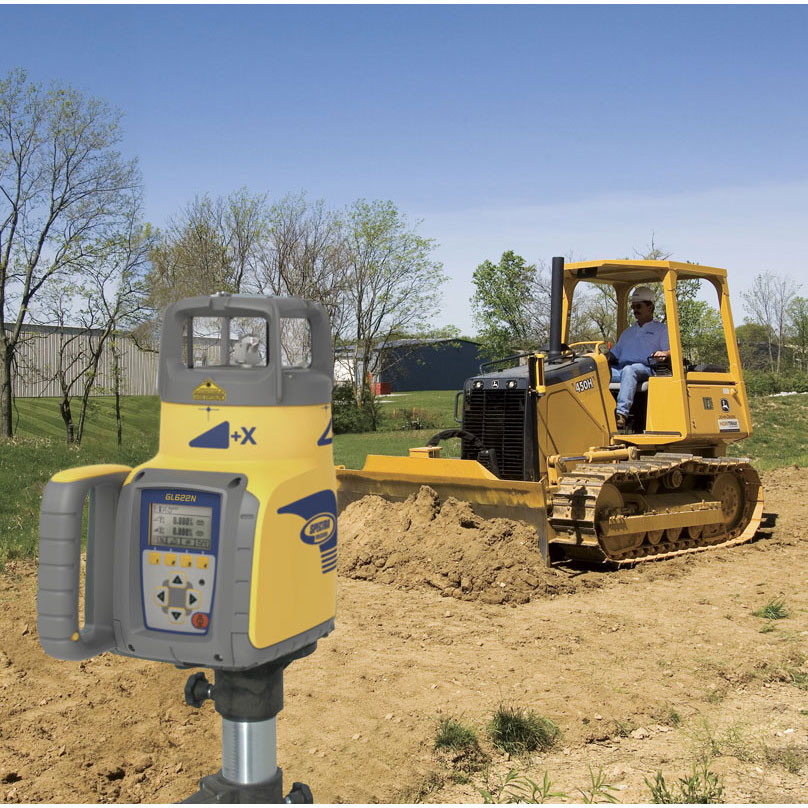

Yes. The GL622N is compatible with Spectra's HR320 and similar machine control receivers. It integrates with most aftermarket and OEM grade control systems on dozers, motor graders, and scrapers for automated blade control.

What is the advantage of the elevator tripod over a standard tripod?

The elevator tripod allows you to raise or lower the laser head over a significant height range without moving the tripod legs or re-leveling the base. This is especially useful on terraced sites or when the instrument needs to clear equipment and obstacles to maintain line-of-sight to receivers across the work area.
