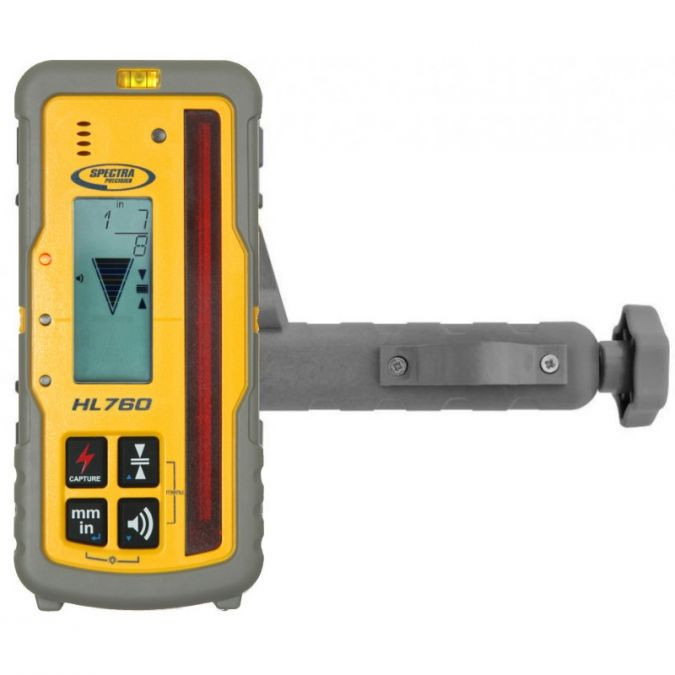

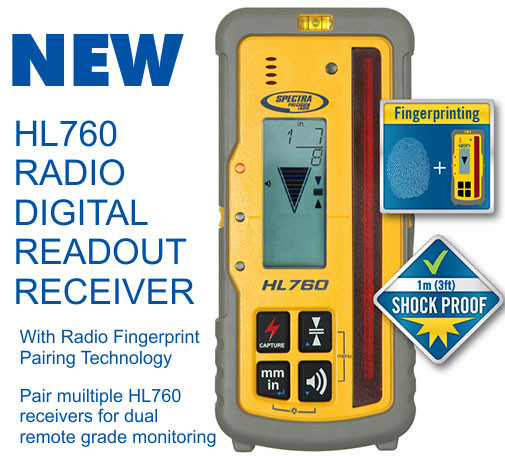

Spectra Precision HL760U Universal Laser Receiver (Radio) RED and GREEN Beam Compatible

Overview

The Spectra Precision HL760U Universal Laser Receiver represents a breakthrough in laser detection technology, delivering dual-wavelength compatibility that accepts both red and green beam lasers without requiring hardware changes. Designed for construction professionals who demand versatility and reliability, this radio-enabled receiver eliminates the frustration of carrying multiple detectors for different laser types. Whether you're working with legacy red beam rotary lasers or modern green beam systems, the HL760U adapts instantly to your equipment mix.

Built to Spectra Precision's exacting standards, the HL760U features a robust housing that withstands the rigors of active construction sites while maintaining precise detection accuracy. The integrated radio functionality enables remote control of compatible Spectra laser levels, allowing one-person operation for grade-checking, elevation transfer, and layout tasks. With intuitive controls, a clear LCD display, and multiple detection modes, this receiver streamlines workflows for excavation contractors, concrete crews, site preparation teams, and any tradesperson who relies on laser measurement systems.

What sets the HL760U apart is its universal beam compatibility—a feature that pays dividends on multi-crew jobsites where different laser technologies coexist. Rather than matching receivers to specific laser wavelengths, technicians can grab a single HL760U and confidently work with any rotating laser in their fleet. This compatibility reduces equipment carrying costs, simplifies inventory management, and ensures crews always have the right detection tool regardless of which laser system is deployed.

Key Specifications

• Beam Compatibility: Red and green wavelength laser detection
• Radio Control: Integrated radio for remote laser operation
• Detection Accuracy: ±1/16 inch (±1.5 mm) in standard mode
• Working Range: Up to 1,312 feet (400 meters) radius with appropriate laser
• Display: Backlit LCD with multi-level detection indication
• Detection Modes: Standard, digital, and pulse modes for varying conditions
• Audio Alert: Variable-tone beeper with volume control
• Rod Mounting: Universal clamp fits grade rods from 1 to 1.6 inches
• Power: Two AA alkaline batteries (60+ hours typical operation)
• Durability: IP67 dust and water resistance rating
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Weight: 0.95 lbs (430 g) with batteries

What's in the Kit

• Spectra Precision HL760U Laser Receiver
• Universal Rod Clamp with adjustable mounting bracket
• Two AA Alkaline Batteries (installed)
• Protective Carrying Case with belt loop
• Quick Start Guide and User Manual
• Manufacturer's Warranty Documentation

Job Applications

• Excavation and Grading: The HL760U excels in earthmoving operations where precise depth and elevation control prevent costly overcuts. The dual-wavelength capability means rental equipment with green lasers works seamlessly alongside your existing red beam systems, eliminating detection gaps when equipment is borrowed or shared between crews.
• Foundation and Footings: Concrete contractors rely on the HL760U for establishing uniform foundation elevations and verifying formwork heights. The radio control feature allows solo technicians to adjust laser reference planes from the receiver position, dramatically reducing setup time and eliminating the need for constant trips back to the laser unit.
• Site Preparation and Utilities: When installing drainage systems, underground utilities, or establishing proper site slopes, the HL760U's extended range and bright/sunny condition pulse mode maintain detection even in challenging lighting. Universal compatibility ensures subcontractors arriving with different laser brands can immediately begin working without detector compatibility concerns.
• Concrete Flatwork and Slabs: For parking structures, warehouse floors, and commercial slabs requiring tight elevation tolerances, the HL760U provides the accuracy and repeatability necessary for quality results. The multiple detection zones and digital readout help finishers maintain exact screeding heights throughout large pours.
• Elevation Transfer on Multi-Story Construction: The HL760U simplifies the process of carrying benchmark elevations between floors during vertical construction. Its compatibility with both wavelengths means the receiver works regardless of which laser technology the general contractor, concrete subcontractor, or MEP trades bring to the project.
• Agricultural Land Leveling: Precision agriculture operations benefit from the HL760U's extended range and rugged construction during field leveling for irrigation efficiency. The universal beam detection allows farm operations to work with both owned equipment and contractor-provided laser grading systems without equipment conflicts.

Compatible Accessories

• Spectra Precision Grade Rods and Leveling Rods (all standard sizes)
• Heavy-Duty Rod Clamp for oversized grade rods
• Extended-Life Battery Packs for all-day operation
• Spectra Precision Rotary Laser Levels (LL-Series, GL-Series, HV-Series)
• Magnetic Mounting Brackets for machine control applications
• Replacement Protective Carrying Cases
• External Audio Alert Accessories for high-noise environments

Related Guides

• Complete Guide to Choosing the Right Laser Receiver
• Red vs. Green Laser Technology: Which is Right for Your Applications?
• Maximizing Laser Detector Accuracy on Construction Sites
• Spectra Precision Laser System Setup and Calibration

FAQ

What's the advantage of a receiver that works with both red and green lasers?

Dual-wavelength compatibility eliminates the need to purchase and manage separate receivers for different laser types. On jobsites with mixed laser inventories, rental equipment, or multiple subcontractors, the HL760U ensures any crew member can detect any laser signal without matching specific hardware. This reduces equipment costs, simplifies logistics, and prevents work delays caused by incompatible detection equipment.

How does the radio control function work, and what lasers is it compatible with?

The integrated radio transmitter allows you to remotely control compatible Spectra Precision laser levels directly from the receiver position. You can adjust laser speeds, activate slope functions, or fine-tune elevations without walking back to the laser unit—essential for one-person operations. The radio works with Spectra's LL-Series, GL-Series, and select HV-Series rotating lasers equipped with radio receivers. Check your laser model specifications to confirm radio compatibility.

What is the actual detection range, and does it differ between red and green lasers?

The HL760U can detect laser signals up to 1,312 feet (400 meters) in radius under ideal conditions, though practical working range depends on ambient light, laser power, and environmental factors. Green lasers typically offer better visibility and detection range in bright conditions due to the human eye's greater sensitivity to green wavelengths. However, the HL760U's detection capability remains consistent across both wavelengths—the laser's output power and atmospheric conditions determine ultimate range rather than the receiver's sensitivity.

Can this receiver be used for machine control applications on dozers or excavators?

Yes, the HL760U is suitable for grade control on construction equipment when paired with appropriate mounting hardware. The receiver's rod clamp can be replaced with magnetic or bolt-on machine mounts that position the detector on blade-mounted masts or excavator stick assemblies. The rugged IP67-rated housing withstands vibration and weather exposure typical of machine-mounted applications. For fully automated machine control systems, consult with your equipment dealer about integration requirements, as some systems may require dedicated machine control receivers with additional outputs.
