Overview

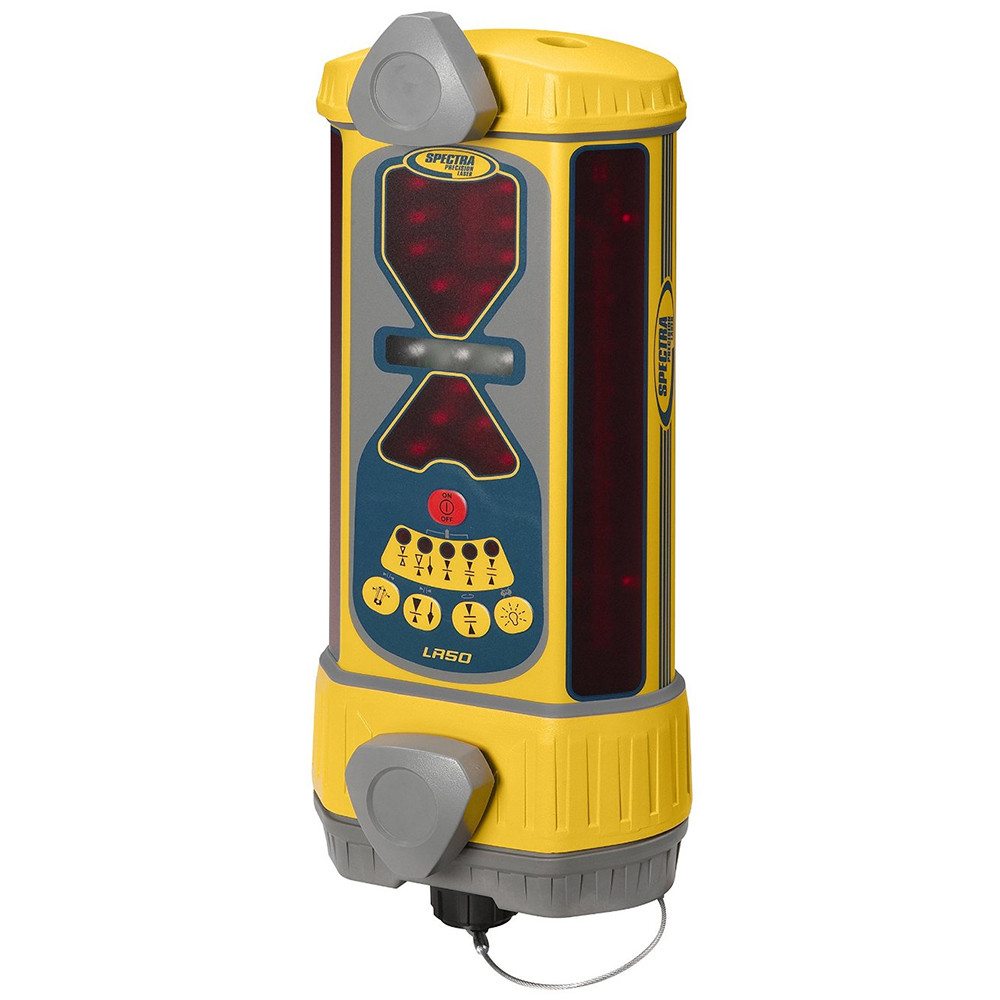

The Spectra Precision LR50-MM Laser Machine Display Receiver combines professional-grade laser detection with instant magnetic mounting for heavy equipment applications. Featuring dual-LCD displays, NiMH rechargeable battery technology, and the industry-standard MM-1 magnetic mount, this receiver delivers precise grade control for excavators, dozers, and graders working with Spectra rotating laser levels.

The magnetic mount system enables rapid repositioning between machines without tools or mounting hardware, reducing setup time on multi-machine jobsites. The LR50's large front and back LCD displays provide 360-degree visibility, allowing operators to maintain precise grade from any angle while the receiver stays securely mounted to metal surfaces during operation.

Built for construction professionals who demand accuracy and efficiency, the LR50-MM features a 6.5-foot (2-meter) detection diameter, remote control capability, and weatherproof construction rated to IP67 standards. The rechargeable NiMH battery system eliminates disposable battery costs while providing up to 60 hours of continuous runtime.

Key Specifications

• Detection Diameter: 6.5 feet (2 meters) working range
• Accuracy: ±1/16 inch (±2mm) in fine mode; ±1/8 inch (±3mm) in coarse mode
• Display System: Dual LCD screens (front and back) with backlighting
• Channels: 4 radio channels for multi-receiver operation

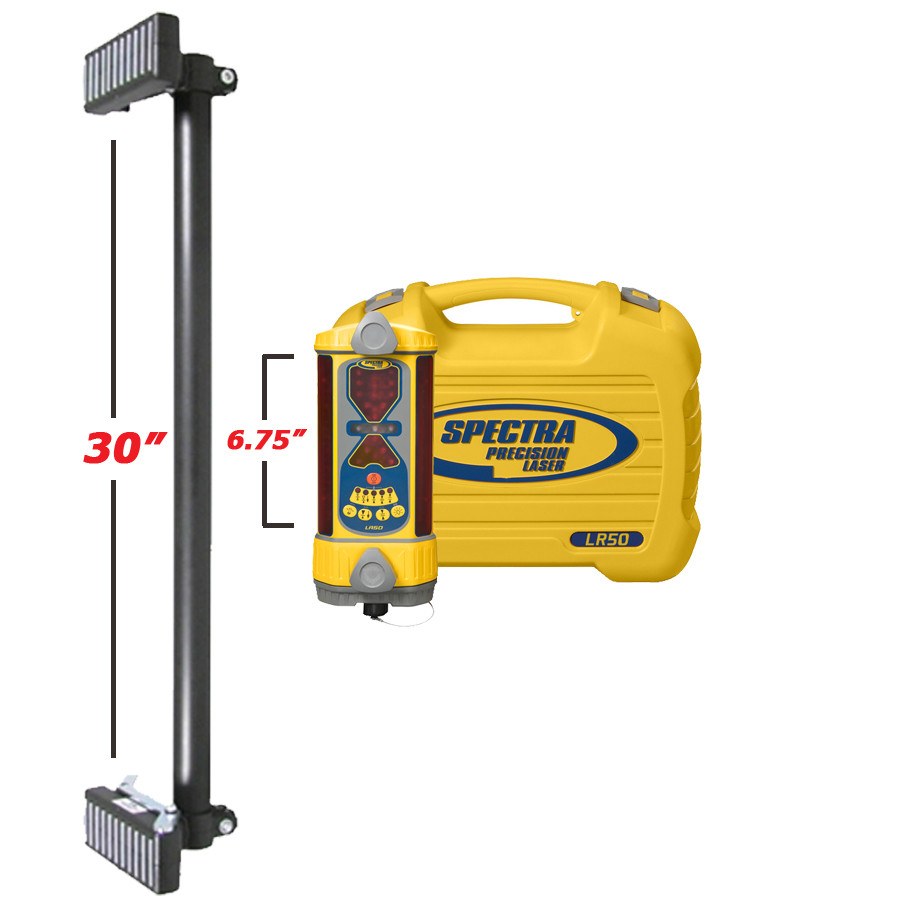

• Mount Type: MM-1 magnetic mount with quick-release mechanism
• Battery: Rechargeable NiMH battery pack with AC charger included
• Runtime: Up to 60 hours on single charge
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Weatherproofing: IP67 dust-tight and waterproof rating
• Dimensions: 9.8" H × 4.3" W × 3.1" D (250 × 110 × 80mm)
• Weight: 2.6 lbs (1.2 kg) with battery and mount
• Warranty: 3-year manufacturer's warranty

What's in the Kit

• LR50 Laser Receiver with dual LCD displays
• MM-1 Magnetic Mount with quick-release base
• Rechargeable NiMH battery pack (installed)
• AC battery charger with regional power adapter
• RC50 Remote control for laser operation
• Protective soft-sided carrying case
• Quick start guide and full instruction manual
• Calibration certificate and warranty card

Job Applications

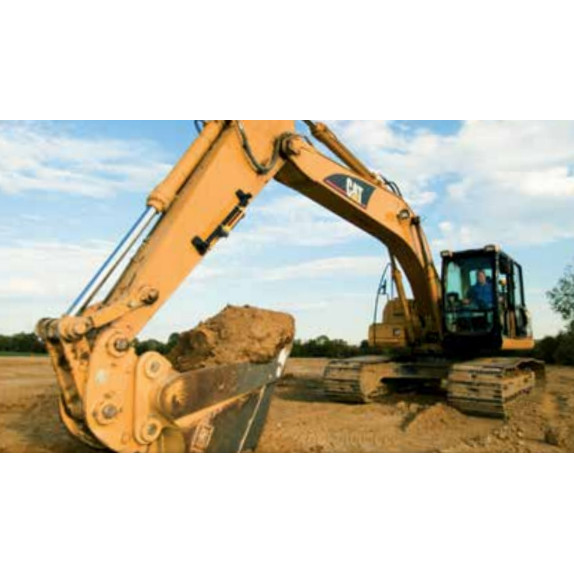

• Excavator Grade Control: Maintain precise depth during basement excavation, utility trenching, and mass earthwork operations. The magnetic mount repositions instantly on bucket cylinders or boom arms as digging depth requirements change throughout the day.
• Dozer Blade Leveling: Achieve exact finish grade for parking lots, building pads, and road subbase preparation. Dual displays keep operators on-grade whether pushing forward or backing up, while the magnetic base stays secure during blade adjustments and travel.
• Grader Fine Grading: Execute highway shoulders, airport runways, and sports field surfaces to tight tolerances. The 6.5-foot detection range accommodates wide blade spans while magnetic mounting allows quick transfer between multiple graders on large linear projects.
• Scraper Bowl Monitoring: Control cut depth and load consistency during soil stripping and stockpiling operations. The receiver relocates between loading and spreading positions without removing the operator from the cab, maximizing productivity.
• Compactor Drum Leveling: Ensure uniform lift thickness on soil and asphalt compaction work. Magnetic mounting on the drum housing or frame provides grade reference without interfering with vibratory systems or operator visibility.
• Trencher Depth Management: Maintain consistent trench depth for underground utilities, drainage systems, and irrigation installations. The magnetic mount secures to metal boom sections for continuous depth monitoring as the trencher advances.

Compatible Accessories

Spectra Precision HL700 Horizontal Laser Level – Self-leveling rotary laser with 2,300-foot diameter and dual-slope capability

Spectra Precision LL500 Rotating Laser System – Versatile single-slope laser for site layout and grading applications

Spectra Precision GL700 Series Grade Lasers – Advanced dual-slope lasers with automatic grade matching technology

Spectra Precision Rod-Eye Classic Receiver – Handheld receiver alternative for elevation work and grade checking

Universal Rod Mount Adapter – Convert magnetic receiver to grade rod configuration for versatile use

Replacement NiMH Battery Pack for LR50 – Spare rechargeable battery for extended runtime

Related Guides

How to Set Up Laser Receivers on Excavators – Complete mounting positions, calibration procedures, and grade control techniques

Rotating Laser Level System Fundamentals – Understanding laser planes, receiver compatibility, and accuracy factors

Optimal Machine Control Receiver Positioning – Equipment-specific mounting locations for maximum accuracy and visibility

Magnetic Mount Care and Maintenance – Cleaning procedures, magnet strength testing, and mounting surface preparation

FAQ

What's the difference between the LR50-MM and LR50 with standard rod clamp?

The LR50-MM includes the MM-1 magnetic mount designed for attaching to metal equipment surfaces, while the standard LR50 comes with a rod clamp for mounting on grade rods. The magnetic mount version is ideal for contractors who work primarily on excavators, dozers, graders, and other heavy equipment where quick repositioning is needed. The receiver unit itself is identical – only the mounting hardware differs. If you need both applications, you can purchase the alternate mount separately and swap between configurations.

How strong is the magnetic mount and will it stay attached during equipment operation?

The MM-1 magnetic mount uses rare-earth magnets that provide approximately 100 pounds of holding force on clean, flat steel surfaces. This exceeds the requirements for secure attachment during normal equipment operation, including vibration from engines, hydraulics, and ground contact. The mount stays firmly attached during dozer blade adjustments, excavator swing operations, and grader articulation. However, mounting surface preparation is important – remove dirt, rust, paint, and oil from the contact area to ensure maximum magnetic contact. The mount should not be used on non-ferrous metals like aluminum or on painted surfaces thicker than standard equipment paint.

Can I use this receiver with laser brands other than Spectra Precision?

The LR50-MM is designed specifically for Spectra Precision rotating lasers and may not be compatible with other manufacturers' systems due to differences in laser modulation, rotation speed, and signal encoding. While the receiver will physically detect laser beams from any rotating laser, it cannot accurately decode position information from non-Spectra units, resulting in unreliable grade readings. For reliable cross-brand compatibility, check with both the laser and receiver manufacturers. If you operate mixed equipment fleets with different laser brands, consider the Topcon LS-B110 or Leica Rod-Eye receivers, which offer broader compatibility across multiple laser systems.

How do I know when the NiMH battery needs recharging?

The LR50 displays a battery status icon on both LCD screens that shows remaining charge level in four segments. When the battery drops to one segment (approximately 25% capacity remaining), the icon begins flashing as an early warning. You'll still have several hours of runtime at this point, allowing you to finish the current work session. When the battery reaches critical level (less than 10%), the receiver displays a low battery warning message and the backlight dims to conserve power. A full recharge from depleted state takes approximately 6 hours with the included charger. For all-day operation without interruption, keep a spare charged battery pack on hand and swap batteries during lunch breaks.
