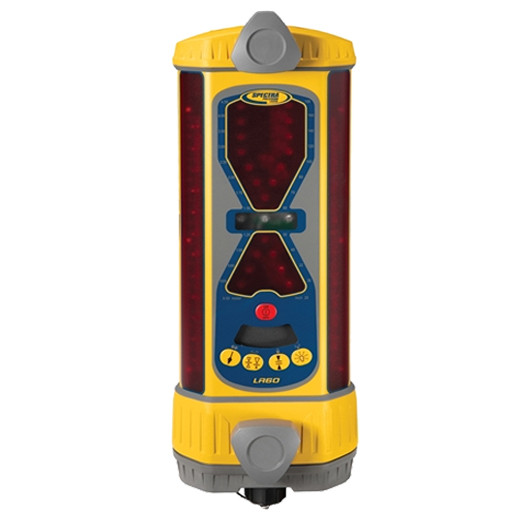

Spectra Precision LR60-1 Laser Machine Display Receiver (Alkaline)

Overview

The Spectra Precision LR60-1 Laser Machine Display Receiver brings professional-grade accuracy to demanding construction and earthmoving projects with the convenience of alkaline battery power. Engineered for contractors who need reliable performance without dependency on rechargeable systems, this receiver delivers precise elevation readings and intuitive machine control feedback across a 60-foot (18m) diameter working range. The large backlit LCD displays clear positioning information in multiple measurement units, while the rugged IP67-rated housing withstands the punishing conditions of excavation, grading, and trenching operations. Whether you're operating excavators, dozers, or motor graders, the LR60-1 integrates seamlessly with Spectra laser transmitters to maintain tight grade tolerances and reduce costly overexcavation. The alkaline battery configuration ensures you're never caught waiting for recharges—simply swap batteries and continue working, making this receiver the practical choice for remote jobsites and extended shifts.

Key Specifications

• Detection Range: 60 feet (18 meters) diameter working area
• Accuracy: ±1/16 inch (1.5mm) on-grade indication
• Display: Large backlit LCD with multi-line readout
• Measurement Units: Metric and imperial switchable
• Power Source: 4 × D-cell alkaline batteries (not included)
• Battery Life: Up to 60 hours continuous operation
• Environmental Rating: IP67 dustproof and waterproof
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Mounting: Universal rod clamp included (fits 1-2 inch diameter)
• Audio Alert: Variable tone on-grade indication system
• Weight: 3.2 lbs (1.45 kg) with batteries
• Warranty: 3-year manufacturer warranty

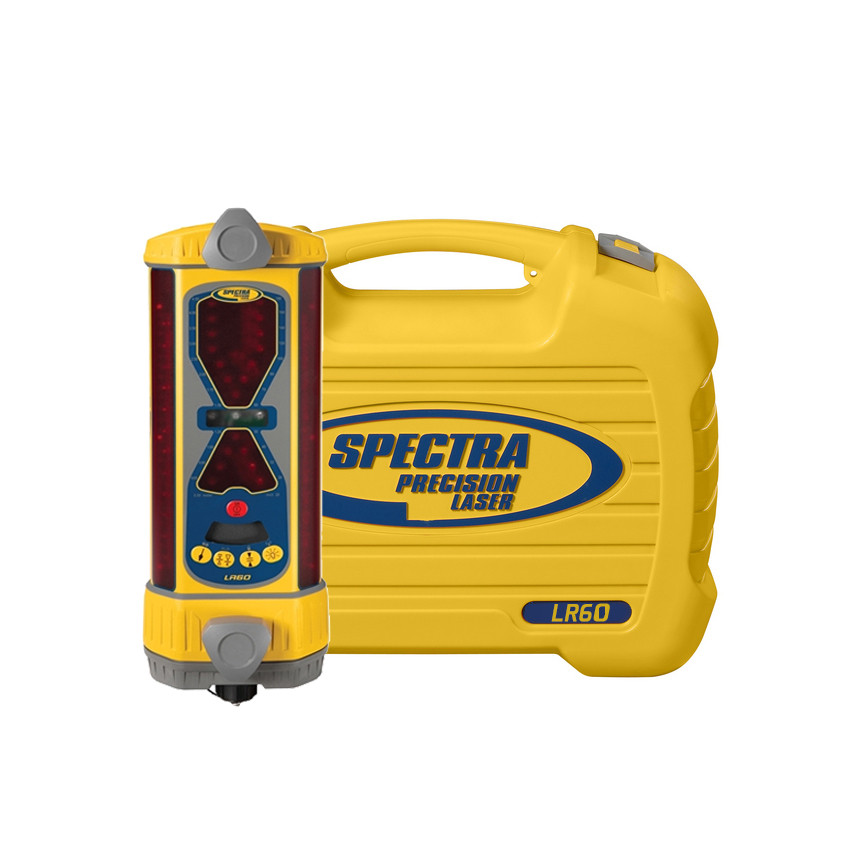

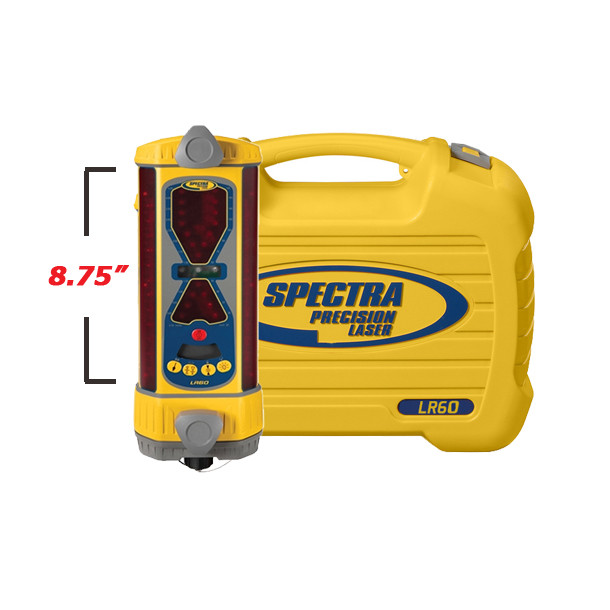

What's in the Kit

• Spectra Precision LR60-1 Laser Receiver (alkaline model)
• Universal rod clamp mounting bracket
• Protective receiver case
• Quick start guide and operation manual
• Calibration certificate

Job Applications

• Excavation and Basement Digging: Maintains precise depth control on excavators to eliminate overdig and reduce material removal costs, while alkaline power keeps you working through extended foundation pours without recharge delays.
• Land Grading and Site Preparation: Delivers consistent grade reference for dozers and motor graders across large sites, with battery accessibility ensuring operators can quickly swap power sources without returning to base facilities.
• Utility Trenching: Provides accurate slope monitoring for sewer, water, and drainage installations where proper fall is critical, while rugged IP67 construction protects against trench water and mud infiltration.
• Road Construction and Paving: Guides grading equipment to achieve precise subgrade elevations that reduce asphalt requirements and prevent drainage problems, with the backlit display remaining visible in early morning and evening shifts.
• Agricultural Land Leveling: Supports precision field grading for optimal irrigation and drainage performance, with alkaline operation ideal for remote farm locations where electrical charging infrastructure isn't readily available.
• Sports Field and Golf Course Construction: Enables tight tolerance grading for athletic surfaces and greens where drainage and playability demand exacting elevations, with the audio alert system allowing operators to maintain grade by sound alone.

Compatible Accessories

Spectra Precision Grade Rods | Compatible Laser Levels & Transmitters | Machine Control Mounting Kits | D-Cell Alkaline Batteries (Bulk Packs) | Heavy-Duty Receiver Cases | Calibration & Service Plans

Related Guides

Alkaline vs. Rechargeable Laser Receivers: Which Is Right for Your Operation?
Complete Guide to Machine Control Receiver Installation
Maintaining Grade Accuracy: Calibration and Best Practices
Maximizing Battery Life in Laser Receivers

FAQ

What's the difference between the LR60-1 and the NiMH-powered version?

The LR60-1 operates on standard alkaline D-cell batteries, while the NiMH version uses rechargeable batteries. Both deliver identical precision and functionality. The alkaline model offers greater field flexibility since you can simply replace batteries rather than waiting for recharges, making it ideal for remote sites or contractors running multiple shifts. The NiMH version provides lower long-term operating costs if you have consistent access to charging facilities.

How long do alkaline batteries last in the LR60-1?

You can expect approximately 60 hours of continuous operation from a fresh set of four D-cell alkaline batteries under normal conditions. Actual runtime varies based on temperature, display backlight usage, and battery quality. Cold weather reduces battery performance, while excessive backlight use increases power consumption. Many contractors keep spare battery sets on site to ensure uninterrupted operation throughout the workday.

Can the LR60-1 work with any rotary laser transmitter?

The LR60-1 is optimized for use with Spectra Precision rotary lasers and machine control systems. While it may detect signals from other manufacturers' lasers, full functionality, accuracy specifications, and warranty coverage apply only when used with compatible Spectra transmitters. Always verify compatibility before pairing with non-Spectra equipment to ensure proper grade indication and measurement accuracy.

Is this receiver suitable for machine mounting or hand-held rod use?

The LR60-1 excels in both applications. The included universal rod clamp allows mounting to standard grade rods for hand-held checking and spot elevation verification. For permanent machine mounting on excavators, dozers, or graders, compatible machine control brackets (sold separately) provide secure attachment and optimal positioning. The rugged IP67-rated construction withstands vibration and impacts in either configuration, while the large display remains readable from the operator's seat.
