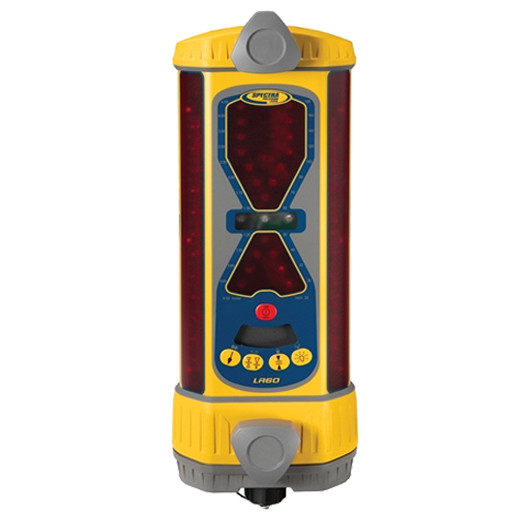

Spectra Precision LR60W Laser Machine Display Receiver (NiMH) RD20 Wireless Remote Display

Overview

The Spectra Precision LR60W Laser Machine Display Receiver with RD20 Wireless Remote Display delivers unmatched flexibility for machine control and site grading operations. This NiMH-powered system enables operators to position the LR60W receiver on masts, grade stakes, or machinery while monitoring real-time elevation data wirelessly through the RD20 handheld display from up to 100 meters away. The configuration eliminates the need for operators to leave their equipment or optimal observation positions to check grade, significantly improving efficiency on excavation, trenching, and grading projects.

Engineered for professional contractors and civil construction teams, the LR60W features a ruggedized IP67-rated housing that withstands extreme job site conditions including dust, moisture, and impact. The dual-display system provides millimeter-level accuracy with visual and audible grade indicators, while the rechargeable NiMH battery system ensures full-shift operation without interruption. The wireless connection between receiver and remote display uses secure radio frequency transmission, maintaining reliable communication even in electromagnetically noisy environments with multiple laser systems operating simultaneously.

Key Specifications

• Receiver Accuracy: ±1.5mm (±1/16") in all working modes
• Detection Range: Up to 600m (2000ft) diameter with HV302/HV402 lasers
• Wireless Range: 100m (330ft) line-of-sight between LR60W and RD20
• Display Type: High-visibility LCD with multi-LED grade indicators on both units
• Battery System: Rechargeable NiMH, 40+ hours runtime per charge
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Protection Rating: IP67 dust-tight and waterproof (1m submersion)

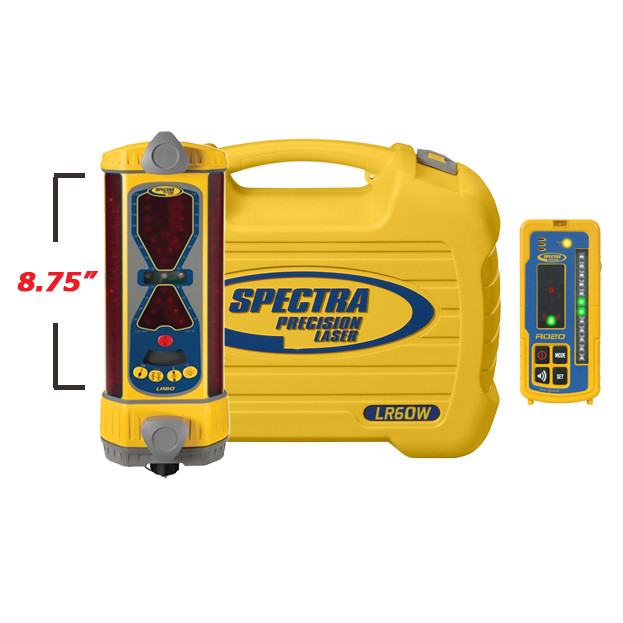

• Receiver Dimensions: 240mm × 133mm × 63mm
• Remote Display Dimensions: 200mm × 95mm × 45mm
• Weight: LR60W 0.9kg, RD20 0.4kg (batteries included)
• Grade Display: Digital readout with audio tones and LED arrow indicators
• Mounting Options: Universal rod clamp fits 25-45mm poles and machine masts

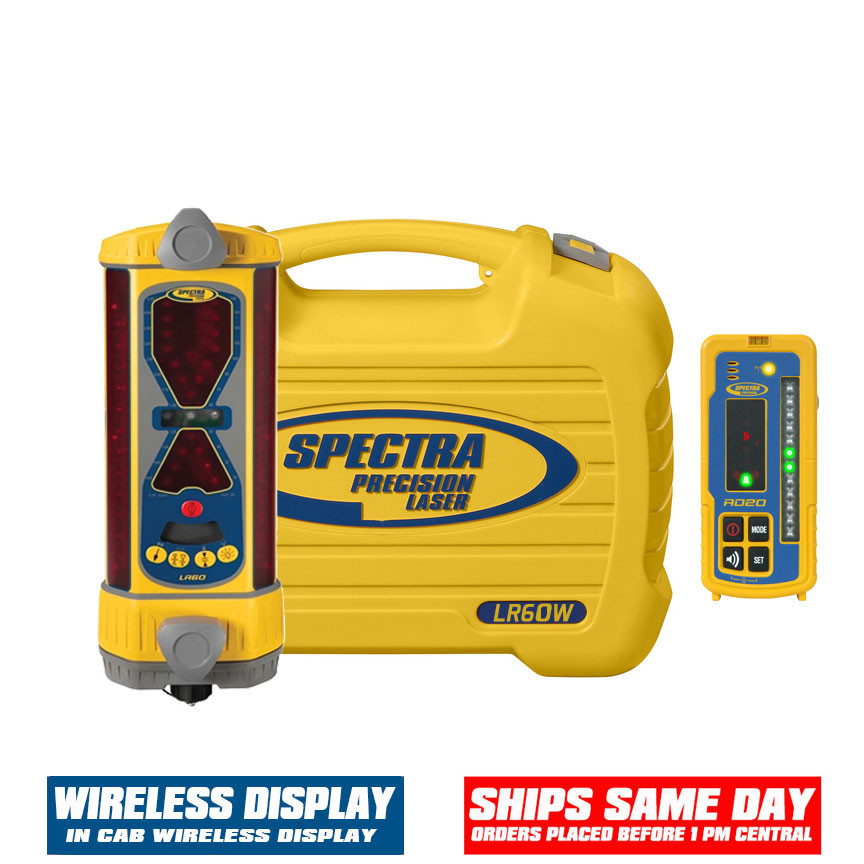

What's in the Kit

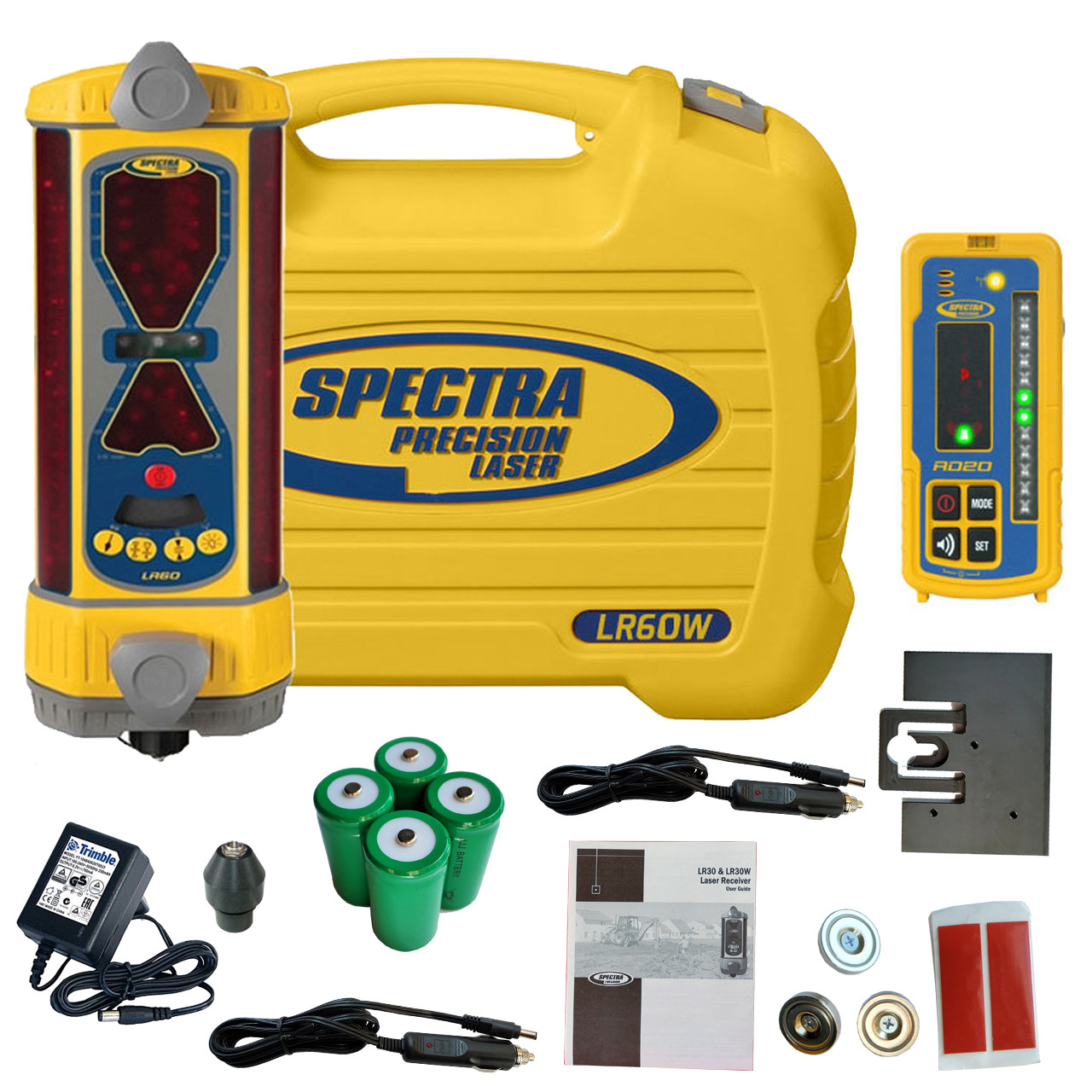

• Spectra Precision LR60W Laser Machine Display Receiver with integrated wireless transmitter
• RD20 Wireless Remote Display with belt clip and lanyard attachment
• Two rechargeable NiMH battery packs (one for LR60W, one for RD20)
• Dual-bay battery charger with AC adapter and regional power cables
• Universal rod clamp mounting bracket (fits 25-45mm diameter poles)
• Machine control mounting plate with adjustable angle bracket
• Protective carrying case with foam insert for both units
• Quick reference guide and calibration certificate
• Two-year manufacturer's warranty with registration

Job Applications

• Excavation and Trenching: Operators can monitor depth and grade while remaining in the cab or at the trench edge, eliminating constant climbing in and out of equipment to check elevation stakes. The wireless display shows real-time cut/fill information, reducing over-excavation and material waste.
• Parking Lot and Pad Grading: Position the receiver on a grade rod while walking the site with the RD20, checking multiple elevation points rapidly without returning to equipment. This accelerates final grading verification and ensures consistent slope across large flat areas before paving or concrete placement.
• Pipeline Installation: Mount the LR60W on laser-equipped pipe lasers or grade stakes while the RD20 allows foremen to monitor invert elevations from multiple inspection points along the trench. The wireless system enables simultaneous laser detection and remote supervision without crew members blocking sightlines.
• Foundation and Footing Layout: Set the receiver at benchmark positions and carry the RD20 to verify proper depth and level at formwork locations. The portable remote eliminates the need for multiple grade checkers or constant transit between measurement points, particularly valuable in complex foundation systems.
• Dozer and Grader Operations: Machine operators mount the LR60W on blade masts while keeping the RD20 in the cab for continuous grade monitoring during passes. This dual-display configuration provides both machine-mounted precision and operator convenience, especially on large scrapers where receiver visibility from the cab is limited.
• Sports Field and Golf Course Construction: The wireless system allows shapers to check multiple grade points across undulating terrain while maintaining reference to rotating lasers. The remote display enables fine-tuning of complex contours without repeatedly walking back to stationary receivers, critical for achieving designed drainage patterns.

Compatible Accessories

Spectra Precision HV302 Horizontal/Vertical Laser – Self-leveling dual-grade laser with 600m range compatibility

Spectra Precision HV402 Laser Level – Advanced rotating laser with dual-slope capability

Spectra Precision HL760 Horizontal Laser – Rugged rotating laser for site grading

Heavy-Duty Laser Detector Poles – Telescoping grade rods and machine masts

NiMH Replacement Battery Packs – Additional power for extended shifts

Spectra Precision RC803 Laser Remote Control – Wireless laser operation from receiver position

Related Guides

Laser Receiver Setup and Calibration Best Practices

Wireless Grade Checking Workflows for Excavation Crews

Maximizing Battery Life in Rechargeable Laser Receivers

Machine Control Systems vs. Laser Receiver Solutions: Which to Choose

FAQ

What's the actual working range between the LR60W receiver and RD20 remote display on active job sites?

The wireless connection maintains reliable communication up to 100 meters (330 feet) in typical construction environments with moderate obstructions. Line-of-sight conditions provide maximum range, while steel structures, concrete buildings, or operating heavy equipment may reduce effective distance to 50-75 meters. The system provides a clear out-of-range warning on the RD20 display before connection loss occurs, and automatically reconnects when distance closes. For most excavation and grading operations where operators work within visual range of their equipment, the wireless range proves more than adequate.

Can I use the LR60W as a standard laser receiver without the RD20 remote, or are both components required?

The LR60W functions as a fully independent laser receiver with complete grade display, LED indicators, and audio feedback even when the RD20 is turned off or out of range. All detection and measurement capabilities reside in the LR60W unit itself—the RD20 simply mirrors this information wirelessly for remote viewing convenience. This design allows flexible operation: use the LR60W alone for machine-mounted applications where the receiver stays visible, then add the RD20 for situations requiring monitoring from remote positions. Both units can display simultaneously, providing redundant grade information for operator and checker.

How long do the NiMH batteries last per charge, and can I use alkaline batteries as backup power?

The rechargeable NiMH battery packs provide 40-50 hours of continuous operation in the LR60W receiver and 35-45 hours in the RD20 remote under normal temperature conditions. Cold weather reduces runtime to approximately 25-30 hours. The LR60W accepts standard alkaline D-cell batteries as emergency backup (battery tray accommodates both rechargeable packs and alkaline cells), while the RD20 uses a proprietary rechargeable pack without alkaline backup option. The included dual-bay charger fully recharges both batteries in 4-5 hours, and partial charging provides proportional runtime—a 2-hour charge delivers approximately half-day operation.
