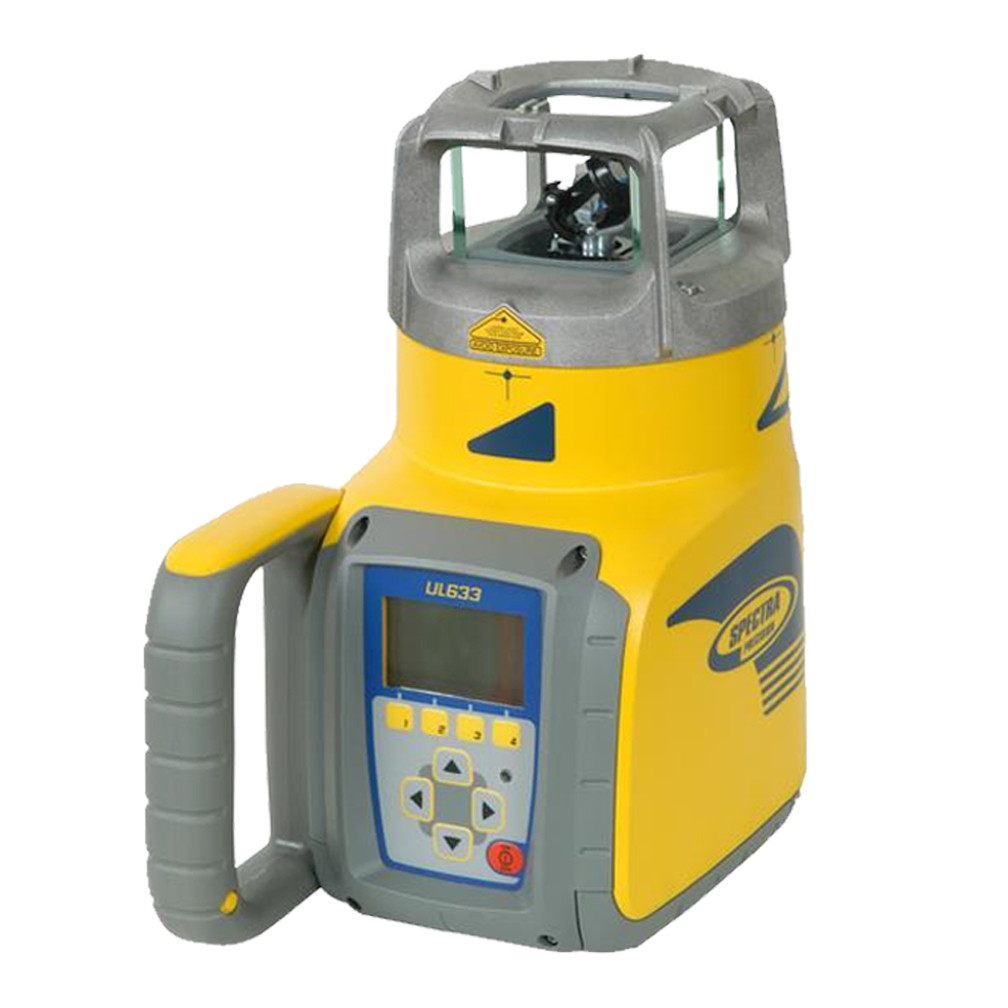

Spectra Precision UL633N Universal Laser with (2) HL760 Laserometer Receivers

Overview

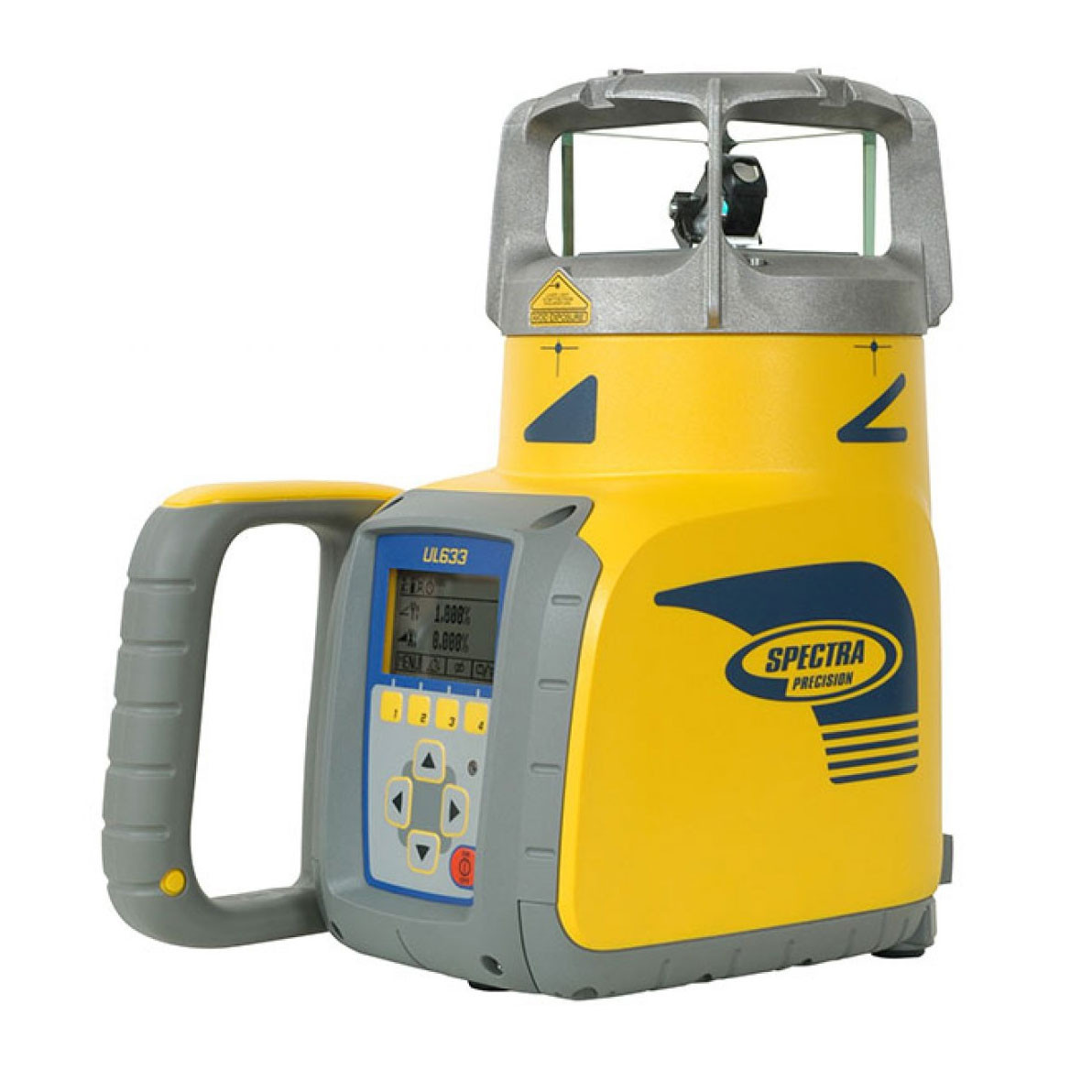

The Spectra Precision UL633N Universal Laser System delivers professional-grade accuracy for contractors who need one tool that does it all. This dual-grade laser handles horizontal leveling, vertical alignment, and complex slope work across grading, concrete, and drainage projects. The included dual HL760 Laserometer Receivers provide front and back grade monitoring, eliminating constant repositioning and keeping crews productive on large sites.

Unlike single-purpose rotary lasers, the UL633N adapts to your workflow—mount it horizontally for elevation control, vertically for wall plumbing and layout, or at compound angles for ditch slopes and building elevations. The robust design withstands jobsite vibration and weather exposure, while the intuitive control panel reduces setup time even for operators new to laser systems.

This kit pairs the UL633N transmitter with two HL760 digital receivers, giving excavator operators real-time grade feedback on both front bucket and rear blade simultaneously. The receivers mount magnetically to machine masts or grade rods, displaying precise cut/fill readings that keep earthwork within tolerance and reduce costly rework.

Key Specifications

• Accuracy: ±1/16 inch at 100 feet (±1.5mm at 30m)
• Operating Range: Up to 2,600 feet diameter with HL760 receivers (800m)
• Rotation Speed: Variable 0, 150, 300, 600 RPM for receivers and detectors
• Self-Leveling Range: ±5 degrees with audible out-of-level alarm
• Grade Range: -10% to +15% single axis, dual-axis capability for complex slopes
• Beam Visibility: Class 3R red laser diode, 635nm wavelength

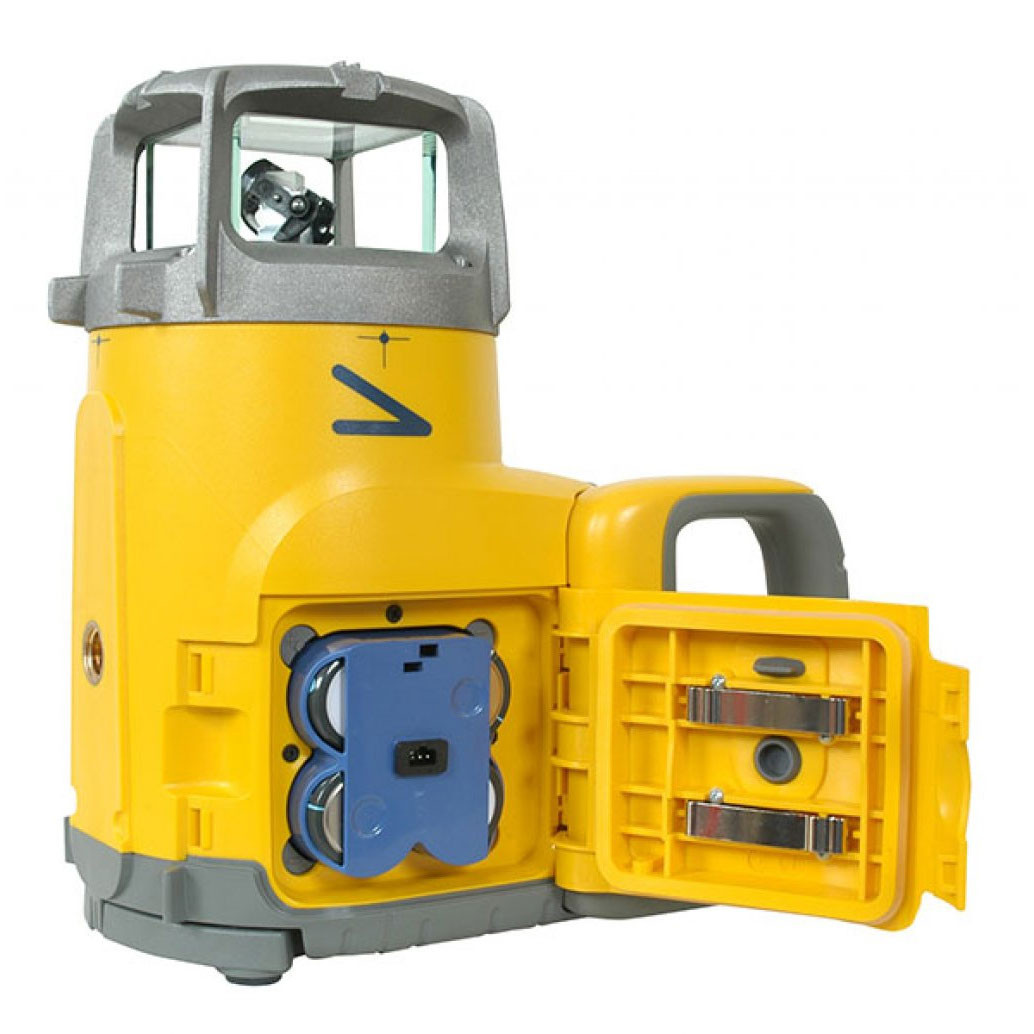

• Power: Rechargeable NiMH battery (40+ hours runtime) or alkaline D-cells
• Durability: IP66 dust and water resistance, -20°F to +122°F operation (-29°C to +50°C)
• Mounting: 5/8"-11 threaded mount for tripods and machine control
• HL760 Receiver Range: 2,600-foot working diameter, 8-channel display, magnetic mount

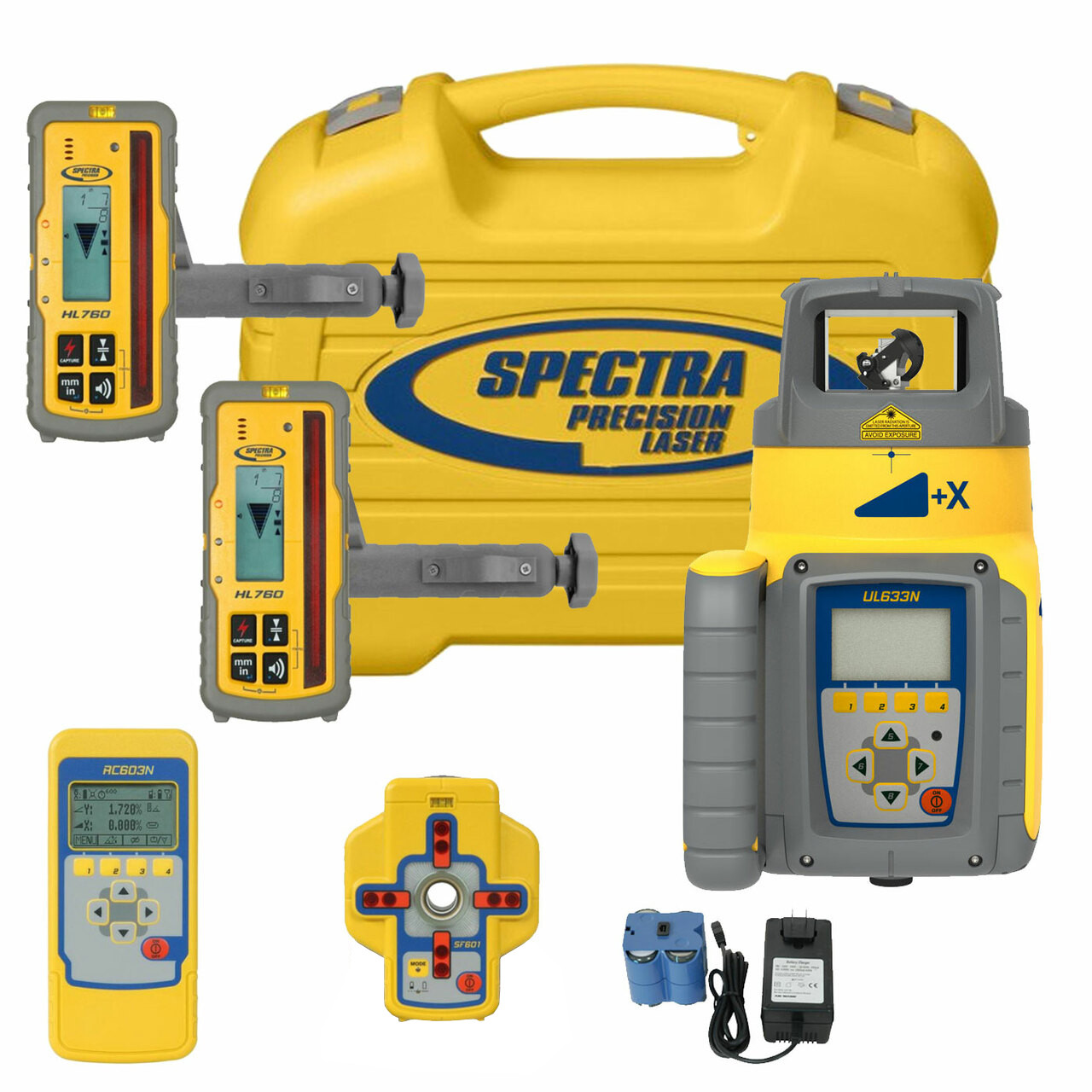

What's in the Kit

• UL633N Universal Laser Transmitter with protective case
• (2) HL760 Laserometer Receivers with LCD digital displays
• Rechargeable NiMH battery pack with charger
• Alkaline battery tray (D-cell backup option)

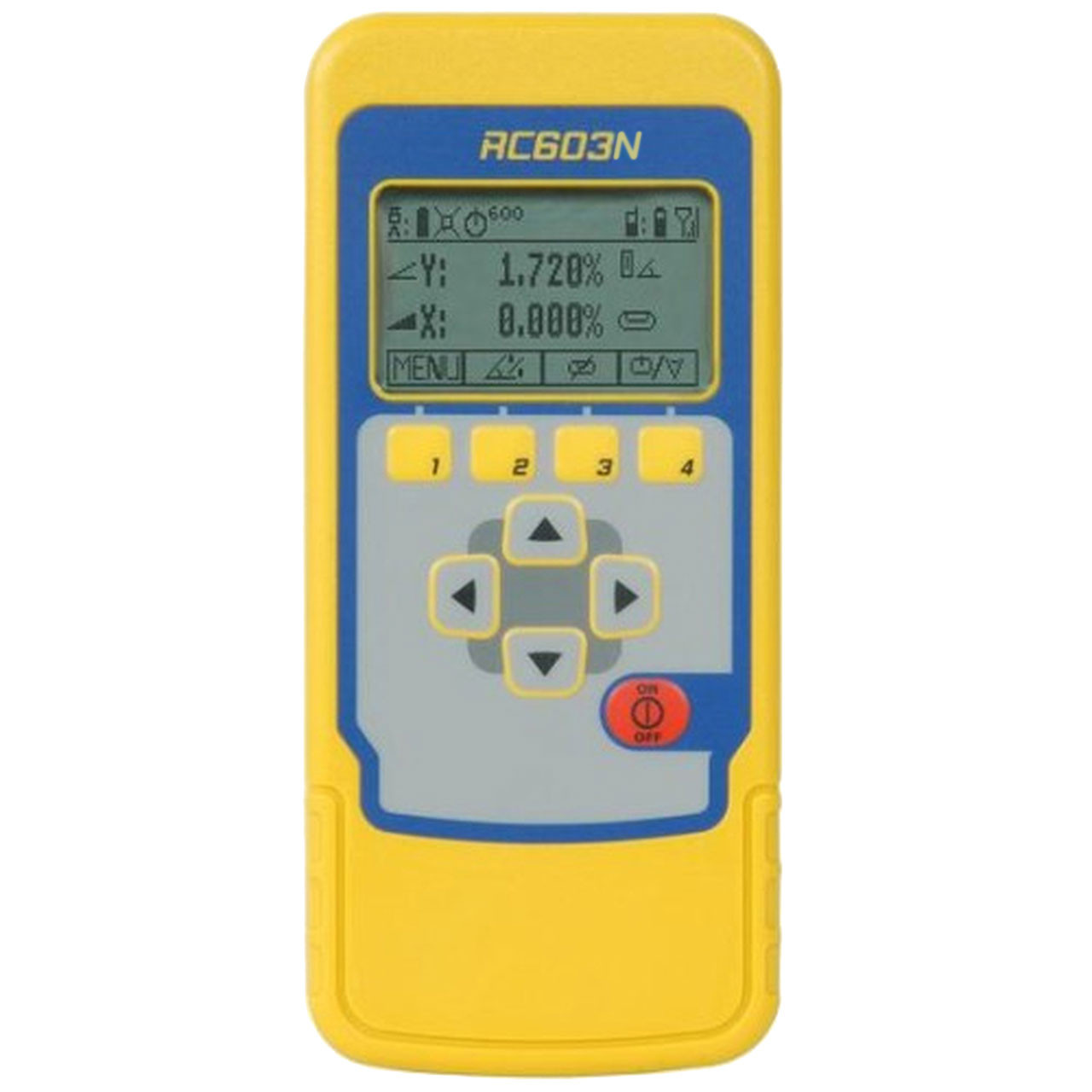

• RC703 full-function remote control (200-foot range)
• Hard-shell carrying case with foam inserts
• Operator manual and quick-start guide
• Calibration certificate and warranty documentation

Job Applications

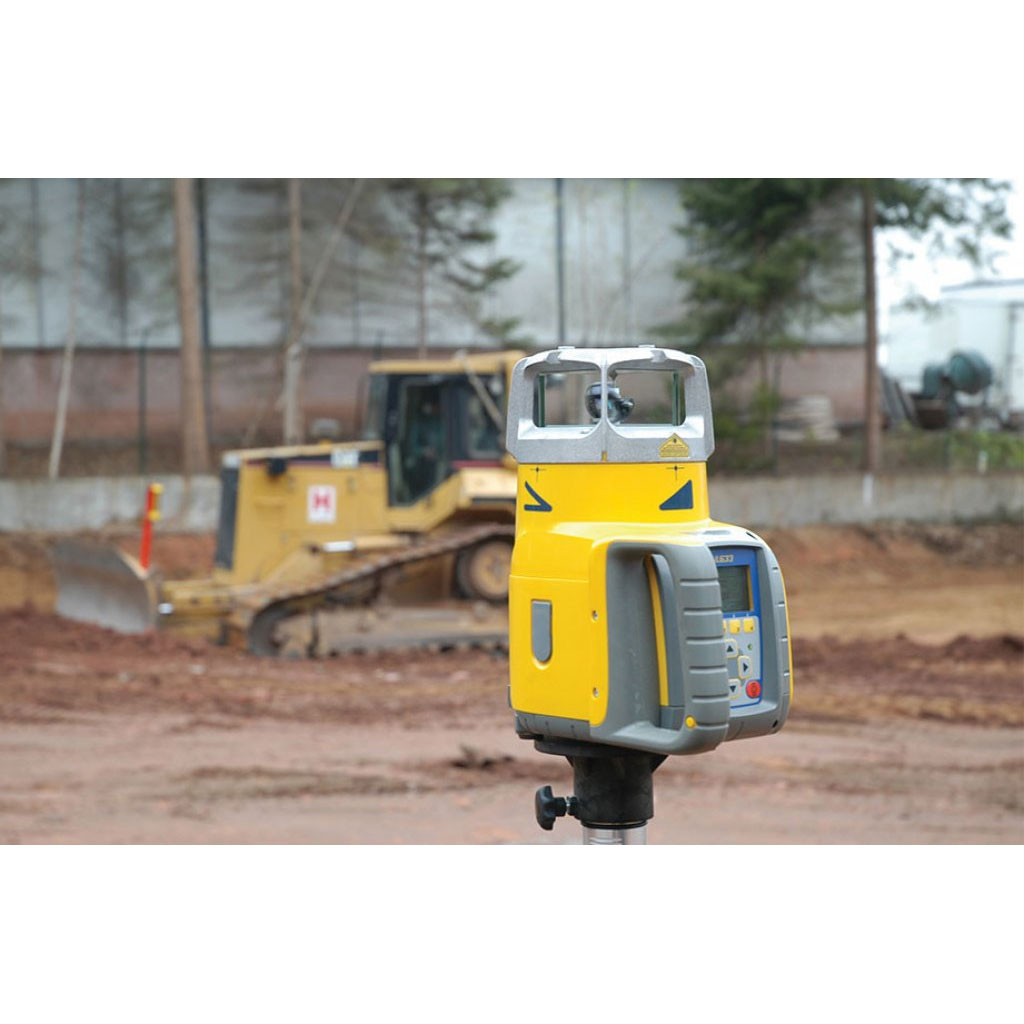

• Site Grading and Excavation: Dual receivers let your excavator operator monitor front bucket position and rear blade elevation simultaneously, maintaining grade on both ends of the machine without repositioning. The 2,600-foot range covers entire building pads or parking lots from a single laser setup, keeping crews moving efficiently.

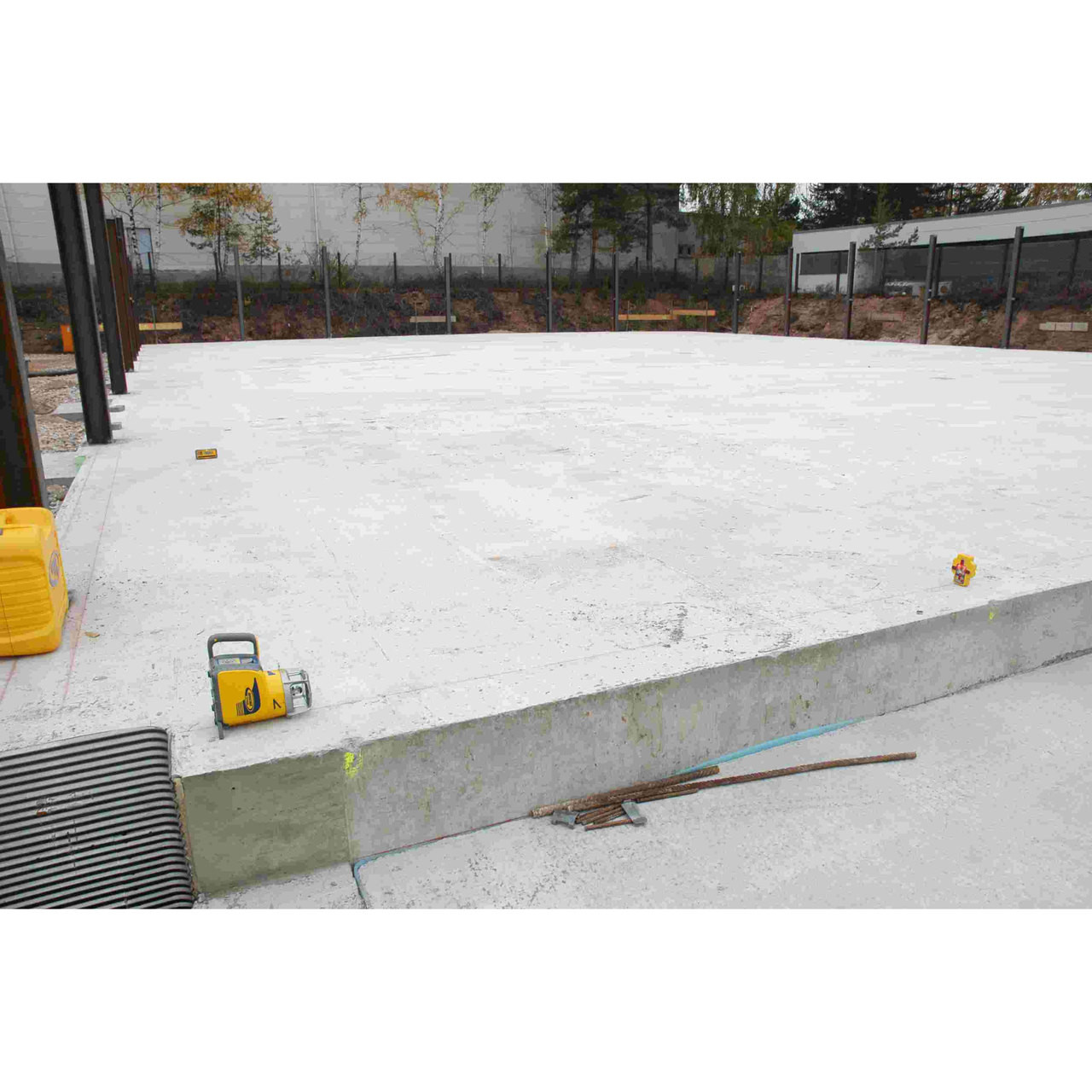

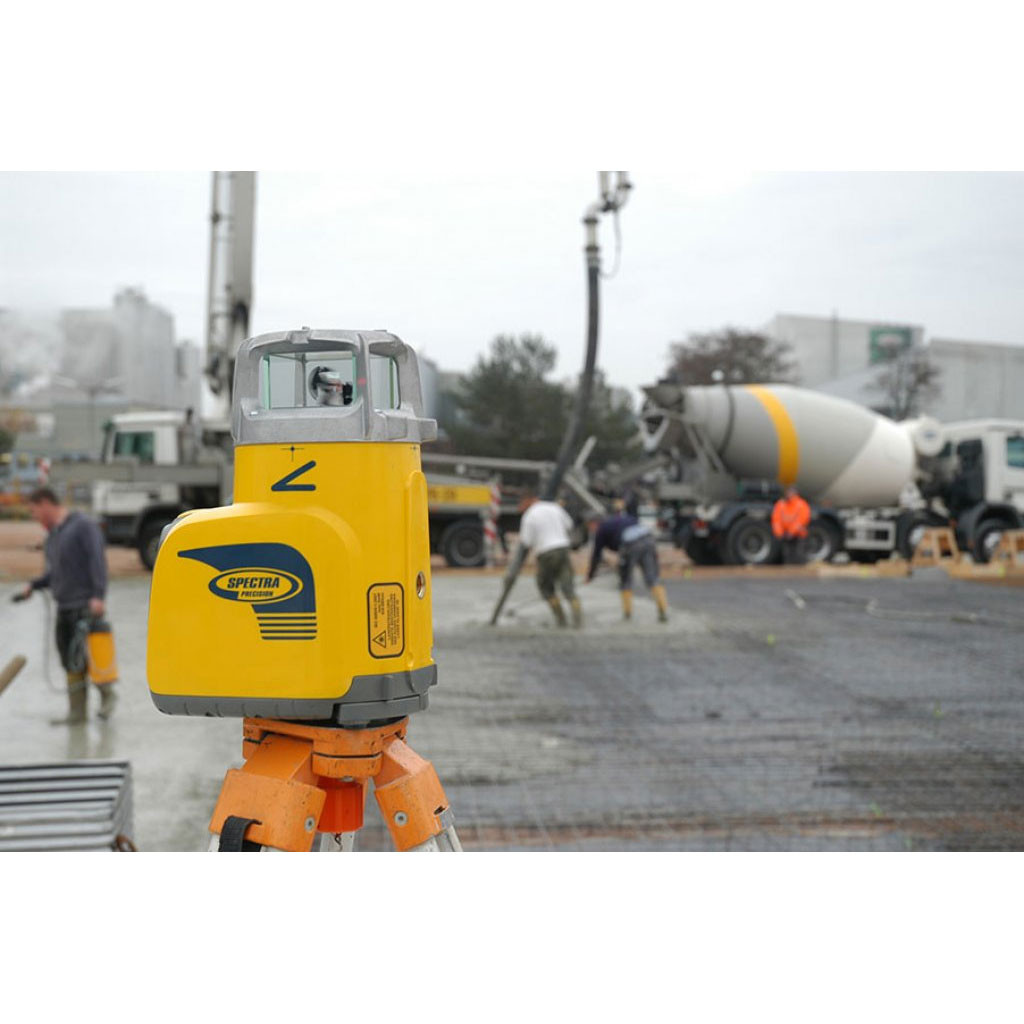

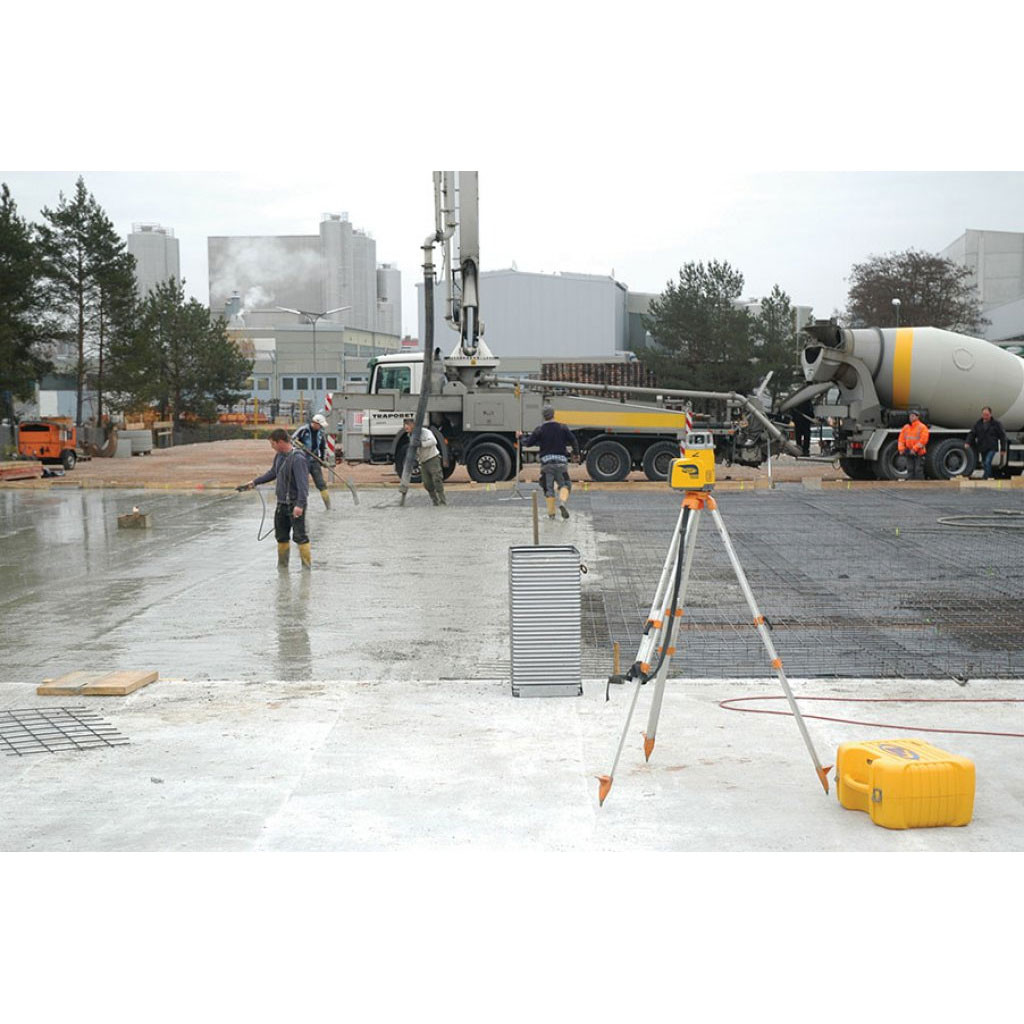

• Concrete Slab Pours: Set elevation benchmarks across large flatwork before screeding begins. The laser's horizontal mode creates a consistent reference plane, while receivers on grade rods give finishers instant readings at any point on the pour—critical for maintaining proper drainage slopes on warehouse floors or parking decks.

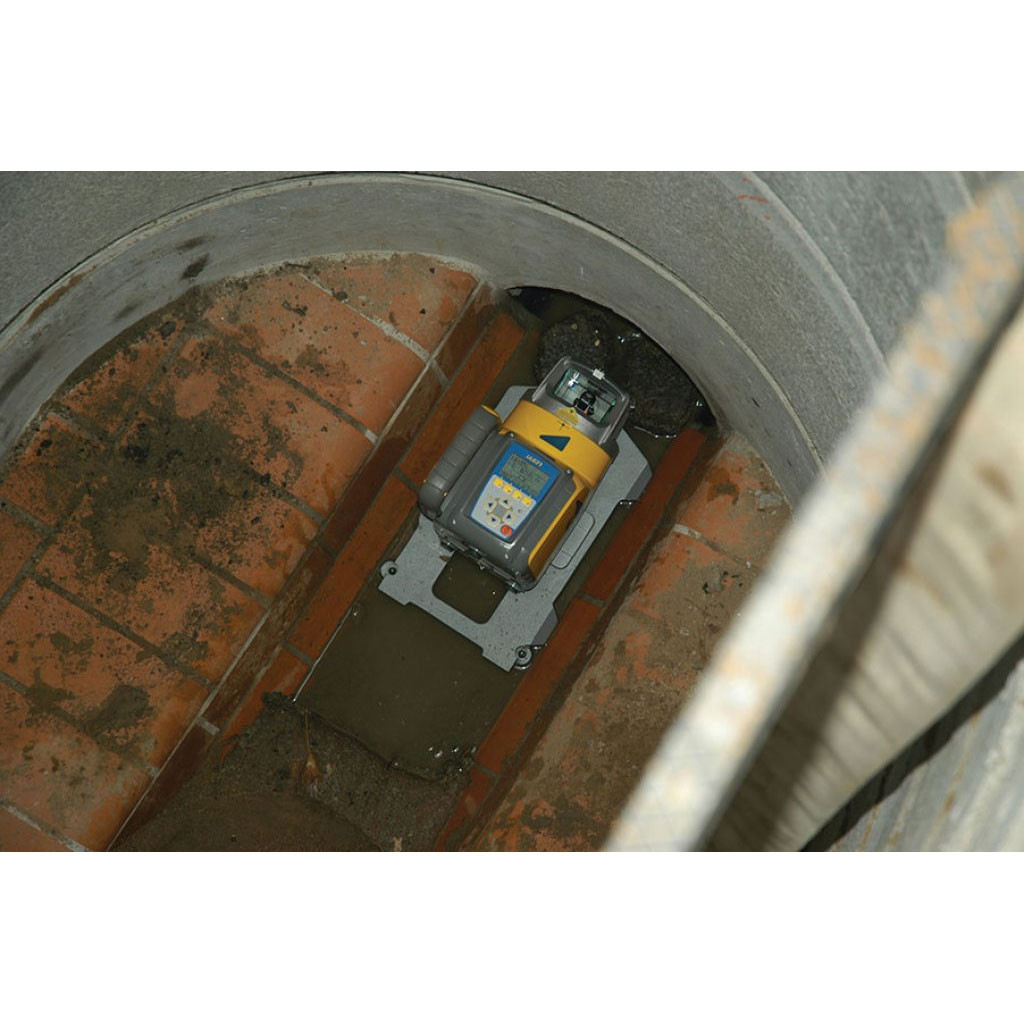

• Drainage and Utility Installation: Program single-axis slopes for sewer lines, storm drains, and irrigation systems. The UL633N maintains precise fall percentages over hundreds of feet, ensuring gravity-flow systems function correctly. Trench crews get continuous feedback without waiting for grade checks from the foreman.

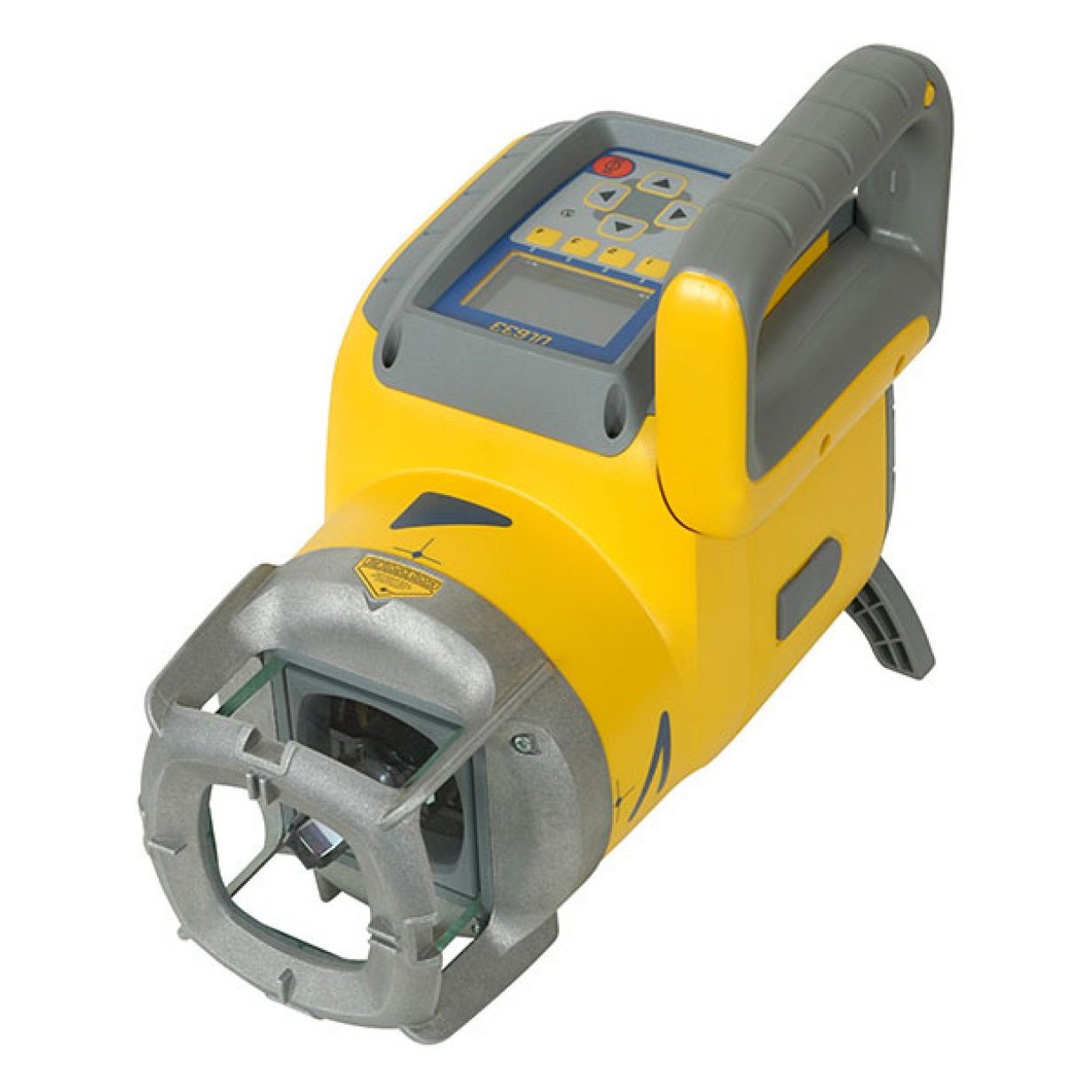

• Vertical Layout and Plumbing: Rotate the laser 90 degrees for column layout, elevator shaft alignment, or wall plumbing on multi-story construction. The dual-grade capability allows simultaneous horizontal and vertical reference planes for complex forming work.
• Agricultural Land Leveling: Achieve proper field drainage and irrigation efficiency with controlled slopes across acreage. The extended range covers large plots, while the laser's stability compensates for ground vibration from tractors and scrapers working nearby.
• Road Construction and Paving: Establish base course elevations and maintain cross-slopes for proper drainage. Mount receivers on motor grader blades or paving screeds for continuous grade monitoring during material placement, reducing base failures and costly callbacks.

Compatible Accessories

• CR700 Machine Receiver: Weatherproof receiver for permanent mounting on excavator masts and dozer blades
• Heavy-Duty Tripod: Aluminum or wood construction tripods with 5/8"-11 thread for stable laser positioning

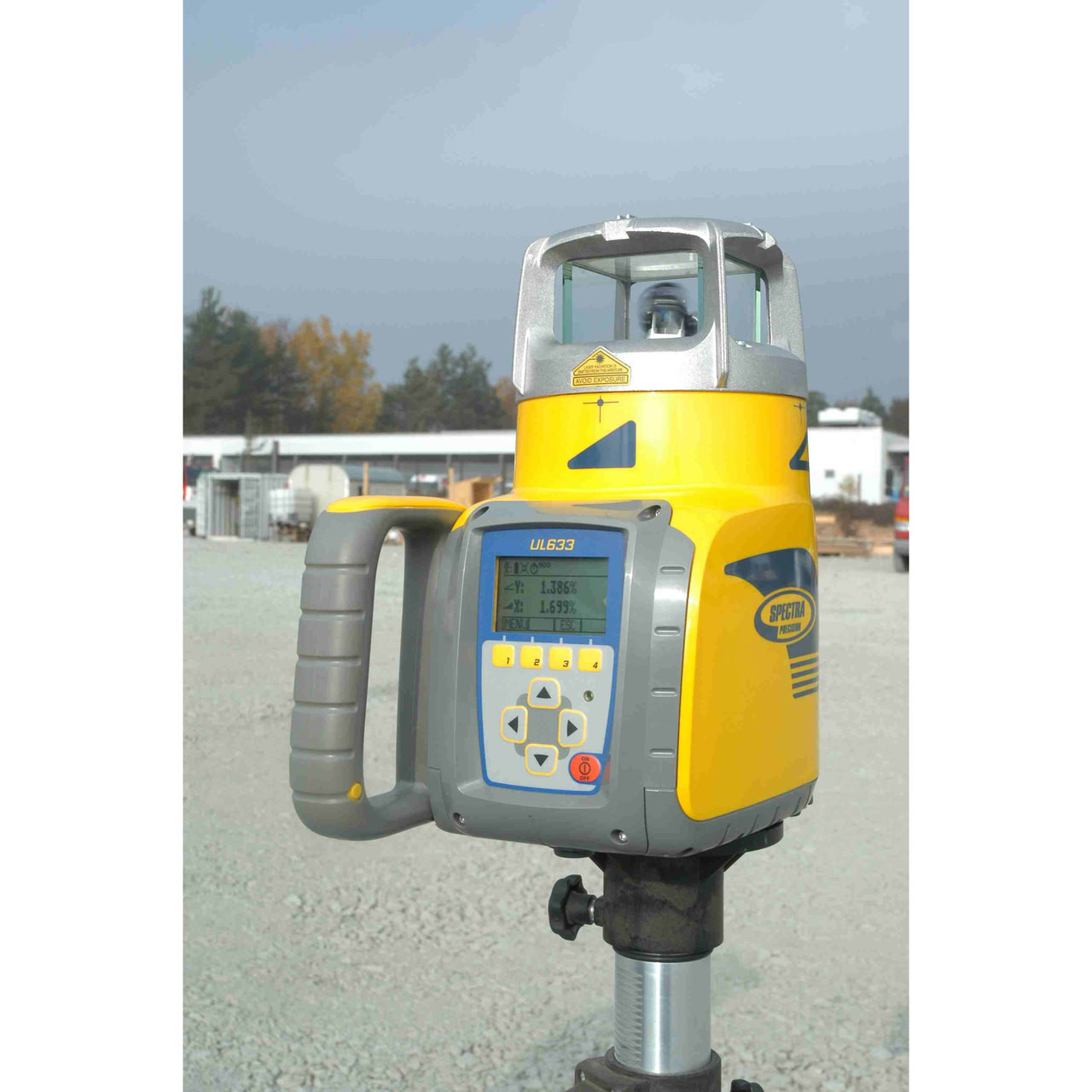

• Elevating Tripod: Extends up to 15 feet for line-of-sight over obstacles and high-reach applications
• Grade Rod Set: Telescoping aluminum rods with metric/inch scales for receiver mounting
• Laser Detector: Handheld LD400 series detector for layout work where receivers aren't practical
• Magnetic Mount Kit: Attaches receivers to steel surfaces on equipment and structures
• Extended Battery Pack: High-capacity NiMH option for multi-day operations without recharging

Related Guides

• How to Choose Between Rotary, Pipe, and Grade Lasers
• Setting Up Laser Receivers for Excavation Grade Control
• Concrete Leveling Techniques: Lasers vs. String Lines
• Maintaining Laser Level Accuracy: Calibration and Care

FAQ

What's the difference between single-grade and dual-grade lasers?

Single-grade lasers create slopes along one axis (front-to-back or side-to-side). The UL633N's dual-grade capability allows compound slopes—simultaneously tilting on two axes for applications like building corners, valleys, or complex drainage systems. Most sitework only requires single-grade, but dual-grade eliminates the need for multiple laser setups on challenging projects.

Can I use just one receiver instead of two?

Absolutely. Many applications only require one receiver—handheld grade checking, single-point excavation, or concrete screeding. The dual-receiver kit is designed for machine control where operators need simultaneous front-and-back monitoring, but each HL760 works independently. The second receiver also serves as a backup or allows two crew members to work from the same laser reference.

How does the HL760 receiver work in bright sunlight?

The HL760 detects the laser beam through an electronic sensor array rather than visual alignment, so direct sunlight doesn't wash out readings like it would with manual sighting. The high-contrast LCD display remains readable in full sun. For maximum range in bright conditions, use the laser's 600 RPM speed setting, which concentrates beam energy for the receivers to detect at distance.

What maintenance does the UL633N require?

Monthly visual inspection for lens cleanliness and housing damage, plus annual calibration checks to verify accuracy. Keep the laser stored in its case between jobs to protect leveling components. The rechargeable battery lasts 2-3 years with regular use before capacity diminishes. Spectra recommends factory calibration every 12 months or after any significant impact or drop—most dealers offer mail-in calibration services with 3-5 day turnaround.
