Topcon LS-100D Compact Digital Laser Sensor Receiver

Read Grade Instantly — No Math, No Guesswork

The Topcon LS-100D digital laser receiver takes the calculation out of grade verification. Unlike basic LED detectors that only tell you high or low, the LS-100D shows you exactly how far off-grade you are with a numerical readout on its dual LCD screens. For grading crews, excavation operators, and site supervisors who need fast, confident grade checks, this compact sensor delivers the kind of precision that keeps jobs on schedule.

Built for Rotating Laser Applications on Active Jobsites

The LS-100D is designed to work with rotating grade lasers across a wide range of horizontal and slope applications. Whether you're setting pipe grade, finishing a parking lot subbase, or cutting a drainage swale, this receiver gives your rod person or machine operator an immediate numerical offset from grade — displayed in both inches and millimeters. The 4-inch capture height picks up the laser beam reliably even in moderate ambient light conditions, and the rugged housing holds up to the bumps and dust of daily site use. It pairs with most major-brand single and dual-grade rotating lasers, making it a versatile addition to any crew's equipment arsenal.

Key Specifications

• Model / Part Number: LS-100D / 1011989-04
• Capture Height: 4 inches (101.6 mm)
• Display Type: Dual LCD screens (front and rear)
• Readout Format: Numerical offset from grade in inches and millimeters
• Operating Range: Up to 330 ft (100 m) radius in standard conditions
• Battery: 9V alkaline (included)
• Battery Life: Approximately 100 hours
• IP Rating: Weather-resistant construction for outdoor use
• Rod Clamp: Universal grade rod clamp included
• Audible Alert: On-grade audio tone

Key Features

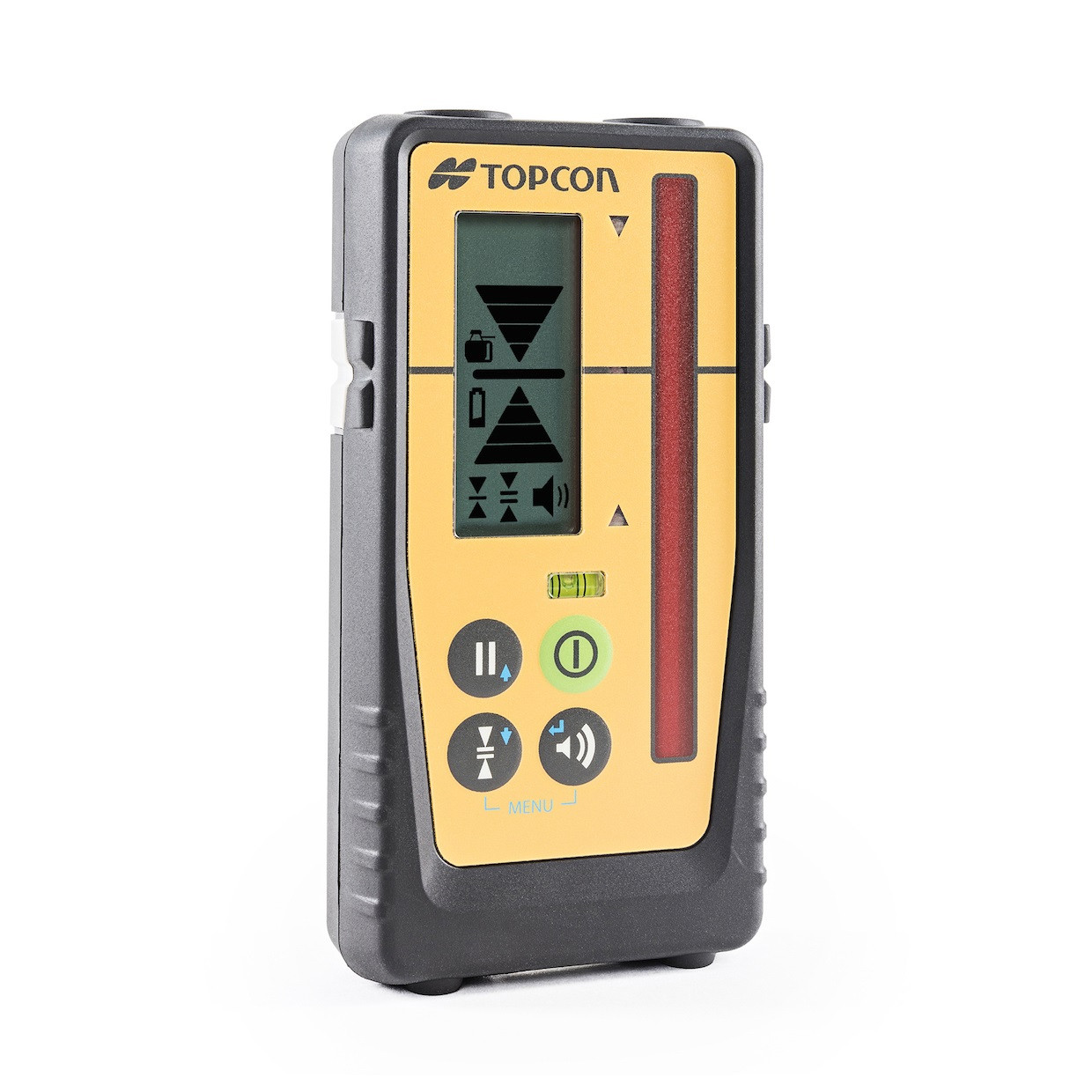

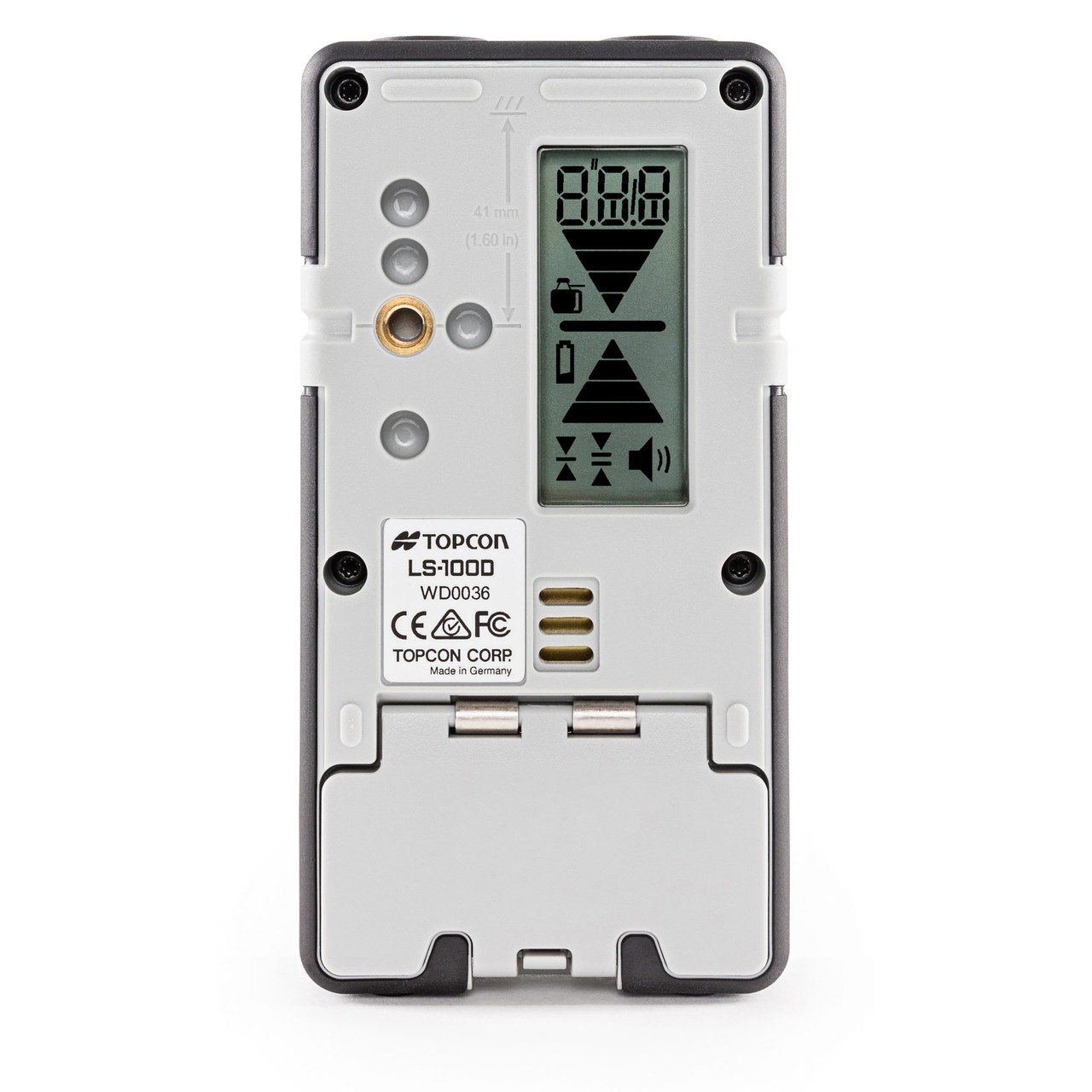

• Dual front-and-rear LCD screens — readable from any angle on the rod
• Numeric offset display eliminates mental math for grade checks
• 4-inch detection window captures the beam quickly during setup
• On-grade audio and visual indicators for hands-free confirmation
• Compatible with most single and dual-grade rotating laser levels
• Compact, lightweight housing fits standard grade rod clamps
• Long 100-hour battery life reduces mid-job interruptions
• Rugged housing built for daily contractor use

Job Applications

Excavation & Mass Grading: Mount the LS-100D on a grade rod and hand it to your laborer — the numeric display lets them call out exact cut or fill numbers to the operator without stepping back to a hub. Faster communication means fewer passes.

Pipe & Utility Installation: Setting storm drain or sanitary sewer at precise fall rates demands more than a blink light. The LS-100D's millimeter-level offset readout lets your crew set invert elevations with confidence on every joint.

Flatwork & Subbase Preparation: Confirm subgrade elevation across a slab or parking lot area quickly. The audible on-grade tone lets operators focus on their work while the display confirms tolerance is met.

Slope Finishing & Drainage Work: When working with a dual-grade laser on a crowned road or sloped site, the LS-100D reads the beam accurately and displays deviation so your finish grade crew can make precise adjustments in real time.

Compatible Accessories

• Topcon RL-H5A Rotating Laser Level — popular horizontal grade laser pairing
• Topcon RL-SV2S Dual-Grade Rotating Laser — slope and grade applications
• Universal Grade Rod Clamp — extended rod mounting options
• Topcon Laser Tripod & Grade Rod Bundle — complete setup kit
• Replacement 9V Alkaline Batteries (4-Pack) — keep spares on the truck

Related Guides

• How to Use a Digital Laser Receiver for Grade Verification
• Rotating Laser vs. Pipe Laser: Choosing the Right Tool for Utilities
• Setting Up a Topcon Rotating Laser System from Scratch
• Laser Receiver Troubleshooting: Common Jobsite Issues & Fixes

Frequently Asked Questions

Will the Topcon LS-100D work with non-Topcon rotating lasers?

Yes. The LS-100D is designed to detect the 635nm red beam used by most major-brand rotating grade lasers, including Spectra, Leica, and DeWalt models. Always verify beam wavelength compatibility with your specific laser before purchase.

What does the numeric display actually show me?

The LCD readout shows the distance above or below grade in real time — for example, "+0.8 in" or "-12 mm" — so your crew knows exactly how much cut or fill is needed without interpolating blink patterns or LED positions.

How far away from the laser can I use the LS-100D?

Under typical outdoor conditions, the LS-100D reliably captures the beam up to approximately 330 feet (100 meters) from the laser instrument. Range may be reduced in bright direct sunlight or dusty air.

Is the LS-100D suitable for machine control or does it require a dedicated machine receiver?

The LS-100D is a handheld/rod-mounted receiver intended for manual grade checking. For automated machine control on dozers, graders, or scrapers, you would need a dedicated mast-mounted machine control receiver such as the Topcon LS-B110W or similar model.
