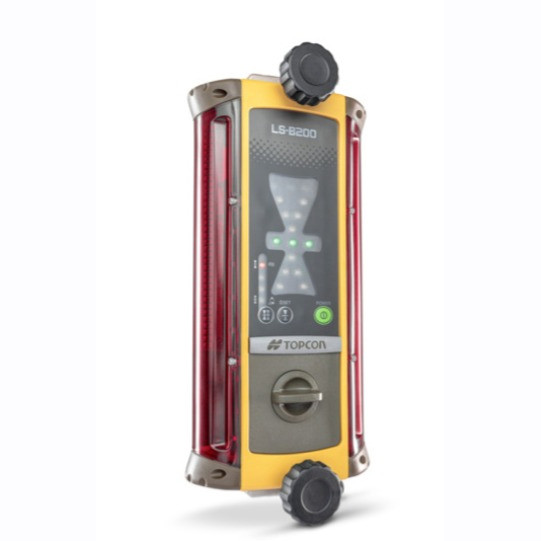

Topcon LS-B200 Laser Machine Display Receiver

Reliable Grade Indication for Machine Control Fleets

The Topcon LS-B200 is a rugged, wired laser grade display receiver engineered for contractors who need dependable machine control performance without the complexity of wireless systems. Designed to integrate directly with Topcon rotating laser transmitters, the LS-B200 provides clear, real-time on-grade indication directly on the machine mast, keeping operators cutting to grade efficiently on grading, site prep, and drainage work. Its hardwired connection means zero wireless pairing hassles and no receiver batteries to manage — just connect, calibrate, and cut.

Product Overview & Jobsite Applications

Built for everyday fleet use on dozers, motor graders, and scrapers, the LS-B200 fits seamlessly into Topcon single-slope and dual-slope laser grade control systems. The large LED display delivers at-a-glance coarse and fine grade indication so operators can react quickly without stopping to check grade with a rod. Whether you are rough-grading a subdivision lot, finishing a parking lot subbase, or establishing drainage slopes on a commercial site, the LS-B200 keeps production moving. Its entry-level price point makes it the go-to choice for contractors standardizing multiple machines on a Topcon laser system without duplicating premium sensor costs across every unit in the fleet.

Key Specifications

• Model: Topcon LS-B200
• Connection Type: Wired (hardwired cable to control box)
• Display Type: Large LED coarse/fine grade indicator
• Detection Window: 360-degree laser reception
• Compatible Systems: Topcon single and dual-slope rotating laser grade control systems

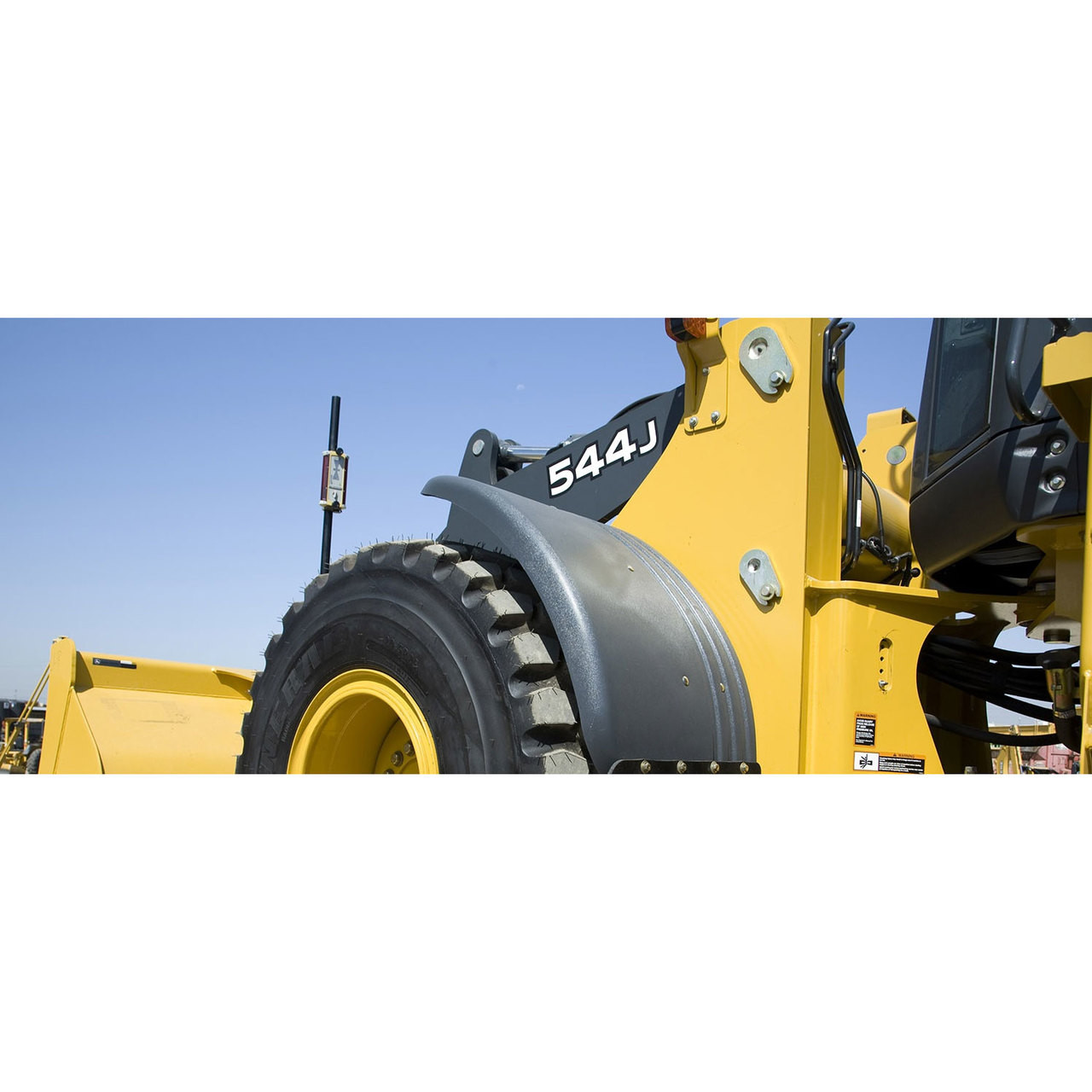

• Mounting: Standard mast pole mount for machine blade or bucket
• Operating Temperature: Designed for full outdoor contractor use
• Construction: Rugged housing rated for jobsite vibration and dust exposure

Key Features

• Hardwired reliability: Wired cable connection eliminates wireless dropout, pairing failures, and receiver battery replacement — signal stays consistent regardless of jobsite RF interference
• Large LED display: High-visibility coarse and fine grade LEDs allow operators to read grade status from the cab without straining or stopping production
• 360-degree detection: Full circumference laser reception ensures the receiver picks up the rotating laser beam from any machine orientation on the site
• Fleet-friendly value: Entry-level cost makes it practical to equip every machine in a Topcon-based fleet with a dedicated display receiver
• Simple installation: Mounts to standard machine mast pole; integrates directly with Topcon grade control boxes without additional adapters
• Jobsite-tough housing: Sealed, impact-resistant construction withstands blade vibration, dust, and the daily punishment of heavy equipment operation

Job Applications

Subdivision Site Grading: Keep dozers cutting to finished subgrade elevation across large residential lots. The LS-B200 gives operators instant on-grade feedback so they hit grade consistently pass after pass without over-cutting.

Parking Lot Subbase Finishing: Establish precise single-slope or dual-slope grades on commercial parking lot subbases. The clear LED display ensures grader operators maintain tight tolerances required for proper drainage and paving prep.

Drainage Swale & Ditch Work: Set consistent drainage slopes on retention ponds, swales, and roadside ditches. The wired receiver holds grade indication reliably even in wet, muddy conditions where wireless signal can be unpredictable.

Scraper Pan Operations: Mount the LS-B200 on self-propelled or push-pull scrapers for cut-and-fill earthmoving. Operators can load and dump to consistent grade elevation, reducing finish blade passes and improving overall site efficiency.

Compatible Accessories

• Topcon RL-H5A Single-Slope Rotating Laser — recommended companion transmitter for single-plane grade work
• Topcon RL-200 2S Dual-Slope Rotating Laser — dual-slope transmitter for parking lots and complex drainage grades
• Topcon Machine Mast Pole Kit — standard mounting hardware for blade and bucket receiver installation
• Topcon Grade Control Box — connects LS-B200 wired output to automatic blade control systems
• Replacement Wired Receiver Cable — OEM replacement cable for LS-B200 hardwired connection

Related Guides

• How to Set Up a Laser Grade Control System on a Dozer
• Wired vs. Wireless Machine Receivers: Which Is Right for Your Fleet?
• Topcon Laser System Compatibility Guide for Machine Control
• Choosing the Right Rotating Laser for Grading & Site Prep

Frequently Asked Questions

What rotating lasers is the Topcon LS-B200 compatible with?

The LS-B200 is designed for use with Topcon rotating laser grade control systems, including popular single-slope and dual-slope models such as the RL-H5A and RL-200 2S series. Always verify compatibility with your specific control box model before purchase — our team at Express Tools can confirm fitment for your setup.

Does the LS-B200 require batteries?

No. The LS-B200 uses a hardwired cable connection to the machine control box, so it draws power directly from the machine system. There are no internal batteries to charge or replace, which simplifies maintenance across a large equipment fleet.

Can the LS-B200 be used for dual-slope grade control?

The LS-B200 is a grade display receiver that shows on-grade indication from the laser signal it detects. Dual-slope control capability depends on the rotating laser transmitter and control box in your system. Contact Express Tools to confirm whether your full system configuration supports dual-slope operation with this receiver.

How does the LS-B200 differ from wireless machine receivers like the Topcon LS-B200W?

The LS-B200 uses a direct wired connection to the control box, while wireless variants communicate via radio frequency. The wired version offers the advantage of zero signal dropout from RF interference — ideal for jobsites with heavy equipment traffic or other wireless devices operating nearby. The tradeoff is a physical cable run, which some installations may require routing carefully along the mast and blade.
