Topcon RL-200 1S Single Slope Grade Laser Package, w/ LS-80L Receiver (314910702)

Overview

The Topcon RL-200 1S Single Slope Grade Laser Package delivers reliable horizontal leveling and single-axis slope capabilities for construction professionals who need straightforward grade control without the complexity of dual-slope systems. Engineered for durability and ease of use, this self-leveling rotary laser combines Topcon's legendary accuracy with practical features that keep projects moving forward. The included LS-80L receiver provides front-and-back detection with visual and audible alerts, making it ideal for lone operators working across excavation, drainage, and foundation projects. With alkaline battery power and rugged construction, the RL-200 1S stands up to demanding jobsite conditions while maintaining precision within ±3/32 inch at 100 feet. This complete package gives contractors, excavators, and site grading specialists everything needed to establish accurate reference planes for earthmoving, concrete work, and general construction applications.

Key Specifications

• Leveling System: Self-leveling horizontal and single-axis slope (manual grade in one direction)
• Accuracy: ±3/32 inch (±2.5mm) at 100 feet
• Working Diameter: Up to 2,600 feet (800m) with receiver
• Self-Leveling Range: ±5 degrees
• Rotation Speed: 600 RPM standard
• Power Source: 4 alkaline D-cell batteries (included)
• Battery Life: Approximately 100 hours of continuous operation
• Operating Temperature: 14°F to 122°F (-10°C to 50°C)
• IP Rating: IP66 dust-tight and water-resistant
• Receiver Detection Range: LS-80L provides detection diameter up to 2,600 feet
• Receiver Accuracy: ±1/16 inch (±2mm) at digital display
• Warranty: 2-year manufacturer warranty on laser; 1-year on receiver

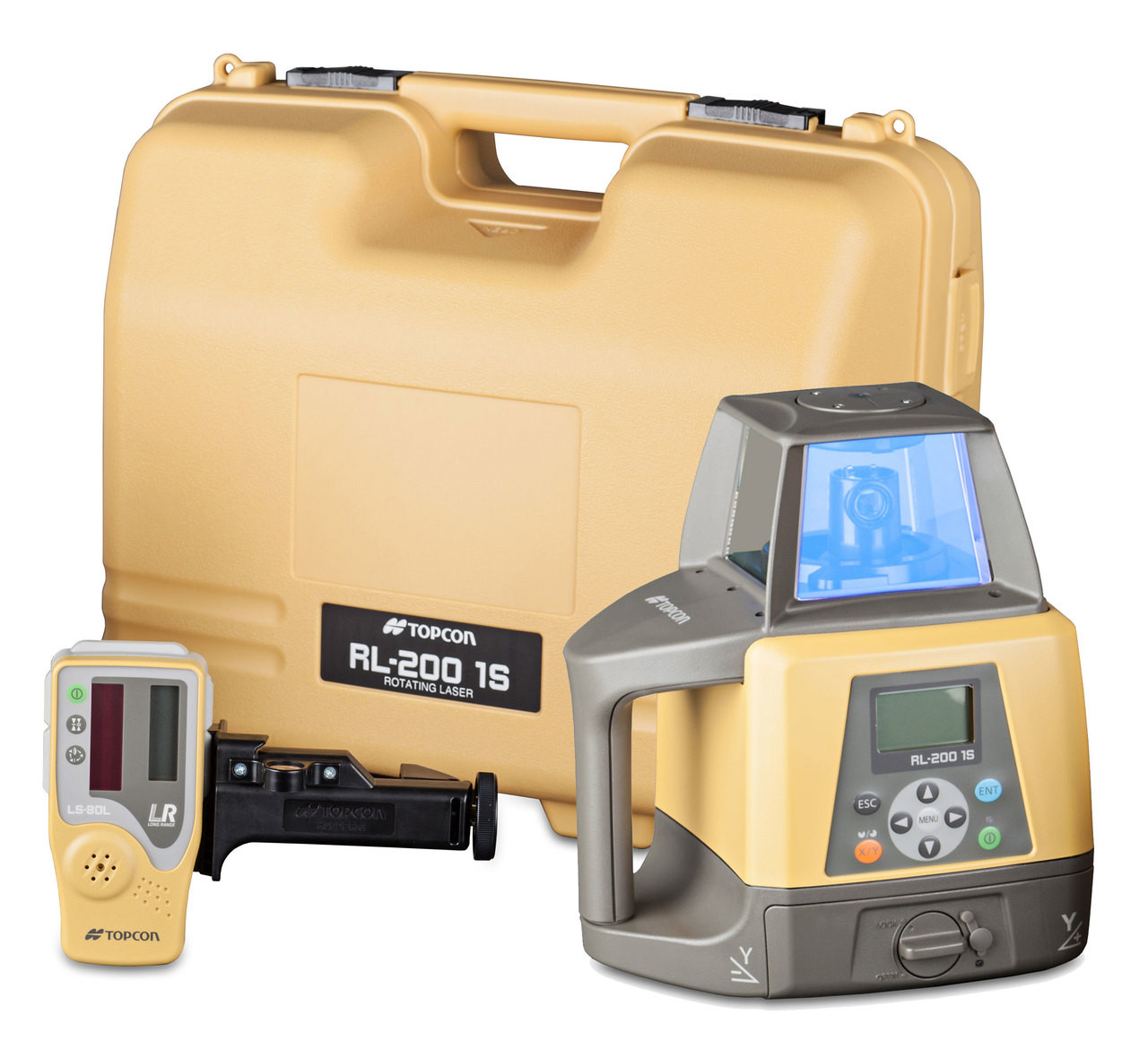

What's in the Kit

• Topcon RL-200 1S Single Slope Rotary Laser Level
• LS-80L Laser Receiver with rod clamp
• 4 Alkaline D-Cell Batteries (pre-installed)
• Rechargeable Battery Tray (compatible with optional NiMH batteries)
• Laser Safety Glasses
• Hard Shell Carrying Case with custom foam insert
• Operating Manual and Quick Start Guide
• Calibration Certificate

Job Applications

• Foundation and Footings: Establishing consistent elevation references across foundation dig-outs ensures proper concrete depth and eliminates costly rework. The RL-200 1S provides a rotating reference plane that multiple crew members can use simultaneously with grade rods, speeding up layout verification and reducing measurement errors that plague manual leveling methods.
• Site Excavation and Rough Grading: When clearing and leveling building pads or parking areas, the single-slope capability allows operators to set precise fall for drainage while maintaining productivity. Equipment operators can reference the laser receiver mounted on machinery to cut or fill to exact grade specifications, reducing over-excavation and material waste while ensuring proper site drainage from the start.
• Concrete Slab Preparation: Achieving proper sub-base elevation before concrete pours is critical for slab integrity and material cost control. The RL-200 1S gives concrete crews a consistent reference to screed from, ensuring uniform thickness across large pours and preventing low spots that compromise structural performance and require expensive remediation.
• Drainage and Utility Trenching: Installing drainage lines, water mains, and sewer pipes demands precise slope control for gravity flow systems. The single-axis slope function lets crews establish the exact fall percentage required by engineering specs, while the receiver's front-and-back detection helps backhoe operators maintain grade throughout long trench runs without constant manual checking.
• Retaining Wall and Landscape Construction: Building stepped walls, terraced landscapes, or uniform grading for hardscaping requires multiple consistent elevation references. The laser's 2,600-foot working diameter covers large properties from a single setup, while the receiver's accuracy ensures that wall courses, paver bases, and landscape tiers maintain proper alignment and drainage characteristics.
• Agricultural Land Leveling: Field leveling for irrigation efficiency and water management benefits from the RL-200 1S's ability to maintain consistent grades across large areas. Farm contractors can guide land planes and scrapers using the laser reference, creating uniform fields that eliminate standing water, improve crop yields, and optimize irrigation system performance without expensive surveying services.

Compatible Accessories

• Topcon LS-100D Digital Laser Receiver: Upgrade to millimeter-level digital display for enhanced precision on critical applications
• RC-200 Remote Control: Adjust laser slope and rotation speed from up to 200 feet away
• Topcon Elevator Tripod: Heavy-duty adjustable-height tripod for stable laser mounting
• Rechargeable NiMH D-Cell Batteries: Reduce operating costs with rechargeable power solution
• Laser Detector Mounting Kit: Attach LS-80L to excavator booms, grader blades, and other equipment
• Grade Rods and Measuring Poles: Lenker, Seco, and CST grade rods compatible with rod clamp
• Laser Alignment Targets: Reflective targets for layout and alignment applications

Related Guides

• Rotary Laser Level Buying Guide: Choosing the Right Grade Laser
• How to Set Up and Calibrate a Single-Slope Rotary Laser
• Laser Receiver Best Practices for Accurate Grade Control
• Excavation Grade Checking Techniques for Contractors

FAQ

What's the difference between single-slope and dual-slope laser levels?

Single-slope lasers like the RL-200 1S can create grade in one direction only—ideal for drainage runs, ramps, or simple sloped applications. Dual-slope models allow grade adjustment in two perpendicular directions simultaneously, which is necessary for complex drainage systems, parking lots with multiple fall directions, or sports field construction. For most excavation, foundation, and general construction work, single-slope capability provides all the functionality needed at a more economical price point.

Can I use this laser indoors for interior construction applications?

Yes, the RL-200 1S works excellent for interior applications including drop ceiling installation, partition layout, and interior slab work. The laser is visible indoors without a receiver for reference distances up to approximately 50-70 feet depending on ambient light. For longer distances or very bright conditions, use the included LS-80L receiver. The compact size makes it practical for interior spaces, and the horizontal mode provides consistent elevation references across rooms and floors.

How long do the batteries last, and what are my power options?

The included alkaline D-cell batteries provide approximately 100 hours of continuous operation under normal conditions. The package includes a rechargeable battery tray that accepts optional NiMH rechargeable D-cells, which reduces long-term operating costs for frequent users. Battery life varies with temperature—cold conditions reduce runtime, so keep spare batteries available during winter work. The low-battery indicator provides advance warning before power depletion.

What's the effective working range with the LS-80L receiver in real-world conditions?

The LS-80L receiver provides reliable detection up to 2,600 feet diameter (1,300-foot radius) in typical jobsite conditions. Practical working range depends on ambient light, atmospheric conditions, and terrain. In bright sunlight or dusty conditions, effective range may reduce to 1,500-2,000 feet but still covers most construction sites from a single laser setup. For maximum range, position the laser centrally on site and avoid aiming the beam through heavy dust, fog, or heat shimmer when possible.
