Topcon RL-200 2S Dual Slope Grade Laser Package, w/ LS-100D Receiver (314920782-2T) Rechargeable Batteries, Inches Rod and HD Tripod

Professional Dual-Axis Grading Laser for Complex Site Work

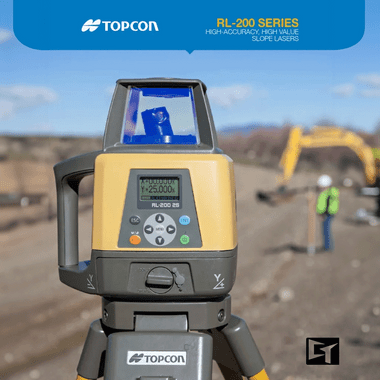

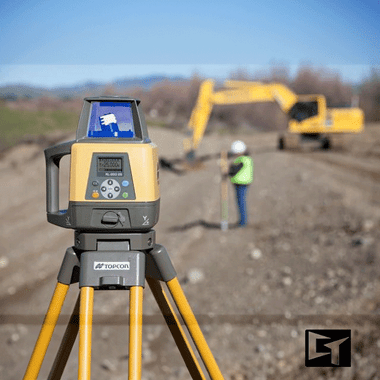

The Topcon RL-200 2S is a self-leveling, dual-slope rotating laser built for contractors who need precise X and Y axis grade control on demanding jobsites. Model 314920782-2T is the complete 2T package — everything you need straight out of the box. With a maximum slope capability of 25% on both axes simultaneously, the RL-200 2S tackles complex grading tasks that a single-axis laser simply can't handle. Whether you're cutting slopes on a commercial parking lot, establishing finish grades for a sports field, or controlling drainage on a large pad, this machine delivers the accuracy and reliability Topcon is known for.

Package Overview & Jobsite Applications

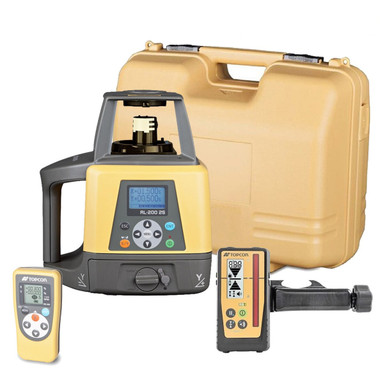

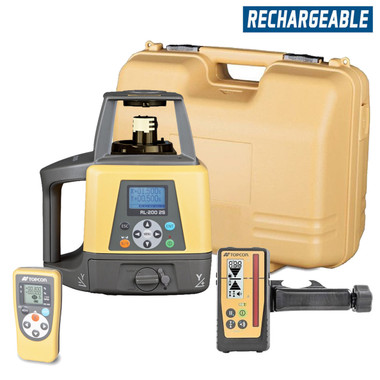

The RL-200 2S 2T package is designed to be a complete, field-ready solution. It ships with the LS-100D digital receiver, which provides clear cut/fill audio and visual feedback at extended ranges. The included RD-400 remote control lets operators adjust grade settings from across the jobsite without returning to the instrument — a real time-saver when you're dialing in finish grades. The rechargeable Li-ion battery system delivers consistent runtime throughout a full workday, and the heavy-duty tripod and grade rod round out the kit for immediate deployment on any site.

Key Specifications

• Model: Topcon RL-200 2S (314920782-2T)
• Laser Class: Class 3R, 635nm visible red
• Self-Leveling Range: ±5° automatic compensation
• Grade Range (X-Axis): -25% to +25%
• Grade Range (Y-Axis): -25% to +25%
• Grade Accuracy: ±1mm/10m (±1/16" @ 100')
• Working Radius: Up to 800m diameter (2,600 ft)
• Rotation Speed: 300, 600, or 1200 RPM selectable
• Battery Life: Approx. 60 hours (Li-ion)
• IP Rating: IP66 dust and water resistant
• Operating Temperature: -20°C to +50°C (-4°F to 122°F)

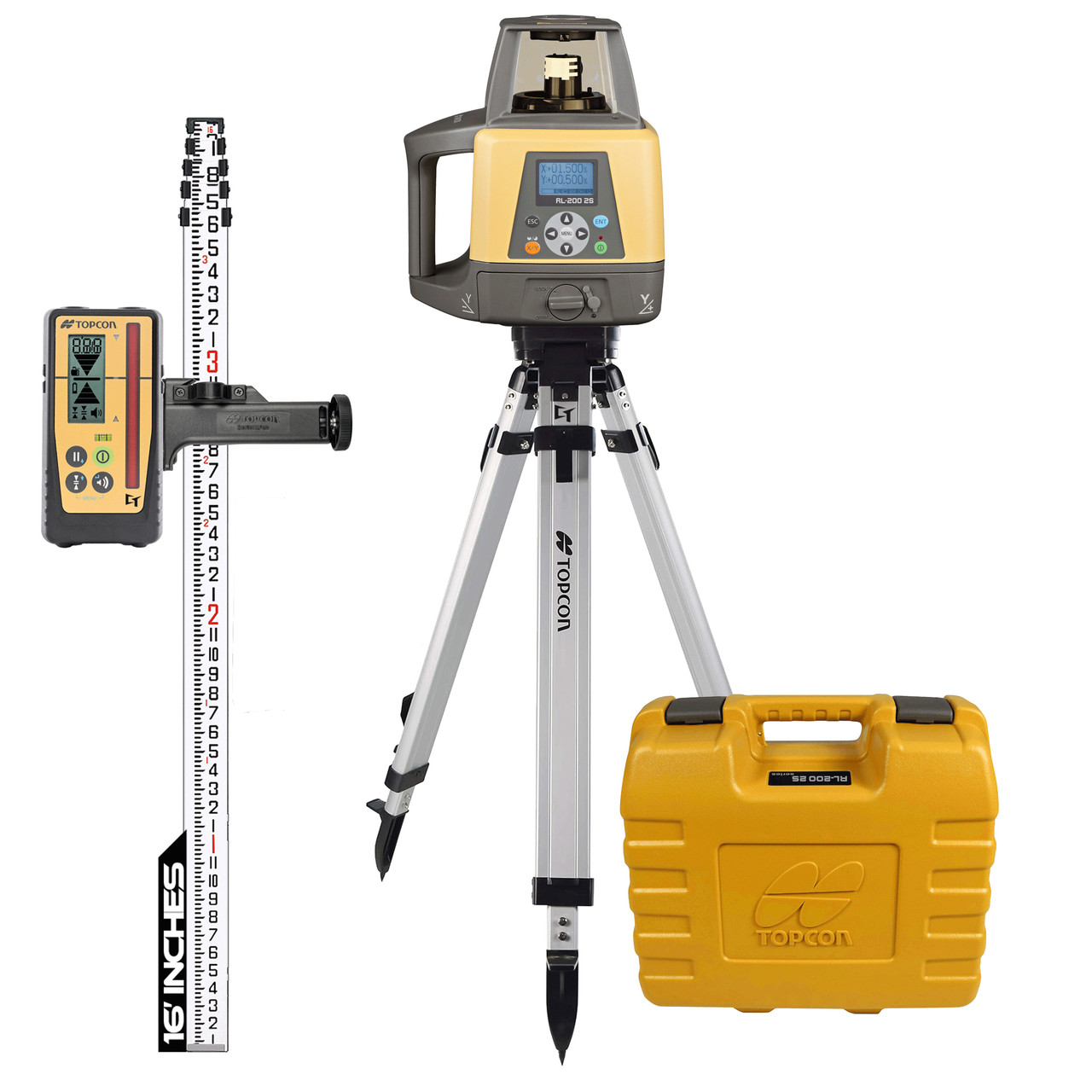

What's in the 2T Kit

• Topcon RL-200 2S dual-slope rotating laser transmitter
• LS-100D digital grade receiver with rod clamp
• RD-400 wireless remote control
• Rechargeable Li-ion battery pack + charger
• Heavy-duty adjustable tripod
• Telescoping grade rod
• Carrying case for laser head
• Operator's manual and calibration certificate

Job Applications

Commercial Parking Lots: Establish dual-direction cross slopes to meet ADA drainage requirements and spec tolerances — simultaneously control X and Y pitch without resetting the instrument.

Athletic Fields & Turf Grading: Crown grading for football fields, soccer pitches, and baseball infields requires consistent fall in two directions. The RL-200 2S sets both grades in one shot.

Site Pads & Building Foundations: Control finish subgrade elevation and slope simultaneously to ensure proper drainage away from structures across large building pads.

Road & Highway Shoulder Work: Set and maintain consistent cross-fall on road shoulders and ditches where both longitudinal and transverse grades must be held tight.

Compatible Accessories

• Topcon LS-100D Replacement Receiver
• Topcon RD-400 Remote Control
• Topcon Exterior Grade Rod with Clamp
• Replacement Li-ion Battery Pack for RL-200 Series
• Heavy-Duty Laser Tripod — 8 ft Aluminum
• Topcon RL-200 2S Hard Carry Case

Related Guides

• How to Set Dual-Slope Grades with the Topcon RL-200 2S
• RL-200 2S vs RL-SV2S: Which Dual-Slope Laser Is Right for Your Work?
• Using the LS-100D Receiver for Machine Control Grade Checking
• Rotating Laser Buyer's Guide for Grading Contractors

Frequently Asked Questions

Can the RL-200 2S set different slopes on both axes at the same time?

Yes — that's the core capability of the RL-200 2S. You can independently dial in X-axis and Y-axis grades up to 25% simultaneously, making it ideal for any application requiring compound slope control.

What is the working range of the included LS-100D receiver?

The LS-100D receiver is rated for use up to 800 meters (approximately 2,600 feet) from the laser head in good conditions, providing ample coverage for large commercial sites.

Is the RL-200 2S compatible with machine control systems?

The RL-200 2S is primarily a manual-control grade laser designed for rod-and-receiver grade checking. For full machine control integration (motor graders, dozers), Topcon's GL or RL-SV series are the recommended platforms.

How long does the battery last on a full charge?

Topcon rates the Li-ion battery system at approximately 60 hours of continuous operation. Most contractors get a full week of typical site use on a single charge cycle.
