Topcon RL-200 2S (314920762-1T) Dual Slope Grade Laser Package, LS-80X Receiver, Tenths Rod and HD Tripod - Rechargeable

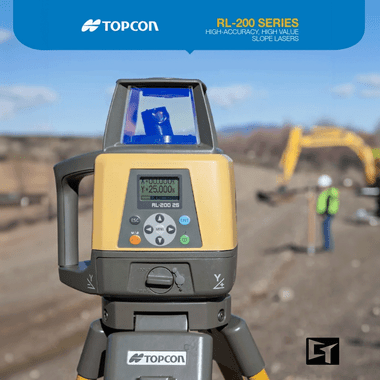

The Topcon RL-200 2S is a professional-grade dual slope rotating laser engineered for contractors who need precise, repeatable grade control on complex earthwork, concrete, and drainage jobs. This complete kit—model 314920762-1T—pairs the RL-200 2S laser head with the LS-80X digital receiver, a tenths rod, and a heavy-duty adjustable tripod, giving your crew everything required to hit grade accurately from day one on the jobsite.

Dual-Axis Slope Control for Complex Grade Work

Unlike single-slope lasers, the RL-200 2S lets you simultaneously set independent X and Y axis slopes across its full ±10% grade range. Whether you're establishing two-way drainage planes on a parking lot, matching a building pad to an architect's drainage spec, or grading a concrete slab to a defined fall, the RL-200 2S handles it in a single setup without manual tilt compensation. The instrument self-levels within ±4° and locks in your slope values with push-button simplicity, reducing setup time and eliminating manual grade calculations in the field.

Key Specifications

• Model: Topcon RL-200 2S (SKU: 314920762-1T)
• Slope Range: ±10% on both X and Y axes simultaneously
• Self-Leveling Range: ±4°
• Accuracy: ±1mm at 10m (±3/32" at 30')
• Operating Range: Up to 800m diameter (with LS-80X receiver)
• Rotation Speed: 300, 600, or 1200 RPM selectable
• IP Rating: IP66 — fully dustproof and waterproof
• Power: Rechargeable lithium-ion battery (up to 40 hours runtime)
• Display: Large LCD with remote-ready interface
• Receiver: Topcon LS-80X digital grade display receiver

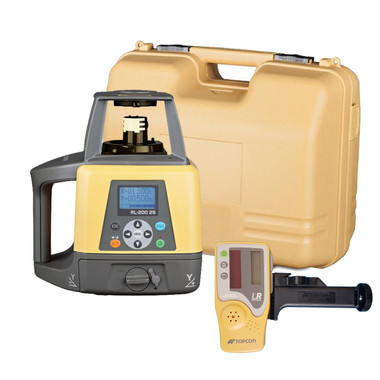

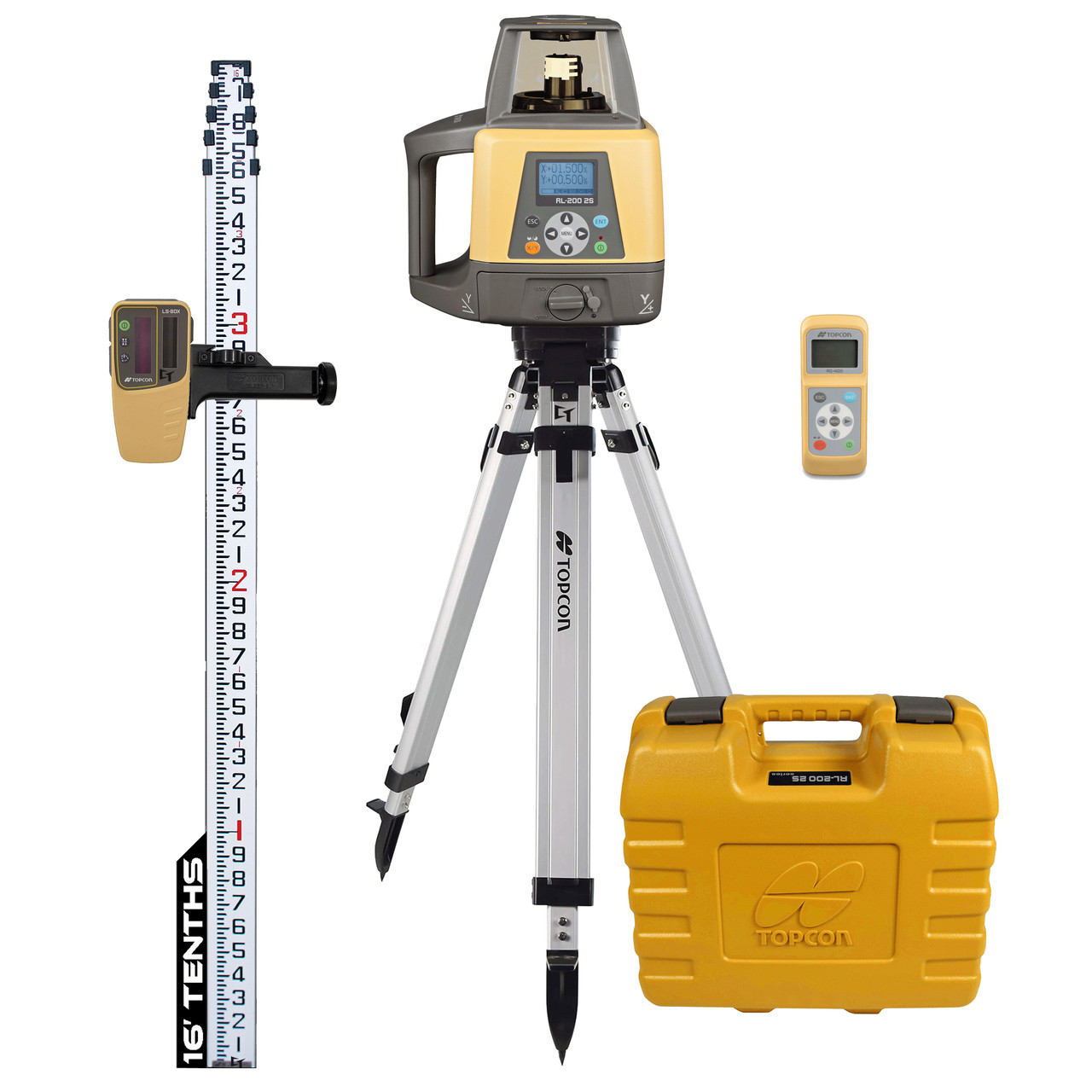

What's in the Kit

• Topcon RL-200 2S dual slope rotating laser
• Topcon LS-80X digital laser receiver with grade readout

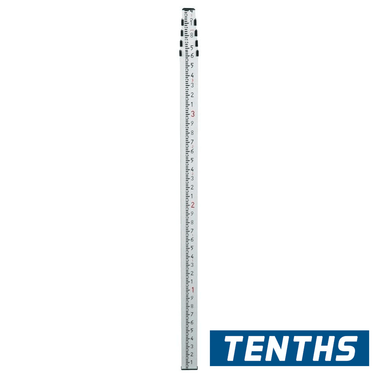

• Tenths rod for precise elevation transfers

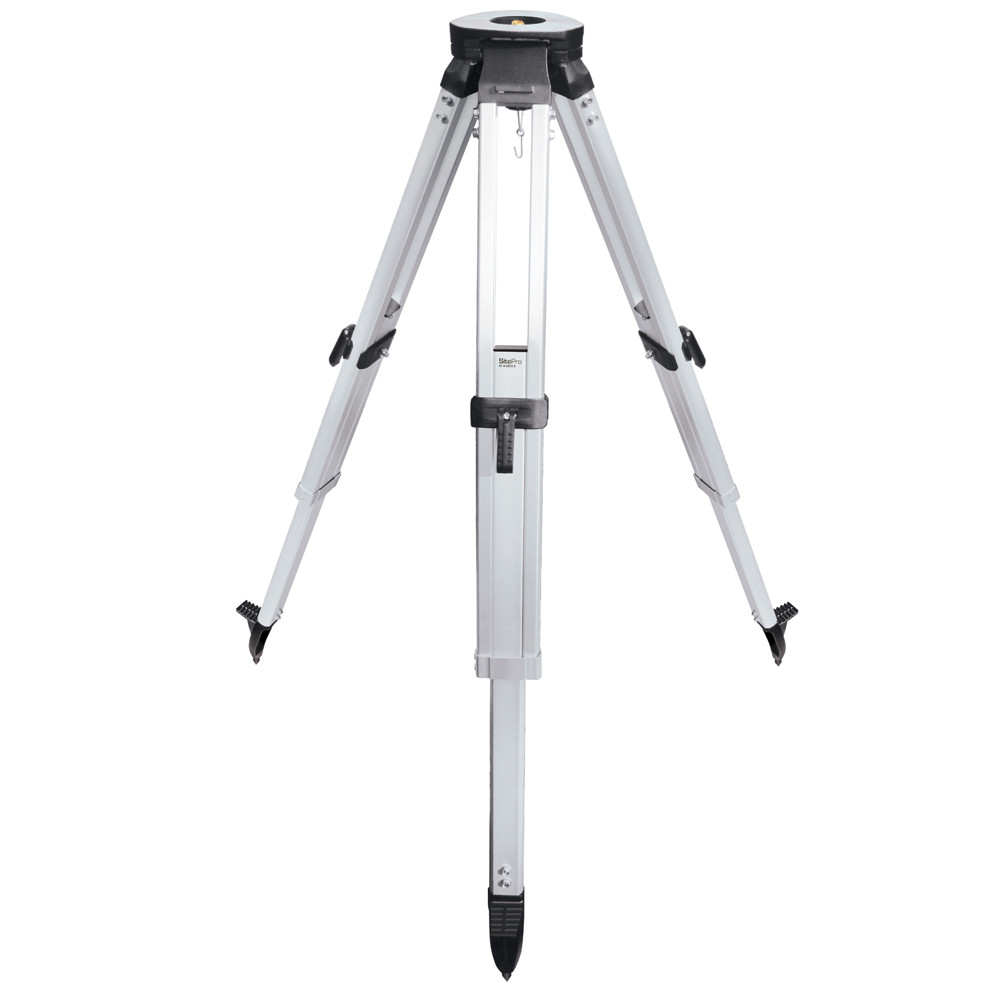

• Heavy-duty adjustable tripod for stable field setups
• Rechargeable lithium-ion battery and charger
• Carrying case for protected transport and storage

Jobsite Applications

Concrete Flatwork & Slab Pours: Set dual-pitch grades across large commercial slabs and warehouse floors. The RL-200 2S holds your slope reference throughout the pour so finishers can screed to exact spec without re-checking with a level.

Site Grading & Excavation: Use the wide 800m operating diameter to control cut-and-fill operations across large sites. Operators can read grade directly from the LS-80X mounted on the blade, improving pass efficiency and reducing survey interruptions.

Parking Lot Drainage: Establish two-direction cross slopes that meet ADA and engineering drainage requirements. Independent X/Y slope adjustment means you can dial in a 1.5% cross slope and 0.5% longitudinal fall simultaneously without repositioning the instrument.

Underground & Pipe Work: Set consistent invert grades for storm drain, sanitary sewer, and utility trenches using the tenths rod and LS-80X for sub-inch accuracy along the run.

Compatible Accessories

• Topcon LS-80X Replacement Receiver
• Topcon RC-400 Wireless Remote Control
• Machine Control Mounting Bracket for LS-80X
• Replacement Rechargeable Battery Pack for RL-200 Series
• Aluminum Grade Rod Extensions

Related Guides

• How to Set Dual Slope Grade with a Rotating Laser
• Topcon RL-200 2S vs RL-100 2S: Which Laser Is Right for Your Job?
• Using a Laser Receiver for Machine Control on Grading Jobs
• Rotating Laser Maintenance: Keeping Your Instrument Accurate on Site

Frequently Asked Questions

Can the Topcon RL-200 2S set slope on both axes at the same time?

Yes. The RL-200 2S supports simultaneous dual-axis slope up to ±10% on both X and Y, making it ideal for two-way drainage planes and complex grade applications without secondary instrument setups.

What is the working range of this laser kit?

With the included LS-80X receiver, the RL-200 2S operates over a diameter of up to 800 meters, suitable for large commercial grading, site development, and machine control applications.

How long does the battery last on a single charge?

The rechargeable lithium-ion battery delivers up to 40 hours of continuous runtime, enough to power through multiple full workdays before needing a charge.

Is the Topcon RL-200 2S waterproof enough for outdoor use in rain?

Yes. The RL-200 2S carries an IP66 rating, meaning it is fully protected against dust ingress and powerful water jets, making it suitable for year-round outdoor contractor use in wet or dusty conditions.
