RL-H5A Self-Leveling Laser PS.RB Kit with LS-100D Receiver, Rechargeable Batteries, Grade Rod 10ths and Tripod

Overview

The Topcon RL-H5A Self-Leveling Rotary Laser is a professional-grade leveling solution designed for general contractors, excavators, concrete professionals, and site preparation crews who demand reliable horizontal accuracy across large work areas. This complete kit configuration pairs the field-proven RL-H5A laser head with the LS-100D deluxe receiver—one of the most sensitive detectors in its class—plus a rechargeable battery system, grade rod marked in tenths, and heavy-duty tripod. It's a turnkey package that eliminates guesswork on compatibility and gets crews operational immediately. Whether you're setting forms, grading building pads, installing drop ceilings, or establishing drainage slopes, this kit delivers consistent ±1/16" accuracy at 100 feet with working diameter exceeding 1,600 feet under optimal conditions.

Key Specifications

• Self-Leveling Range: ±5 degrees (manual slope capability in single axis)
• Leveling Accuracy: ±1/16 inch at 100 feet (±1.6 mm at 30 m)
• Working Diameter: 1,600+ feet (500+ meters) with LS-100D receiver
• Rotation Speed: 600 RPM (variable speed optional on some modes)
• Environmental Rating: IP66 dust-tight and water-resistant
• Power System: Rechargeable Ni-MH battery pack (included); alkaline D-cell compatible
• Battery Life: 100+ hours on single charge (standard rotation mode)
• Operating Temperature: -4°F to 122°F (-20°C to 50°C)
• Laser Unit Weight: 5.3 lbs (2.4 kg) with battery

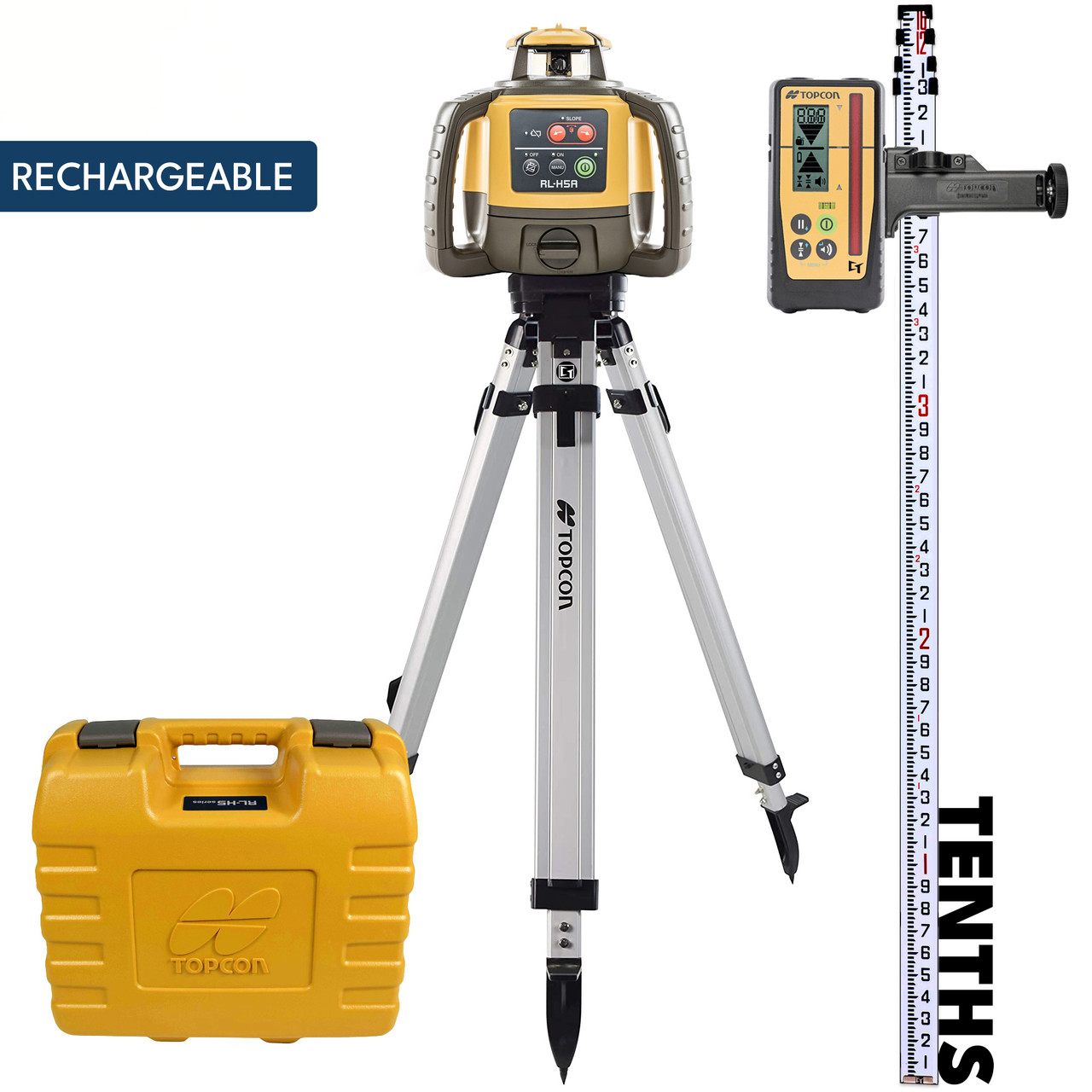

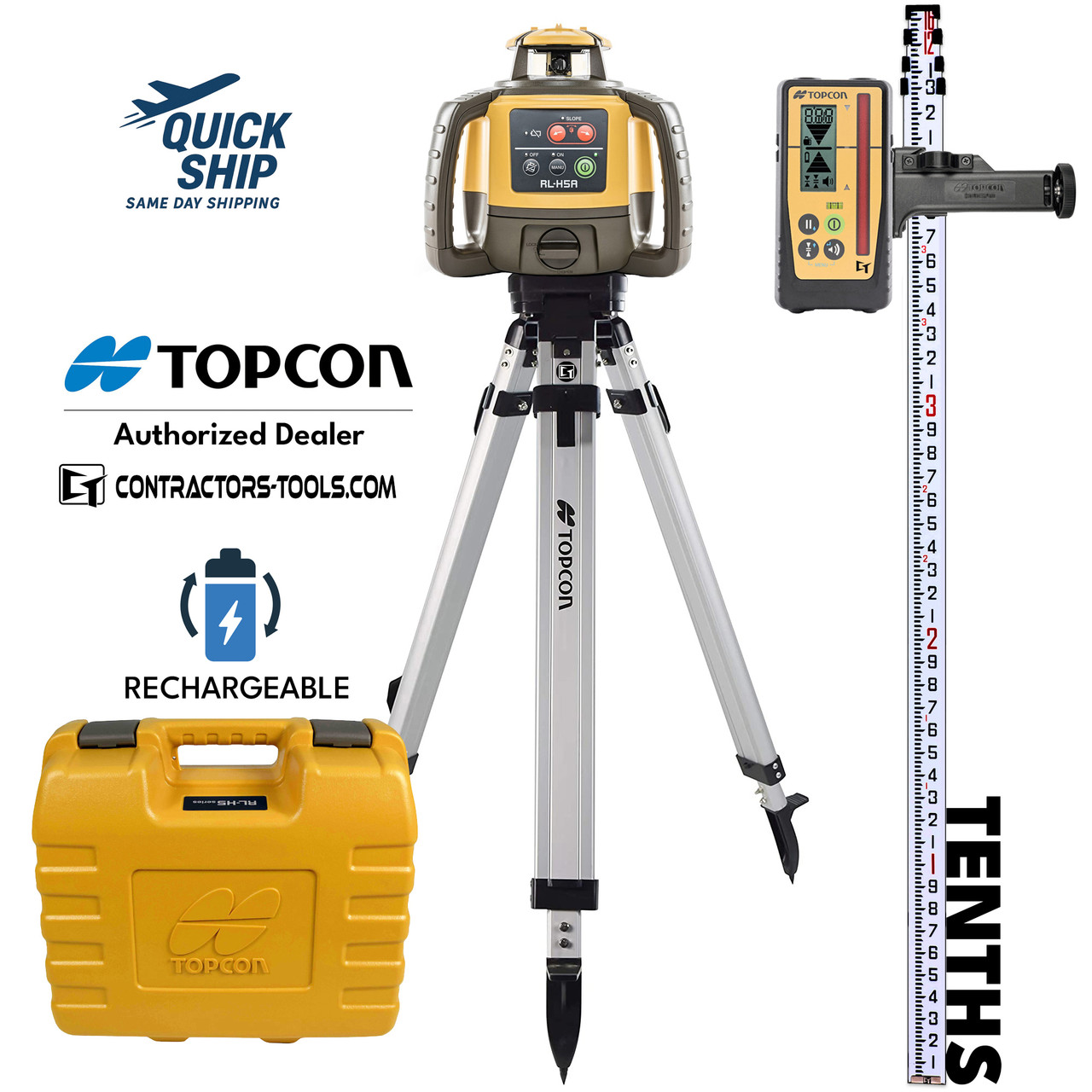

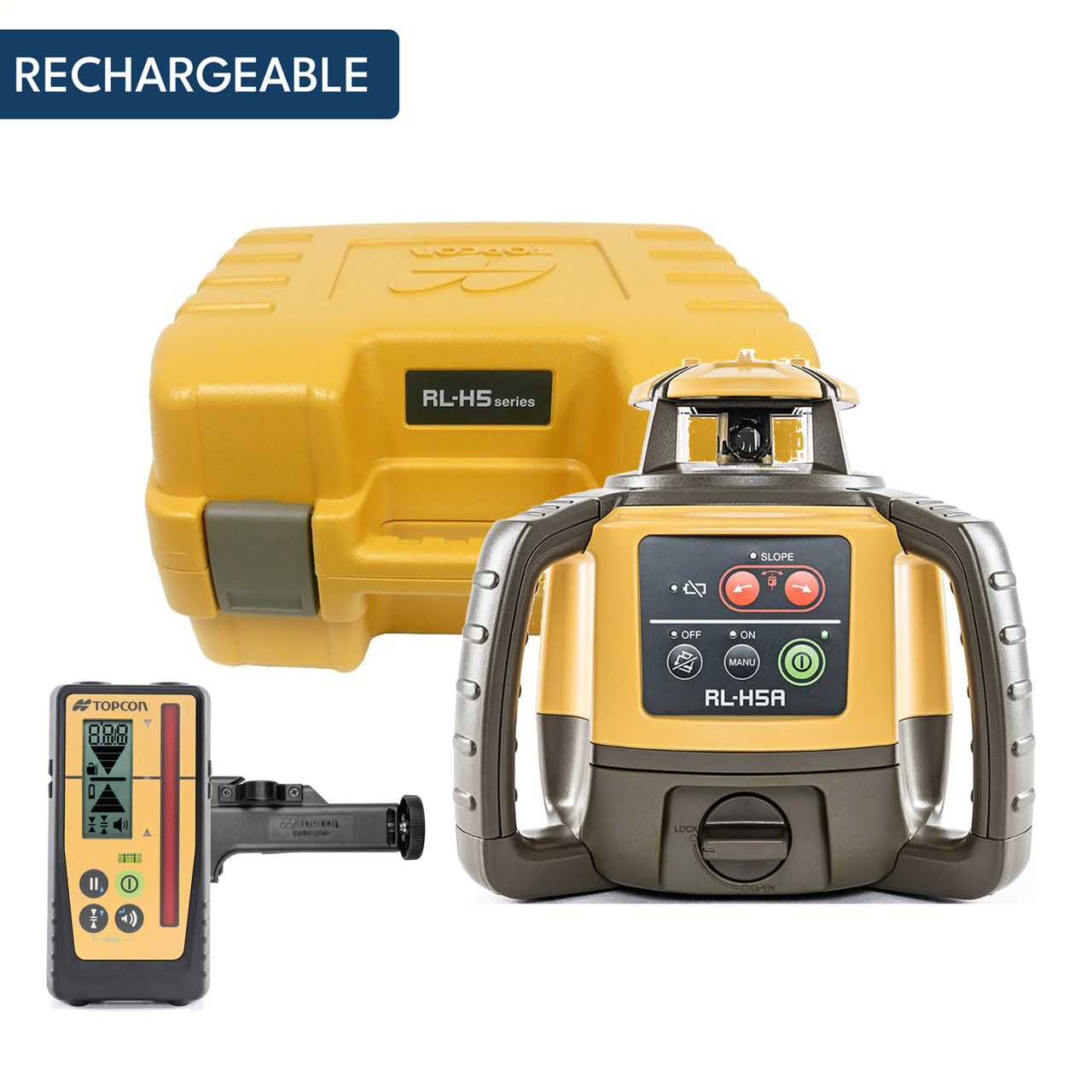

What's in the Kit

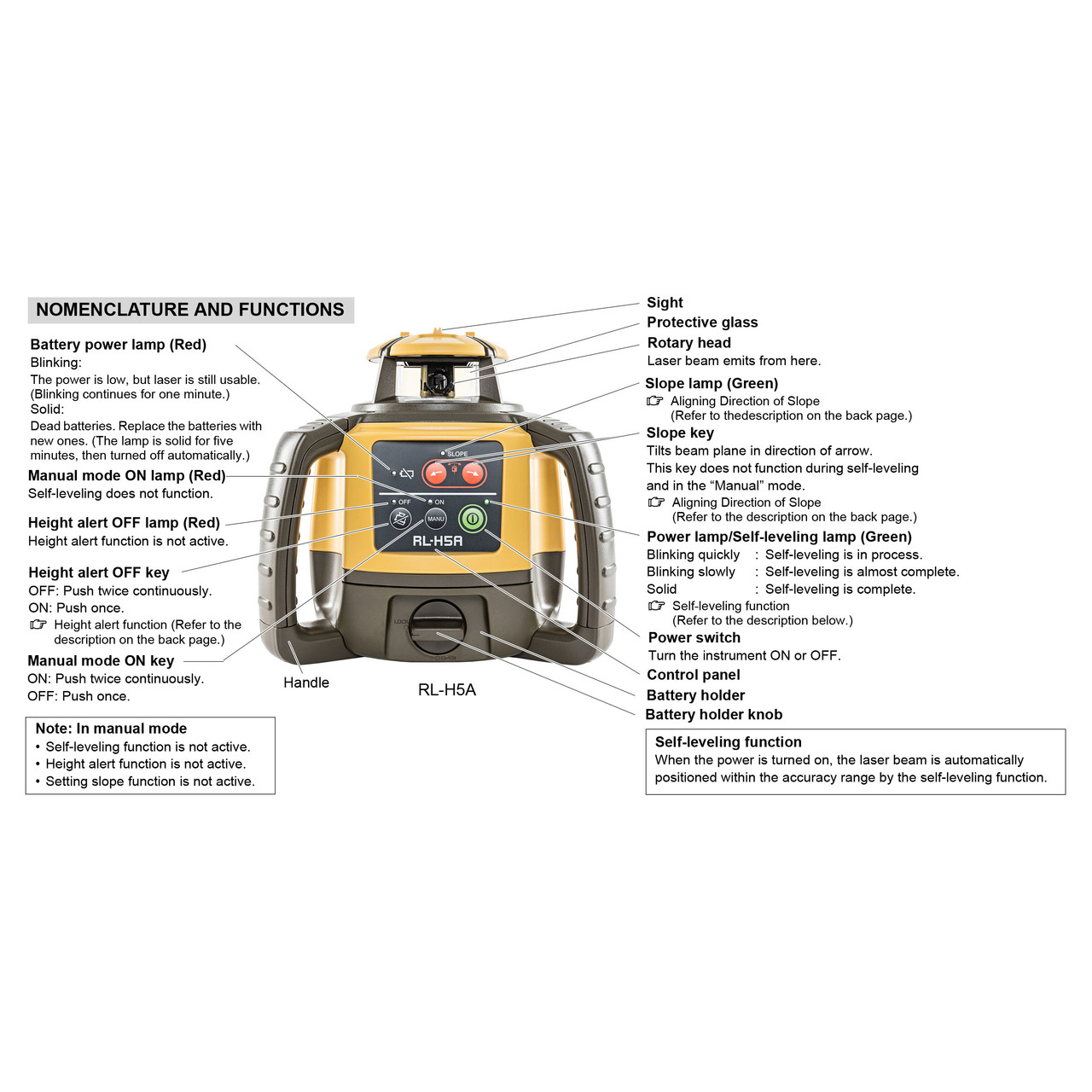

• RL-H5A Laser Head: Self-leveling rotary unit with horizontal and manual-grade modes

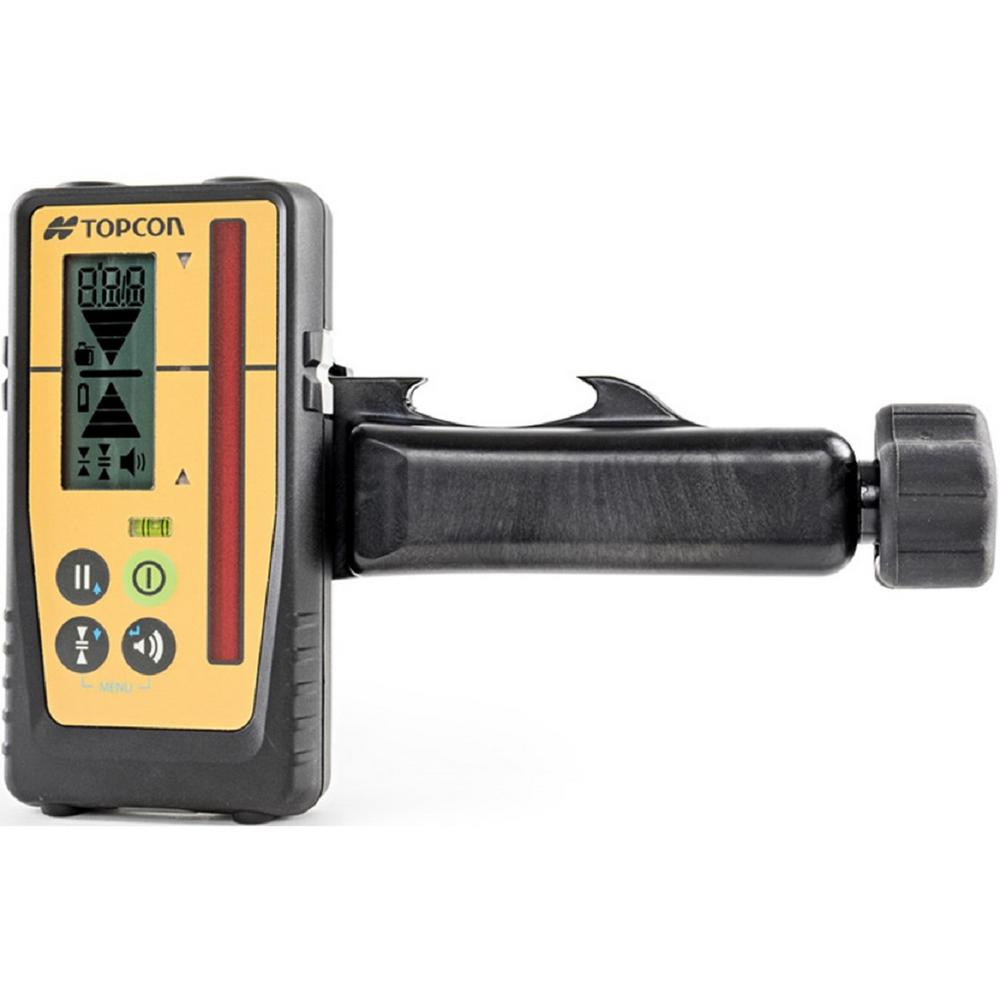

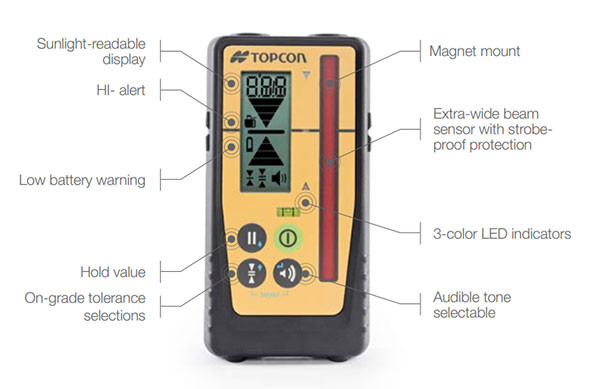

• LS-100D Laser Receiver: Deluxe rod-mounted detector with multi-zone LCD, audio alerts, and fine/standard detection modes for maximum versatility
• Rechargeable Battery Pack: Ni-MH system with AC charger for cost-effective operation
• Alkaline Battery Tray: Backup power option using standard D-cell batteries

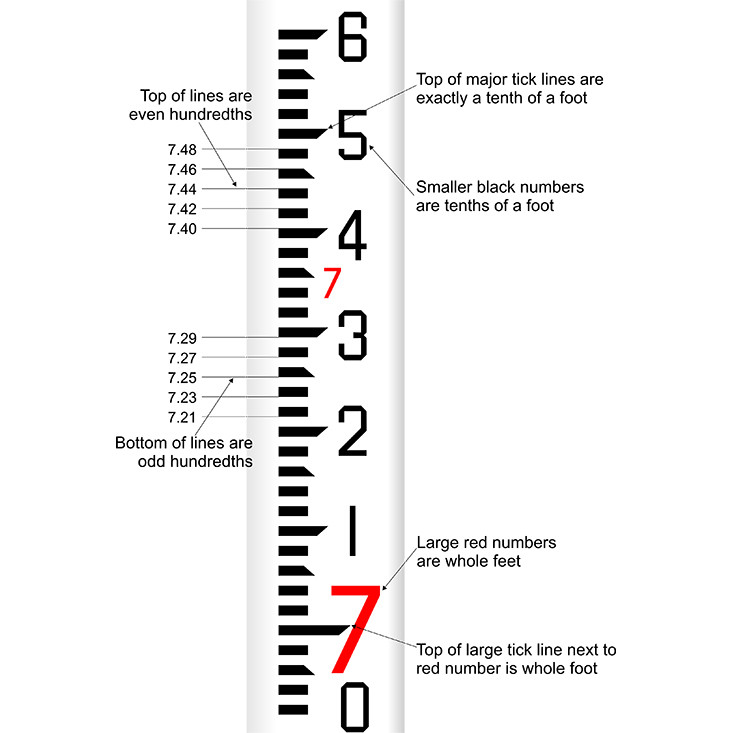

• Grade Rod (Tenths): Telescoping measuring rod graduated in 0.1-foot increments for direct elevation readings
• Heavy-Duty Tripod: Adjustable-height aluminum tripod with quick-release laser mount and stabilizing feet
• Hard-Shell Carrying Case: Impact-resistant storage case with custom foam inserts for laser, receiver, and accessories
• Remote Control: RC-200 infrared remote for rotation speed and scan mode adjustments from up to 100 feet
• Target Plate: Reflective laser target for indoor and close-range layout work
• User Documentation: Quick-start guide and full operation manual

Job Applications

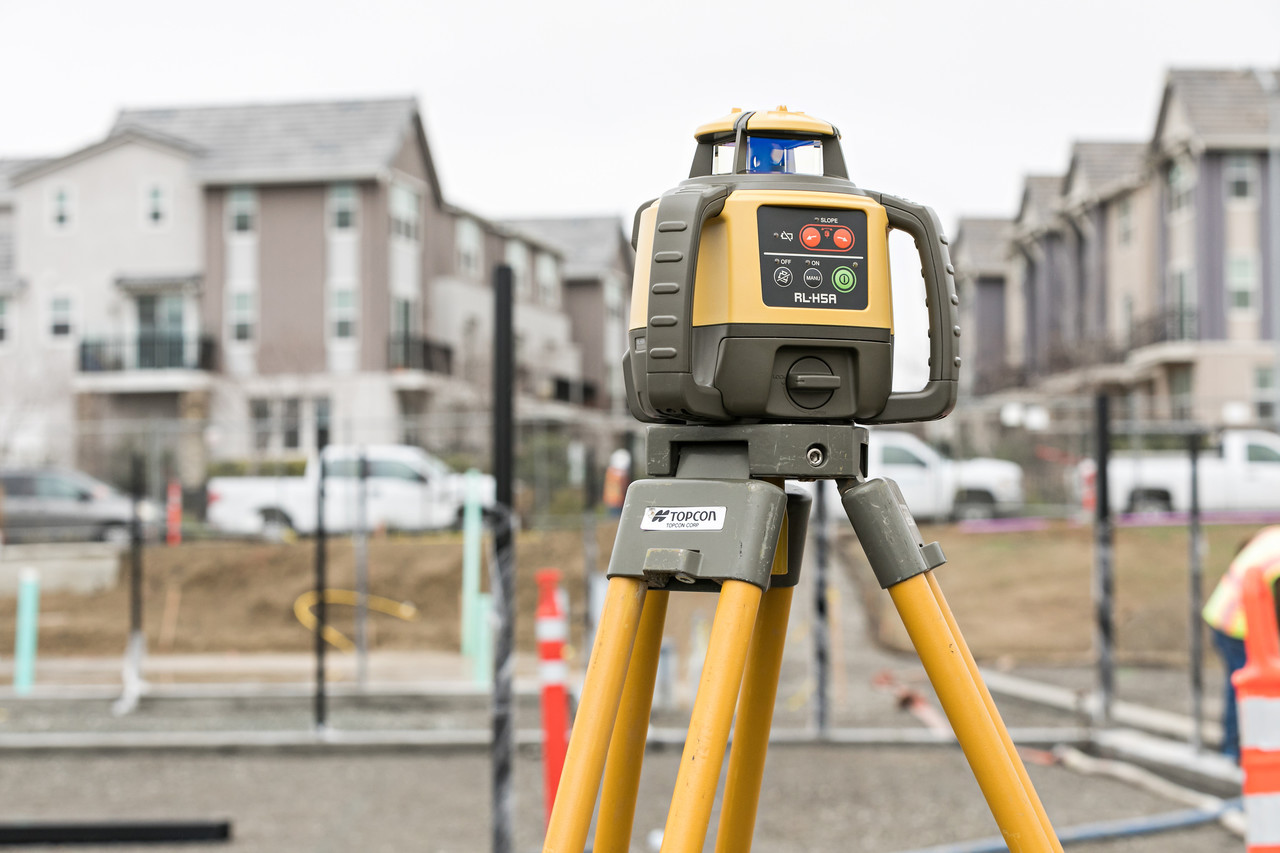

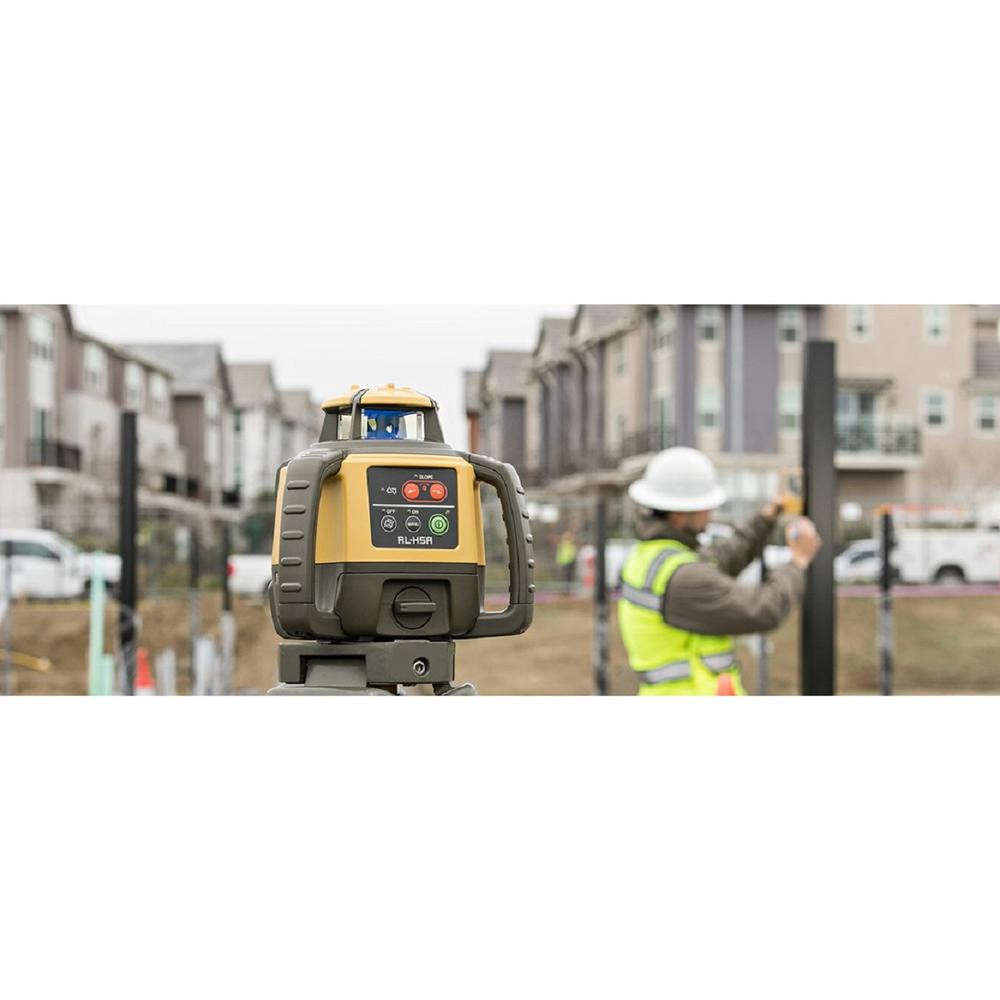

• Foundation and Footing Layout: Verify excavation depth and establish consistent form heights across multi-pier foundations where even small elevation errors compound structural issues.
• Site Grading and Drainage: Set grade stakes for parking lots, building pads, and drainage swales—the RL-H5A's manual slope function creates precise gradients for positive water flow.
• Concrete Flatwork: Establish screed rails and check slab elevation during pours to maintain specified thickness and avoid costly material overruns or low spots.
• Drop Ceiling Installation: Quickly level grid systems in commercial spaces by rotating a continuous reference plane around entire rooms, eliminating string lines and tedious transfer measurements.
• Underground Utility Trenching: Monitor trench depth and slope during excavation to meet code requirements for sewer, water, and drainage lines without constant grade checks.
• Retaining Wall Construction: Ensure courses remain level over long runs and verify backfill grades during step-by-step construction on sloped terrain.

Compatible Accessories

Expand your RL-H5A system with these factory-compatible components:

• LS-80L Basic Receiver — economical backup detector for crews running multiple setups
• RC-200 Remote Control — replacement or additional remote for multi-crew operations

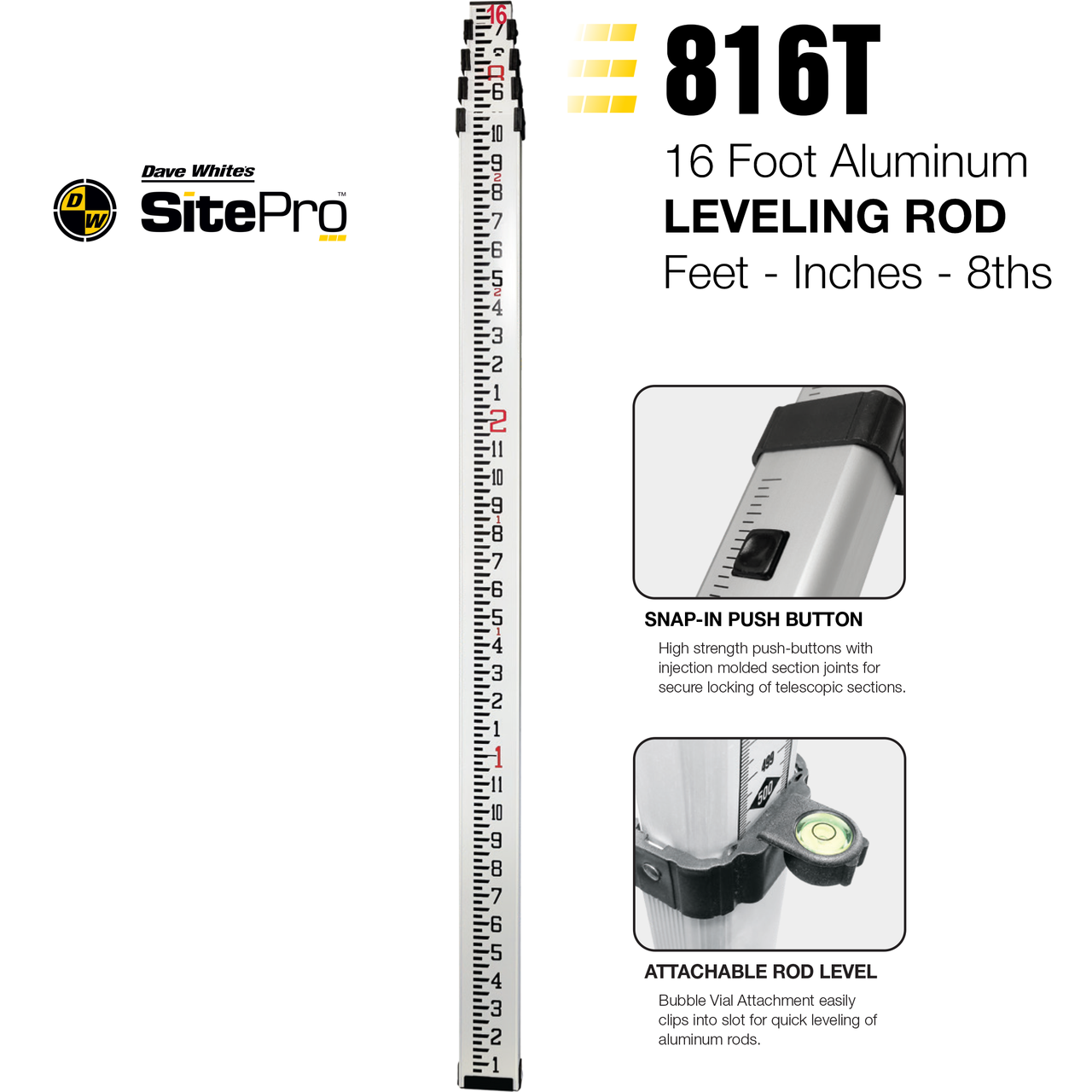

• Aluminum Grade Rod with Tenths — extra rods for simultaneous multi-point checks
• Heavy-Duty Flat-Head Tripod — additional tripod for dedicated instrument or quick setup changes
• Topcon Ni-MH Rechargeable Battery — spare battery for extended runtime on large projects

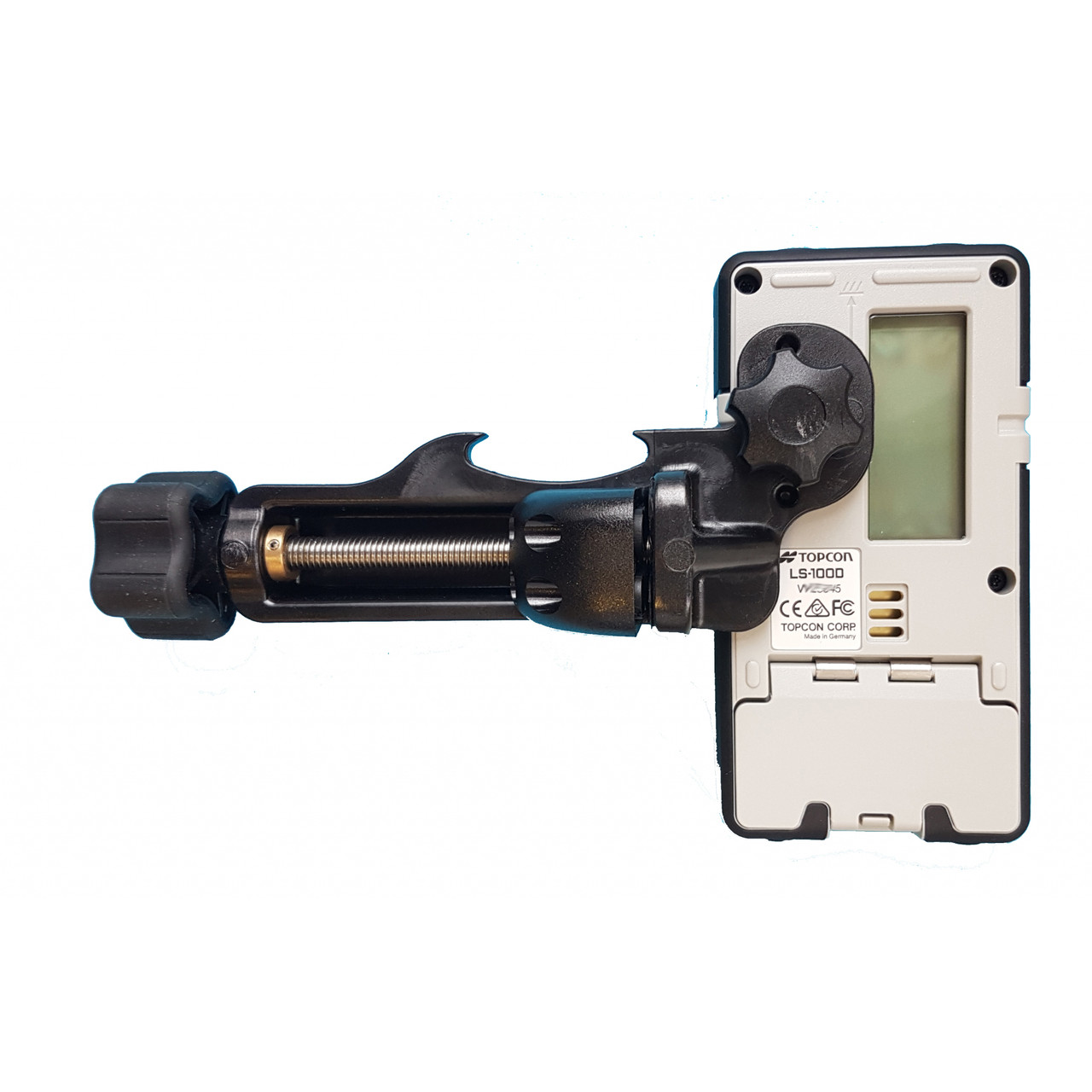

• Universal Detector Clamp — secure LS-100D to stakes, pipes, or forms when rod mounting isn't practical

Related Guides

• How to Set Up and Calibrate a Rotary Laser Level — step-by-step setup procedures and accuracy verification
• Topcon RL-H5A vs. Spectra LL500 Comparison — feature and performance analysis of competing horizontal lasers
• Understanding Laser Receiver Detection Range — factors affecting working distance and how to maximize reliability
• Troubleshooting: Rotary Laser Won't Self-Level — common causes and field solutions for leveling failures

Frequently Asked Questions

Can the RL-H5A create vertical planes for wall layout and alignment?

No, the RL-H5A is a horizontal-only rotary laser optimized for leveling and grading applications. For vertical plane work such as wall plumbing, column alignment, or partition layout, consider a dual-slope or multi-plane laser like the Topcon RL-SV2S or a dedicated line laser system.

What's the difference between the LS-100D receiver and the standard LS-80L?

The LS-100D offers enhanced detection sensitivity extending working range by approximately 15-20%, a larger multi-zone LCD display for easier viewing in bright conditions, selectable detection modes (fine/standard) for different applications, and more robust weatherproofing. The LS-80L is a capable workhorse receiver ideal for budget-conscious buyers or as a backup unit.

How long does the rechargeable battery last, and can I use alkaline batteries as backup?

The included Ni-MH rechargeable pack provides 100+ hours of continuous operation in standard rotation mode—enough for 2-3 weeks of typical job site use. The kit includes an alkaline D-cell battery tray as backup, delivering approximately 60-80 hours runtime depending on temperature and rotation speed, ensuring you're never without power mid-project.

Is this laser accurate enough for commercial concrete flatwork and ADA-compliant slope work?

Yes. With ±1/16 inch accuracy at 100 feet, the RL-H5A exceeds typical flatwork tolerances (most specifications allow ±1/8" in 10 feet). For ADA-compliant ramp slopes (typically 1:12 ratio or 8.33%), the manual grade function provides sufficient precision when properly calibrated. Always verify critical grades with a digital level or optical instrument before final inspection.
