Topcon RL-HV1S Self-Leveling Single Grade Laser RB Kit with LS-100D Receiver and Rechargeable Batteries- 1051612-09

← Drag to rotate →

Ships same day on in-stock orders before 2 PM CT

Authorized dealer · genuine, factory-fresh equipment

Compatibility & setup details on every product page

At a Glance

Model: Topcon RL-HV1S (Part No. 1051612-09)
Operating Range: Up to 600 meters (1,970 ft) diameter with LS-100D receiver
Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
Slope Range: ±10% on single axis; dual-slope on X and Y axes simultaneously
Self-leveling Range: ±5 degrees automatic compensation
Rotation Speed: 300, 600, and 1,200 RPM selectable

TopconRL-HV1SSKU 1051612-09New

Grade Lasers →

Topcon RL-HV1S Self-Leveling Single Grade Laser RB Kit with LS-100D Receiver and Rechargeable Batteries

Name: Topcon RL-HV1S Self-Leveling Single Grade Laser RB Kit with LS-100D Receiver and Rechargeable Batteries- 1051612-09
Brand: Topcon
SKU: 1051612-09
Price: 1820.00 USD
Availability: InStock

$1820.00

Need 5+? Request volume pricing →

In Stock·Ships same day before 2 PM CT

Next Day Air available - $25 flat

Qty:

Up to 600 meters (1,970 ft) diameter with LS-100D receiver Range

Cover large layout jobs with a Up to 600 meters (1,970 ft) diameter with LS-100D receiver working reach.

±1/8 inch at 100 feet (±3mm at 30m) Accuracy

Hold grade with a ±1/8 inch at 100 feet (±3mm at 30m) accuracy rating.

Slope Range

Handles ±10% on single axis; dual-slope on X and Y axes simultaneously so crews can match design slopes.

Power Source

Runs on Rechargeable battery pack (included); up to 60 hours per charge for jobsite flexibility.

Ask the AI Assistant

Stock, compatibility, and ordering questions answered instantly

Authorized dealerGenuine, factory-fresh Topcon equipment

Same-day shippingOrders before 2 PM CT ship today

30-day returnsUnused equipment in original packaging

Continuous grade control, no stakes

Eliminates grade staking between passes. One operator on the machine vs. 2-3-person conventional crew.

Authorized Dealer

Genuine equipment sourced straight from manufacturer partners.

Ships Same Day

Orders placed before 2 PM CT leave the dock today.

Genuine Gear

Factory-fresh, authentic units with legitimate firmware.

Best-Price Guarantee

Authorized-dealer pricing on every unit — request a quote anytime.

Kit Builder

Not sure what goes with this grade laser?

Answer a few job questions and our Kit Builder assembles the full setup — receiver, rod, tripod, and case matched to your workflow.

Build your kit

Quick Answer

What is the Topcon RL-HV1S?

The Topcon RL-HV1S Self-Leveling Single Grade Laser RB Kit with LS-100D Receiver and Rechargeable Batteries is a professional-grade rotating laser level designed for construction and surveying applications. It delivers accuracy of ±1/8 inch at 100 feet with an operating range up to 600 meters diameter, making it ideal for grading, excavation, and site preparation work. It's available from Express Tools.

FIELD APPLICATIONS

What contractors use this grade lasers for

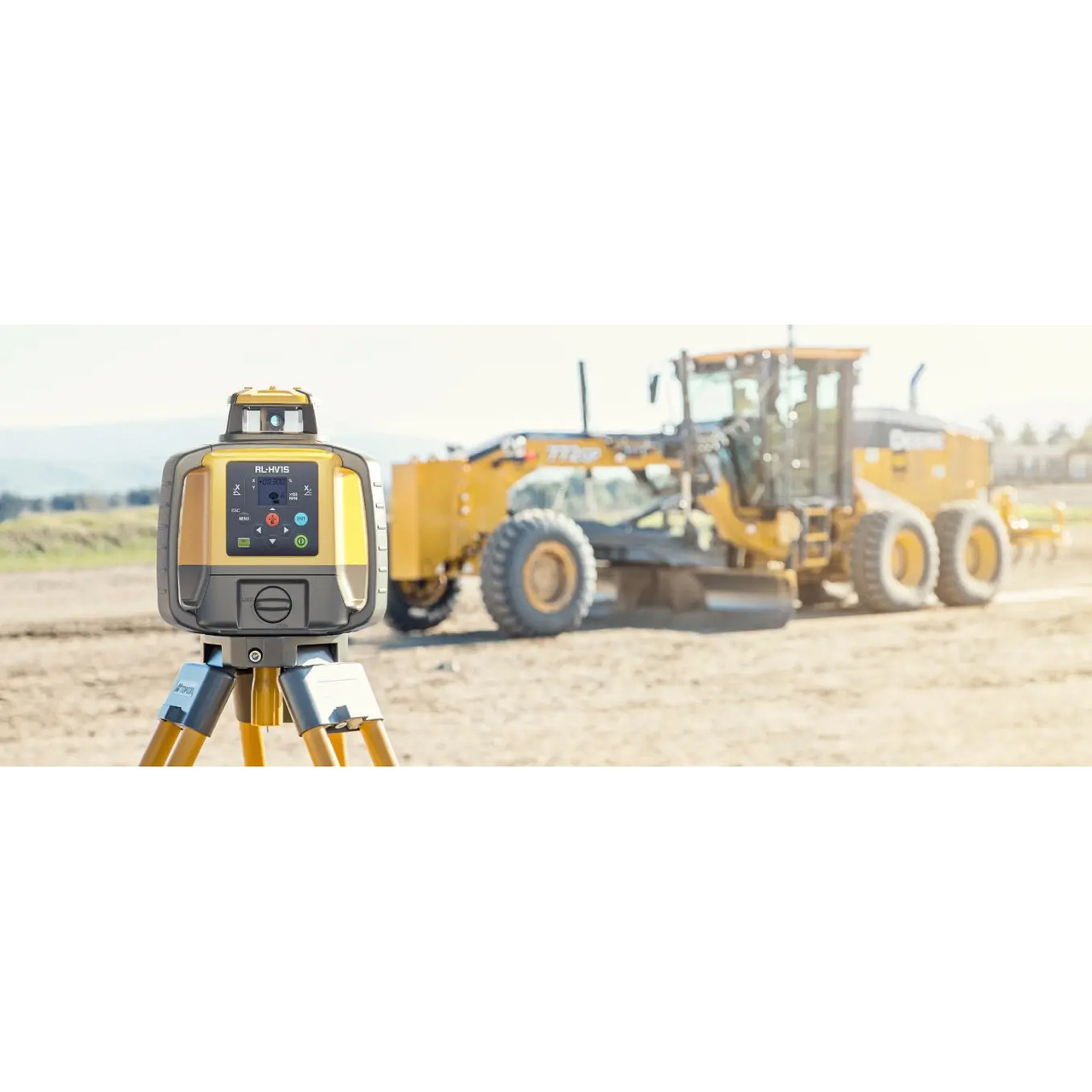

Motor Grader Control

Automatic blade control for road base and subgrade

Dozer Earthwork

Push-to-grade for rough cut and finish passes

Pipe Trench Grading

Set trench bottom elevation for gravity pipe installation

Drainage Work

Parking lot drainage, swales, retention basins

PRODUCT OVERVIEW

Product Description

The Topcon RL-HV1S Dual-Slope Laser Kit (Model 1051612-09) is a complete, rechargeable grade laser system engineered for contractors who demand accuracy on complex slope and grading work. Paired with the LS-100D digital receiver and rechargeable battery system, this kit eliminates guesswork on critical elevation and slope applications — delivering repeatable, verified results from the first setup to final inspection. Whether you are grading a parking lot, designing a drainage swale, or finishing a road subbase, the RL-HV1S provides the precision and range to get the job done right.

Built for Demanding Jobsite Conditions

Designed for road construction, site development, concrete flatwork, and drainage design, the RL-HV1S handles the full range of grade work encountered by civil and general contractors. Its dual-slope capability allows simultaneous X and Y axis slope settings, making it uniquely suited for crowned roadways, athletic fields with complex drainage requirements, and parking structures where cross-slopes must meet strict ADA and engineering specifications. The self-leveling design speeds setup and eliminates operator-induced errors on uneven terrain.

Key Specifications

Model: Topcon RL-HV1S (Part No. 1051612-09)
Operating Range: Up to 600 meters (1,970 ft) diameter with LS-100D receiver
Accuracy: ±1/8 inch at 100 feet (±3mm at 30m)
Slope Range: ±10% on single axis; dual-slope on X and Y axes simultaneously
Self-Leveling Range: ±5 degrees automatic compensation
Rotation Speed: 300, 600, and 1,200 RPM selectable
Power Source: Rechargeable battery pack (included); up to 60 hours per charge
IP Rating: IP66 dust and water resistant
Receiver Included: Topcon LS-100D digital grade display receiver
Temperature Range: -20°C to +50°C (-4°F to +122°F)

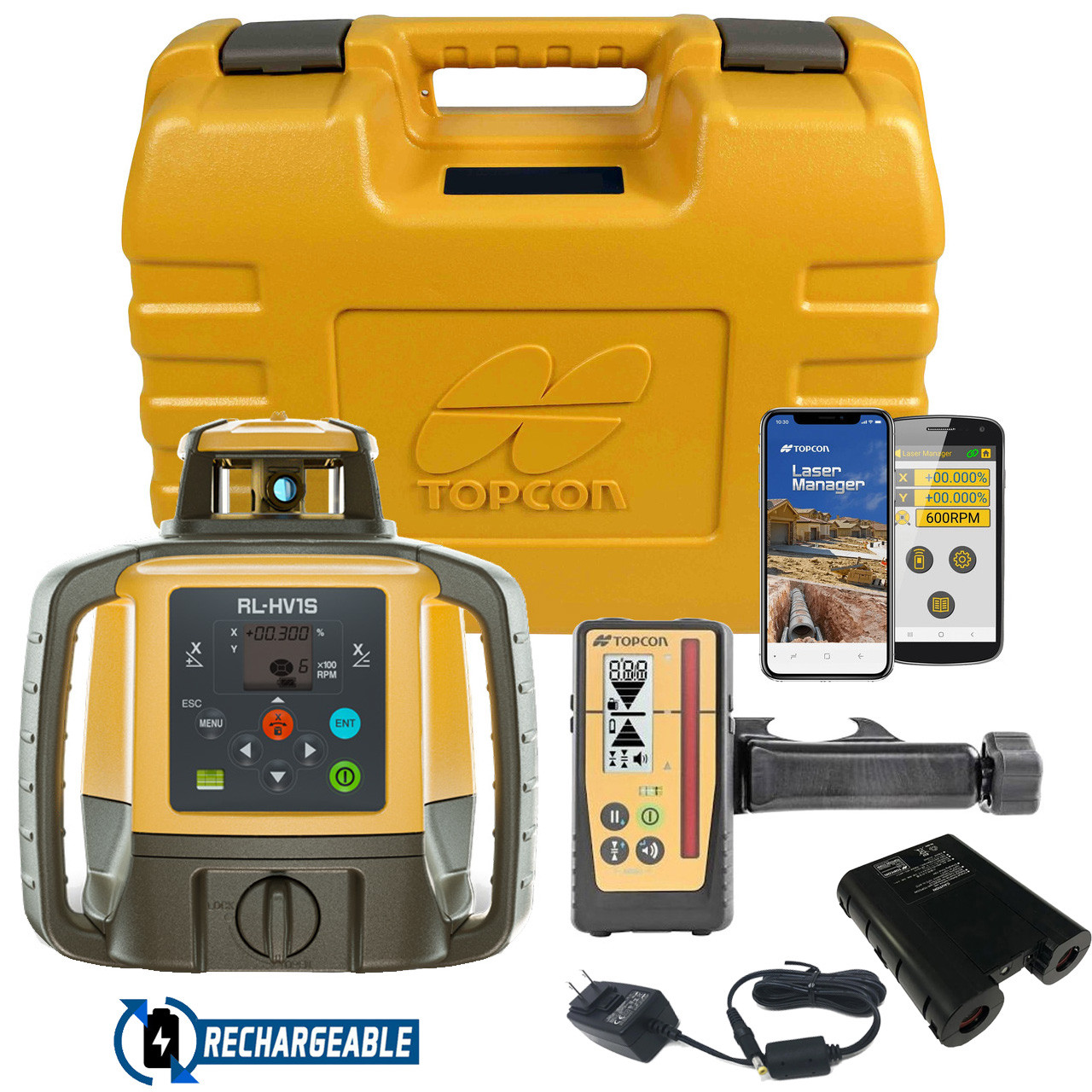

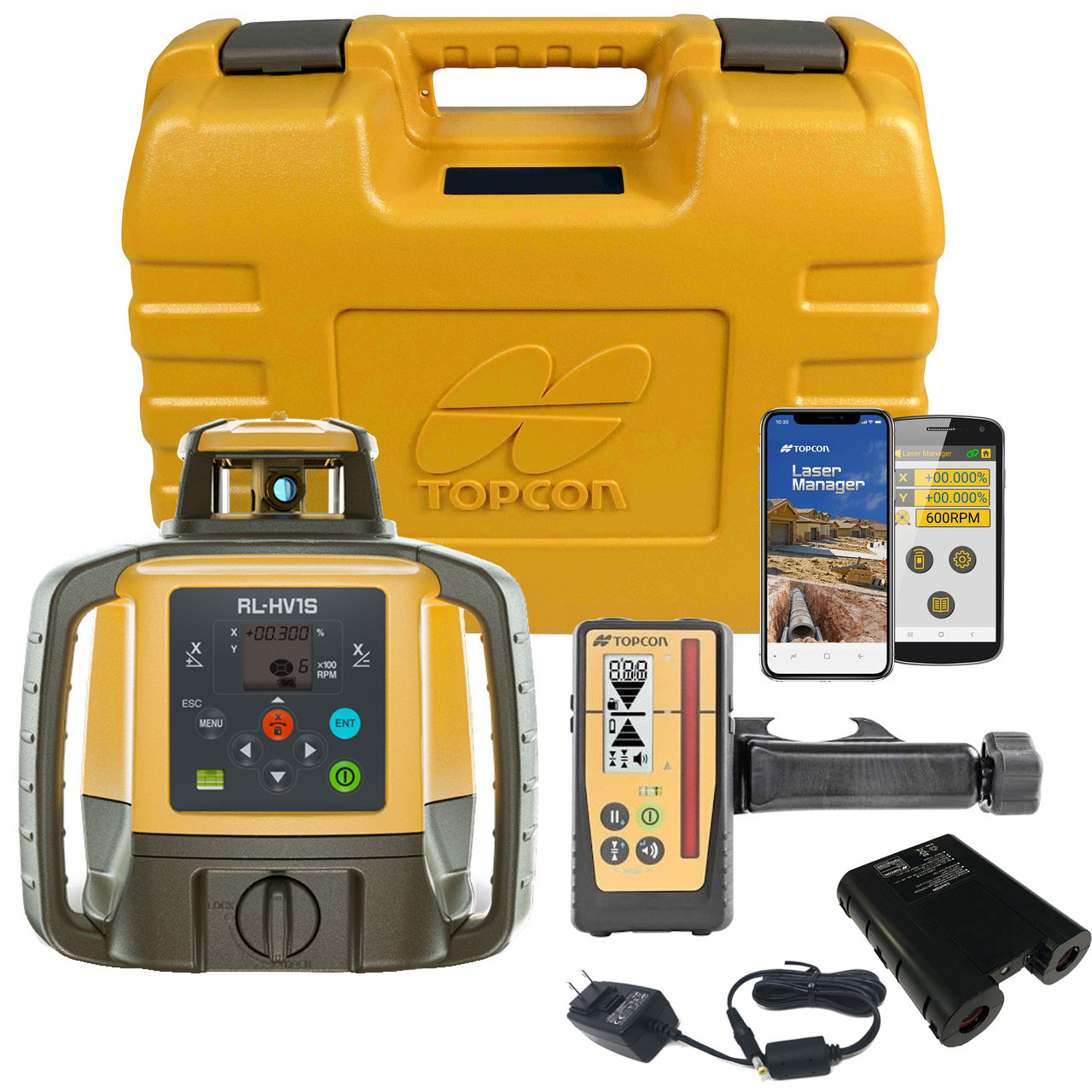

What's in the Kit

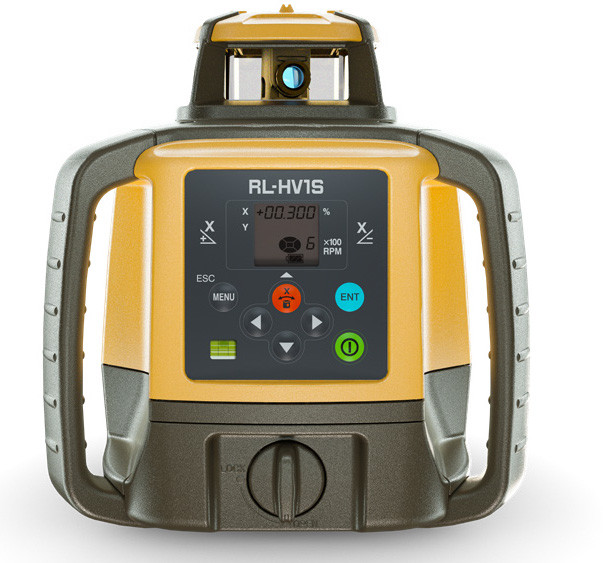

Topcon RL-HV1S self-leveling dual-slope rotating laser transmitter

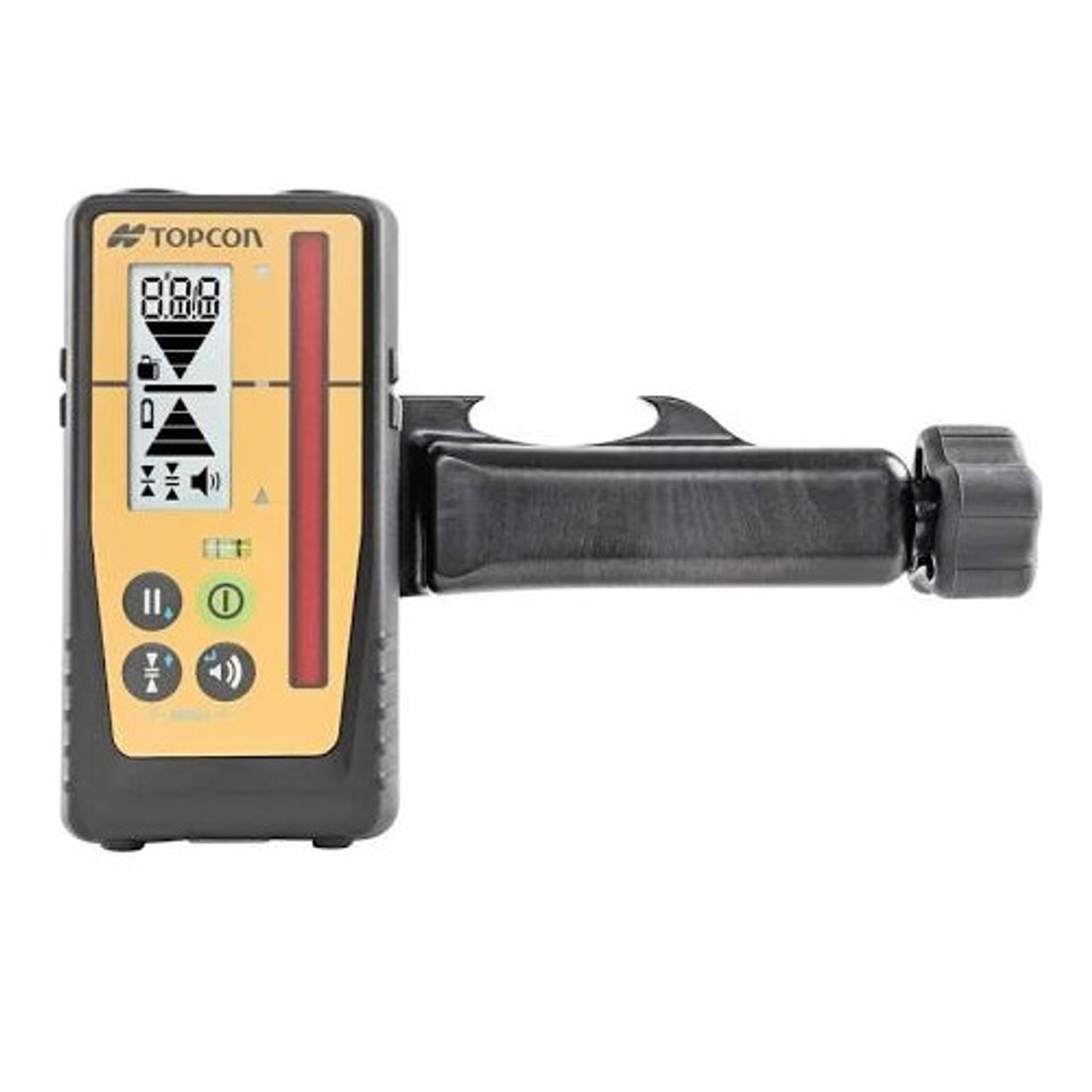

Topcon LS-100D digital receiver with clamp and carrying case
Rechargeable battery pack and AC charger
Carrying case for laser unit
Operator's manual and calibration documentation

Job Applications

Road Construction & Subbase Grading: Set precise crown slopes and cross-falls across wide roadway corridors without moving the instrument. The 600m range covers multi-lane road sections in a single setup.
Site Drainage & Swale Design: Use dual-slope mode to establish compound drainage gradients that direct water flow accurately to catch basins and detention areas — critical for meeting civil drainage specifications.
Concrete Flatwork & Slab Placement: Maintain consistent grade during pour operations. The LS-100D receiver provides clear above/below/on-grade readouts that screed operators can act on immediately.
Athletic Fields & Parking Lots: Achieve compliant cross-slopes and ADA-conforming grades across large flat areas where elevation errors are difficult to detect visually but fail inspection.

Compatible Accessories

Topcon LS-100D Replacement Receiver — Digital grade receiver with audible and visual on-grade indicators
Topcon RD-1 Remote Control — Wireless slope adjustment and rotation speed control from the rod
Topcon Aluminum Grade Rod — Graduated rod compatible with LS-100D receiver clamp
Topcon Heavy-Duty Tripod — Stable platform for rotating laser setups on soft or uneven ground
Replacement Rechargeable Battery Pack — Extended run-time backup power for full-day operations

Frequently Asked Questions

Can the RL-HV1S set slope on both axes at the same time?: Yes. The RL-HV1S supports true dual-slope operation, allowing you to set independent grade percentages on both the X and Y axes simultaneously. This is essential for crowned roads, athletic fields, and any surface requiring compound slopes.
What is the effective working range of this laser kit?: With the included LS-100D receiver, the RL-HV1S has an operating diameter of up to 600 meters (approximately 1,970 feet). Actual range may vary slightly based on sunlight conditions and receiver positioning.
How long does the rechargeable battery last on a full charge?: The included rechargeable battery pack provides up to 60 hours of continuous operation, making it suitable for multi-day use between charges on active job sites.
Is the RL-HV1S protected against dust and water on the jobsite?: Yes. The RL-HV1S carries an IP66 ingress protection rating, meaning it is fully protected against dust and resistant to powerful water jets. It is designed to operate reliably in wet and dusty construction environments.

Why This Equipment

Dual Grade Control

Control two slopes simultaneously for crowns, swales, and complex drainage layouts.

Machine Ready

Pairs with machine receivers for dozer, grader, and scraper grade control.

IP67 Rated

Weatherproof for outdoor use in rain, dust, and construction site conditions.

High Accuracy

±0.1mm/m grade accuracy — holds tolerance through a full working day.

Why Buy This?

Continuous grade control. No continuous labor.

Grade stakers cost $50–80/hr and disappear between passes. A dual-slope grade laser installs once and controls your blade automatically — through every cut, every fill, every pass. That's the math that makes grade lasers one of the fastest ROI investments in earthwork.

Professional contractors specify dual-grade systems for a reason: single-grade units work for straight drainage. The moment a job has a crown, a swale, or a complex parking lot slope — you need dual-grade.

Buying from Express Tools means authorized, factory-fresh inventory, legitimate firmware, and technical knowledge when you need it.

TECHNICAL SPECS

Specifications

Technical Specs

Manufacturer data and field-verified measurements.

Model	Topcon RL-HV1S (Part No. 1051612-09)
Operating Range	Up to 600 meters (1,970 ft) diameter with LS-100D receiver
Accuracy	±1/8 inch at 100 feet (±3mm at 30m)
Slope Range	±10% on single axis; dual-slope on X and Y axes simultaneously
Self-leveling Range	±5 degrees automatic compensation
Rotation Speed	300, 600, and 1,200 RPM selectable
Power Source	Rechargeable battery pack (included); up to 60 hours per charge
IP Rating	IP66 dust and water resistant
Receiver Included	Topcon LS-100D digital grade display receiver
Temperature Range	-20°C to +50°C (-4°F to +122°F)
Grade Range	±10% on single axis; dual-slope on X and Y axes simultaneously
Power	Rechargeable battery pack (included); up to 60 hours per charge
Receiver	Topcon LS-100D digital grade display receiver
Operating Temperature	-20°C to +50°C (-4°F to +122°F)
