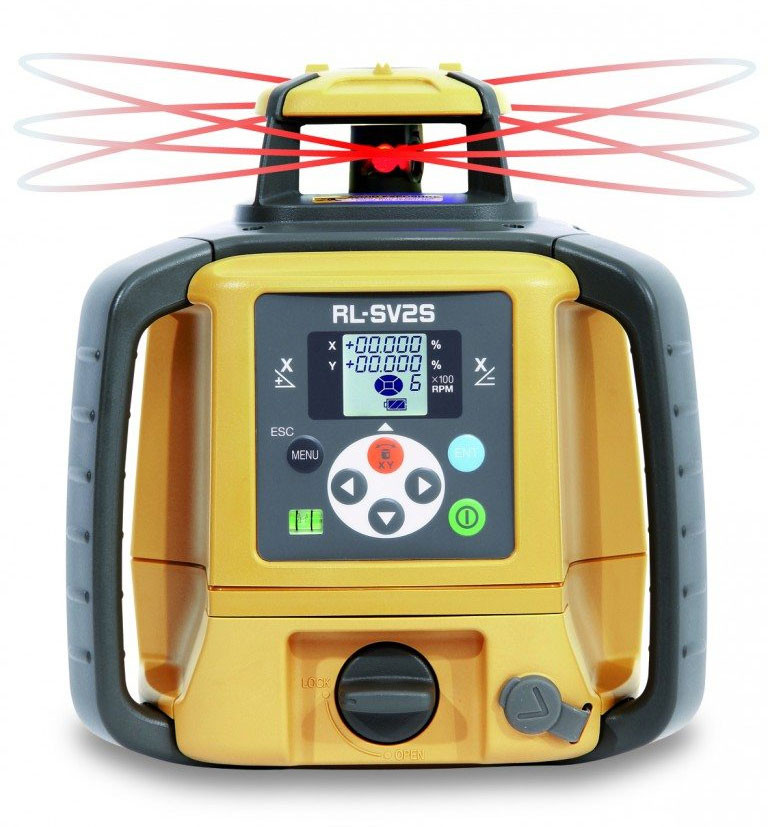

Topcon RL-SV2S Self-Leveling Dual Grade Laser RB Kit with LS-100D Receiver and Rechargeable Batteries

DUAL SLOPE, LONG RANGE, SELF-LEVELING LASER
Following in a long line of superior quality laser transmitters the RL-SV2S is a dual slope, long range, self-leveling instrument built to outperform all of its competitors.

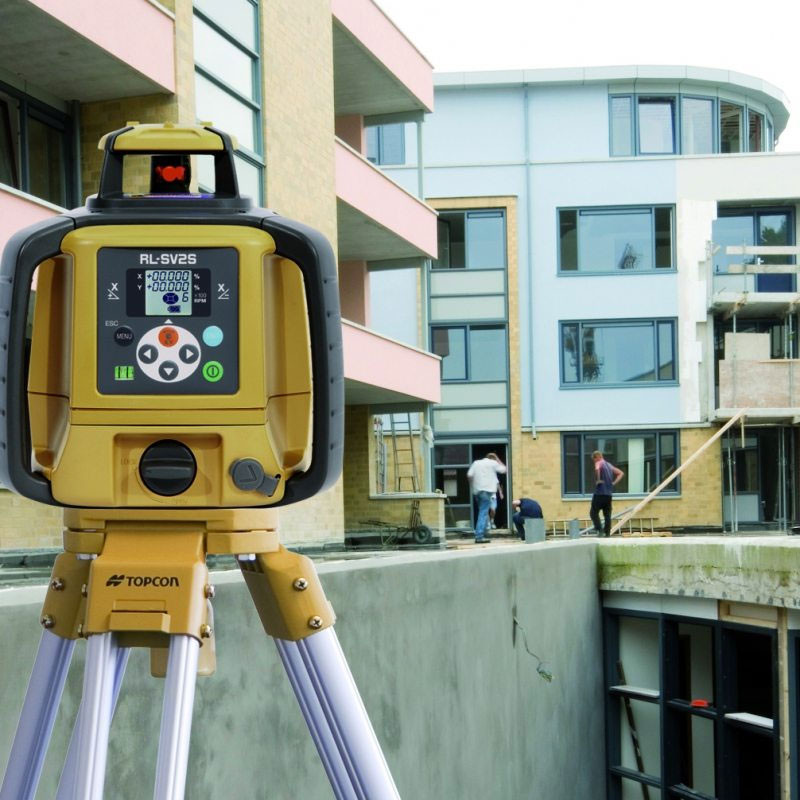

This laser is for general construction or engineering projects and designed to be used for flat work, single grade or dual grade applications.  Slopes up to  ±5% can be used in either the X or Y axis.  With a 2,600 foot diameter operating range the RL-SV2S has the power to cover even the biggest job sites.

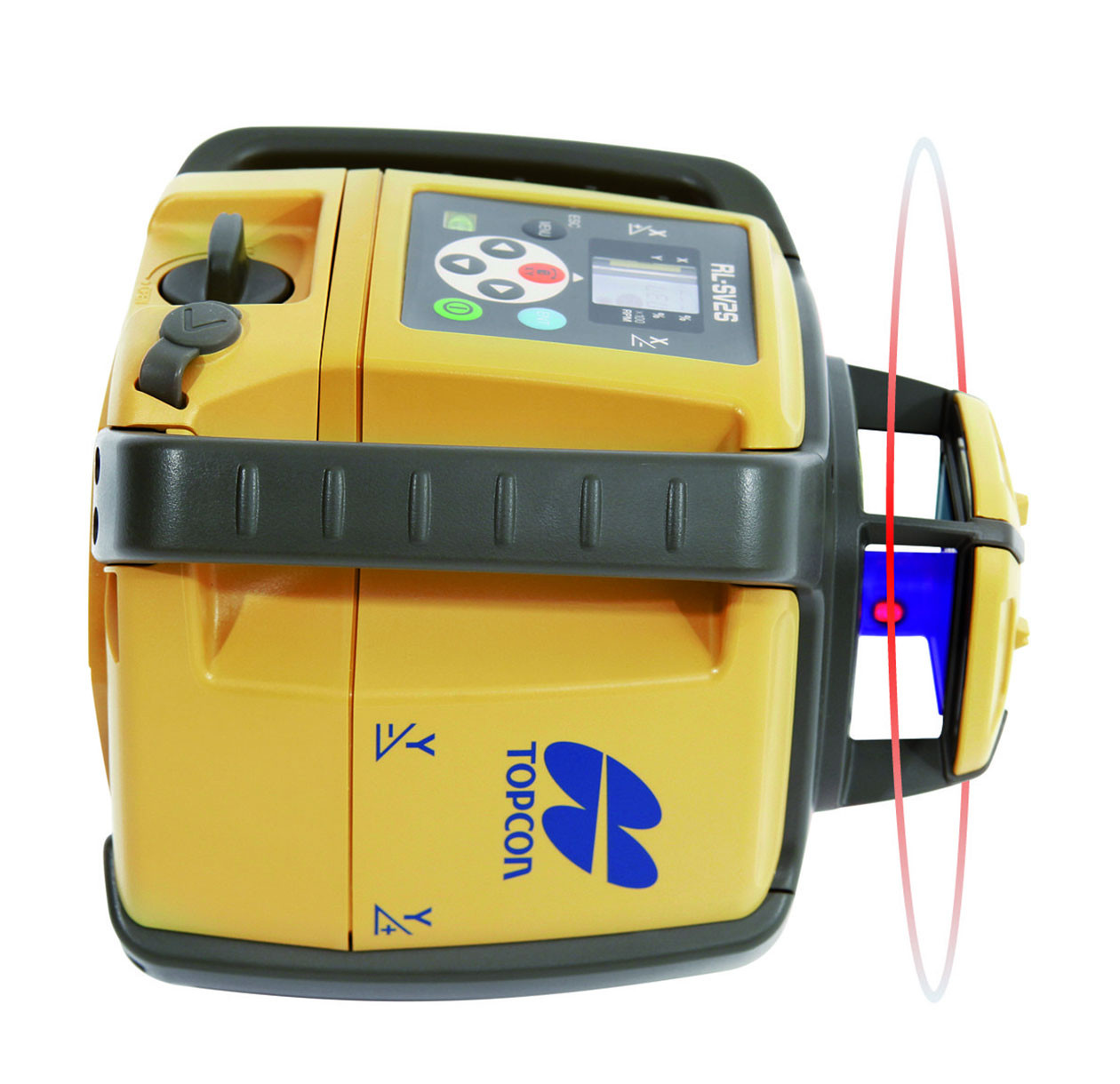

The RL-2SVS can be turned on its side for layout and alignment applications. Lay it down on the built-in mounts or attach it to a tripod and the laser will electronically self-level for fast and accurate vertical applications.

This versatile construction tool is loaded with all the features contractors love including a long battery life  with included Rechargeable Batteries (60 hours with NiMH Rechargeable Batteries / 100 hours Alkaline Batteries) height of instrument alert, and electronic shutters.  All of these features can be accessed on the front control panel or on the included remote control.

• Self-Leveling with Single or Dual Slope

• Rugged, Lightweight and Compact
• Long Range Operation 2,600 ft diameter
• High Horizontal Accuracy 1/16-inch @ 100-feet
• Simple and intuitive Dual Slope, Single Slope or Flat Work

• Tough IP66 Rating - Dust and Water Rating
• Horizontal Self-Leveling Range ± 5 degrees
• Long Life Rechargeable Battery - 60 hours / 100 hours Alkaline

• Out of Level Notification

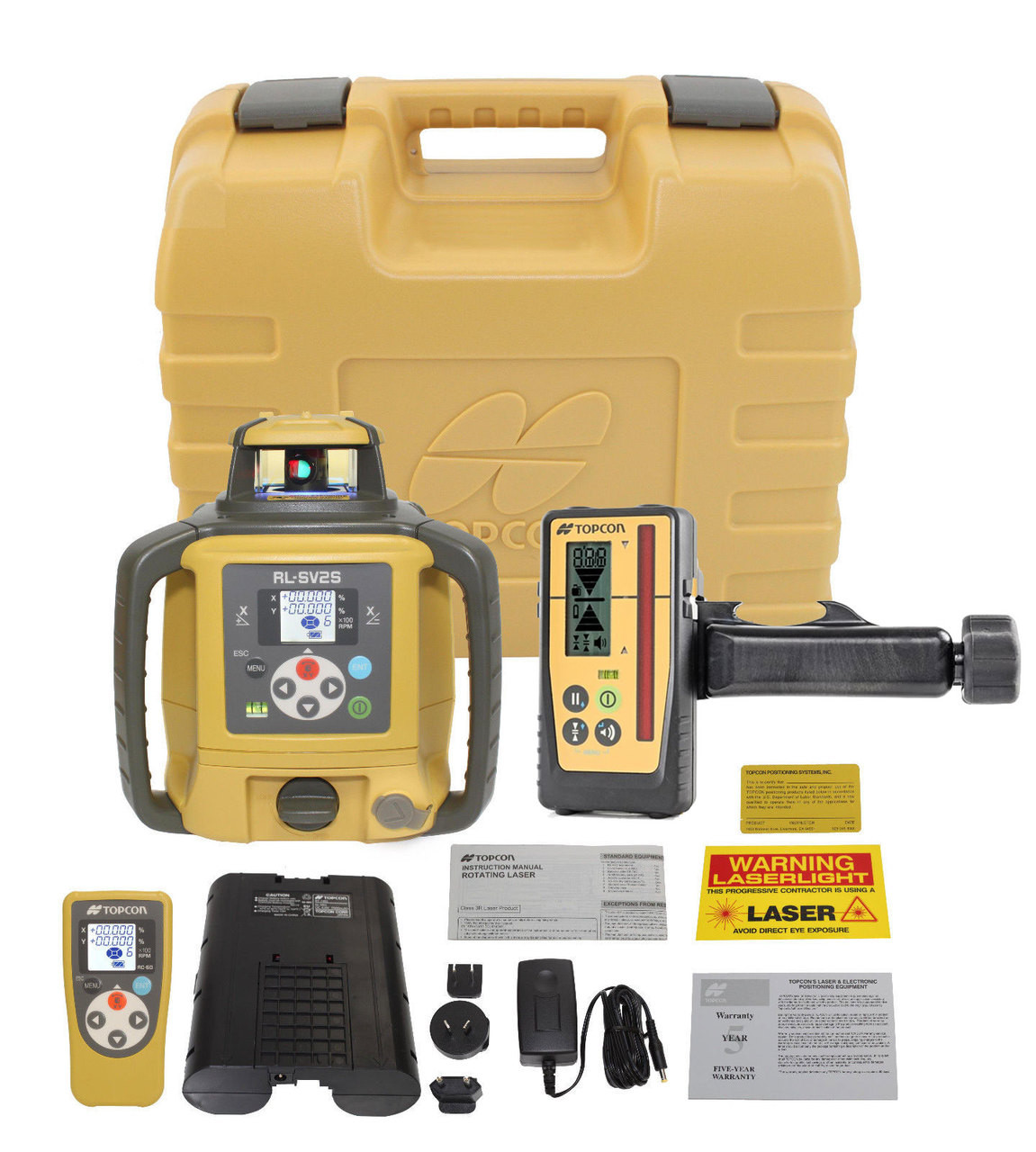

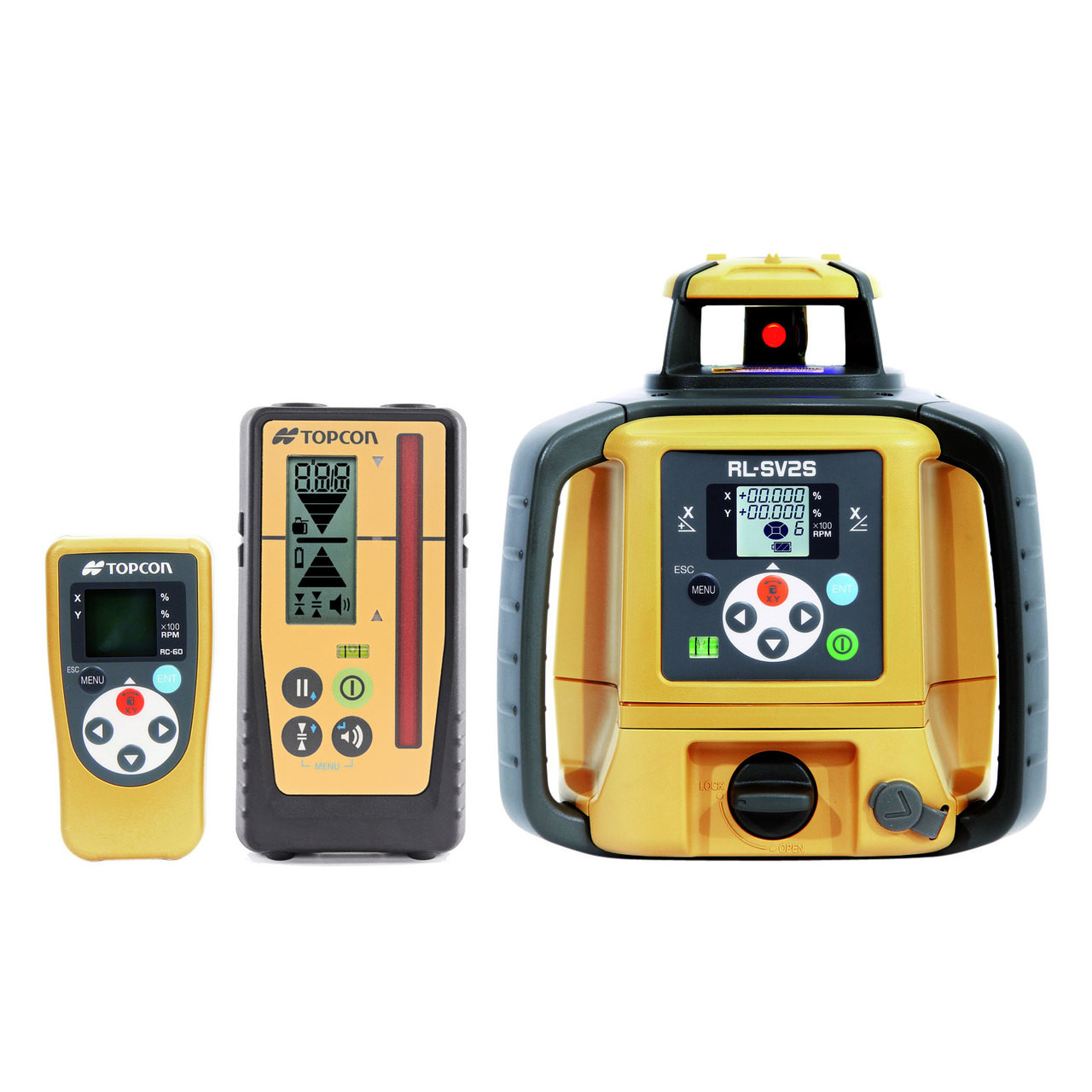

• RL-SV2S Dual Grade Laser (Rechargeable Batteries)

• RC-60 Remote Control 313670002
• LS-100D Long Range Laser Receiver Sensor 1011989-01
• Receiver Rod Clamp Holder 100 (1011990-01)

• Rechargeable NiMH Battery Pack BT-74Q (313680404)

• Rechargeable Battery Holder (313680402)
• Battery Charger (AD-15) 1012845-01
• Rugged Hard Shell Carrying Case
• 5-Year Warranty Guarantee

  Note: Rechargeable batteries can be removed and replaced with Standard 4-D Cell Alkaline Batteries

MULTI-USE APPLICATIONS
Designed for a variety of tasks, it can be used for horizontal, sloping and vertical laser applications.  Slopes up to ± 5 % can be used in either the X or Y axis.  Turn it on its side and use it for layout and alignment jobs.

HIGH POWERED
With an operating range of over 2,600 feet diameter the RL-SV2S has the power to cover even the biggest projects.

LONG BATTERY LIFE
Contractors who want a laser with a long battery life will love the RL-SV2S.  With an operating time of 60 hours with included Rechargeable NiMH batteries and 120 hours on Alkaline batteries this laser will still be working long after others have quit.  Alkaline batteries can be used as a back-up for the Rechargeable batteries.

ALL WEATHER DEPENDABILITY
With the IP66 rating, the TOPCON RL-SV2S is JOBSITE TOUGH and can withstand dust, a sudden shower and even a torrential rainfall.

5-YEAR GUARANTEE
The TOPCON RL-SV2S Laser comes with a FIVE YEAR GUARANTEE.  Topcon is backing up this reliable, accurate laser with the best factory warranty in the industry.

Topcon LS-100D LASER SENSOR RECEIVER
Versatile and designed for maximum user convenience, the LS-100D features a digital readout to confidently deliver elevation and vertical alignment control on demand.

It features an extra-wide beam capture sensor that also rejects annoying interference from strobe light exposures.  The large and bright LCD displays (front and rear) feature 9-channels of grade information and digitally show the distance to on-grade.  By pressing the Hold button, the display is locked so the user can conveniently read the the results.  For added versatility, three colored LED's and a strong magnet mount are embedded for vertical operation, ideal for steal erection or operator grade checking while excavating.

To assist in monitoring the Topcon rotating laser, alert icons appear on the LCD if the instrument is disturbed (HI Alert) or when the laser battery is low.
