Topcon TP-L6G Pipe Laser Package - GREEN Beam with LED Plumb 1034437-06 SmartLine

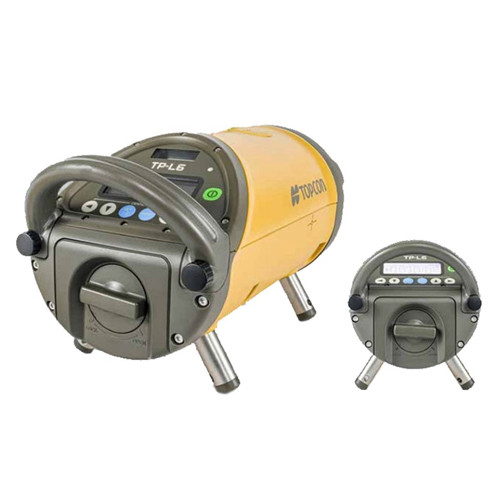

Topcon TP-L6G SmartLine Green Beam Pipe Laser

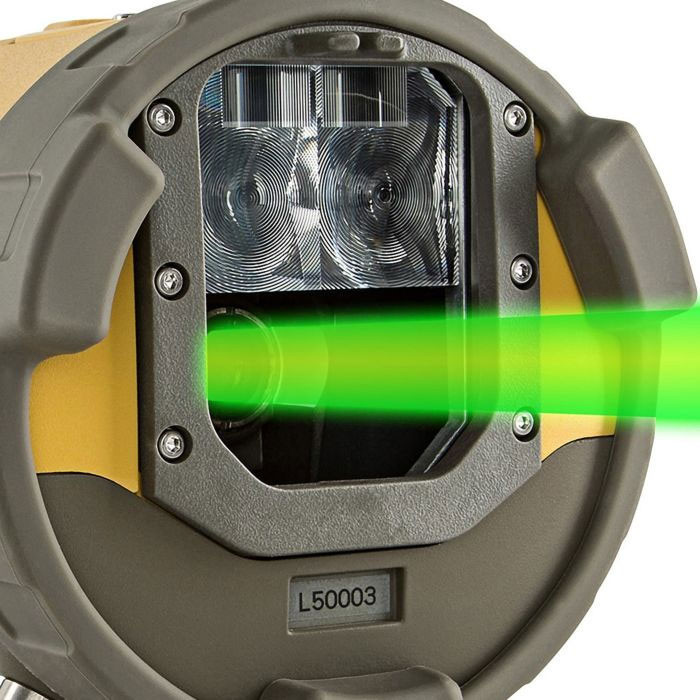

The Topcon TP-L6G is a professional-grade green beam pipe laser engineered for contractors who demand accurate grade and alignment in underground sewer, drainage, and utility installations. Featuring a 520nm green laser diode, the TP-L6G delivers a beam the human eye perceives up to four times brighter than comparable red beam instruments—critical when working deep in dark utility trenches and tight sewer mains where visibility directly impacts productivity and accuracy. Designed for municipal utility crews, underground contractors, and civil construction teams, this instrument simplifies pipe alignment, reduces rework, and keeps your crew moving efficiently on grade-sensitive installations.

Built for Underground Jobsite Conditions

Sewer and drainage grading work demands an instrument that can handle wet, dirty, and confined conditions without sacrificing accuracy. The Topcon TP-L6G is housed in a rugged, waterproof body rated for the hostile environment inside an active pipe run. The instrument self-levels within its compensator range and locks out when tilted beyond that range, preventing false readings from reaching your target. An integrated LED plumb reference indicator at the rear of the unit assists with instrument setup and confirms orientation in the pipe without requiring additional tools. Whether you are setting grade on a new storm drain system, aligning a sewer main under a road crossing, or checking fall on a residential lateral, the TP-L6G gives you a bright, stable reference point your crew can trust from the manhole to the machine.

Key Specifications

• Laser Class: Class 3R (IEC 60825-1)
• Beam Color: Green (520nm)
• Beam Divergence: Approximately 3.0mm at 30m
• Grade Range: -10% to +40% (manual); self-leveling within ±10%
• Accuracy: ±1.5mm at 30m (±1/16 in at 100 ft)
• Self-Leveling Range: ±10% (compensator locks outside range)
• Pipe Diameter Compatibility: 4 in to 24 in (with appropriate target/cradle)
• Operating Temperature: -20°C to +50°C (-4°F to +122°F)
• Battery Life: Approximately 70 hours (4 x AA alkaline)
• Water/Dust Protection: IP67 rated
• Weight: Approximately 1.4 kg (3.1 lbs) without batteries
• Display: LED grade readout with plumb reference indicator

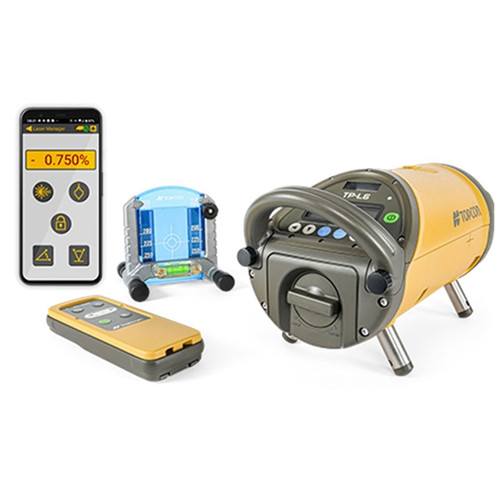

What's in the Kit

• Topcon TP-L6G green beam pipe laser instrument
• Pipe cradle / mounting saddle for in-pipe setup
• Laser target with grade scale
• 4 x AA battery holder
• Operator's manual
• Hard carrying case

Key Features

• 520nm green beam for maximum visibility in dark underground environments
• Automatic self-leveling compensator with tilt lockout for fail-safe operation
• LED plumb reference indicator for fast, accurate in-pipe setup
• Extended battery life reduces downtime on long installation shifts
• IP67 waterproof rating handles active sewer and wet trench conditions
• Wide grade range accommodates steep residential laterals and shallow municipal mains
• Compact, balanced body fits cleanly in small-diameter pipe
• Compatible with Topcon pipe laser targets and accessories

Job Applications

Municipal Sewer Main Installation

Set the TP-L6G at the upstream manhole and shoot grade down a new sewer main. The bright green beam is visible to the pipe crew at the excavator, allowing quick checks without stopping work. The self-leveling compensator maintains a true grade reference even as ground conditions shift during excavation.

Storm Drain and Drainage Structure Layout

Storm drainage systems require consistent fall to prevent standing water and long-term structural issues. The TP-L6G's accurate grade output and stable beam give your crew a reliable reference across long runs, including installations through road crossings and beneath structures where access is limited.

Residential and Commercial Sewer Laterals

Residential laterals often require steep grades in confined spaces. The TP-L6G's broad grade range and small form factor make it the right tool for setting fall on tight lateral runs from the main to the building, where accuracy at short distances is just as important as on a long municipal project.

Underground Utility Alignment Checks

Beyond new installation, the TP-L6G serves inspection and QA crews verifying alignment and grade on installed pipe before backfill or final acceptance. The bright green beam makes it easy to confirm the instrument reading against the target even in partially illuminated pipe environments.

Compatible Accessories

• Topcon Pipe Laser Targets and Rods
• Replacement Pipe Cradles and Saddles
• AA Battery Packs and Alkaline Batteries
• Hard Cases and Transport Bags for Pipe Lasers
• Full Topcon Pipe Laser Accessory Catalog

Related Guides

• How to Set Up a Pipe Laser for Sewer Installation
• Red vs. Green Beam Pipe Lasers: Which Is Right for Your Job?
• Setting and Verifying Grade with a Pipe Laser
• Topcon Pipe Laser Model Comparison Guide

Frequently Asked Questions

Why choose a green beam pipe laser over a red beam model?

The human eye is most sensitive to green light in the 520nm range, making a green beam appear significantly brighter than a red beam at the same power output. In dark underground sewer environments, this translates to a more visible target dot at greater distances and in conditions where a red beam can be difficult to locate quickly. The Topcon TP-L6G's green beam helps crews work faster and with greater confidence on deep or long pipe runs.

What pipe diameters is the Topcon TP-L6G compatible with?

The TP-L6G is designed to work with pipe diameters ranging from 4 inches to 24 inches when used with the appropriate cradle and target hardware. For installations outside this range or specialty pipe configurations, contact Express Tools to confirm the correct accessory setup before ordering.

How do I set the grade on the TP-L6G?

The Topcon TP-L6G allows grade to be set manually across its full grade range using the instrument's grade adjustment controls. Within the self-leveling range, the compensator automatically maintains the set grade reference. The LED display confirms the active grade setting and alerts you if the instrument is tilted beyond the compensator's working range, at which point the beam locks out to prevent inaccurate readings.

Is the TP-L6G waterproof enough for active sewer work?

Yes. The Topcon TP-L6G carries an IP67 waterproof rating, meaning it is protected against temporary immersion in water up to one meter for up to 30 minutes, as well as complete protection against dust ingress. This rating makes it appropriate for wet trench conditions, active sewer environments, and the general abuse of underground utility work. As with any precision instrument, rinsing with clean water and proper storage after exposure to sewage or chemicals is recommended.
